Autopilot Pump Fitting Kit for ORB Steering System.

Simrad code:000-15942-001

Autopilot hydraulic fitting kit for ORB steering System and MKII Pumps 1, 2, 3, 4 &.5 Hose configuration to suit various pump and helm layouts.

Compatible with O-Ring BOSS (ORB) steering systems such as Seastar and various others.

Fitted hose kit designed for simplified ORB system installations, reducing the incidence of faulty field terminated hydraulic hoses and incorrect installation layouts.

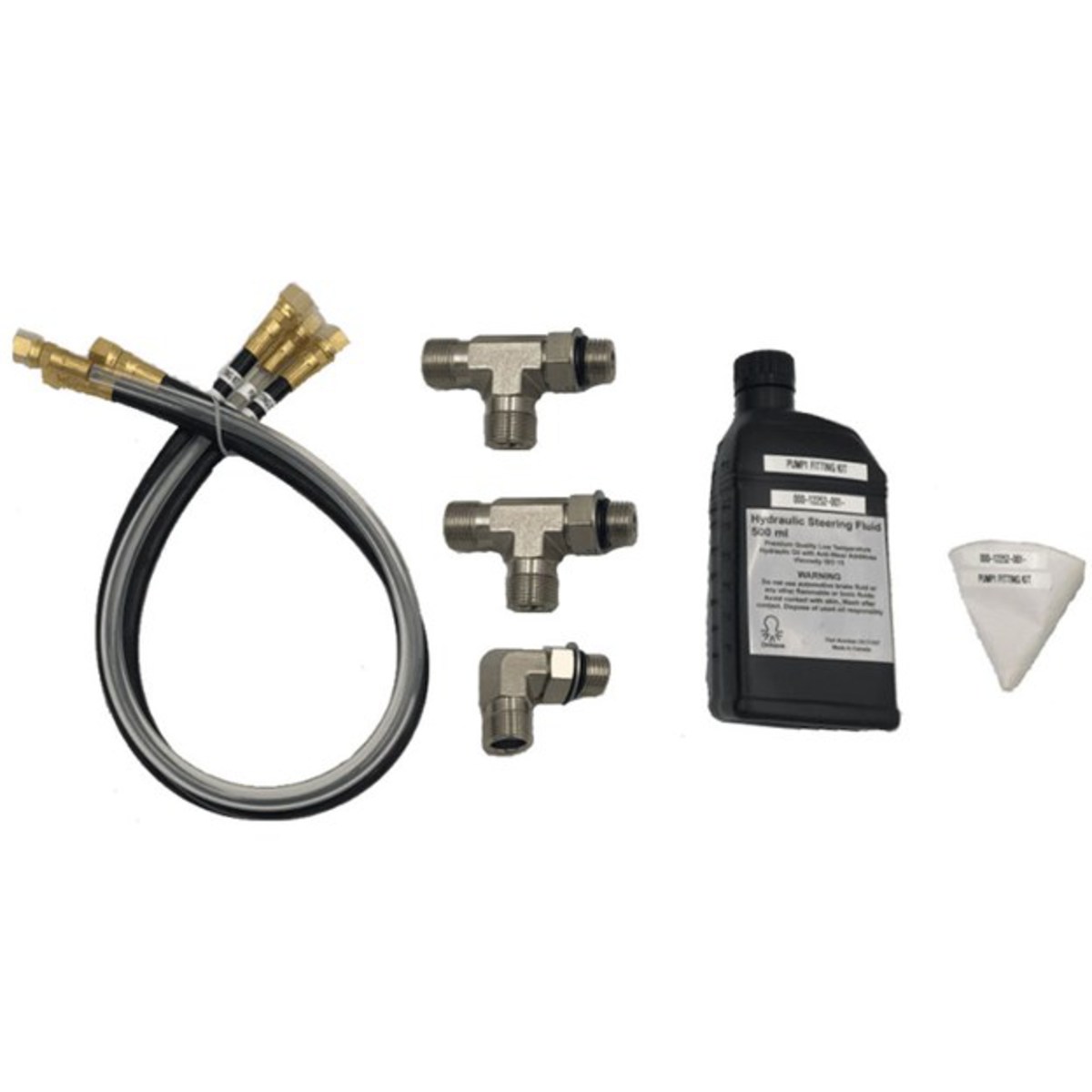

Kit contains:

2 x T Connectors ORB-05M > 9/16”-24 UNF > 9/16”-24 UNF
1 x Right angle connector ORB-05M > 9/16”-24 UNF
2 x Hoses 5/16" dia. (Black) 1500 PSI max, 750 mm (29.5"), 9/16” UNF to 9/16”-24 UNF
1 x Hose 5/16" dia. (Clear) 65 PSI max, 750 mm (29.5"), 9/16” UNF to 9/16”-25 UNF
1 x Bottle of hydraulic fluid
1 x Filter funnel
