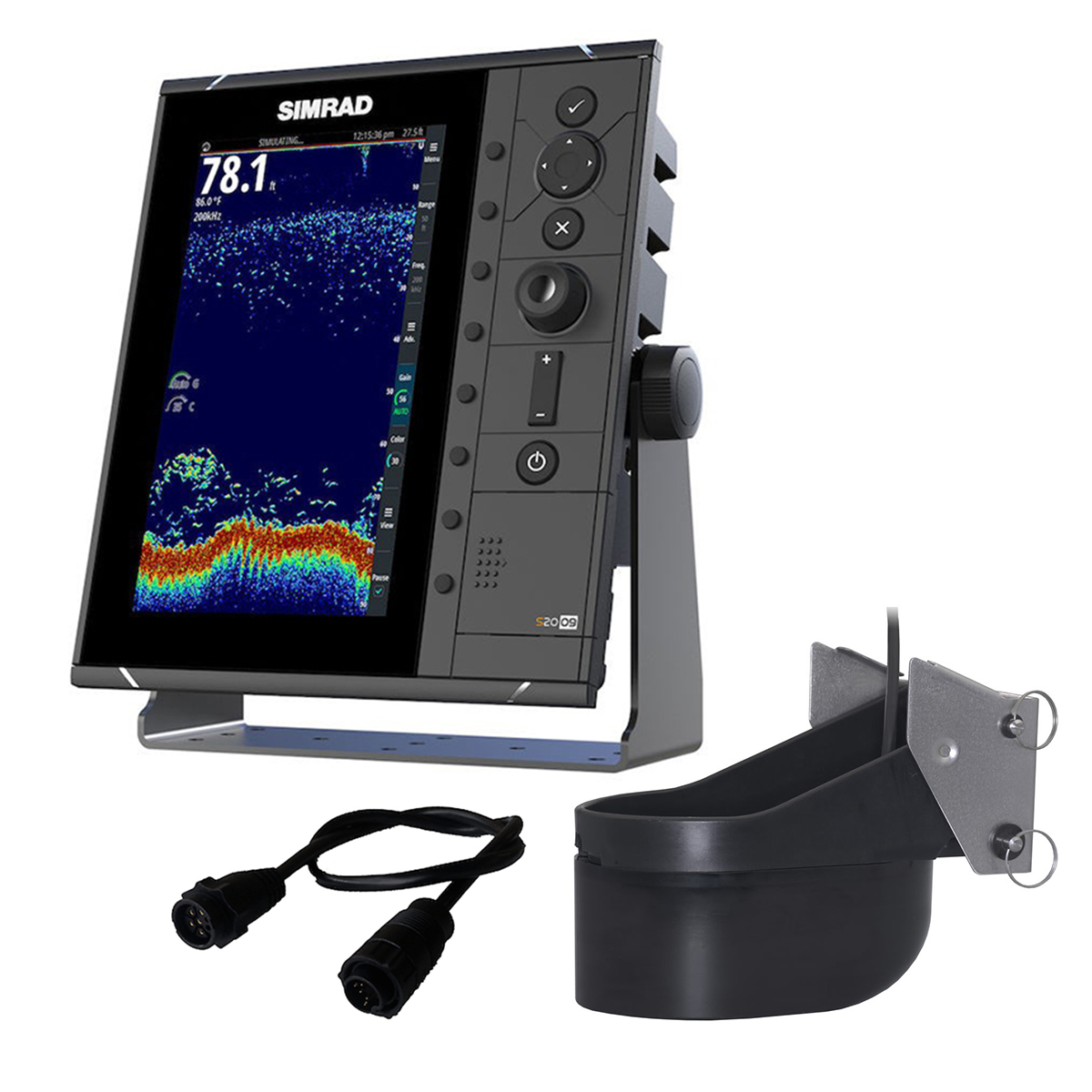

A tried and True 1kw sounder teamed up with the Airmar TM260 1kw transducer (includes adaptor cable).
Integrated CHIRP Echosounder
S2000 series displays feature a built-in echosounder module with CHIRP technology to deliver higher resolution, improved target separation, and greater image clarity than traditional sonar. Simrad technology makes CHIRP available not only for special-purpose CHIRP transducers, but also for traditional single-frequency transducers. This offers a cost-effective upgrade to CHIRP technology by installing an S2000 series fish finder for use with your existing transducer. Installation is simple thanks to a plug-and-play port for Simrad and Airmar transducers with blue seven-pin connectors, and a range of optional adapters to enable easy retrofit to other transducer types.

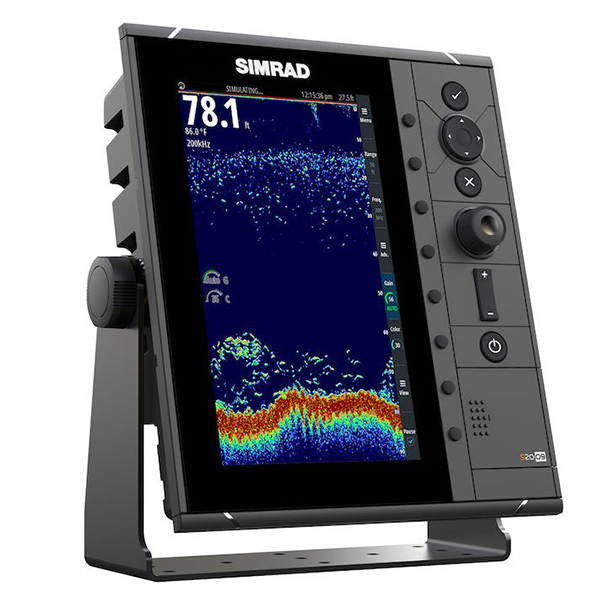

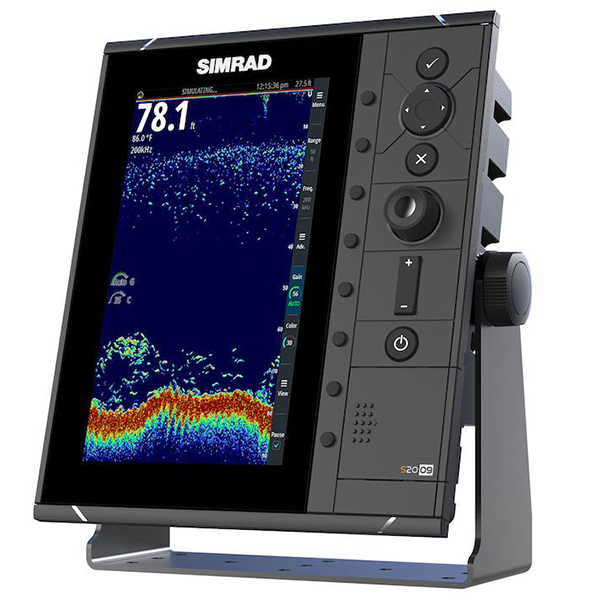

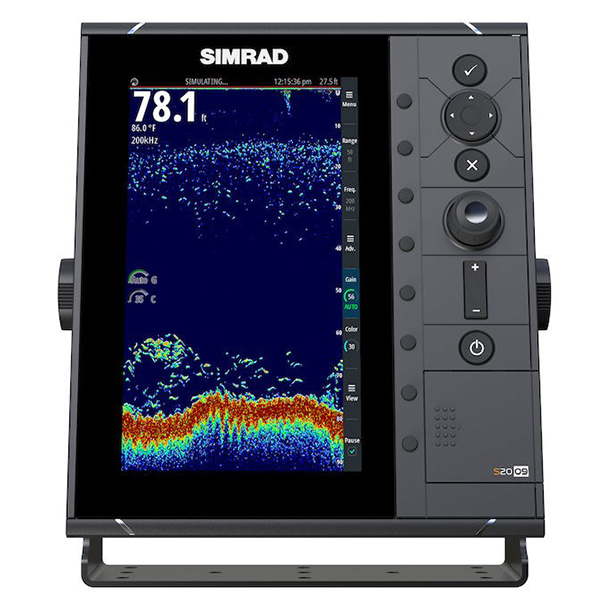

9-inch Portrait Display
The S2009 maximises screen size where limited mounting space is available, with a compact 9-inch portrait display that’s perfect for centre consoles. Its vertical layout shows the water column with a high level of detail, making it easy to distinguish individual fish arches and other key features. Direct-access menu keys beside the display provide intuitive control of on-screen menu options, enabling one-button access to key settings and features. With reliable, long-life operation and clear tactile feedback, the S2009’s large buttons are suitable for use in rough seas, while travelling at speed, and with wet or gloved hands.
Networking & Expansion
It’s easy to share sonar data with other Simrad displays over an Ethernet network. S2000 series fish finders can also be used as dedicated displays for the built-in sonar module on Ethernet-connected Simrad multifunction displays, freeing your main display for other purposes such as navigation or radar. Other devices can be integrated via NMEA 2000® and NMEA 0183® connectivity, enabling additional functionality such as marking a waypoint on your chartplotter straight from the fish finder’s history in order to revisit a promising spot.
The Head Unit:
This display has maximum vertical detail, and intuitive keypad-driven operation for reliable control in all conditions. This dedicated echosounder integrates seamlessly with other Simrad displays, while offering charter captains and long-range sportfishing vessels the reliability of a self-contained sonar platform.
Included:
- S2009 & R2009 DASH MOUNTING PACK
- S2009 & R2009 Bracket Mounting Pack
- SUNCOVER S2009 & R2009
- BEZEL ASSEMBLY EDGE S2009 & R2009
Features:
- Integrated 9-inch portrait display
- High brightness ideal for outside installation
- High depth penetration and ping speed
- Simple operation with 8 direct-access menu keys
- Customise your view to highlight targets of interest
- Bracket or flush-mount installation (bracket included)
Specifications:
- SKU: 000-12185-001
- Compass Safe: 0.65 m (25.6")

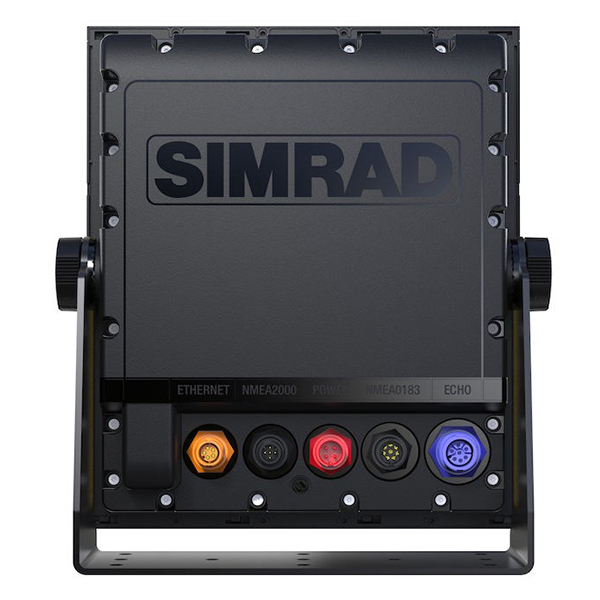

- Ethernet Ports: 1 x 5 pin Yellow, 1 Mbit
- NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
- Power Consumption max: 11 W
- Power Consumption typical: 11 W
- Viewing Angles: 110 x 160
- Supply Voltage: 12/24VDC (10.8 - 31.2 VDC)
- Screen Brightness: 1200 cd/m2
- Operating Temperature Range: -15 - 55 deg C (5 - 131 deg F)
- Weight: 2 kg (4.4 lbs)
- Warranty Period: 2 years
- Dimensions: W x H x D 224 x 260 x 61 mm (8.8 x 10.2 x 2.4 in)
- Storage Temperature Range: -25 - 55 deg C (-13 - 131 deg F)
- Recommended Fuse Rating: 3A
- Display Resolution: 480 x 800
- NMEA 0183 Sentences supported Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWDOutput: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM
- Waterproofrating: IPX7
- Interface: Keypad and rotary knob

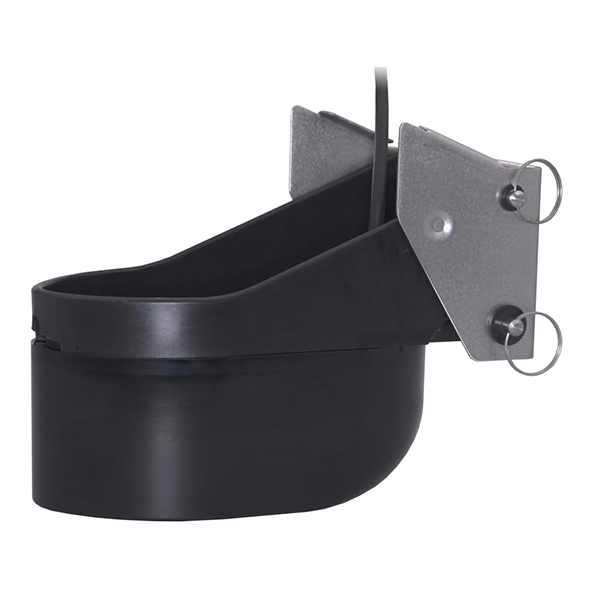

The Trasducer:
Powerful but sensitive! The TM260 will enhance fish detection on virtually all of today’s fishfinders. The narrow, 6° beam 200kHz ceramic will give you excellent resolution and crisp image detail needed for bottom fishing. The TM260’s low ringing is perfect for finding fish holding tight to the bottom and other structure. The seven-element 50kHz array has a wider 19° beam for deeper bluewater fishing. The outcome at both frequencies is excellent resolution and crisp image detail where it’s needed most. The TM260’s rugged mounting bracket is easy to install and the transducer has a streamlined shape that delivers high-speed performance up to 30 knots.
Features:
- Top-of-the-line narrow-beam 1kW transom-mount transducer
- Designed for bottom fishing
- Wide 19° beam at 50kHz
- Narrow 6° beam at 200kHz
- Interfaces to any compatible 600W or 1kW sounder
- Depth and fast-response water temperature sensor
- Kick-up assembly locks in the “up” position and willnot damage the transom
- Accommodates transom angles between 3° and 21°
- Urethane housing
- Boat Size: Up to 40'
Specifications:
- Style: Transom mount
- Cable Length: 30'
- Monitors: Depth and temperature
- Material: Urethane housing, stainless steel bracket
- Acoustic Window: Urethane
- Transom Angle: 3° to 21°
- Connector: 9-pin xSonic
- Transmit Power: 1,000W (RMS)
- Frequency: 50/200kHz
- Max. Depth: 3,000'
- Beamwidth: 19°/6

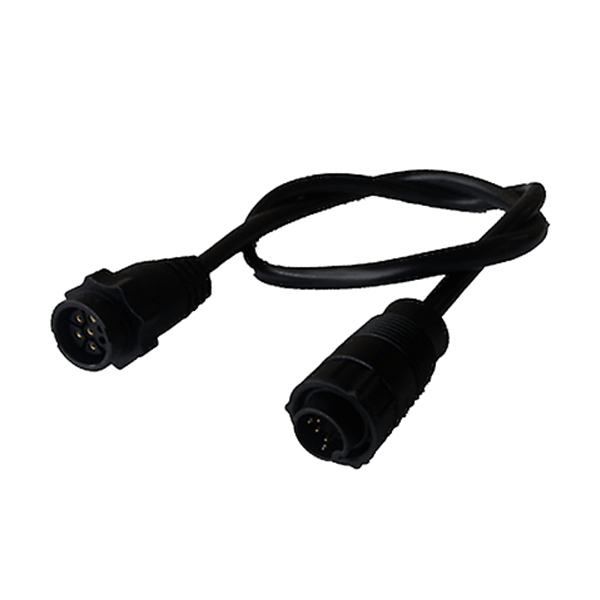

Adaptor Cable:
Connects Navico 9 pin X-Sonic plug transducers to the Lowrance 7 pin Blue Legacy plug connectors fitted to original Elite series, Hook series and HDS.
Xsonic Transducer Adapter, MFG# 000-13977-001, adapts transducer with black 9 pin plug for use with older units using blue 7 pin plug.
- Length: 6 inches (150mm)
