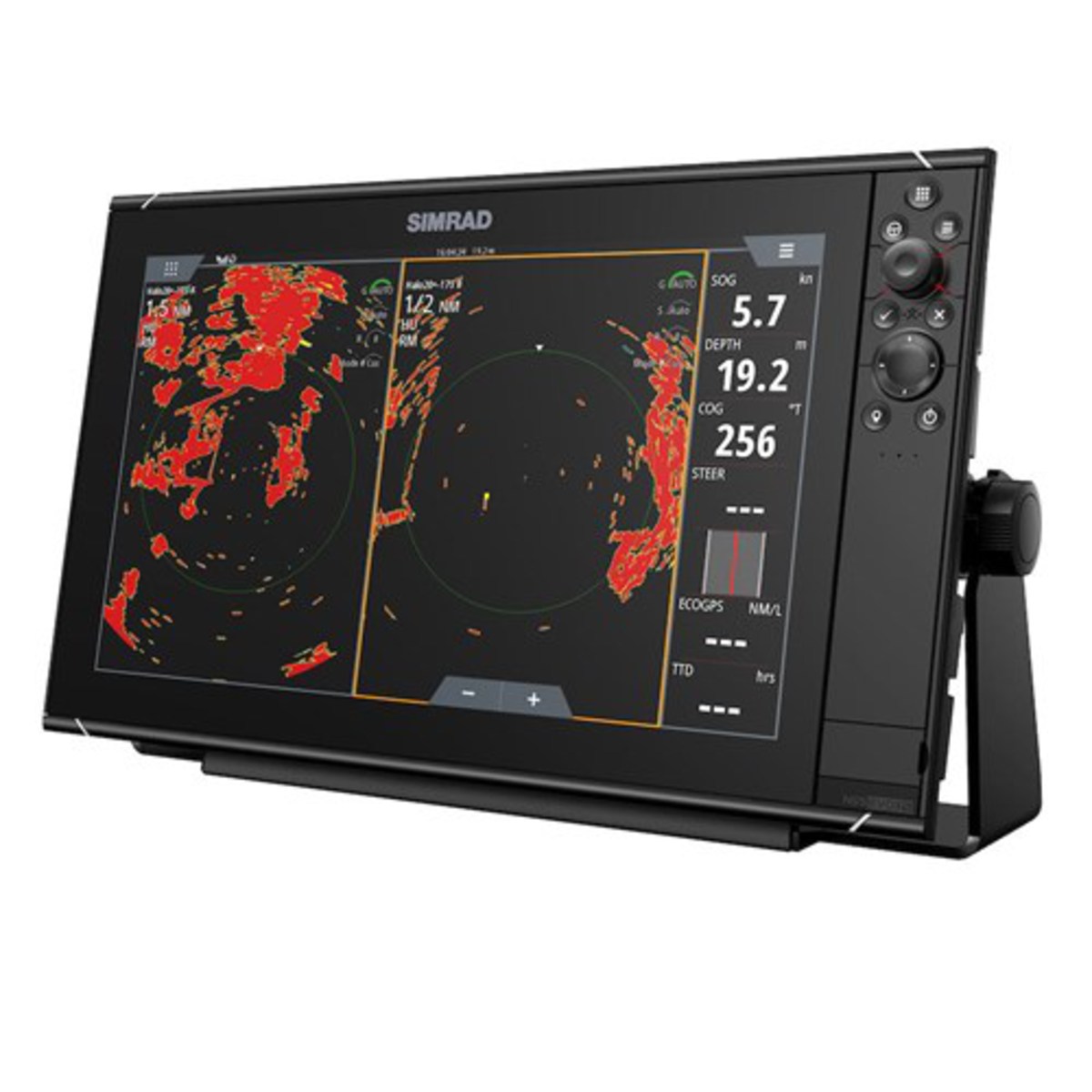

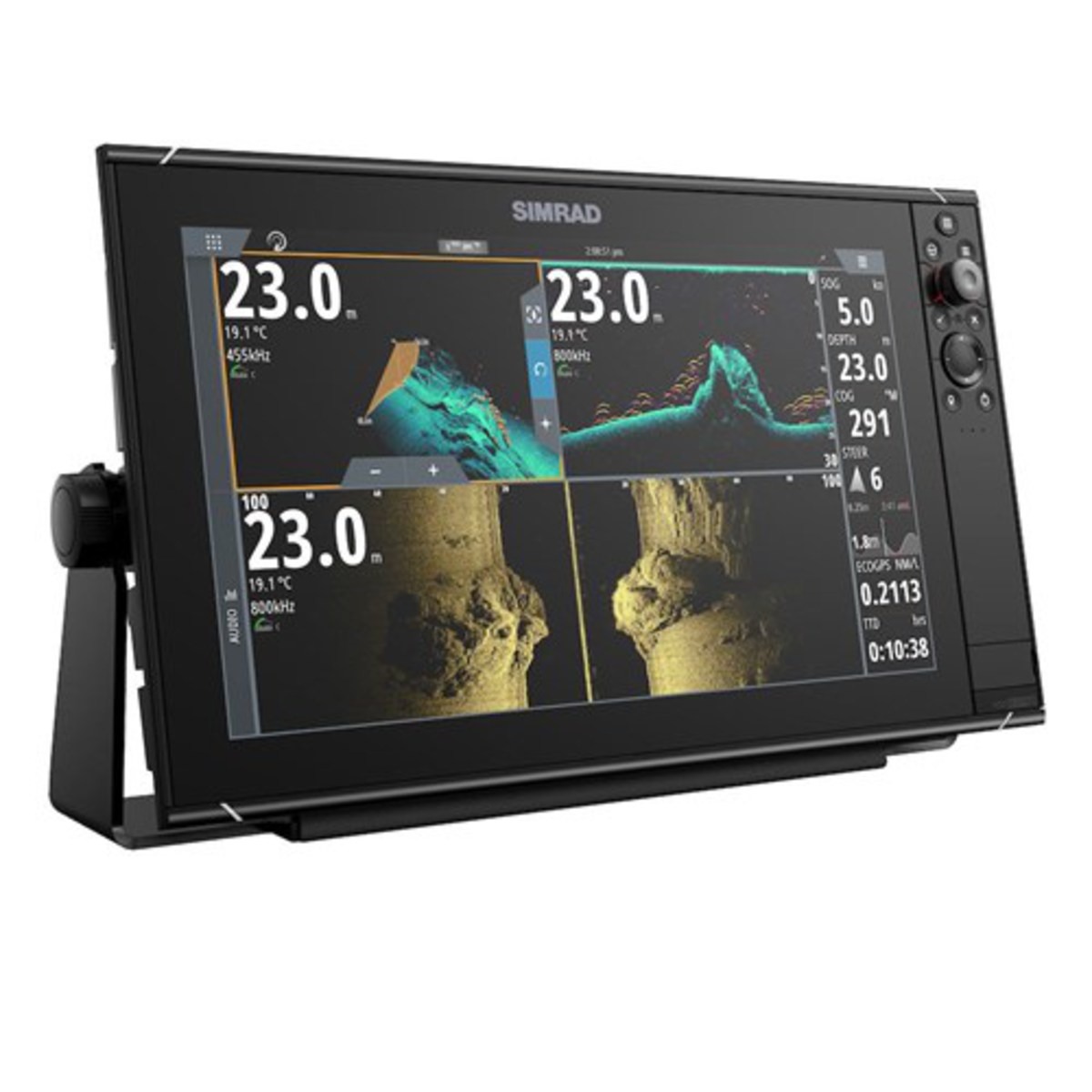

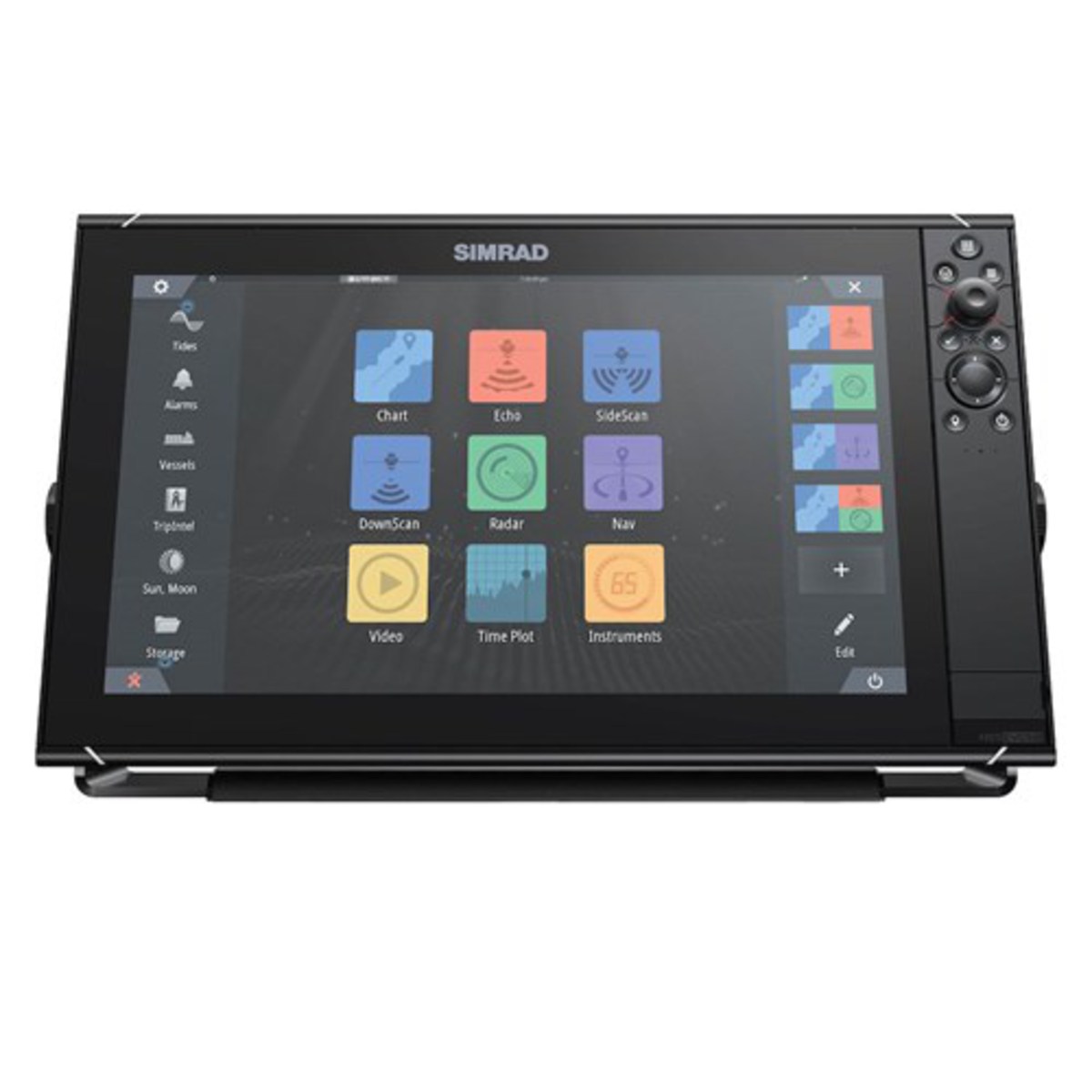

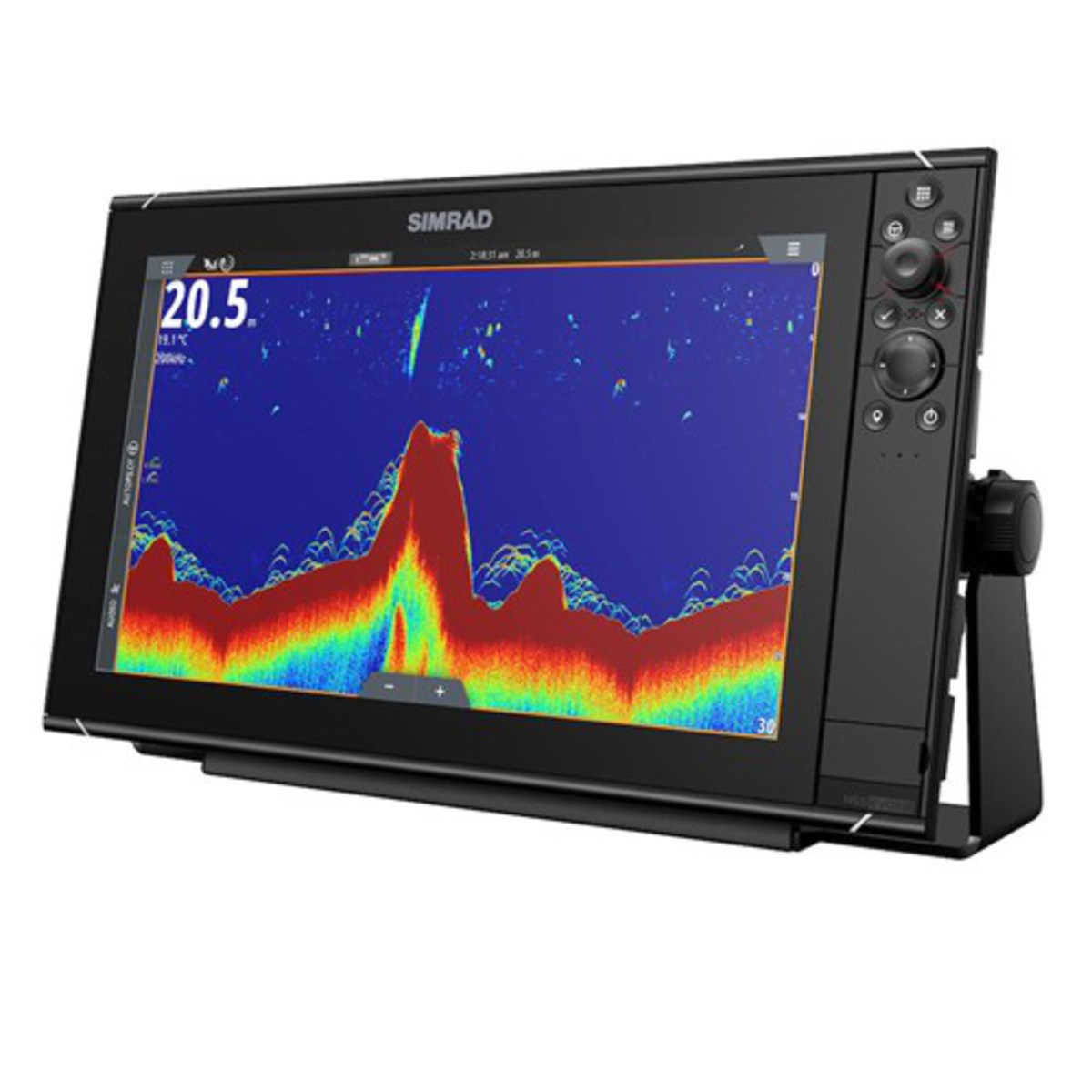

NSS16 evo3S features a Full HD 16-inch display for maximum on-screen detail and unprecedented levels of built-in functionality with charts, radar, sonar, and more.
The new iMX 8 high-performance processor, ensures superfast responses to your every command for complete navigation control. Experience ultra-wide viewing angles, and reliable touch or keypad operation to suit all conditions. Includes world basemap.
Features:
- iMX 8 Integrated six-core processor for superior performance
- 16-inch SolarMAX ™ IPS display with ultra-wide viewing angles; viewable through Polarized sunglasses
- Switch seamlessly between touchscreen and keypad control
- Built in high-performance echosounder with 1kW CHIRP
- Built-in GPS receiver and wireless connectivity
- Control Simrad sonar, radar, autopilot, and other accessories
- Industry-standard connectivity to engines, sound system, and more
- TripIntel™ trip planning and support for automatic routing
- Choose low-profile flush mounting or convenient bracket mounting
- Download the Simrad App and connect with smartphones, tablets, and internet hotspots
- Includes world basemap
Specifications:
- NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
- Supply Voltage: 10 - 31.2 V DC
- Update rate: 10 Hz
- Shock Vibration: 100 000 cycles of 20 G
- Screen Brightness: 1200 nits
- Operating Temperature Range: -15°C to +55°C (5° F to 131° F)
- Internal Storage: 16 GB
- SD Card Storage: 2 MicroSD slots, max. 32GB each. Larger if formatted to NTFS
- Ethernet Ports: 2 x 5 pin yellow connector x 10/100 Mbit
- Video: 2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001). HDMI output
- Warranty Period: 2 Years
- Power Consumption max: 40 W
- Weight: 4.65 kg (10.25lbs.)
In the Box:
-
Power Cable, 4-Pin
-
NSS16 evo3/3S Sun Cover
-
NSS16 evo3/3S & Zeus³/3S 16 Edge Bezels
-
NSS16 evo3/3S & Zeus³/3S 16 Dash Mount Kit
