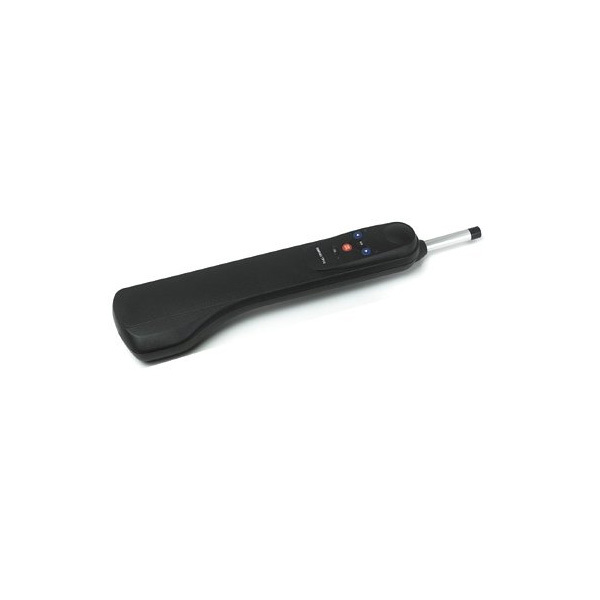

The TP range delivers reliable auto steering for boats with tillers up to 32ft in length. Simple, straightforward controls and a precise steering system - normally only found on higher-end models - combines in a quiet package with extremely low power draw to allow sailors a safe passage in coastal waters.
Key Features
- Easy To Use: A simple selection of controls enable straightforward selection of the adjustments you require.
- Precision Steering: Outstanding performance through a wide range of scenarios, even extreme weather, ensures the Pilot is positive and effective in typical coastal sailing conditions.
- Battery Optimisation: Low power draw ensures your battery will last longer, even if you use the autopilot for prolonged periods.
- Silent Sailing: The TP range of autopilots have been designed with minimal noise in mind. They're extremely quiet, so you can enjoy the peaceful sensation of being out on the water.
- Waterproof Sealing:Protection from the elements.
Technical/Environmental
Operating Temperature -10° to +55°C
Operating Temperature Stored -10° to +55°C
Product Width 105 mm / 4.1 in
Product Depth 60 mm / 2.4 in
Product Height 610 mm / 24 in
Power
Power Supply (Supply Voltage) 12Vdc (10.8 - 16Vdc)
Power Consumption Auto 7 A Max
Power Consumption Standby 0.06A
Other
Adjustable Gain True
Alarm Audible And Visible True
Automatic Tracking True
Auto Trim True
Gain 1-9
Night Illumination True
Non Volatile Memory True
Storm Proof True
Auto Seastate True
Autopilot/Auto-Steering
Intelligent Steering Action True
Max Boat Length [m] 10
Mounting Selectable Port Or Starboard True
Peak Thrust 65kg
Drive System Screw thread
Fluxgate Compass True
Max Boat Displacement [tons] 3.7
