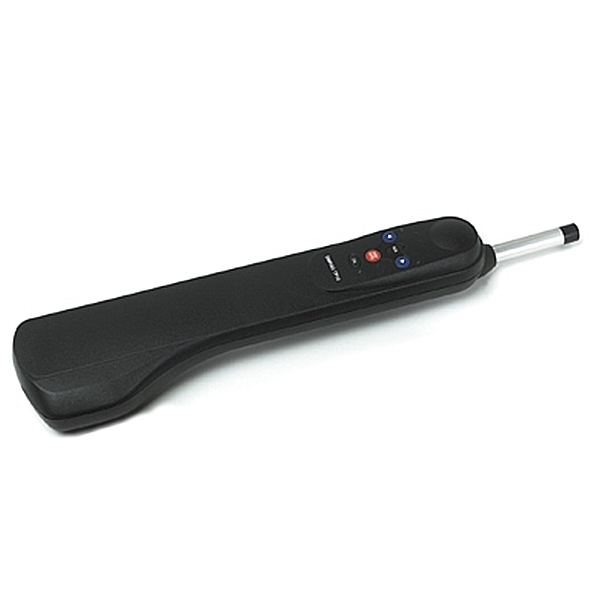

A high precision autopilot system.
Simrad Tillerpilots are designed for high precision, reliable autosteering while drawing low current to optimise battery life. The hard wearing, waterproof body contains all controls and has been tested for many hours in total immersion. High performance for small to mid range sailboats Simrad Tillerpilots are designed for high precision, reliable autosteering while drawing low current to optimise battery life. The hard wearing, waterproof body contains all controls and has been tested for many hours in total immersion. Exceptionally quiet in use, the Tillerpilot gives fast and positive performance for effective steering in a wide range of sea states and wind conditions.
Features:
- Waterproof sealing for protection of the elements and reliable use
- Extremely quiet, enjoy the silence of sailing
- SimNet compatible, simple plug and play DIY installation (TP22 and TP32)
- Easy To Use
- Precision Steering
- Battery Optimisation
- Silent Sailing
- Waterproof Sealing
- SimNet Compatible
Specifications:
- Peak Thrust: 70kg
- Max Boat Displacement: 5 tons
- Max Boat Length: 11 m 36 ft
- Drive System: Screw Thread
- Intelligent Steering Action: Yes
- Fluxgate Compass: Yes
- Mounting Selectable Port Or Starboard: Yes
- Steer To GPS: Yes
- Steer To Wind: Yes
- NMEA 0183 Input: Yes
- SimNet Control: Yes
- Power Supply: 12Vdc vDC
- Power Consumption Auto: 0.05A
- Power Consumption Standby: 0.06A
- Adjustable Gain: Yes
- Alarm: Audible and Visible: Yes
- Auto Seastate: Yes
- Auto Trim: Yes
- Automatic Tracking: Yes
- Gain: 1-9
- Night Illumination: Yes
- Non Volatile Memory: Yes
- Operating Temperature: -10° to +55°C
- Operating Temperature Stored: -10° to +55°C
- Remote Control Option: Yes
- Storm Proof: Yes
TP32 Tillerpilots offer easy interfacing to external devices using Simrad's proprietry network system, SimNet. When interfaced, enhanced options such as sail to wind or sail to waypoint are easily accessed via the key pad. The recommendations assume typical coastal sailing conditions and in circumstances where extended voyages or more extreme weather conditions are expected, the choice of a higher specification pilot is recommended including the full range of Simrad below deck pilots.
With a peak thrust of up to 70 kg (154 lbs) and a lock-to-lock speed of 8 secs with a 20 kg (44 lbs) load the TP22 is a powerful midrange pilot for boats of up to 11m (36ft) in length.
Easy operation
Adjustments to course to Starboard, in 1 (press key once) and 10 steps (hold key down). Adjustments to course to Port, in 1 (press key once) and 10 steps (hold key down). In its stand-by mode the tillerpilot will lock onto the current heading with a press of the key. Another single press will return the pilot to stand-by mode. By pressing the tack key and either the port or starboard key the pilot will steer the boat effortlessly onto the other tack. Pressing the NAV key will stear the boat to the next programmed waypoint. GPS information can be provided via SimNet or NMEA.
