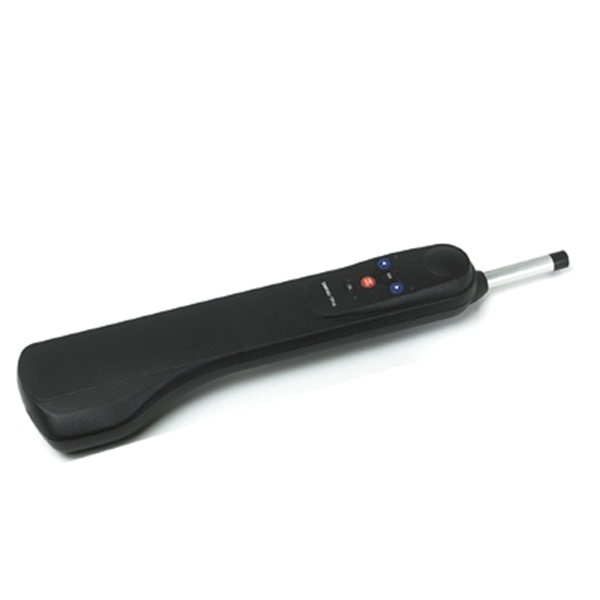

For Yachts up to 39ft - Simrad Tillerpilots are designed for high precision, reliable autosteering while drawing low current to optimise battery life. The hard wearing, waterproof body contains all controls and has been tested for many hours in total immersion. Exceptionally quiet in use, the Tillerpilot gives fast and positive performance for effective steering in a wide range of sea states and wind conditions.
TP32 Tillerpilots offer easy interfacing to external devices using Simrad's proprietry network system, SimNet. When interfaced, enhanced options such as sail to wind or sail to waypoint are easily accessed via the key pad. The recommendations assume typical coastal sailing conditions and in circumstances where extended voyages or more extreme weather conditions are expected, the choice of a higher specification pilot is recommended including the full range of Simrad below deck pilots.
Specifications:
AUTOPILOT / AUTOSTEERING
- Peak Thrust: 85kg
- Max Boat Displacement: 6.3 tons
- Max Boat Length: 12 m 39 ft
- Drive System: Recirculating
- Intelligent Steering Action: Yes
- Fluxgate Compass: Yes
- Mounting Selectable Port Or Starboard: Yes
- Steer To GPS: Yes
- Steer To Wind: Yes
NETWORKING / CONNECTORS
- NMEA 0183 Input: Yes
- SimNet Control: Yes
POWER
- Power Supply: 12Vdc vDC
- Power Consumption Auto: 0.05A
- Power Consumption Standby: 0.06A
OTHER
- Adjustable Gain: Yes
- Alarm: Audible and Visible: Yes
- Auto Seastate: Yes
- Auto Trim: Yes
- Automatic Tracking: Yes
- Gain: 1-9
- Night Illumination: Yes
- Non Volatile Memory: Yes
- Operating Temperature: -10° to +55°C
- Operating Temperature Stored: -10° to +55°C
- Remote Control Option: Yes
- Storm Proof: Yes
