Simrad Ultrawide Nsx 3015Uw 15" Combo With Active Image 3 In 1 Transducer

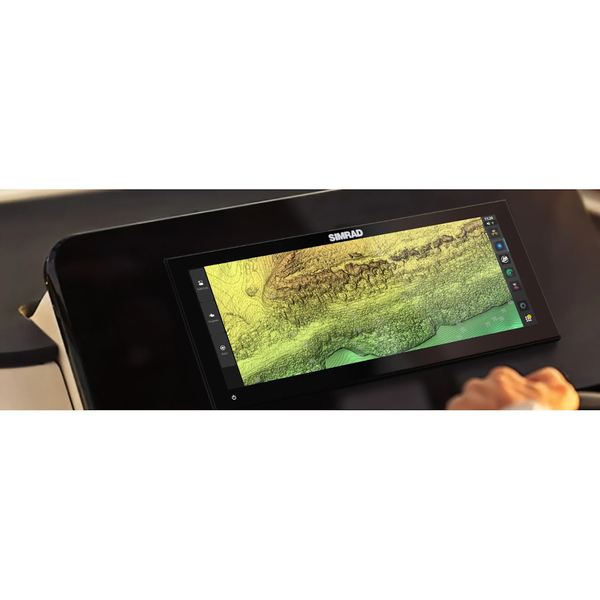

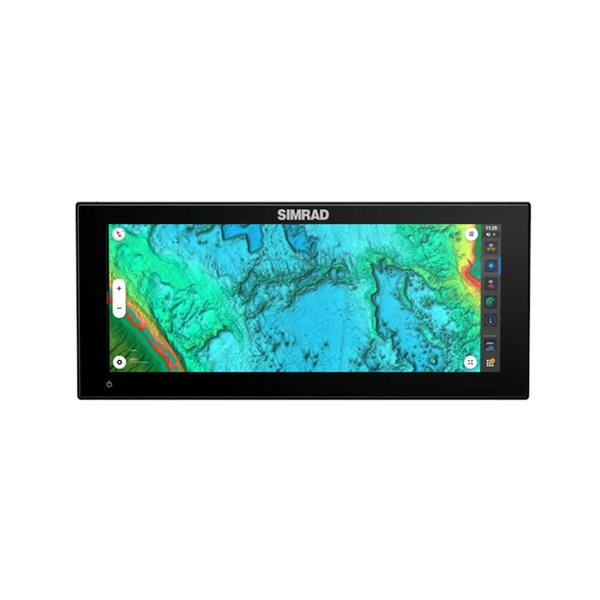

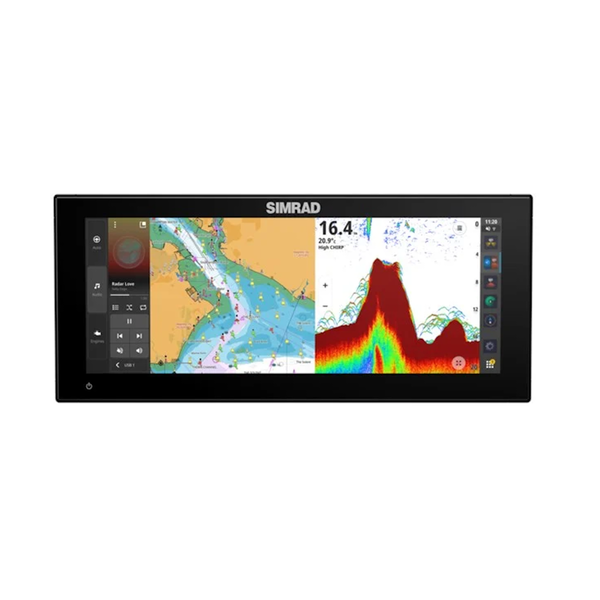

Expand your horizons with the world's first fully-featured ultrawide marine display. NSX® ULTRAWIDE brings all the benefits of dual screens to a single display for our most immersive experience yet. Get a truly unique, eye-catching dash, see apps as they were meant to be seen, and experience C-MAP®'s X-Gen charts in more detail than ever.

Supplied with the Active Image 3 in 1 Transducer. (Chart sold separately).

Transducer Details:

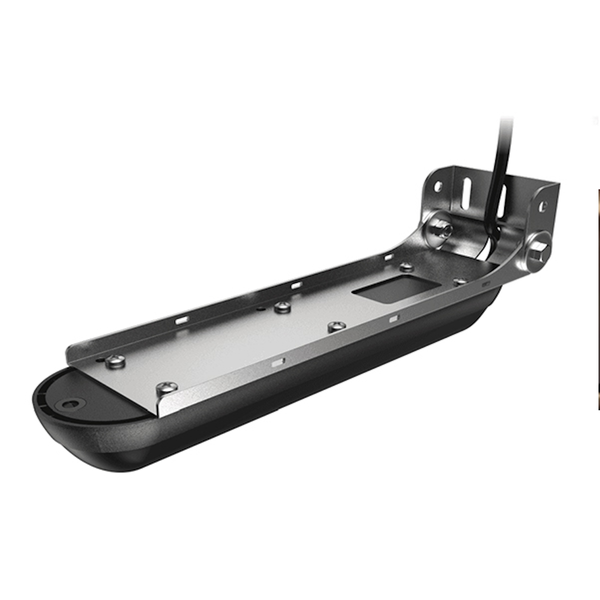

Lowrance Active Image Image 3-in-1 Tranducer:
Perfect for pinpointing fish-holding areas like rockpiles, standing timber, weedbeds, ditches and drop-offs, Active Imaging™ 3-in-1 sonar delivers superior clarity and the highest resolution images of fish and structure at a longer range than any other structure imaging technology.

See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ 3-in-1 sonar featuring CHIRP, SideScan and DownScan with FishReveal™. The high-level clarity, target separation and detail of Active Imaging will help you find more fish by making it easier to quickly identify fish-holding structure like rockpiles, standing timber, weedbeds, ditches and drop-offs – all at a greater distance from your boat. Get the best of CHIRP sonar and DownScan on one screen with the exclusive FishReveal™ Smart Target view that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

Lowrance Active Image Image 3-in-1 Tranducer Key Features:
More refined detail and better range than any other imaging technology
Active Imaging 3-in-1 transducer with Lowrance CHIRP, SideScan and DownScan
Easier target identification with FishReveal™ Smart Target View
Supports Medium and High CHIRP (83/200kHz) + 455/800kHz frequencies
Compatible with Lowrance HDS LIVE, HDS Carbon, Elite Ti2 displays

Simrad Ultrawide NSX 3015UW (15 Inch Screen) Key Benefits:

Simpler Boating with Simrad's Latest Operating System:
NSX ULTRAWIDE also delivers game-changing simplicity. Use the intuitive activities bar to pin your favorite apps and switch between them with a single touch. And the fully customizable instruments panel lets you make NSX your own, ensuring you always have the right data at hand, and nothing more.

The simplified interface means you’ll spend less time navigating menus, and more time navigating waters. And that’s quicker, too – with our fastest-ever auto-routing calculating routes in one third of the time.

Superior Engine Control:
Connectivity is at the heart of NSX ULTRAWIDE. The display feeds more information than ever to the helm, giving superior control over the full suite of on-board technology.

It all begins with superior engine control. Nobody integrates better with Mercury® than we do, and NSX ULTRAWIDE also offers superior integration with other leading propulsion brands such as Honda and Suzuki.

Bow-to-Stern Integration:

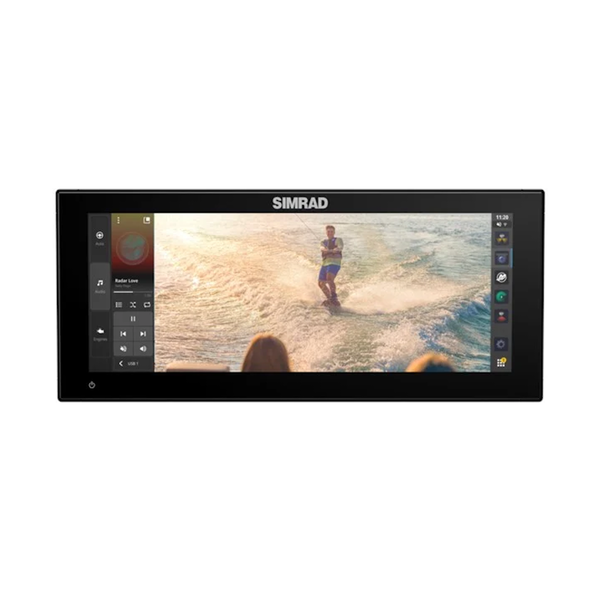

Control with NSX ULTRAWIDE extends across the entire vessel, with support for CZone® digital switching, RGBW lighting, IP cameras and audio – with an intuitive Setup Wizard to help you get it all connected.

Your Fishing Superpower:

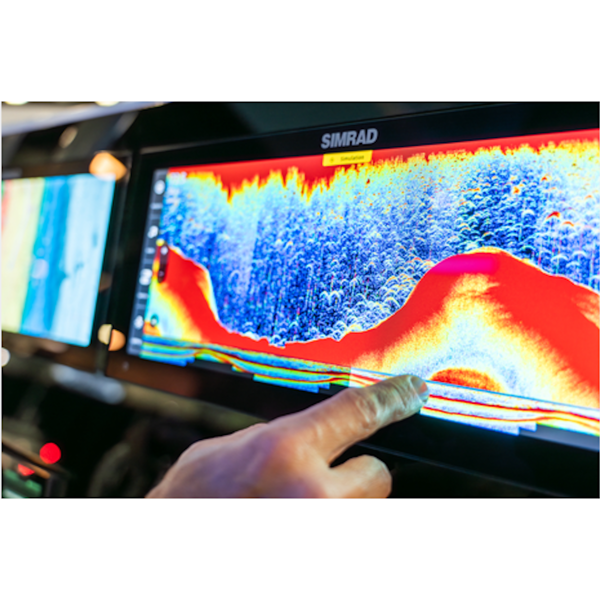

Anglers benefit from leading sonar tech like FishReveal™ and Active Imaging®, providing high-res images 300 feet to the sides and below your boat. And compatibility with a wide range of 1kW transducers means you can fish even the deepest waters. *Requires minimum 1.7 software update

Features:

Simrad® Suite Integration:
See near and far with full support for 3G, 4G and HALO® radars
Easy autopilot integration with NAC-1, NAC-2, NAC-3 and NAC-D pilots
Simrad® App integration for Waypoint management and offline trip planning

Third-Party Integration:
Now compatible with SiriusXM® WM-4 Weather and Fish Mapping with 1.9 software update
Best-in-class Mercury® Integration, inc. SmartCraft® Connect
Integration with leading propulsion brands such as Honda and Suzuki
CZone® digital switching
OmniSense
Dometic
Lumishore lighting
Multiple audio partners
IP cameras
HTML5 app compatible
Much, much more...

Charts and Navigation: (Chart sold separately)
Optimized for C-MAP® DISCOVER™ X AND REVEAL™ X charts
X-Chart Manager

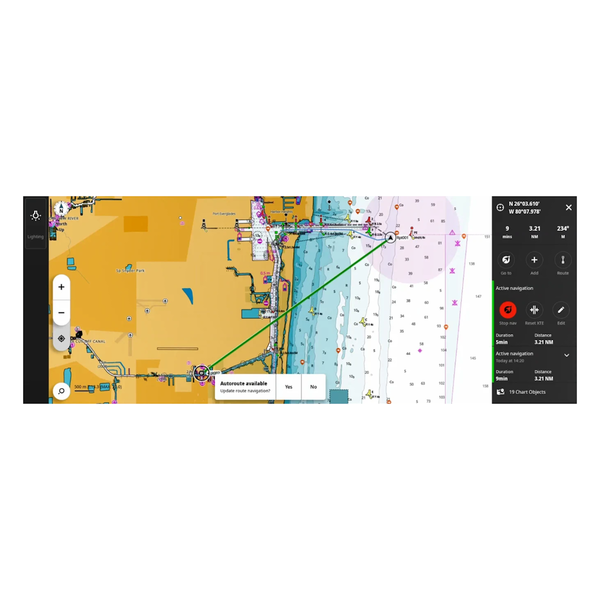

3x faster autorouting*
*vs SIMRAD® GO

Fishfinding & Sonar Capabilities:
Sonar sharing between NSX® devices
Compatible with Active Imaging™, featuring CHIRP, SideScan, and DownScan Imaging™, as well as the S5100 sonar module*
*Requires minimum 1.7 software update

Network Connectivity:
Wireless
Ethernet
USB
NMEA 2000®

Additional Features:
The latest Simrad® operating system, for game-changing ease of use
Ultrawide SolarMAX™ IPS HD touchscreen with extreme viewing angles
Intuitive setup wizard
Bracket mount sold separately

Specifications:

Display:
Backlight Color: White
Display Resolution: 1920 x 720 px
Display Size: 12 inches
Screen Brightness>1000 nits
Viewing Angles: 85° (top, bottom, left, and right)

Physical:
Compass Safe; 50 cm (1.7 ft)

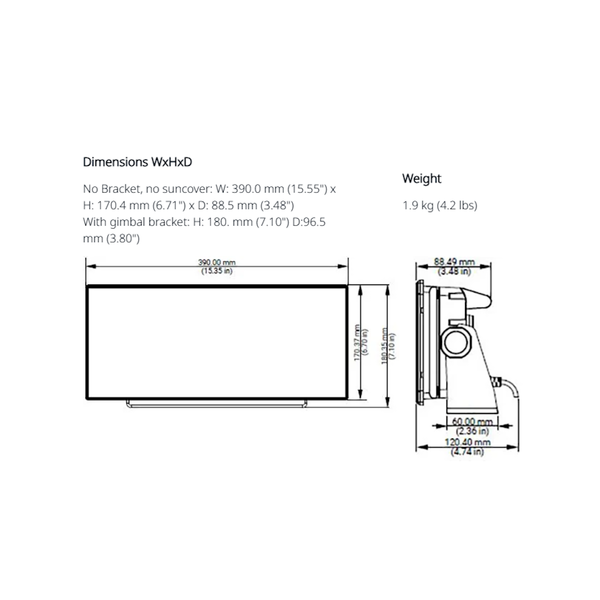

Dimensions W x H x D: No Bracket, no suncover: W: 390.0 mm (15.55") x H: 170.4 mm (6.71") x D: 88.5 mm (3.48"). With gimbal bracket: H: 180. mm (7.10") D:96.5 mm (3.80")
Mounting Type: Rear mount (bracket supplied), Bracket mount (bracket optional)
Weight: 1.9 kg (4.2 lbs)

Electrical:
Power Consumption max: 25W (1811 mA at 13.8 V)
Recommended Fuse Rating: 3A
Supply Voltage: 12 V DC (10 - 17 V DC min - max)

Environment:
Humidity; IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)
Operating Temperature Range: -15°C to 55°C (5°F to 131°F)
Shock Vibration: 100,000 cycles of 20 G
Storage Temperature Range: -20°C to 60°C (-4°F to 140°F)
Waterproof Rating: IPx6 and IPx7

Connectivity:
Bluetooth: Bluetooth 4.0 with support for Bluetooth Classic
Ethernet Ports: 1 port (5-pin connector)
Connectivity Wi Fi: IEEE 802.11b/g/n
N2K PG Ns: NMEA 2000 PGN supported, see Smart Marine Crew for full details
NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity: No
SD Card Storage: 1 MicroSD slot, 1 x USB (A)
Video: IP Camera support

MFD:
AIS: Receive AIS data over NMEA 2000
Autopilot: NAC-1, NAC-2, NAC3, NAC-D compatible
Digital Switching: Czone / DDS
GPS: Internal, 10Hz
Sonar Compatibility: One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 khz, HDI, Active Imaging
Waypoints, Routes, Tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with upto 12,000 track points.

GPS:
Correction: 10 Hz high speed update (internal) WASS, MSAS, EGNOS, GLONASS
GPS Receiver Channels: 32 Channels
Position Accuracy: Horizontal Accuracy 3 m (9.8 ft)
Update Rate: 10 Hz high speed update (internal)WASS, MSAS, EGNOS, GLONASS

Autopilot:
Steering ModesHeading Hold, No Drift, Follow-up, Non-Follow-up, Nav

Cartography: (Chart sold separately)
Charts Supported: C-MAP Tile (CMT) Discover X, Reveal X.

Other:

Interface: Multi-touch screen

Languages: -German (Deutsch)-English (English)-Dutch (Nederlands)-Danish (Dansk)-Spanish (Español)-French (Français)-Italian (Italiano)-Norwegian (Norsk)-Portuguese (Português)-Finnish (Suomi )-Swedish (Svenska)-Icelandic (Islenska)-Greek Chinese-Turkish (Türkçe)-Estonian (Eesti)-Croatian (Hrvatski)-Lithuanian (Lietuviu)-Latvian (Latviešu )-Polish (Polski)-Chinese Simplified -Japanese-Korean -Ukrainian

Warranty Period: 2 Years (See the Smart Marine Crew for details)
