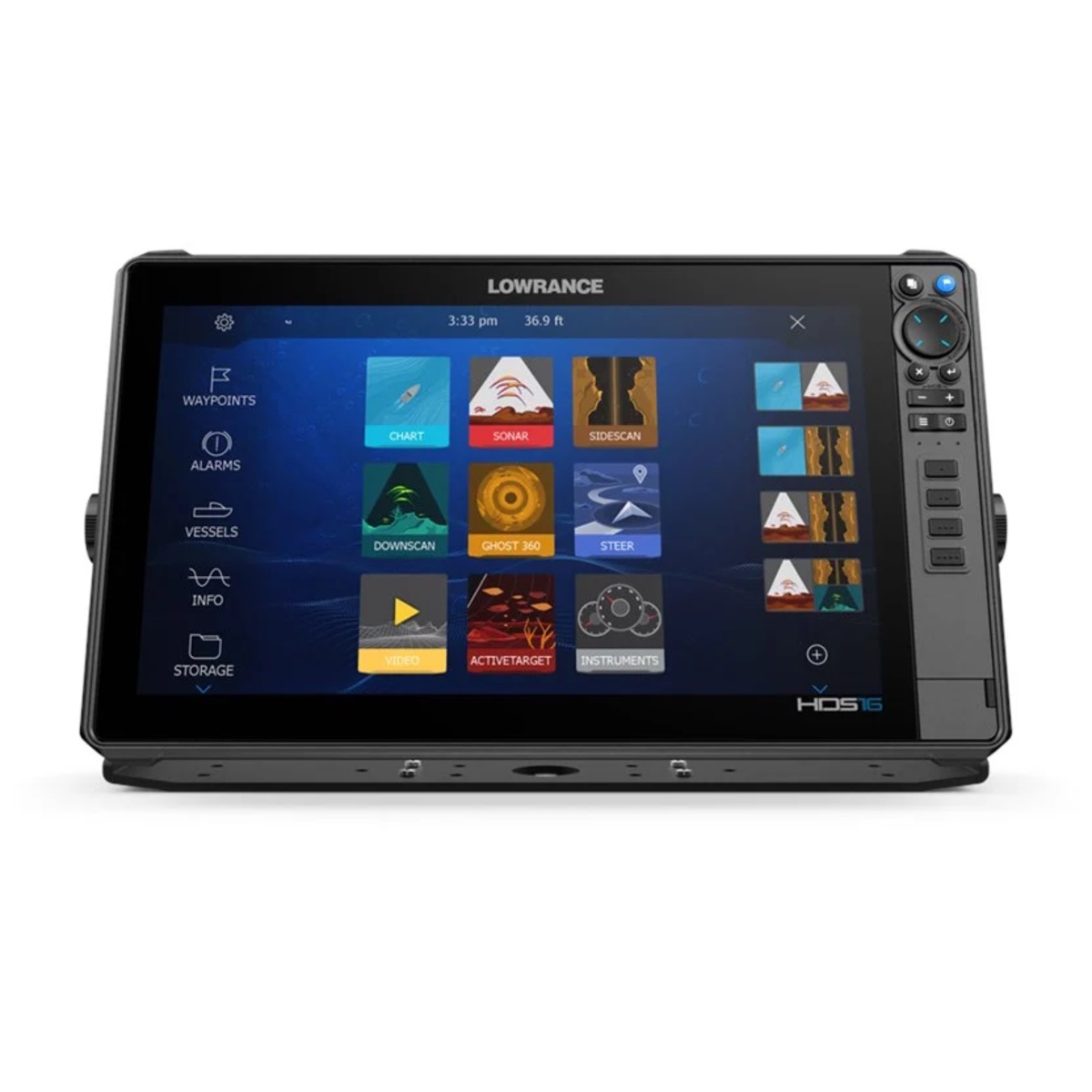

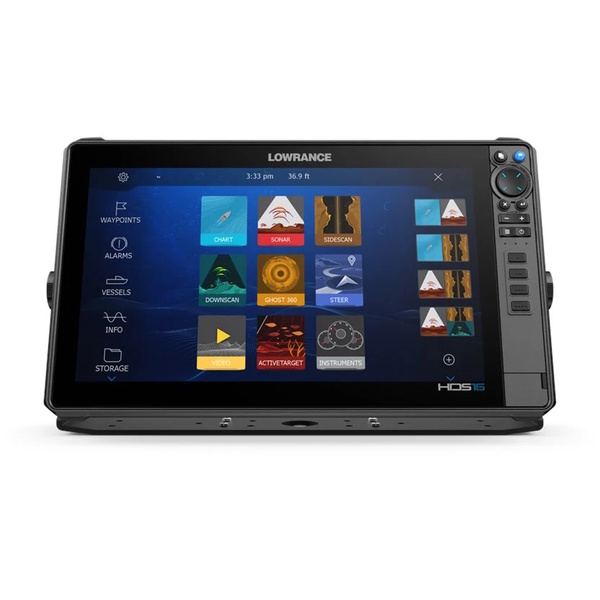

Lowrance Hds-16 Pro 16" Fishfinder/Charplotter

HDS PRO Fishfinder/Chartplotter

Upgrade your fishing experience with the HDS PRO fishfinder/chartplotter, featuring cutting-edge sonar and chartplotting technology. With its advanced features and comprehensive connectivity, this device is designed to help you catch more fish and navigate with precision.

Key Features:

• SolarMAX™ HD Touchscreen: High-definition display viewable at extreme angles and through polarized lenses.

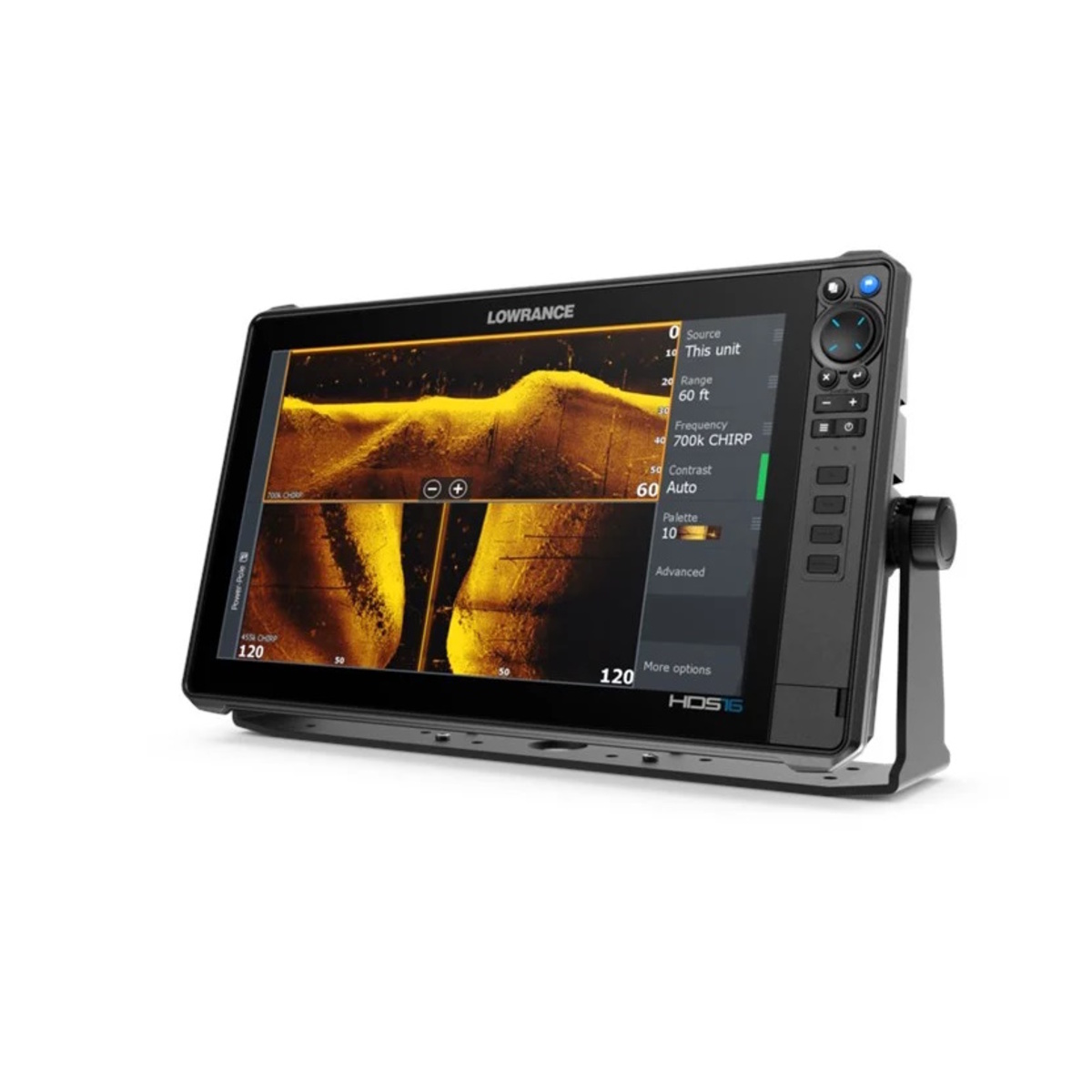

• Active Imaging™ HD: Ultra high-definition sonar with up to 1.2MHz, including Lowrance CHIRP, SideScan, and DownScan Imaging™.

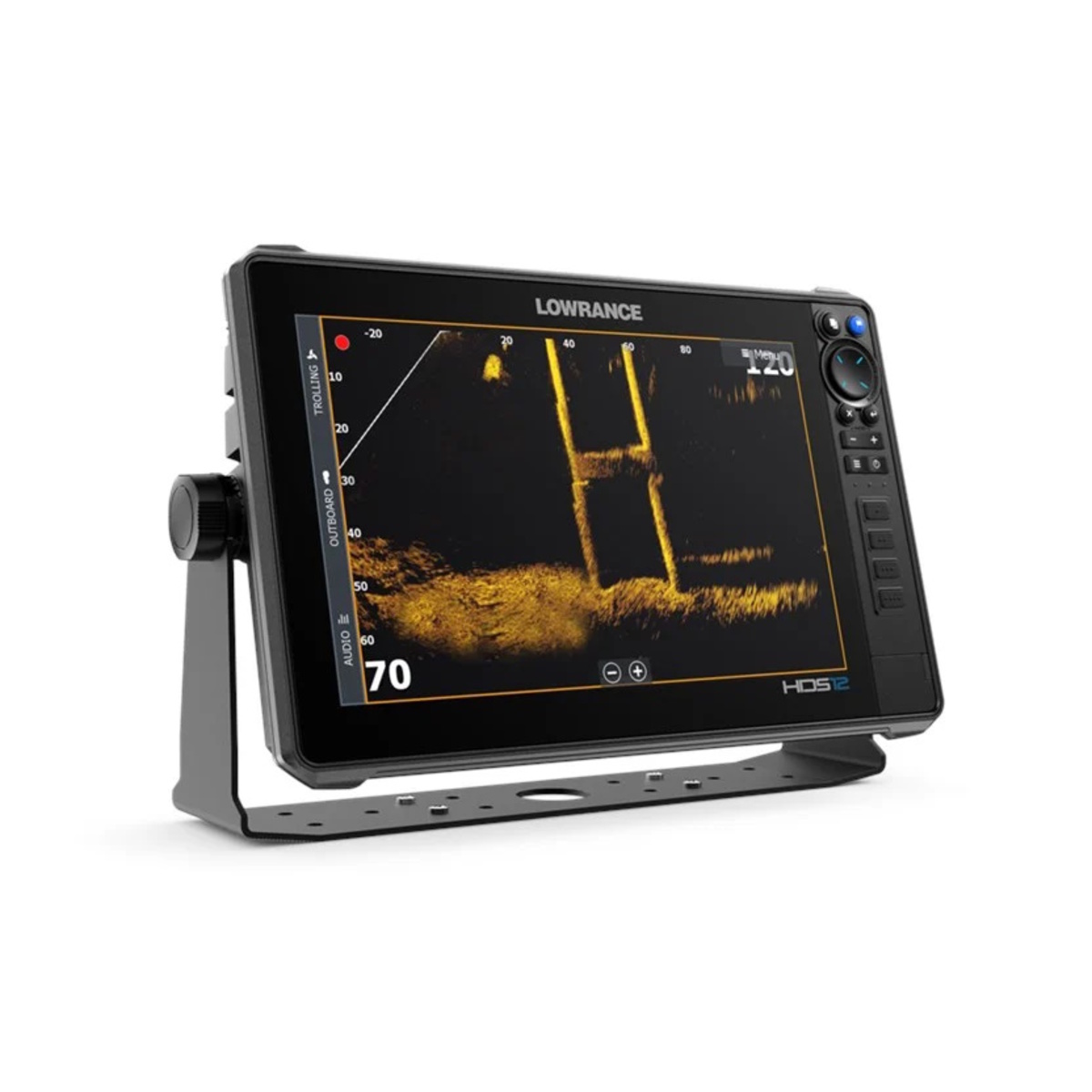

• ActiveTarget® 2 Live Sonar: High-resolution live sonar for real-time fish reactions to your lure.
• FishReveal™: Enhanced SideScan and Downscan imaging for improved fish and structure identification.
• Display Sizes: Available in 9, 10, 12, and 16 inches.
• Preloaded Charts: C-MAP® Enhanced charts for New Zealand and Australia.
• Real-Time Mapping: Available with C-MAP® Genesis Live.
• Boat Control: Supports ActiveTarget® Scout, Ghost® Trolling Motor, and 360 chart overlay views.
• Touchscreen Control: Manage Power-Pole® anchors, Ghost® Trolling Motor, Autopilot, and Lowrance Outboard Pilot.
• Connectivity: NMEA 2000®, Wireless, Bluetooth®; includes smartphone notifications.
• Chart Upgrades: Options include C-MAP® REVEAL, Navionics®, Florida Marine Tracks, and more. Note: SideScan FishReveal requires S3100 module and compatible transducer.

Specifications:

• Display Backlight Color: Pure White LED
• Display Resolution: 1920 x 1080 Full HD
• Screen Brightness: >1200 Nits
• Viewing Angles: 80° top/bottom, 80° left/right
• Bluetooth: Integrated Bluetooth 4.0 with Bluetooth Classic support

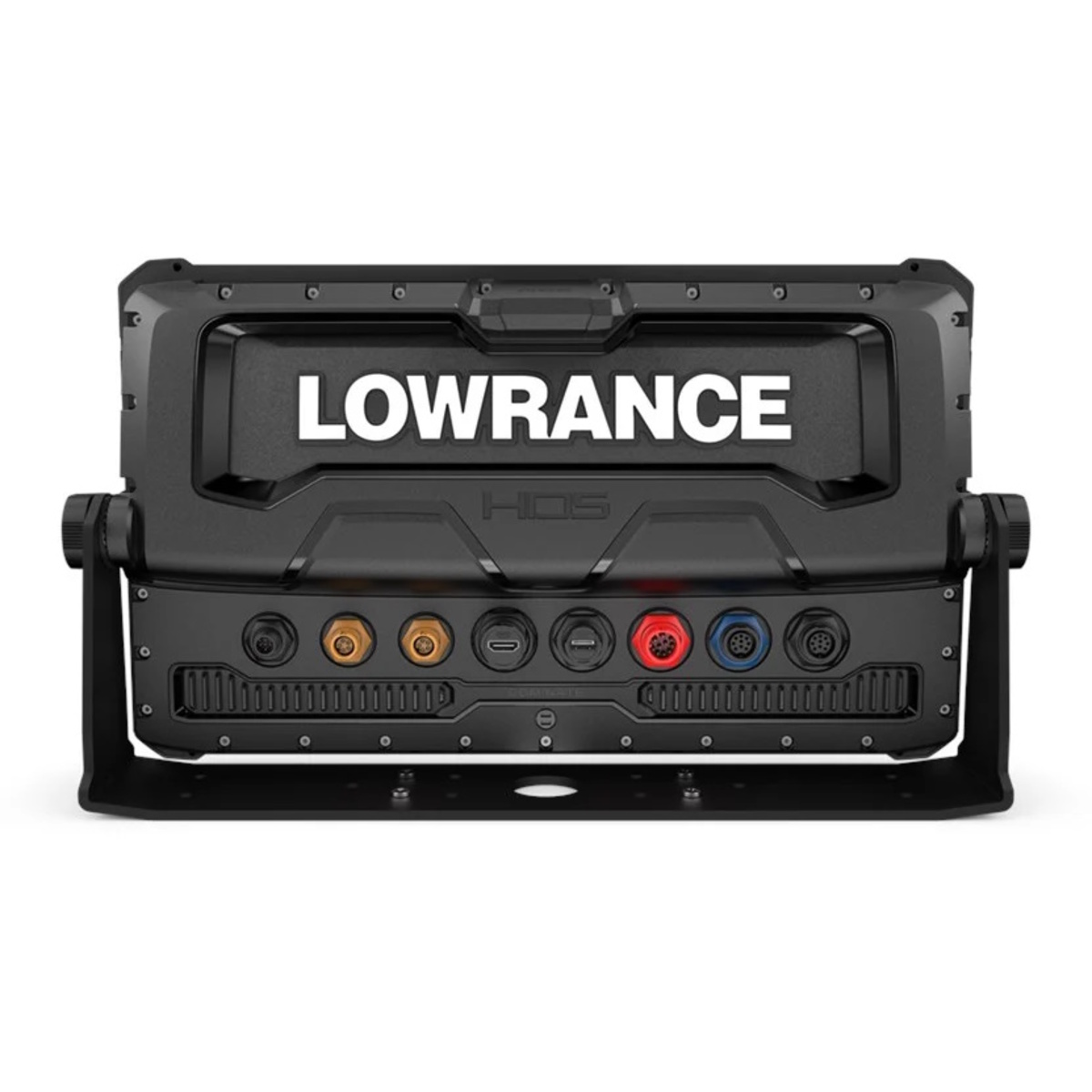

• Ethernet Ports: 2 x 100 Mbit; supports up to 6 MFDs on a network
• Wi-Fi: Internal 802.11b/g/n; compatible with WiFi-1 Module
• NMEA 2000® Connectivity: 1x Micro-C
• SD Card Storage: 2 micro SD cards (up to 32GB)
• Video Input: Composite video RCA (single channel via optional adapter)
• Cartography Supported: C-MAP Reveal, C-MAP Discover, Navionics® (Gold, NAV+ Platinum+), Insight (Pro and HD), and more
• Sonar Compatibility: Integrated CHIRP, Broadband, Active Imaging DownScan, Active Imaging SideScan; compatible with ActiveTarget®, ActiveTarget2, S3100 SonarHub, StructureScan™ (HD, 3D), LiveSight (requires PSI-1 module)
• Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, 100 Trails with up to 10,000 points per trail
• Weather: SiriusXM via WM-3 (USA only), SiriusXM via WM-4 (USA only)
• Power Consumption:
  • Max: 4.1A @ 13VDC with Full Backlight and Sonar on
  • Min: 3.0A @ 13VDC with Full Backlight and Sonar on
  • Typical: 3.0A @ 13VDC with Full Backlight and Sonar on
• Supply Voltage: 12V DC (10.8-17VDC)
• Environmental Specifications:
  • Humidity: IEC 60945 Damp Heat, 150°F (66°C) at 95% Relative Humidity (48 hrs)
  • Operating Temperature Range: 5°F to 131°F (-15°C to 55°C)
  • Shock Vibration: 100,000 cycles of 20 G
  • Storage Temperature Range: 4°F to 140°F (-20°C to 60°C)
  • Waterproof Rating: IPX7 with card door closed
• GPS Correction: DGPS, WAAS
• GPS Receiver Channels: 16
• Position Accuracy: 20m RMS
• Time to First Fix: 30s
• Update Rate: 10 Hz

MFD AIS: AIS Chart and Radar overlay, Target vessel details. Autopilot: Compatible with Outboard Pilot NAC-1, NAC-2, Ghost Trolling Motor, MotorGuide Xi5/Xi3 (requires Motorguide PinPoint Gateway) Cartography Included: C-MAP AUS/NZ Enhanced Basemap (AUS/NZ models), C-MAP World Background (ROW models), Navionics basemap (AMER and ROW models) Digital Switching: Czone, Naviop GPS: 10 Hz GPS/GLONASS, WAAS/EGNOS/MSAS Internal Storage: 8.0 GB Internal Multimedia: SonicHub, SonicHub2, FusionLink products, and any NMEA 2000 compliant marine audio products

Physical Dimensions:

• Compass Safe Distance: 65 cm (2.1 ft)
• Dimensions (W x H x D): 16.95" (430.5 mm) x 10.20" (259.2 mm) x 3.46" (87.8 mm)
• Weight: 7.94 lb (3.60 kg)

Mounting Types:

• Gimbal Bracket
• Front Dash Flush Mount
• Rear Dash Flush Mount

Interface:

• Touchscreen: Full Multi-touch touchscreen
• Keypad: 8-way directional keypad with Zoom +/- , Exit, Enter, Menu, Waypoint, Power/Light

Languages Supported:

• Standard: Afrikaans, Danish, German, English (US/UK), Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese (BR/PT), Swedish
• Asian: English (US/UK), Japanese, Korean, Thai, Simplified and Traditional Chinese
• Eastern European: Bulgarian, Estonian, English (US/UK), Spanish, French, Hebrew, Croatian, Hungarian, Lithuanian, Latvian, Polish, Slovak, Turkish
• Russian/Ukraine: German, English (US/UK), Spanish, Italian, Russian, Ukrainian
• Middle Eastern: Arabic (UAE), German, English (US/UK), Farsi, French, Italian
