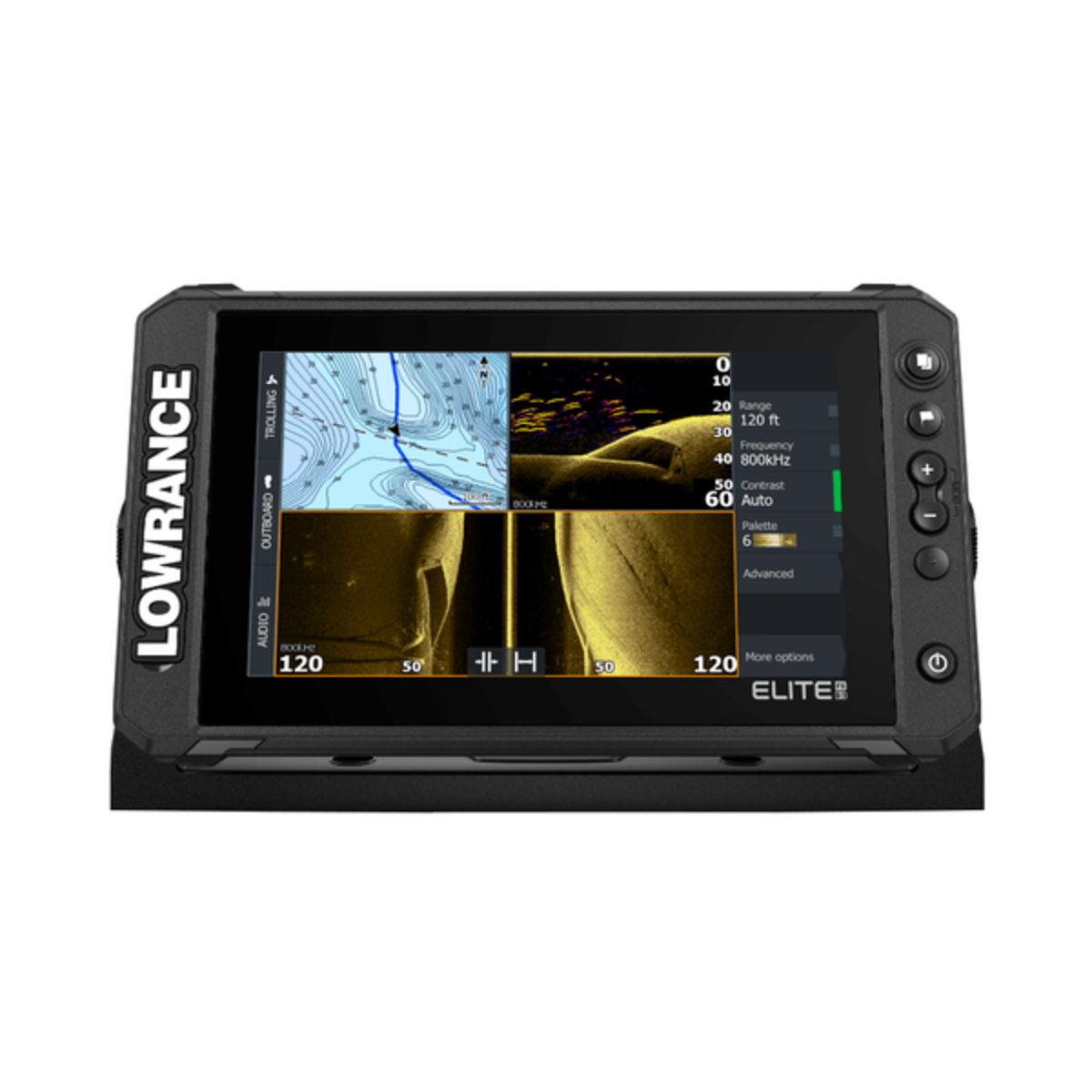

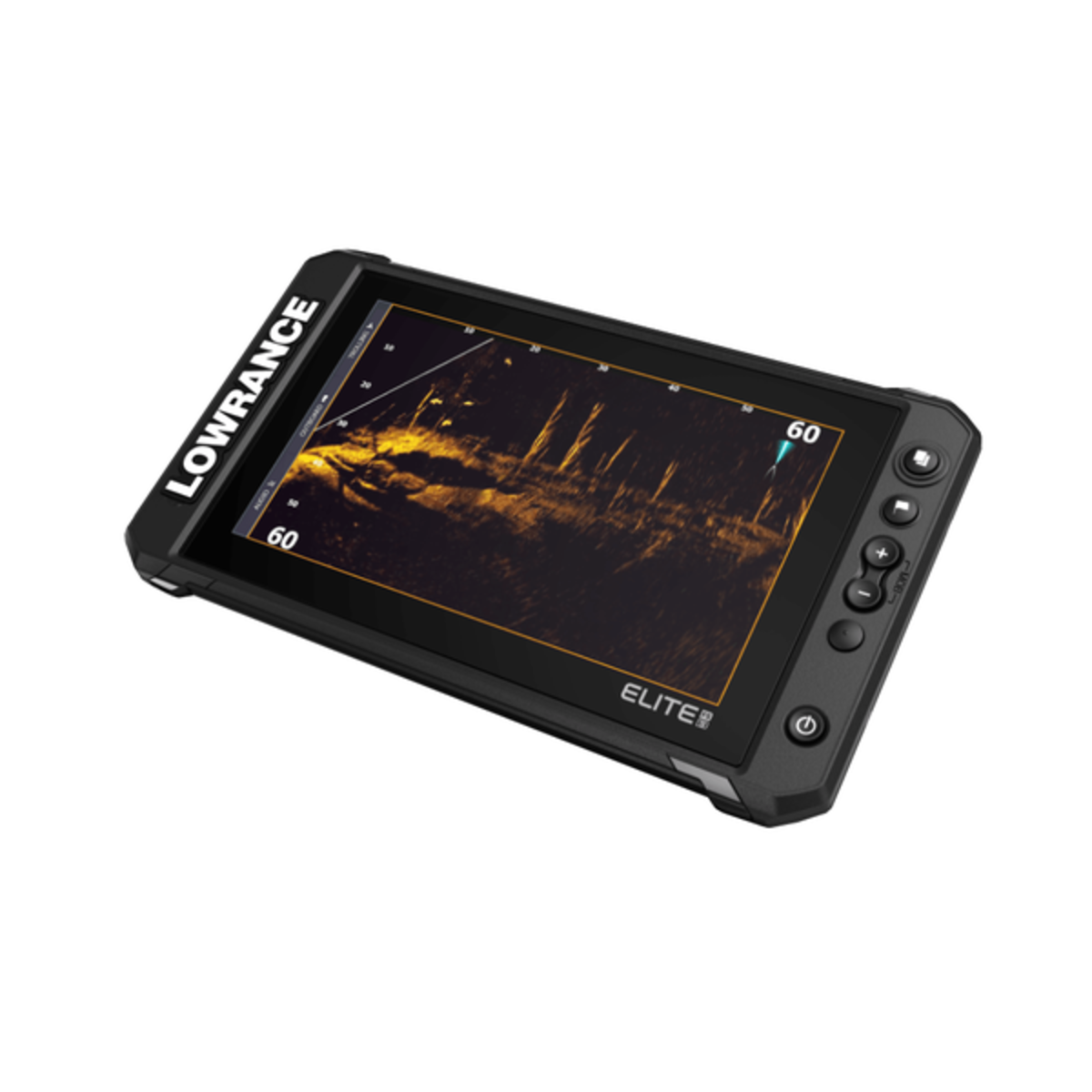

Lowrance Elite Fs 9" Gps/Fishfinder W/ Nz/Au Chart Built In (No Transducer)

Lowrance Elite Fishing System (FS)

The Lowrance Elite Fishing System (FS) provides advanced fishfinding tools to enhance your fishing experience. Equipped with ActiveTarget™ Live Sonar, Active Imaging™, FishReveal™, and preloaded C-MAP® Contour™+ charts, it offers a powerful and affordable solution for anglers. The user-friendly, high-resolution multi-touch display allows for easy navigation and installation, giving you all the tools needed to locate and catch more fish.

Key Features:

• FishReveal™: Merges the target separation of Lowrance CHIRP sonar and high-resolution images from DownScan Imaging™.
• Preloaded C-MAP Contour+: Includes 1-foot contours on 8,900 lakes, with additional mapping options like C-MAP and Navionics®.
• C-MAP® Easy Routing & Navionics® Autorouting: Automated routing for easier navigation.
• C-MAP Genesis Live: Real-time onscreen mapping for enhanced accuracy.
• Full Touchscreen Control: Manage Power Pole® anchors and Ghost® Trolling Motor directly from the display.
• Integrated Connectivity: Supports wireless, NMEA 2000® and Ethernet connections.

Specifications:

• Screen Brightness: Over 1200 nits for excellent visibility in any condition.
• Display Resolution: 800x480 pixels.
• SD Card Storage: 1 micro SD card slot supporting up to 32GB.
• Ethernet Ports: 1 x 100 Mbit.
• Weight: 2.7 lbs (1.2 kg).
• GPS: 10 Hz internal high-sensitivity receiver supporting WAAS, EGNOS, and MSAS.
• NMEA 2000 Connectivity: 1x Micro-C.
• Compass Safe Distance: 12" (300mm).
• Shock Vibration: 100,000 cycles of 20 G for durability.
• Waypoints, Routes, Tracks: 3000 waypoints, 100 routes, 100 trails with up to 10,000 points per trail.
• Position Accuracy: 20m RMS.
• Recommended Fuse Rating: 3A.
• Power Consumption: Max 2.0A @ 13VDC, typical and minimum at 2.0A with backlight on full.
• Operating Temperature Range: 5°F to 131°F (-15°C to 55°C).
• Storage Temperature Range: 4°F to 140°F (-20°C to 60°C).
• Viewing Angles: 50° top, 60° bottom, 70° left/right.
• Humidity: 60°C, 95% relative humidity for 18 hours.

Compatibility:

• Radar: 4G/3G Broadband, Halo20, Halo20+, Halo24 Pulse Compression Dome Radars.
• Charts: C-MAP (MAX N, MAX N+), C-MAP Genesis, Navionics (Gold, NAV+ Platinum+), Insight Pro and HD.
• Sonar Compatibility: Integrated CHIRP, Broadband, Active Imaging DownScan, Active Imaging SideScan, SonarHub, StructureScan, StructureScan 3D, LiveSight, Active Target.
• Autopilot: Compatible with Outboard Pilot and Ghost® Trolling Motor. MotorGuide Xi5/Xi3 also supported with PinPoint Gateway.
• Bluetooth: Integrated Bluetooth 4.0.
• WiFi: Internal 802.11b/g/n.
• Waterproof Rating: IPX7 with card door closed.

Mounting Options:

• Gimbal bracket or dash flush mount.

Enhance your fishing efficiency and precision with the Elite FS – the perfect fishfinding system for dedicated anglers.
