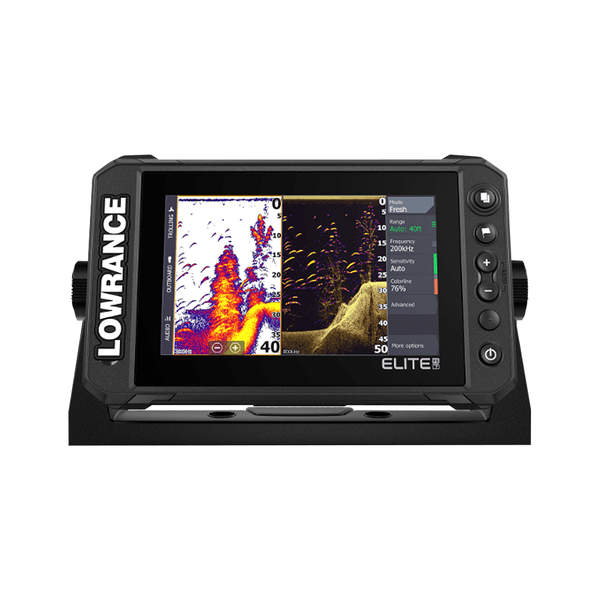

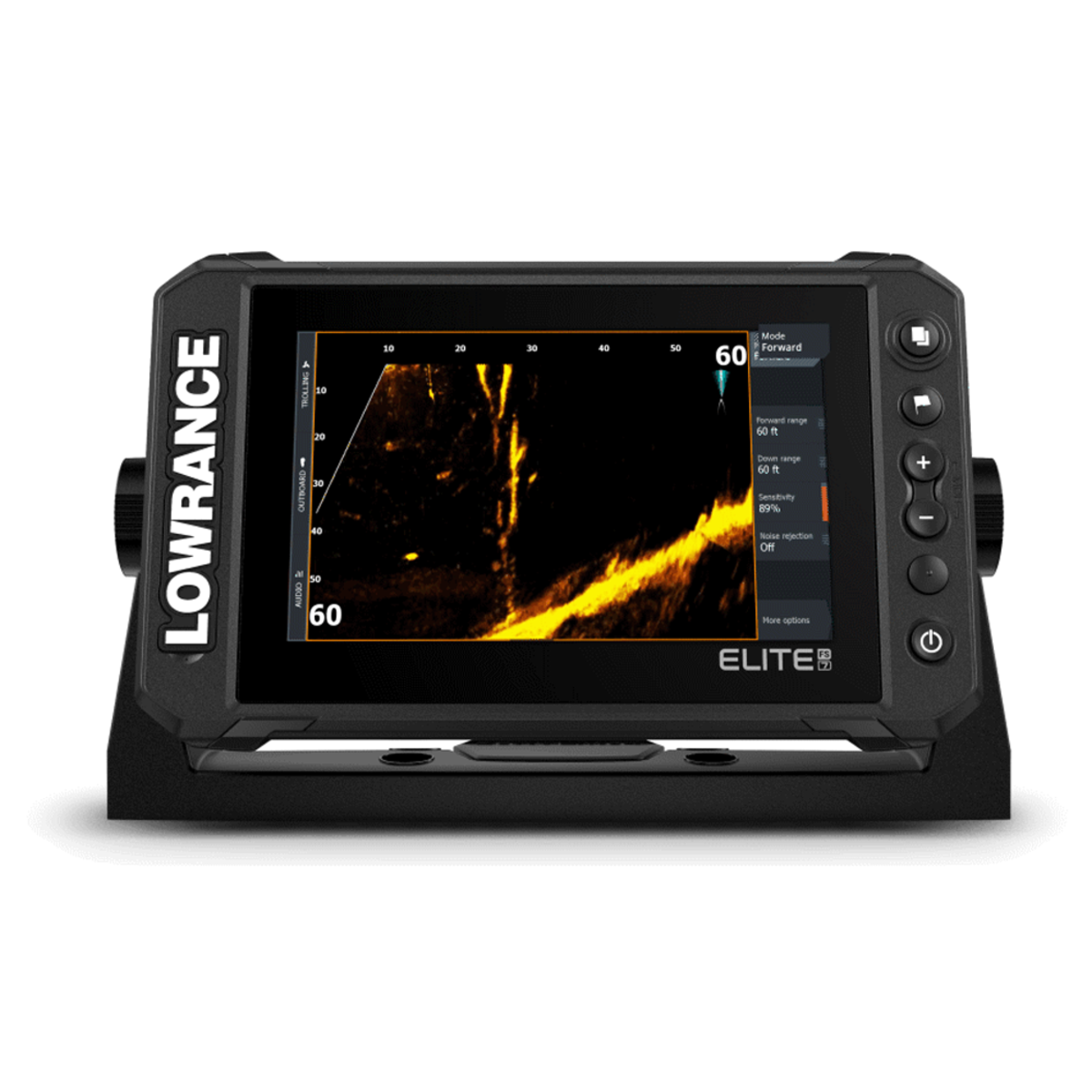

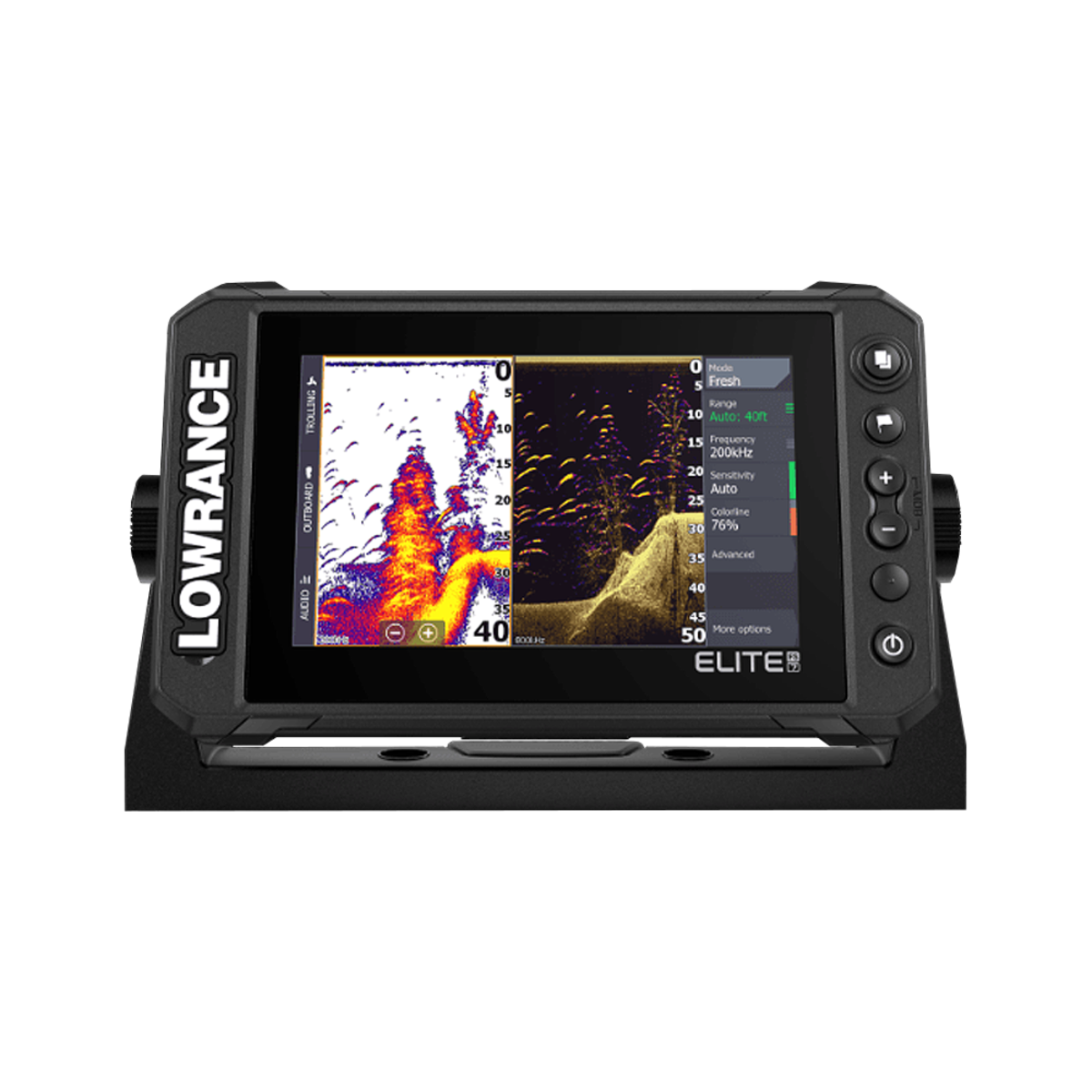

Lowrance Elite Fs 7" Gps/Fishfinder W/Chart+Active Image

Lowrance Elite GPS Fishing Stsrem (FS) w/Transducer, 3-in-1 Active Image, NZ Chart

The Lowrance Elite Fishing System (FS) is a cutting-edge fishfinder, combining advanced fishfinding technologies with an intuitive and affordable display. This system gives anglers access to the full range of Lowrance fishfinding tools, including ActiveTarget™ Live Sonar, Active Imaging™, Fish Reveal, and preloaded C-MAP® Contour™+ charts. Designed for ease of use and quick installation, it ensures you spend less time setting up and more time fishing.

Key Features:

• ActiveTarget™ Live Sonar Ready: Real-time sonar technology to detect fish movements.
• Active Imaging 3-in-1 Ready: High-resolution imaging with Lowrance CHIRP, SideScan, and DownScan Imaging™.
• FishReveal™: Combines CHIRP sonar and DownScan Imaging™ for better target separation and clearer fish images.
• Preloaded C-MAP Contour+: Detailed 1-foot contour mapping on 8,900 lakes with further options, including C-MAP and Navionics®.
• C-MAP® Easy Routing & Navionics® Autorouting: Automatically creates optimal routes based on real-time mapping.
• C-MAP Genesis Live: Enables onscreen real-time mapping.
• High-Resolution Multi-Touch Touchscreen: Provides clear visibility and easy operation.
• Wireless, NMEA 2000®, and Ethernet Connectivity: Seamless integration with marine networks.
• Full Touchscreen Control: Manage Power Pole® anchors and Ghost® Trolling Motor directly from the display.

Specifications:

• Screen Brightness: >1200 nits for exceptional visibility even in direct sunlight.
• Display Resolution: 800x480 pixels.
• SD Card Storage: 1 micro SD card slot (up to 32GB).
• Ethernet Ports: 1 x 100Mbit.
• Weight: 1.90 lbs (0.90 kg).
• GPS: 10 Hz internal high-sensitivity GPS supporting WAAS, EGNOS, and MSAS.
• Update Rate: 10 Hz.
• Waypoints, Routes, Trails: Store up to 3000 waypoints, 100 routes, and 100 trails with 10,000 points per trail.
• Power Consumption: Maximum 2.0A @ 13VDC (backlight on full), typical 2.0A @ 13VDC.
• Compass Safe Distance: 12" (300mm).
• Recommended Fuse Rating: 3A.
• Shock Vibration: Endures 100,000 cycles at 20 G.
• Position Accuracy: 20m RMS.
• Storage Temperature Range: 4°F to 140°F (-20°C to 60°C).
• Operating Temperature Range: 5°F to 131°F (-15°C to 55°C).
• Viewing Angles: 50° top, 60° bottom, 70° left/right.
• Humidity: Tested at 60°C, 95% relative humidity for 18 hours.

Connectivity & Compatibility:

• NMEA 2000® Connectivity: 1x Micro-C connection.
• WiFi: Internal 802.11b/g/n for wireless connectivity.
• Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic.
• Radar Compatibility: Supports 4G Broadband, 3G Broadband, Halo20 Pulse Compression Dome Radar, Halo20+, and Halo24.
• Sonar Compatibility: Compatible with CHIRP, Broadband, Active Imaging DownScan, SideScan, SonarHub, StructureScan, StructureScan 3D, LiveSight, and ActiveTarget.
• Mounting Type: Supports Gimbal Bracket or Dash Flush Mount.
• Waterproof Rating: IPX7 (with card door closed).

Additional Features:

• AIS: AIS chart overlay and target vessel details.
• Autopilot Compatibility: Works with Outboard Pilot, Ghost® Trolling Motor, and MotorGuide Xi5/Xi3 (requires MotorGuide PinPoint Gateway).
• Backlight Color: Pure white LED backlight for improved readability.

Lowrance Elite FS provides powerful fishfinding technology in a user-friendly, affordable package—perfect for anglers looking to maximize their success on the water.
