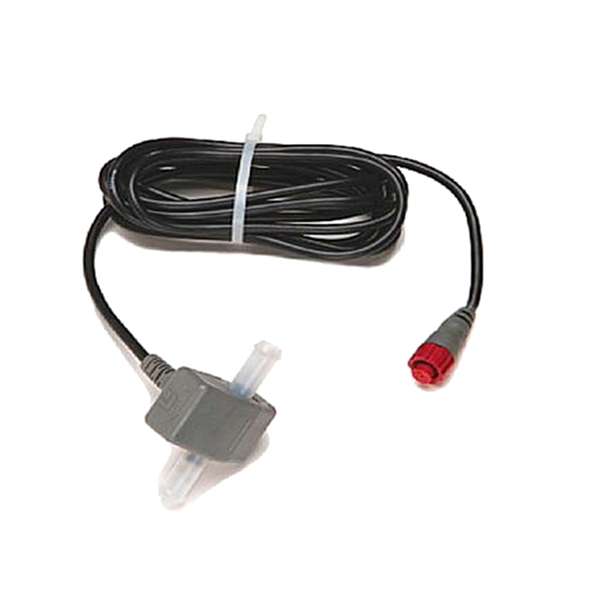

Fuel flow sensor for gasoline only, with 10 ft cable and T-connector - One required per engine - Up to 3 engines supported!
Outputs:
- Fuel Flow
- Tank Fuel Used
- Trip Fuel Used
- Seasonal Fuel Used
Specifications:
- Cable Length: 10 ft
- Fuel Line Diameter: 3/8" (9.5mm) Inside Diameter
- Flow Rate Measured: Optimized for 0.6-45 Gal/hr but can measure outside these values
- Added Back Pressure to the fuel system: 0.5 PSI at 20 Gal/hr; 1 PSI at 40 Gal/hr
- Installation Location: Above the max level of the fuel tank, in-line after the fuel filter and any Y's or T's in the line
- Package: The Fuel Flow Sensor, N2K T and 2 (two) 1" hose clamps
- Fuel Type: Gasoline only
- Hole required to route through a bulkhead: 22mm (7/8")
- Multiple Fuel Flow Sensors possible: Yes
*The Fuel Flow Sensor does not operate diesel engine fuel systems*
