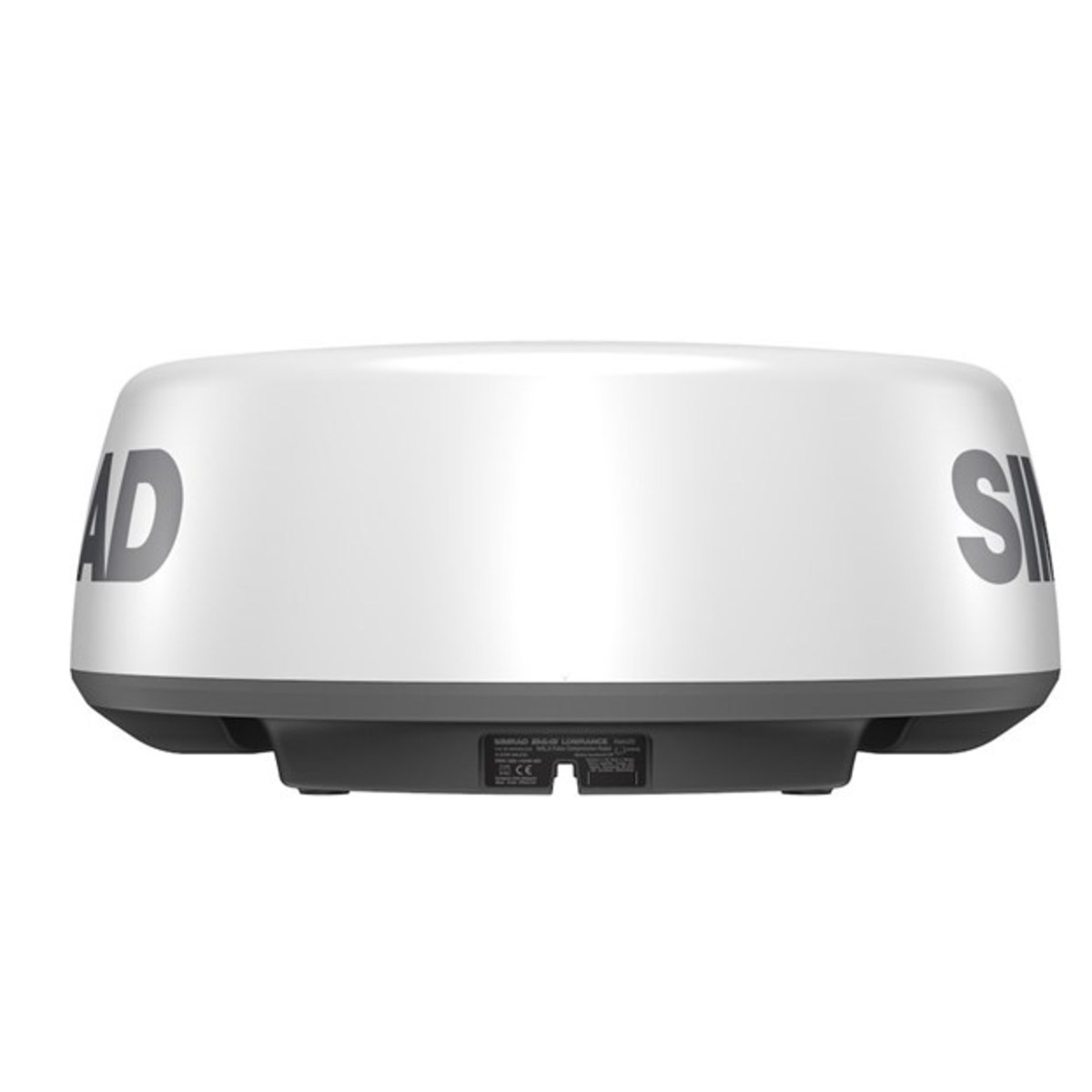

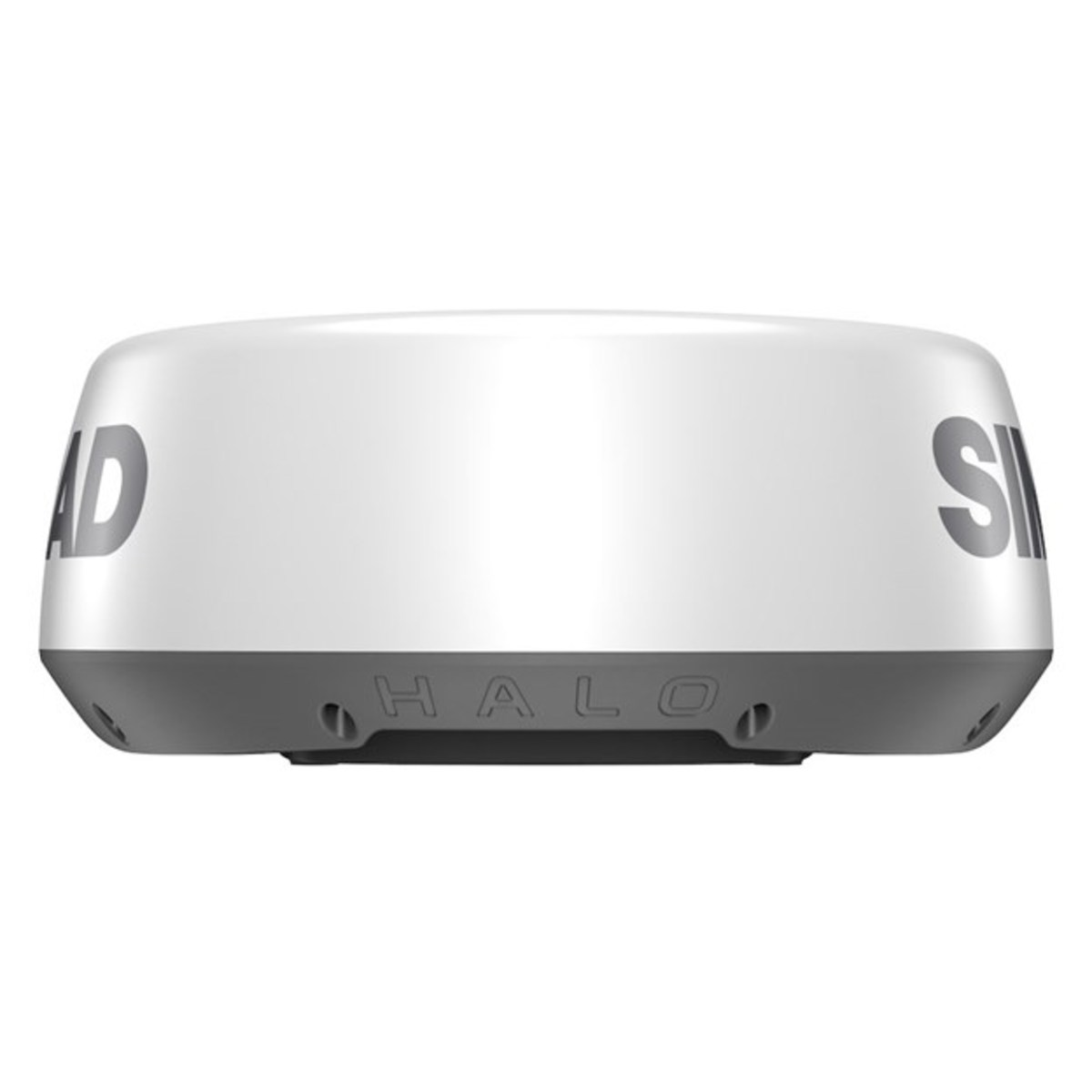

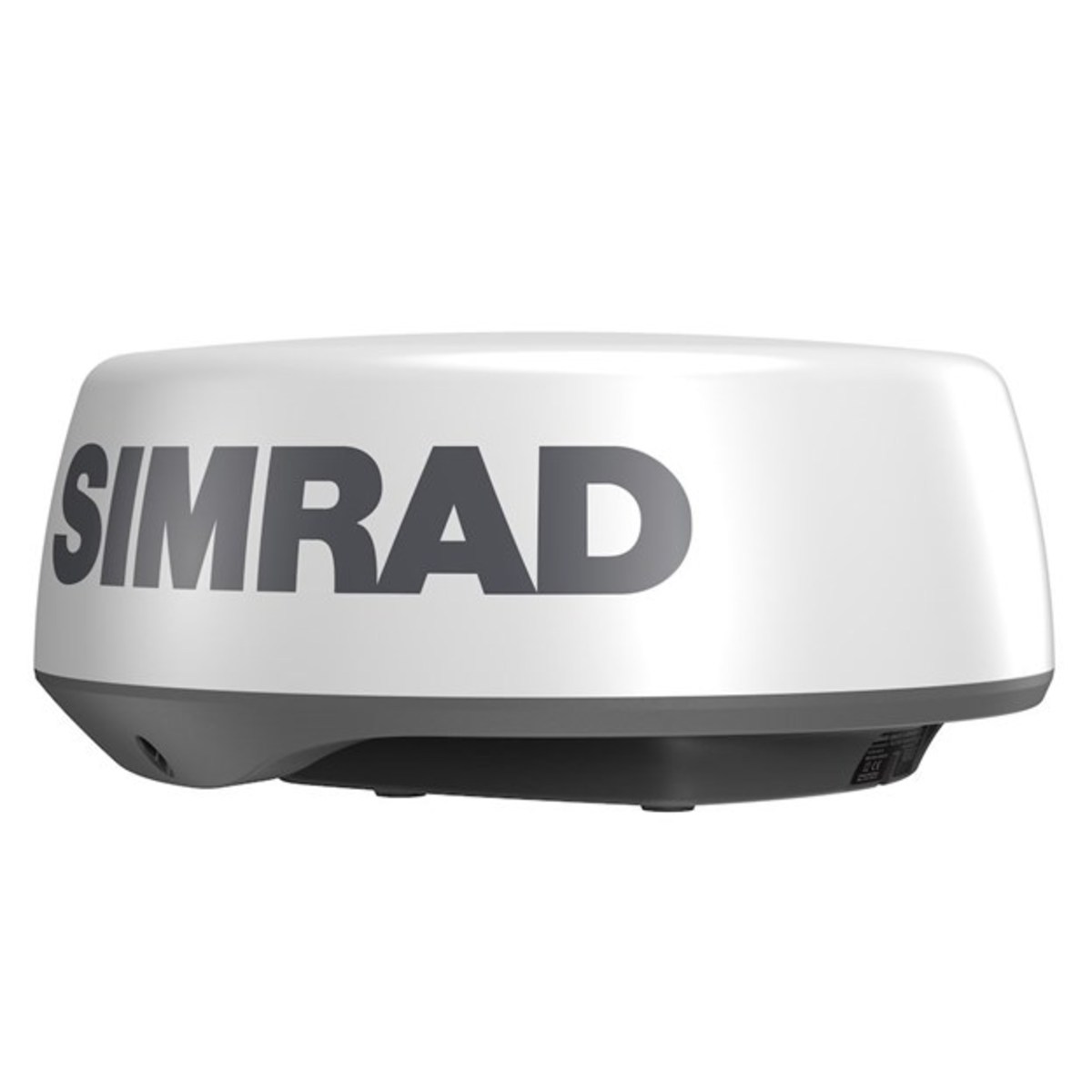

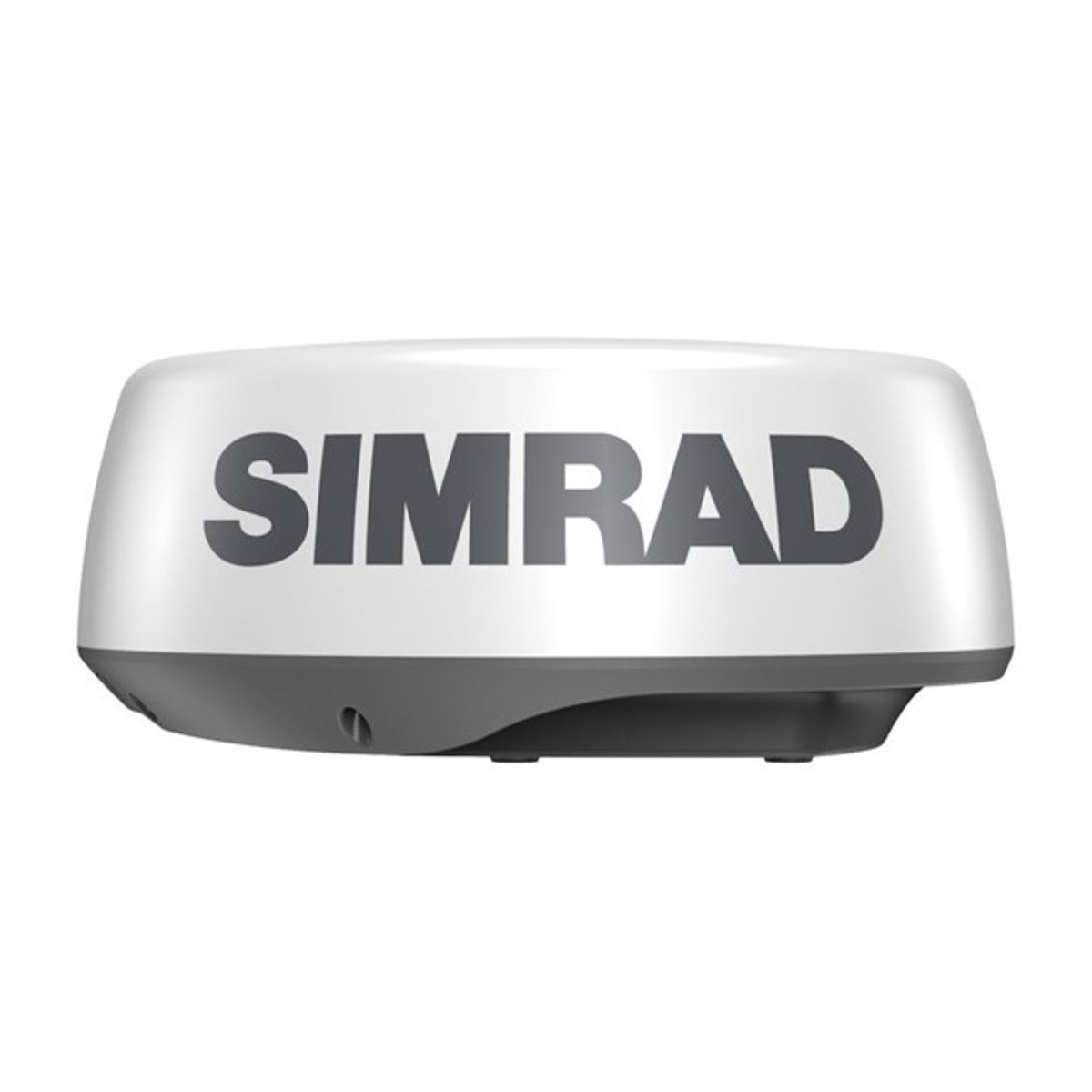

A cost-effective way to increase situational awareness and collision avoidance, HALO20 is a compact dome radar with pulse compression technology that detects collision hazards and other targets in close and up to 24 nautical miles away. With its small footprint and low profile, HALO20 is the perfect radar solution for budget-conscious boaters with small sportfishing vessels and dayboats.
Features:
- 10W Pulse Compression
- 24 nm range from a compact 20-inch dome
- Unrivalled short range
- Radiation safe
- Easy operation with harbour, offshore and weather mode
- MARPA target tracking
- InstantOn™
- Low Power Consumption
- Guard Zones
Specifications:
- Supply Voltage10.5 - 31.2 VDC (12/24V systems)
- Max Wind Speed100 knots (51 m/s)
- Power Consumption typical18W
- Warranty Period2 Years
- Power Consumption max20W
- Max Range, scale24 NM
- Rotation speed24 RPM
- Operating Temperature Range-25° to + 55°C (-13° to +130°F)
- Beam width4.9° H x 25° V
- Weight5.9 kg (13 lbs) without cableMin Range, scale50 m / 200 ft / 50 yd
- Dimensions Diameter510mm (20")
- Dimensions W x H x D510mm dia x 223 mm H. (20" dia x 8.8" H)
- Recommended Fuse Rating5AHumidity95% RH at 35°C (95°F)
