The NAIS 500 Class B AIS System comes with GPS aerial!

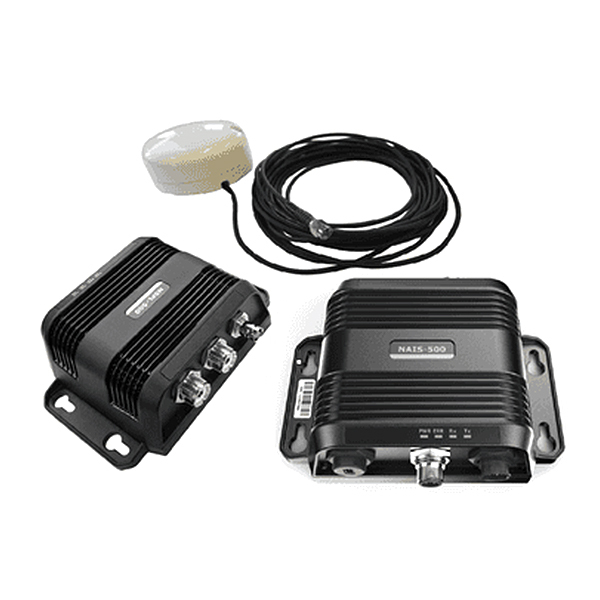

Reduce your risk of collision with this fully integrated, Class-B AIS transponder - essential for navigating today’s busy shipping lanes and congested ports. Compact in size, lightweight, fully waterproof, with low power draw and featuring multiple connections, the NAIS 500 is ideal for networking with compatable B&G, Simrad and Lowrance MFD's Pack contains NSPL-500 AIS-VHF Splitter.
Specifications:

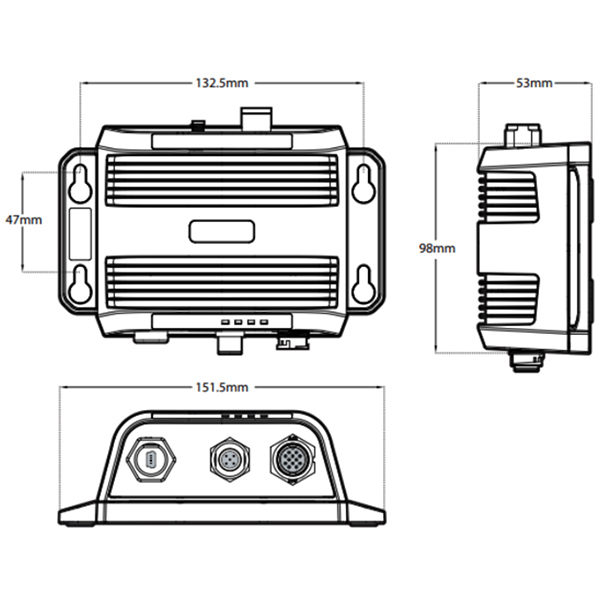

- Dimensions 152,98 x 52 mm (l_xWxH)
- Weight: 260g
Power
- DC (9.6 V - 31.2 V)
- Average power consumption 180 mA at 12 VDC
- Peak current rating 2 A at 12 VDC
GPS receiver (AIS internal)
- 50 channel IEC 61108-1 compliant
Electrical interfaces
- USB
- NMEA 0183, default 38,400 baud (bi-directional)
- NMEA 0183, default 4,800 baud (bi-directional)
- NMEA 2000 LEN=1
Conenctions
- VHF antenna connector (S0-239)
- External GPS antenna connector (SMA)
- USE type mini-B
- NMEA 2000 standard connector
- 12 way power input/NMEA 0183/external switch
VHF transceiver
- AIS transmitter x 1
- AIS receiver x 2 (one receives- time shared between AIS and DSC)
- Frequency 156.025 to 162_025 MHz in 25 kHz steps
Output power
- 33 dBm ± 15 dB
Channel bandwidth
- 25 kHz
Channel step
- 25 kHz
Modulation modes
- 25 kHz GMSK (AIS, Tx and Rx)
- 25 Id-La AFSK (DSc Rx only)
Bit rate
- 9600 b/s ± 50 ppm (GMSK)
- 1200 bis ± 30 ppm (FSK)
RX sensitivity
- Less than -107 dBm at 2096 PER
- Co-channel 10 dB
- Adjacent channel 70 dB
- IMD 65 dB
- Blocking 84 dB
Environmental
- Water resistant to IP67
- Operating temperature -150C to -i-55°C
- Tested to IEC 60945 'Protected category Indicators
- Power, Error, Rx, Tx (silent mode)
