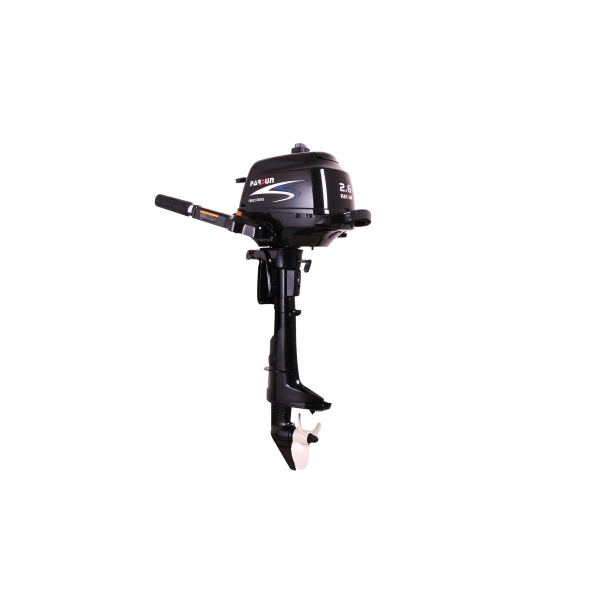

This Outboard is compact and lightweight. Forward - Neutral - Forward Gear Shift
It has a vibration reduction system and shallow water drive. It is very reliable, effective, clean and quite. These outboards may be small in size, but they are big on advanced design ideas, innovative features and big engine performance. These outboards are available in a range of horsepower to fit a variety of applications. Our portables are designed with your convenience in mind, featuring carrying handles and resting pads for easy transport and horizontal storage.
Features:
- Compact and lightweight
- Innovative CDI ignition system for easy starting
- Twist grip throttle for easy manueverability and safety
- Safety lanyard/emergency shutoff
- Thermostat controlled water cooling system for consistent engine temperature
- Convenient 1.2L integral fuel tank
- Vibration reduction system
- Ultra low emission, CE and EPA approved
- Manual Starter & 360 degree steering without gear shifting-convenience
- Front controls (Throttle, choke, recoil starter, Engine stop switch)-easy operation
Specifications:
- Model: F2.6BMS
- Overall length mm: 645 (25.4)
- Overall width mm: 343 (13.5)
- Overall height mm: 1013 (39.9)
- Transom height mm: 381 (15.0)
- Weight kg: 17
- Full throttle operating range r/min: 5250-5750
- Maximum output Kw(HP) @r/min: 1.9(2.6) @5500
- Idling speed (Neutral) r/min: 1900-2100
- Engine type: OHV
- Cylinders: 1
- Displacement cm³: 72
- Bore x stroke mm(in.): 54.0x31.5(2.13x1.24)
- Ignition system: TCI
- Control system: Tiller control
- Starting control: Manual start
- Gear positions: Forward-Neutral
- Gear ratio: 2.08(27/13)
- Trim and tilt system: Manual tilt
- Fuel Tank capacity L: Whithin 1.2
- Maximum fuel waste L /h: 1.1
- Engine oil capacity (without oil filter) L: 0.35
- Gear oil capacity cm³: 75
- Propeller: in 3 - 7 1/4 " X 6"

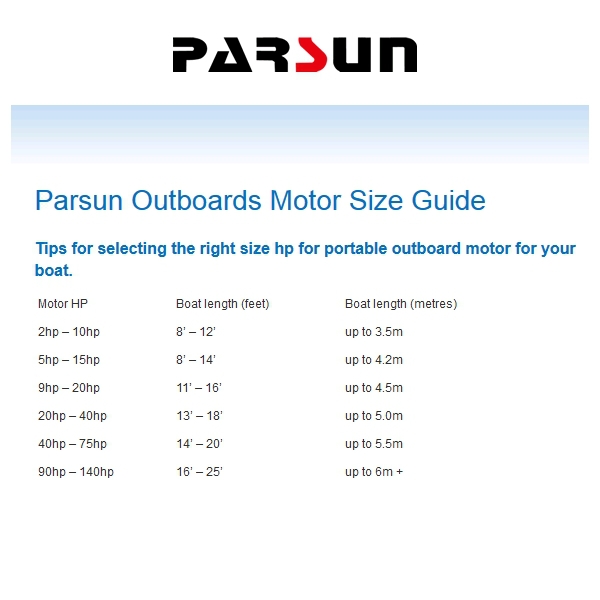

Tips for selecting the right size hp for Portable outboard motors
2hp – 3.6hp (Less than 18kg)
These small outboards are common for portable boats such as canoes, folding boats, inflatable boats, Dinghys, small sailboats, small pontoon boats and other small light watercraft. Outboards in this range will typically be limited to forward-only gears or forward-neutral gears which spin 360 degrees. These are very portable with features such as built-in integral fuel tanks, and convenient carrying handles. They are lightweight and compact in design and can be easily transported.
What you can expect:
- Will propel most hulls at approx 8-16 kmh
- In auxiliary or kicker motor applications, hulls less than 317kg and under 4.5m can reach troll speeds
- Engines are very lightweight, compact and very easily transported
