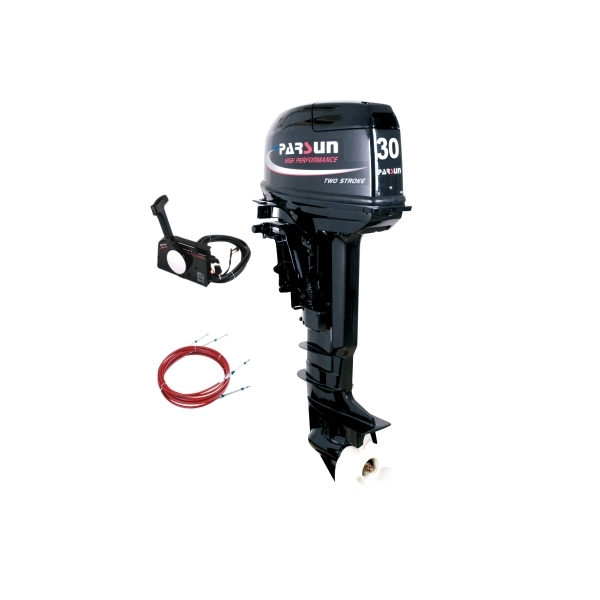

Great for car toppers, small fishing rigs, inflatables and tenders. PARSUN's excellence in engineering, stylish portable 30hp twin cylinder outboard provides ultra-smooth, reliable, economical performance. High quality at unbeatable value. The two stroke outboards are lightweight and compact yet deliver high power output. The engine structure is relatively simple and maintenance is exceedingly easy.
3 year warranty!
Price includes Steering and Remote Control attaching kits, Remote Control Box, Electric harness and switch panel assembly, 24L quality fuel tank and line.
*SHIPPING: NORTH ISLAND DELIVERY ONLY FOR THIS ITEM VIA THE WEBSITE. - excludes rural delivery. Shipping to the South Island or any rural address needs to be quoted to your location before ordering and additional shipping will be due. Shipping to main centres and depots is more economical to keep your shipping costs down further. Please call your nearest Smart Marine store to request a shipping quote: 0800 80 50 40*
PARSUN TWO STROKE 30HP OUTBOARD ENGINE FEATURES:
1. High grade marine aluminum alloy for ultimate corrosion protection
2. Tilt & trim with shallow water drive various positions, an extremely useful feature when tackling rivers, estuaries and creeks.
3. Twist grip throttle control for easy maneuverability & safety
4. Thermostat controlled water cooling system
5. Safety lanyard with emergency shut off
6. Easy forward-neutral-reverse gear shifting
7. Vibration reduction system for smooth performance
8. Start in gear protection for increased safety
9. Adjustable steering friction for easier maneuverability
10.CDI ignition provides automatic spark advance to provide maximum power throughout the whole RPM range
11. Innovative large recoil wheel assists easy starting
12.Quiet, through the propeller hub exhaust
13. Quality 24L fuel tank with hose
PARSUN 30HP OUTBOARD ENGINE SPECIFICATIONS:
ITEM: T30AFLW
Engine type 2-stroke,2-cylinders, Reed valve
Displacement 496 cc
Bore x Stroke mm(in.) 72.0×61.0(2.83×2.4)
Max output kw(hp) 22(30)
Full throttle RPM range 4500~5500
Ignition system CDI
Starting system Electric start+Manual start
Steering system Forward control
Gear shift Forward-Neutral-Reverse
Gear ratio 2.08 (27/13)
Trim and tilt system Manual,4 positions/Shallow drive
Max fuel consumption 12 L/h
Fuel tank capacity 24L
Oil mixing ratio 50:1(fuel:oil)
Gear oil capacity 250cc
Dry weight 52kg(L)
Overall length mm(in.) 609 (24)
Overall width mm 358 (14.1)
Overall height mm 1134 (44.6)
Recommended transom height 381mm(15 in.)
Alternator output: 12V DC
Propeller: 3-9.88 x 12" (standard)
*B=Back control(Tiller control), M=Manual start, X=Ultral long shaft, L=Long shaft, E=Electric start, F=Front control(Remote control)
