Smooth and easy to use, top seller, ideal for up to 4m runabouts & great as a yacht motor. Would suit larger boats as an auxiliary motor. Dual Fuel -
2.7L Integral Tank standard or optional remote tank/line. (Built in fuel pump and valve.)
3-Year Warranty
Features:
- Innovative TCI ignition system for easy starting
- Twist grip throttle for easy maneuverability and safety
- Safety lanyard/emergency shutoff
- Thermostat controlled water cooling system for consistent engine temperature
- Heavy duty aluminum propeller
- Easy to monitor oil level gauge indicator
- Convenient 1.3L integral fuel tank (complete with external fuel tank hook up)
- Vibration reduction system
- Start in gear protection
- Shallow water drive
- Ultra low emission, CE and EPA approved
Specifications:
- Model: F5BMS
- Overall length mm: 717 (28.2)
- Overall width mm: 361 (14.2)
- Overall height mm: 1029 (40.5)
- Transom height mm: 381(15.0)
- Weight kg: 24.5
- Full throttle operating range r/min: 4000-5000
- Maximum output Kw(HP) @r/min: 3.6(5) @5000
- Idling speed (Neutral) r/min: 1450-1550
- Engine type: OHV
- Cylinders: 1
- Displacement cm³: 112
- Bore x stroke mm(in.): 59.0x41.0(2.32x1.61)
- Ignition system: TCI
- Control system: Tiller control
- Starting control: Manual start
- Gear positions: Forward-Neutral-Reverse
- Gear ratio: 2.08(27/13)
- Trim and tilt system: Manual tilt
- Fuel Tank capacity L: Intergral 1.3
- Maximum fuel waste L /h: 1.6
- Engine oil capacity (without oil filter) L: 0.5
- Gear oil capacity cm³: 100
- Propeller options* in: 3 - 7½ " X 7"

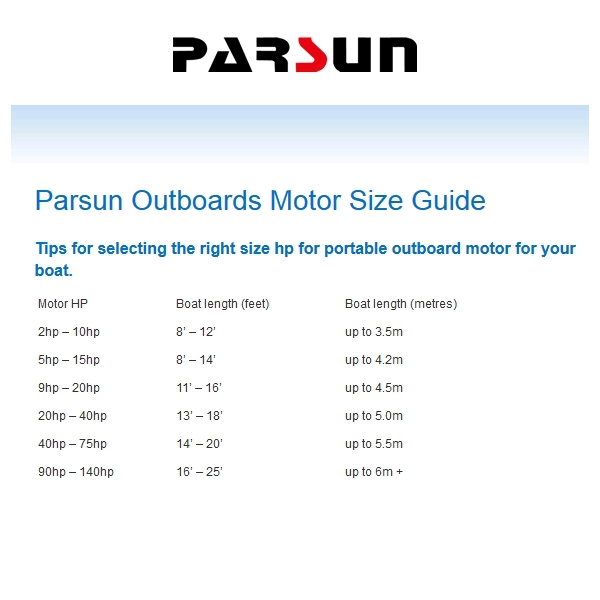

Tips for selecting the right size hp for Portable outboard motors:
5 – 6hp (18-25kg)
This hp range is ideal for a variety of application including small inflatable boats up to 3.5m in length, portable folding boats, larger canoes, 2.5-3.5m dinghies and inflatables. Hulls such as these typically weigh between 22 – 113kg and require a short shaft (15” shaft length). All outboards in this hp range should also be available in 20” long shaft configurations which is ideal for sail boat power and auxiliary kicker motor applications for hulls less than 6m length. Engines in this hp range are typically 1-cylinder, although some 2-cylinders do exist. A heavy person or more than one person in a hull in this hp class can have a dramatic effect on hull performance making plaining difficult. Engines in this hp range feature heavier duty construction and enhanced manoeuvrability features such as forward-neutral-reverse gears. These engines may have integral fuel tanks or separate fuel tanks.
What you can expect:
- Engines in this range will propel most hulls at approx. 16-28kmh with one person and light load
- Excellent choice for gasoline trolling motors, sailboat power, and emergency auxiliary kicker motors
- Engines in this range are lightweight, compact and easily transported
- Most engines in this range feature full foward-neutral-reverse gears
