Smooth and easy to use, ideal up to 3.5m inflatables & great as a yacht motor. Would suit larger boats as an auxiliary motor.
High in specification and features.
360 Degree Steering plus F-N-R Shift
Dual Fuel - 2.7L Integral Tank standard or optional remote tank/line at any time.
3-Year Warranty
Features:
- Compact and lightweight outboard engines, only 20kgs
- Innovative CDI ignition system for easy starting engines
- Twist grip throttle for easy maneuverability and safety
- Safety lanyard/emergency shut off
- Thermostat controlled water cooling system for consistent engine temperature
- Heavy duty aluminum propeller
- Convenient 2.7L integral fuel tank
- Vibration reduction system
- Start in gear protection
- Ultra low emission
- Carrying handle
Specifications:
- Model: T5.8BMS
- Overall length mm: 700 (27.6)
- Overall width mm: 343 (13.5)
- Overall height mm: 1141 (44.9)
- Transom height mm: 380mm (15")
- Weight kg: 20
- Full throttle operating range r/min: 4500-5500
- Maximum output Kw(HP) @r/min: 4.3(5.8)@5000
- Idling speed (Neutral) r/min: 1000~1100
- Engine type: Reed Valve
- Cylinders: 1
- Displacement cm³: 102
- Bore x stroke mm(in.): 55.0x43.0(2.17x1.69)
- Ignition system: CDI
- Control system: Tiller control
- Starting control: Manual start
- Gear positions: Forward-Neutral-Reverse
- Gear ratio: 2.08(27/13)
- Trim and tilt system: Manual tilt
- Fuel Tank capacity L:
- Maximum fuel waste L /h: 3.1
- Engine oil capacity (without oil filter) L:
- Gear oil capacity cm³: 195
- Propeller options* in: 3 - 7.8" X 8.0"

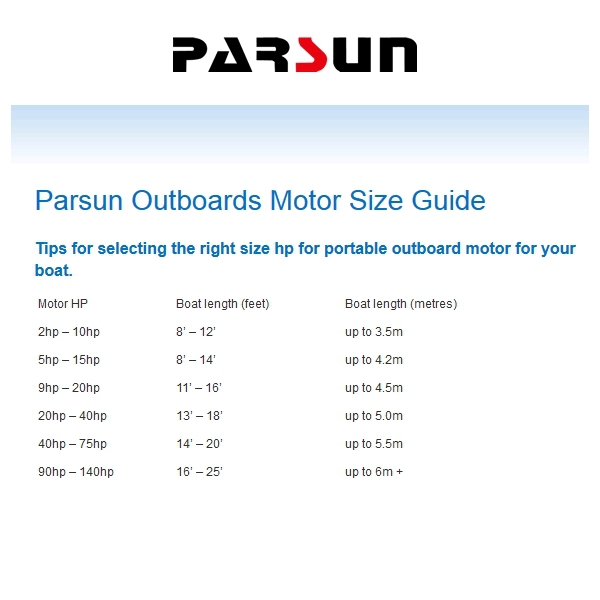

Tips for selecting the right size hp for Portable outboard motors:
5 – 6hp (18-25kg)
This hp range is ideal for a variety of application including small inflatable boats up to 3.5m in length, portable folding boats, larger canoes, 2.5-3.5m dinghies and inflatables. Hulls such as these typically weigh between 22 – 113kg and require a short shaft (15” shaft length). All outboards in this hp range should also be available in 20” long shaft configurations which is ideal for sail boat power and auxiliary kicker motor applications for hulls less than 6m length. Engines in this hp range are typically 1-cylinder, although some 2-cylinders do exist. A heavy person or more than one person in a hull in this hp class can have a dramatic effect on hull performance making plaining difficult. Engines in this hp range feature heavier duty construction and enhanced manoeuvrability features such as forward-neutral-reverse gears. These engines may have integral fuel tanks or separate fuel tanks.
What you can expect:
- Engines in this range will propel most hulls at approx. 16-28kmh with one person and light load
- Excellent choice for gasoline trolling motors, sailboat power, and emergency auxiliary kicker motors
- Engines in this range are lightweight, compact and easily transported
- Most engines in this range feature full foward-neutral-reverse gears
