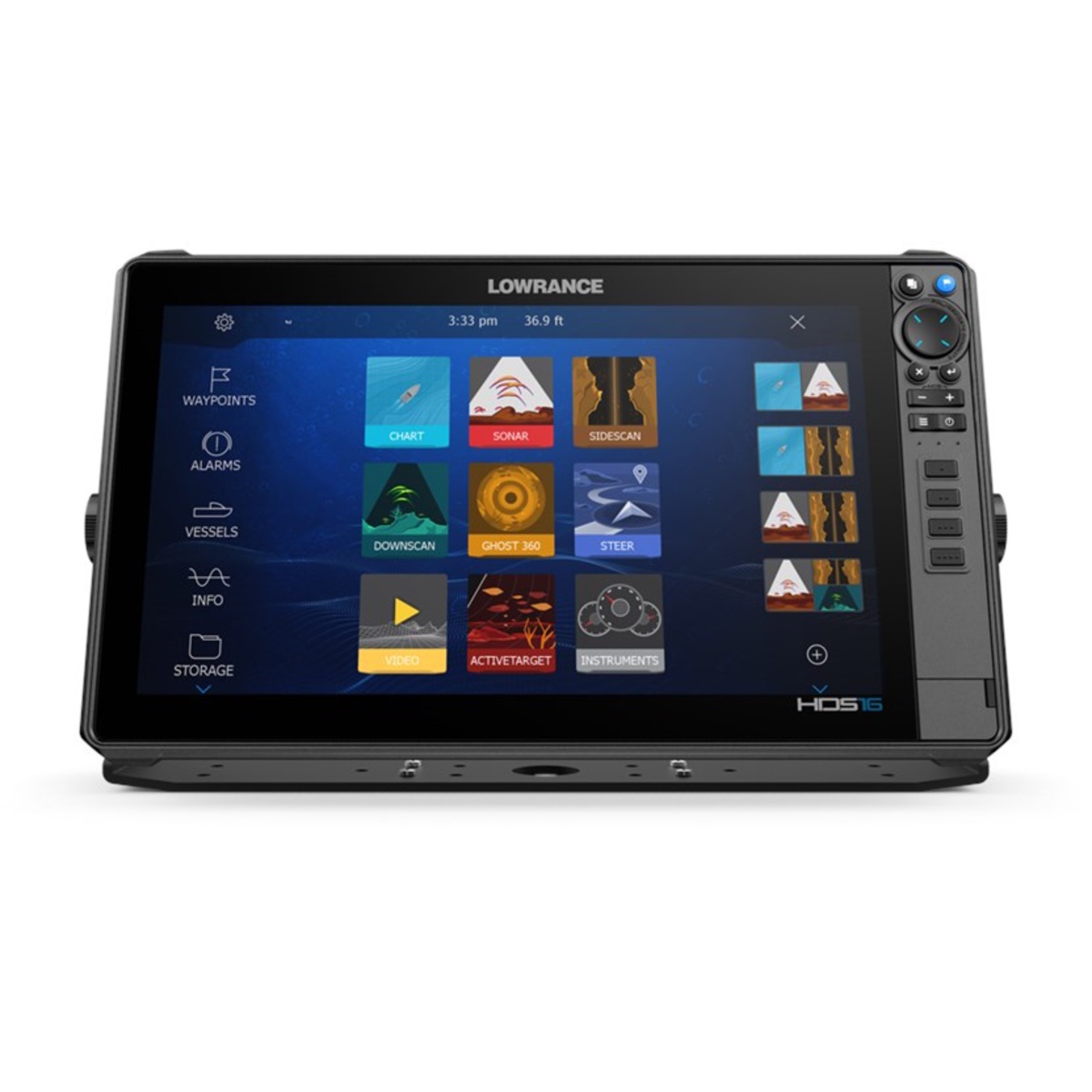

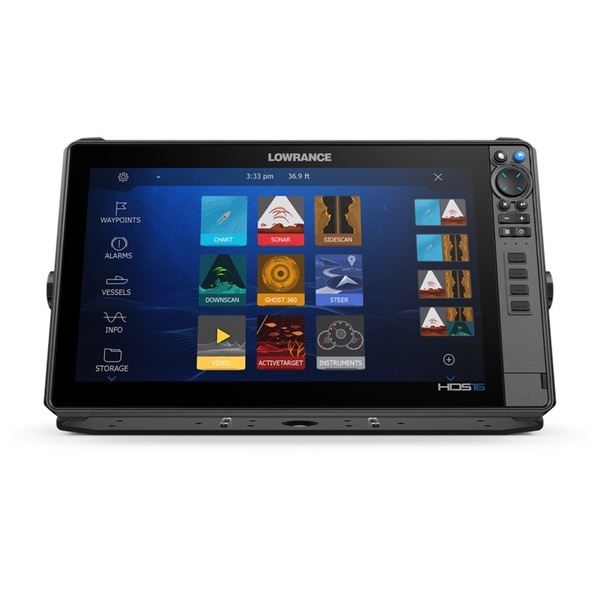

Lowrance Hds-16 Pro 16" With A-Image T/Ducer & Nz Map

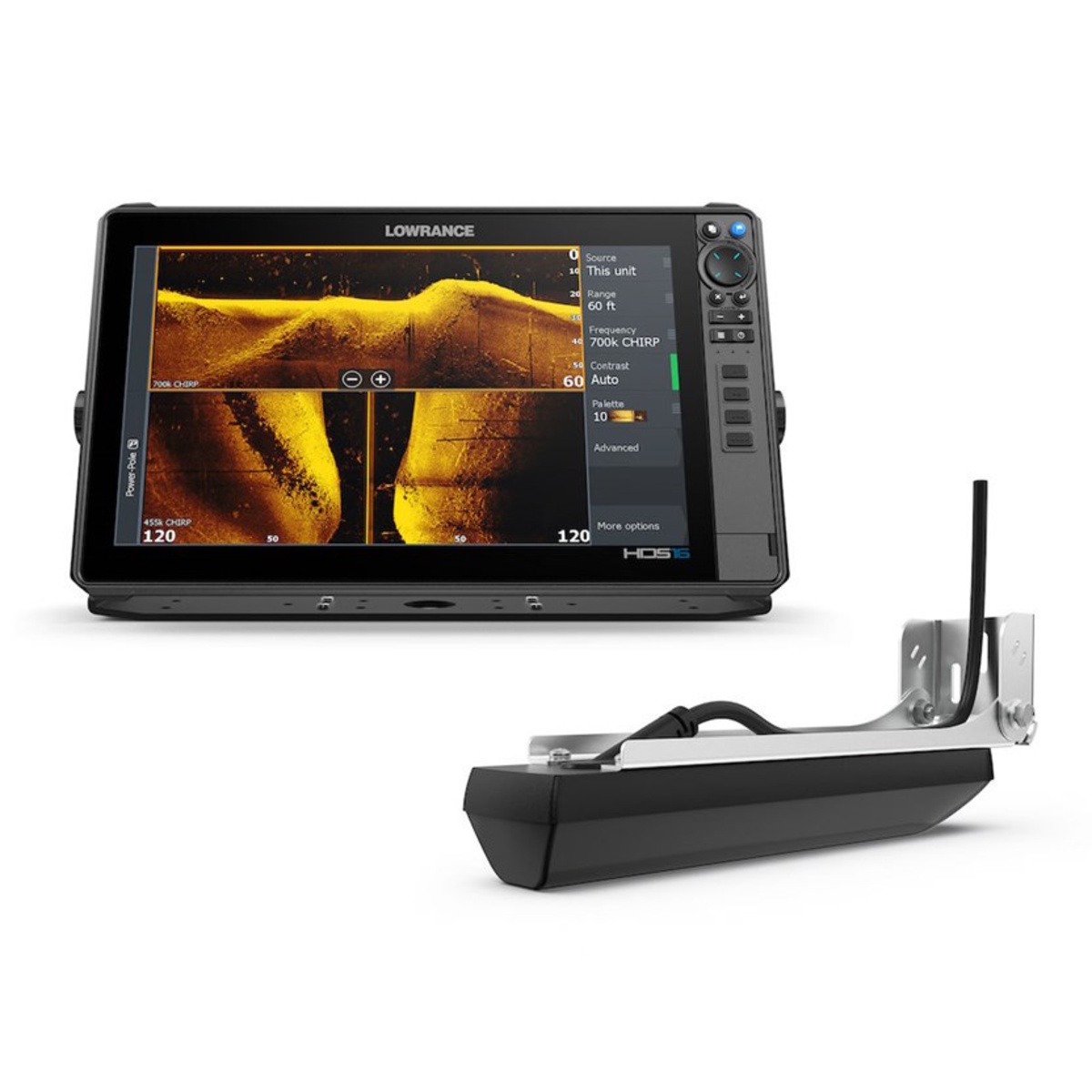

HDS-16 PRO Fishfinder/Chartplotter 16" with Active Image Transducer & Built in NZ Map

Experience enhanced fishing capabilities with the HDS PRO fishfinder/chartplotter. Designed for serious anglers, this device offers advanced sonar and navigation technology to help you find and catch more fish.

Key Features:

• SolarMAX™ HD Touchscreen: High-definition display viewable at extreme angles and through polarized lenses.
• Active Imaging™ HD: New, ultra high-definition sonar up to 1.2MHz, including Lowrance CHIRP, SideScan, and DownScan Imaging™.

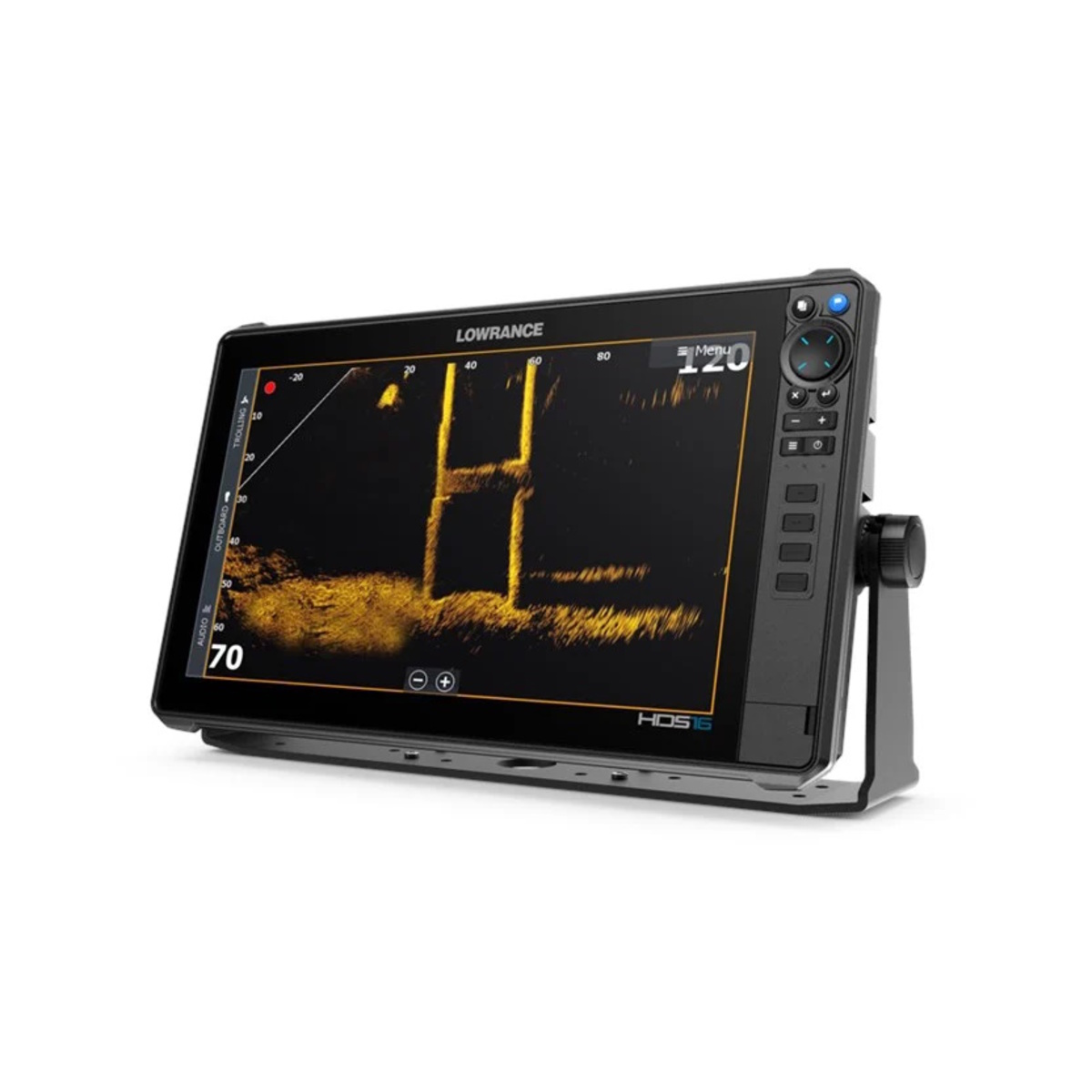

• ActiveTarget® 2 Live Sonar: High-resolution live sonar to watch fish react to your lure.
• FishReveal™: Enhanced SideScan and Downscan imaging for clearer fish and structure identification.
• Display Sizes: Available in 9, 10, 12, and 16 inches.
• Preloaded Charts: C-MAP® Enhanced charts for New Zealand and Australia.
• Real-Time Mapping: With C-MAP® Genesis Live.
• Boat Control: Supports ActiveTarget® Scout, Ghost® Trolling Motor, and 360 chart overlay views.
• Touchscreen Control: Manage Power-Pole® anchors, Ghost® Trolling Motor, Autopilot, and Lowrance Outboard Pilot.
• Connectivity: NMEA 2000®, Wireless, Bluetooth®; supports smartphone notifications.
• Chart Upgrades: Wide range of options including C-MAP® REVEAL, Navionics®, and more.
• Note: SideScan FishReveal requires S3100 module and a compatible transducer.

Specifications:

• Display Backlight Color: Pure White LED
• Display Resolution: 1920 x 1080
• Screen Brightness: >1200 Nits
• Viewing Angles: 80° top/bottom, 80° left/right

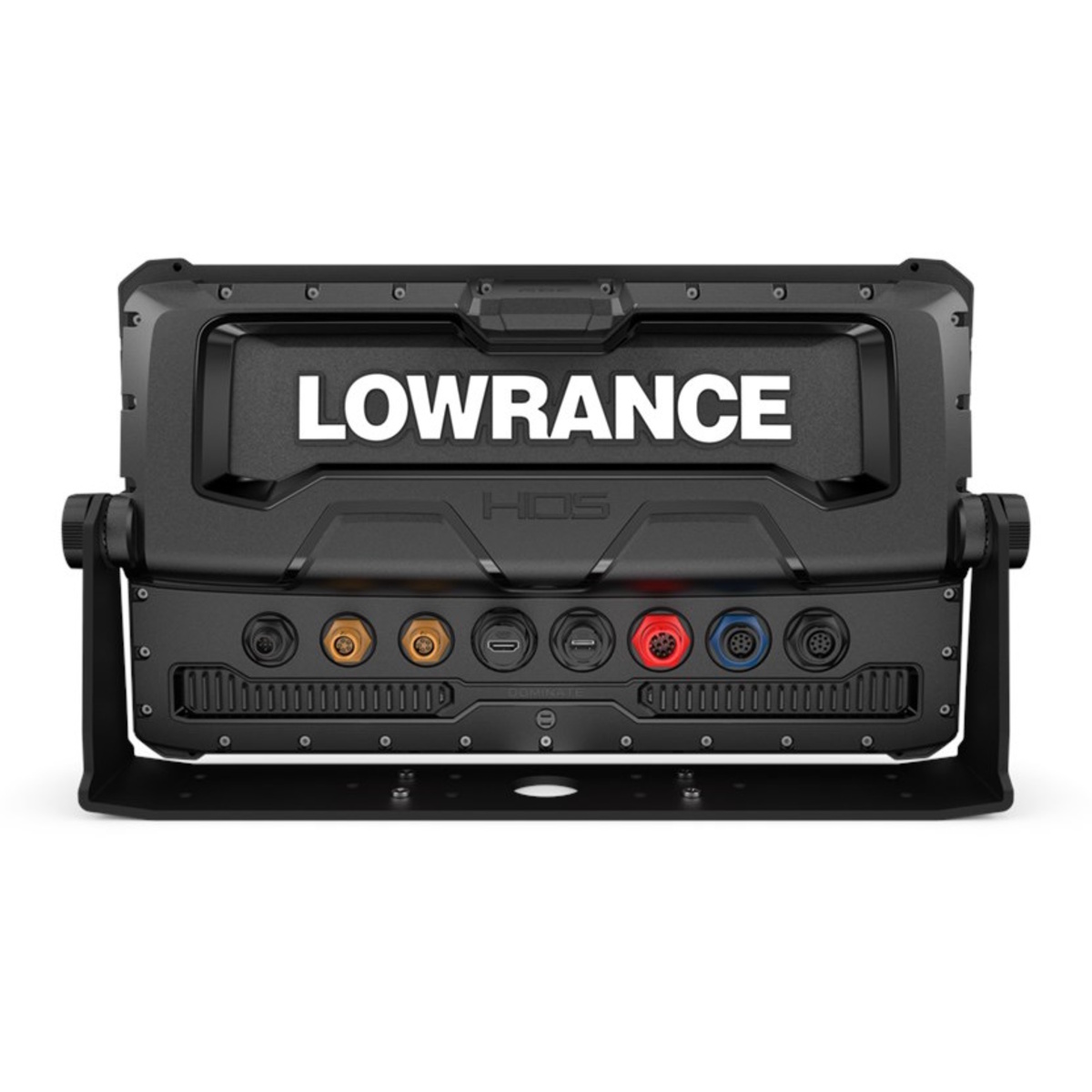

• Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
• Ethernet Ports: 2 x 100 Mbit, up to 6 MFDs on a network
• Wi-Fi: Internal 802.11b/g/n; compatible with WiFi-1 Module
• NMEA 2000® Connectivity: 1x Micro-C
• SD Card Storage: 2 micro SD cards up to 32GB
• Video Input: Composite video RCA (single channel via optional adapter)
• Cartography Supported: C-MAP Reveal, C-MAP Discover, Navionics® (Gold, NAV+ Platinum+), Insight (Pro and HD), and more
• Sonar Compatibility: Integrated CHIRP, Broadband, Active Imaging DownScan, Active Imaging SideScan; compatible with ActiveTarget®, ActiveTarget2, S3100 SonarHub, StructureScan™ (HD, 3D), LiveSight (requires PSI-1 module)
• Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, 100 Trails with up to 10,000 points per trail
• Weather: SiriusXM via WM-3 (USA only), SiriusXM via WM-4 (USA only)
• Power Consumption:
  • Max: 4.1A @ 13VDC with Full Backlight and Sonar on
  • Min: 3.0A @ 13VDC with Full Backlight and Sonar on
  • Typical: 3.0A @ 13VDC with Full Backlight and Sonar on
• Supply Voltage: 12V DC (10.8-17VDC)
• Environmental Specifications:
  • Humidity: IEC 60945 Damp Heat, 150°F (66°C) at 95% Relative Humidity (48 hrs)
  • Operating Temperature Range: 5°F to 131°F (-15°C to 55°C)
  • Shock Vibration: 100,000 cycles of 20 G
  • Storage Temperature Range: 4°F to 140°F (-20°C to 60°C)
  • Waterproof Rating: IPX7 with card door closed
• GPS Correction: DGPS, WAAS
• GPS Receiver Channels: 16
• Position Accuracy: 20m RMS
• Time to First Fix: 30s
• Update Rate: 10 Hz

Dimensions & Weight:

• Compass Safe Distance: 12" (300mm)
• Dimensions (W x H x D): 16.95" (430.5 mm) x 10.20" (259.2 mm) x 3.46" (87.8 mm)
• Weight: 7.94 lb (3.60 kg)

Mounting Types:

• Gimbal Bracket
• Front Dash Flush Mount
• Rear Dash Flush Mount

Warranty:

• Standard Warranty: 2 years
