Do you want to pull up the biggest fish from 300, 400, 500 meters or more? Ever mark up the big boys at 200m down but they wont come up for a bait? Tired of hauling bricks out for swordfish? Are you disappointed in the performance of your electric reels? Then get down to where the fish are with confidence and start bringing Goliath’s back to the ramp with the DDW-250 Deep Drop and Down-Rigging unit from LSM.
Features:
All New DDW-250 features brush less drive, variable speed, digital line counter, 1 piece frame, wider drag curve plus more….
- 316 Stainless Steel & Marine Grade 6061 T6 Marine Grade Anodised Aluminium Construction
- Solid 38mm Drive shafts suitable for extended heavy loads
- Brush-less drive with Variable Speed control
- Italian Made Transmissions
- Specialised for Deep Drop Fishing & Heavy Down-rigging
- Digital Line Counter can be set to meters, feet, or fathoms (AU preset to meters)
- Line proximity alarm
- Changeable throat depth on spool for Mono or Braided lines
- Braid Capacity 1500m x 200lb braid (with spool spacer)
- Mono Capacity 700m x 300lb mono (without spool spacer)
- 12 or 24v operation
- Up to 110m (375ft) per minute retrieval speed (12v)
- Up to 200m (680ft) per minute retrieval speed (24v)
- Fully Sealed for very low maintenance
- Very high efficiency, as little as 10 amps under light load
- Long Duty Cycle
- Smooth Powerful 2 stage drag can be set from very light to over 100KG
- No Drag side-load at higher settings
- No Cam adjustment
- No High Pitched reel noise
- 4 position gimbal mount
- Boom can be removed and stored when not in use
DDW-250 Combo Kit Includes:

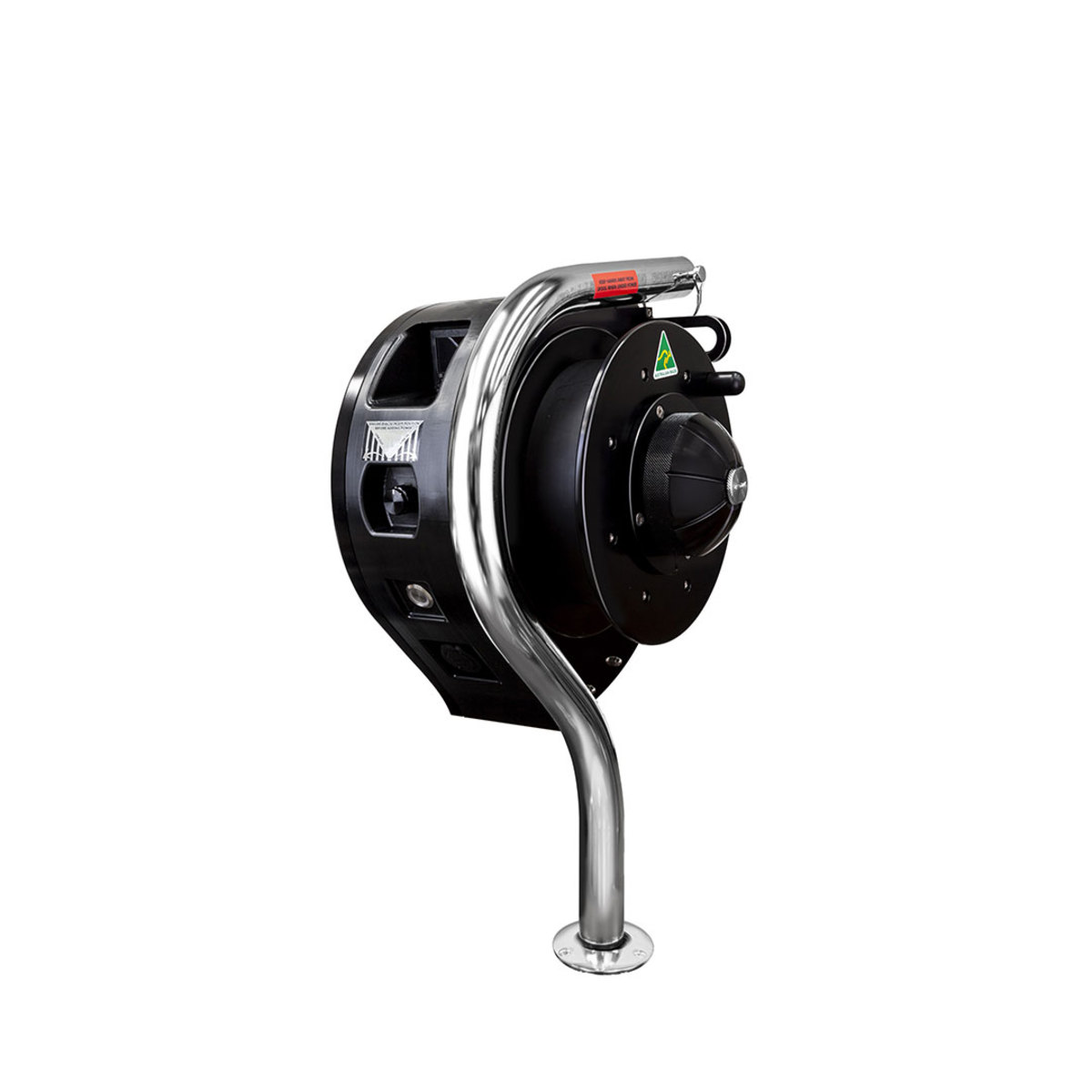

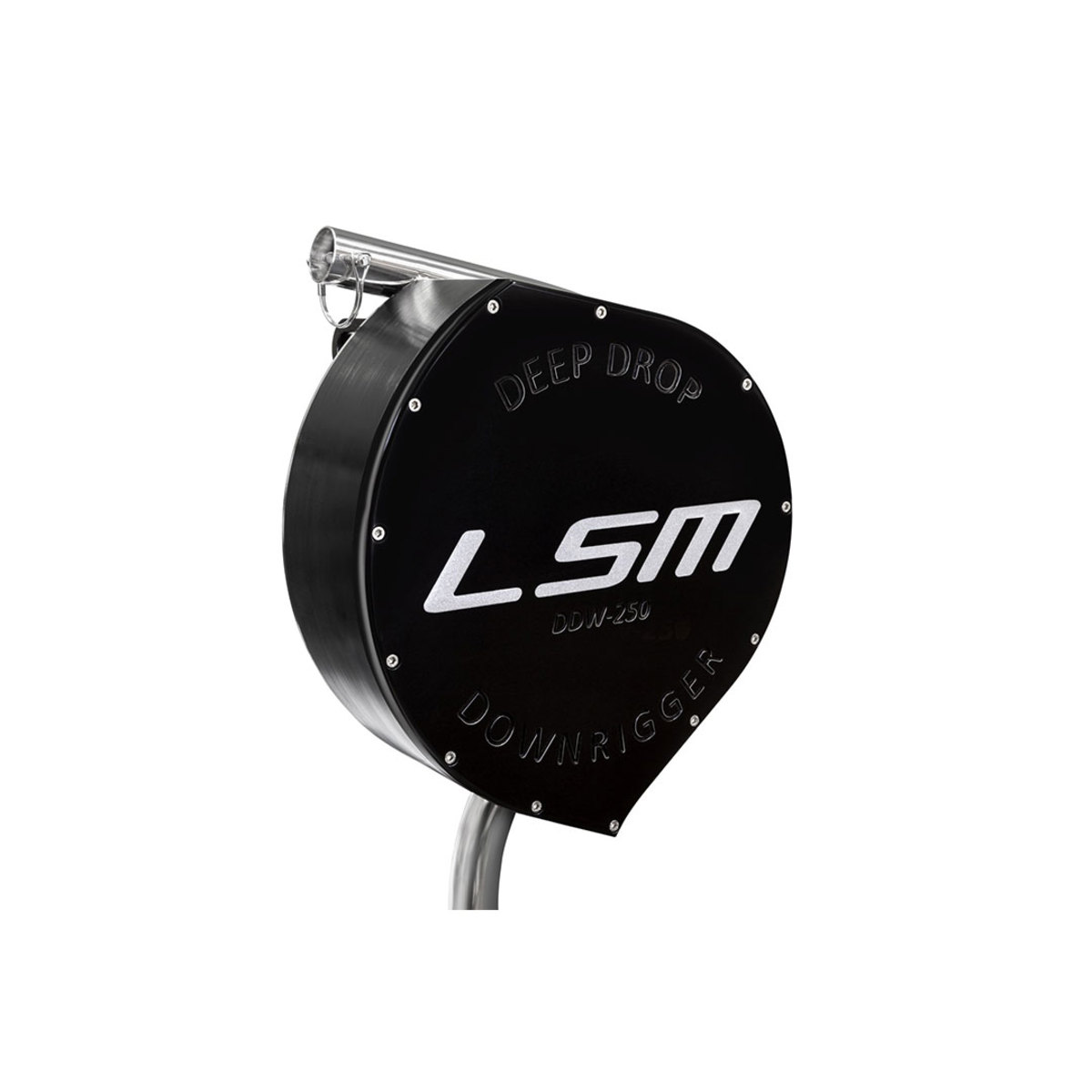

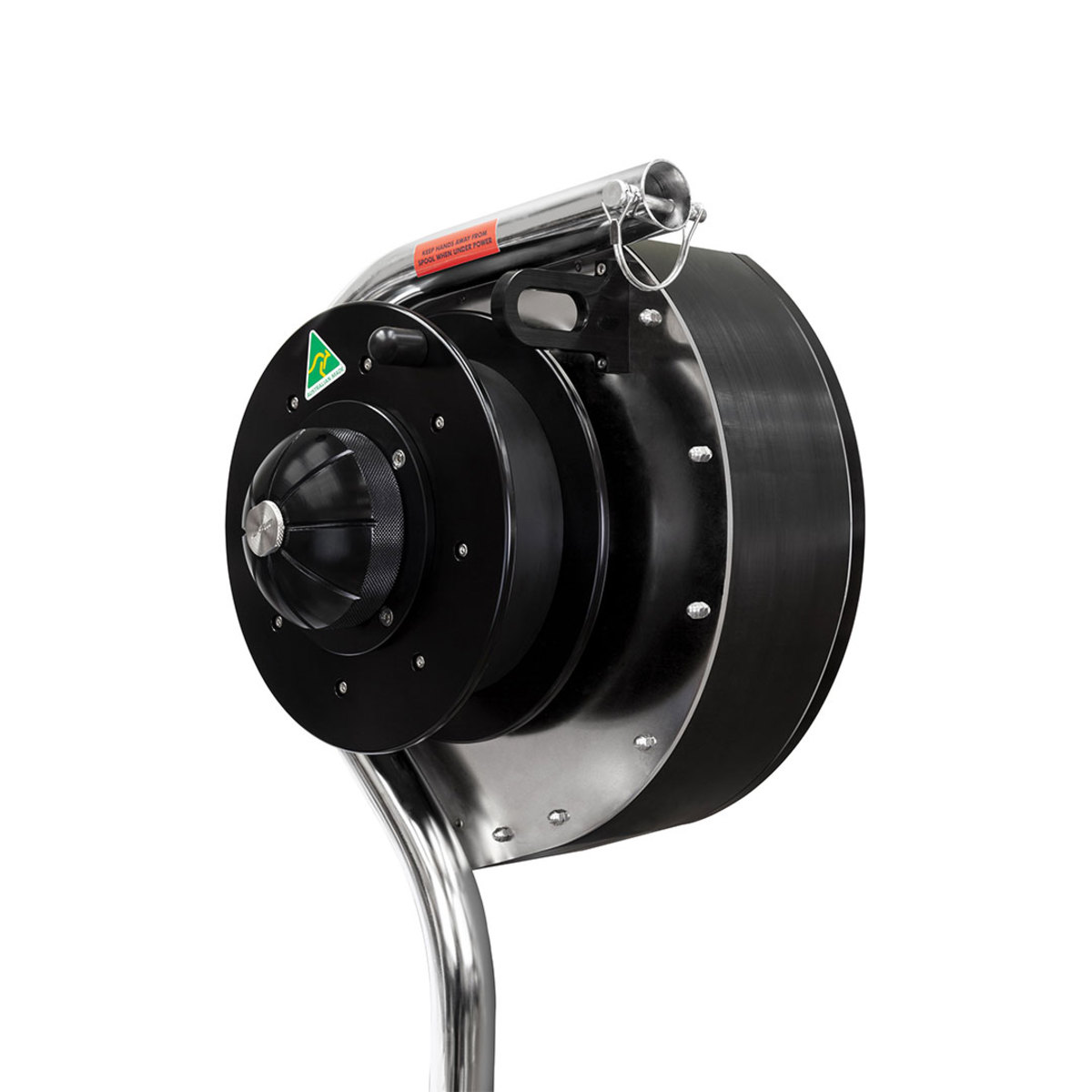

- Complete Deep Drop Winch
- Rod Holder Mount
- 50 Amp MP Circuit Breaker
- Power plug + 5m twin core power lead (no Anderson plugs)
- 4 battery lugs & heatshrink

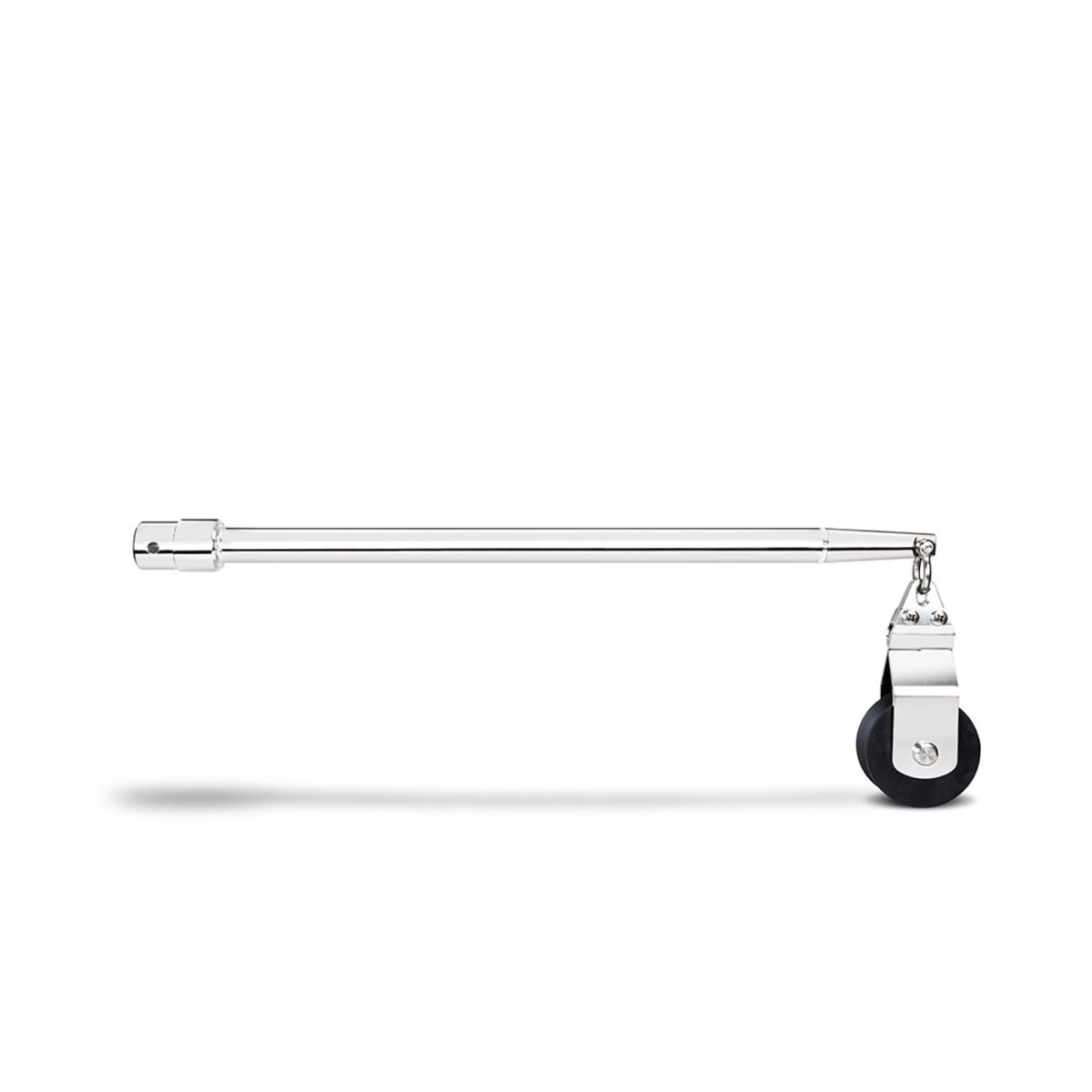

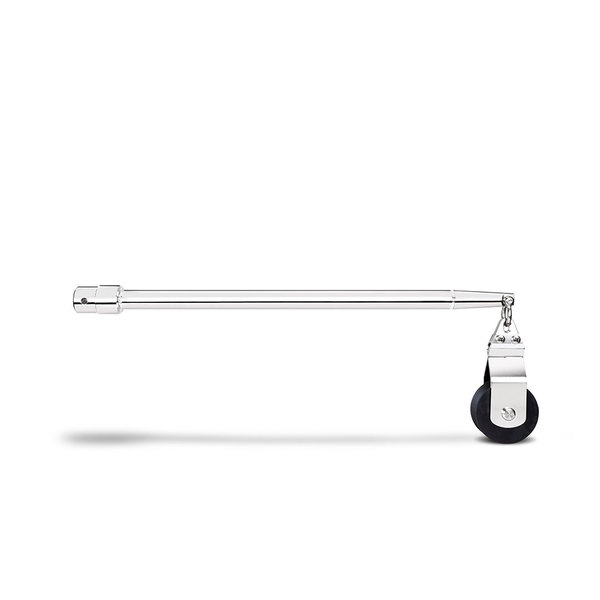

- Fibreglass Boom
- LSM Closed Sheave with SS bearings
- Bearing oil
- Cal’s drag grease
Complete ready to fish deep drop or down-rig unit, all you need to supply is line & Power
Fibreglass booms are made for reducing shock loads in swell or with larger fish. These booms are not made for bite detection with smaller fish, its not their purpose. They will load up on larger fish. These are intended to be used with larger 4-8kg weights.
*Check local regulations before purchasing this unit. The DDW-250 is completely legal for recreational use as a down-rigger in all Australian states. It is also legal for recreational use as a fishing winch in all states except Victoria. It MAY be legal for Victoria as all criteria are met on paper, but top date we have not received clarification or confirmation from DPI on this.
Warranty:
3 Years recreational, 2 Year Commercial Warranty
