The “Jumbo” is the the perfect winch for 55ft+ boats and skippers needing to run large amounts of rode. This unit holds a massive 150m of 20mm or 125m of 22mm DBN nylon rope plus 13m of 13mm short link chain. If you need the biggest, baddest electric drum anchor winch available go straight to the GX6 Jumbo.
Boats 18-30m. The extra torque and smaller wiring required by 24 volt model is a notable asset in this class.
The GX™ series have become the new workhorse & standard in perfectly engineered anchoring systems at the right price. Featuring all Australian Made 316 stainless and machined & anodized 6061 T-6 aluminium construction, “Real Italian” transmissions, triple sealed bearings, twin shaft bearing systems, machined slimline ‘fast change’ collars, & an all new emergency release as standard on all models. Motors are once again custom manufactured exclusively for LSM and are pre-rigged with twin leads for easy installation. From the company with so many Worlds First under its belt, we are proud to have created the first anchor winch motor with an IP68 rating (AS/NZS 60529). This silicon free, glue free, paint free design has been achieved utilizing the latest modern manufacturing techniques, right here in AU. Most importantly, GX Series winches are Made to Get Wet! From small recreational boats to Commercial Vessels over 60ft, there is a GX Series winch just right for your boat and application. All backed by our famous 5 + Life Warranty.

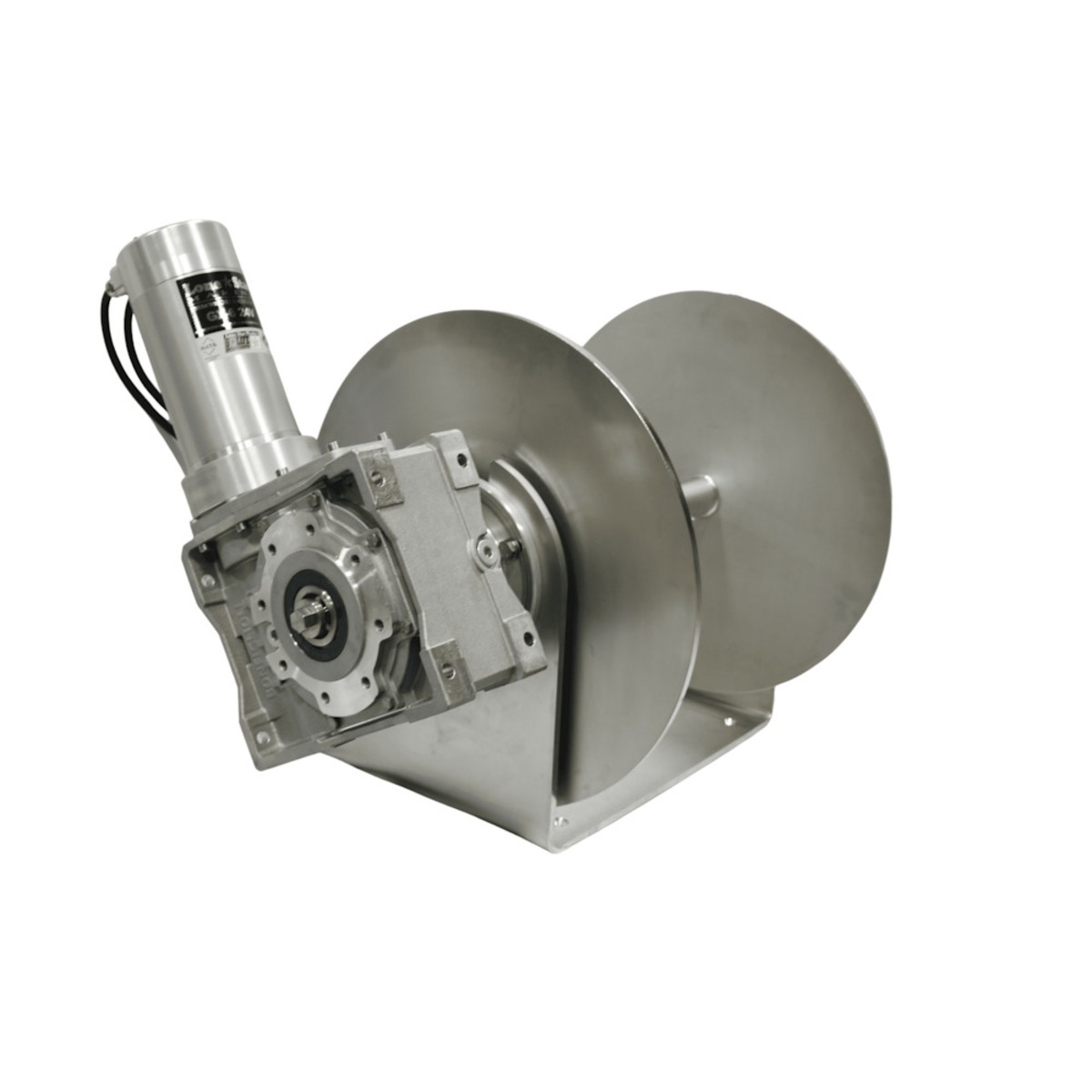

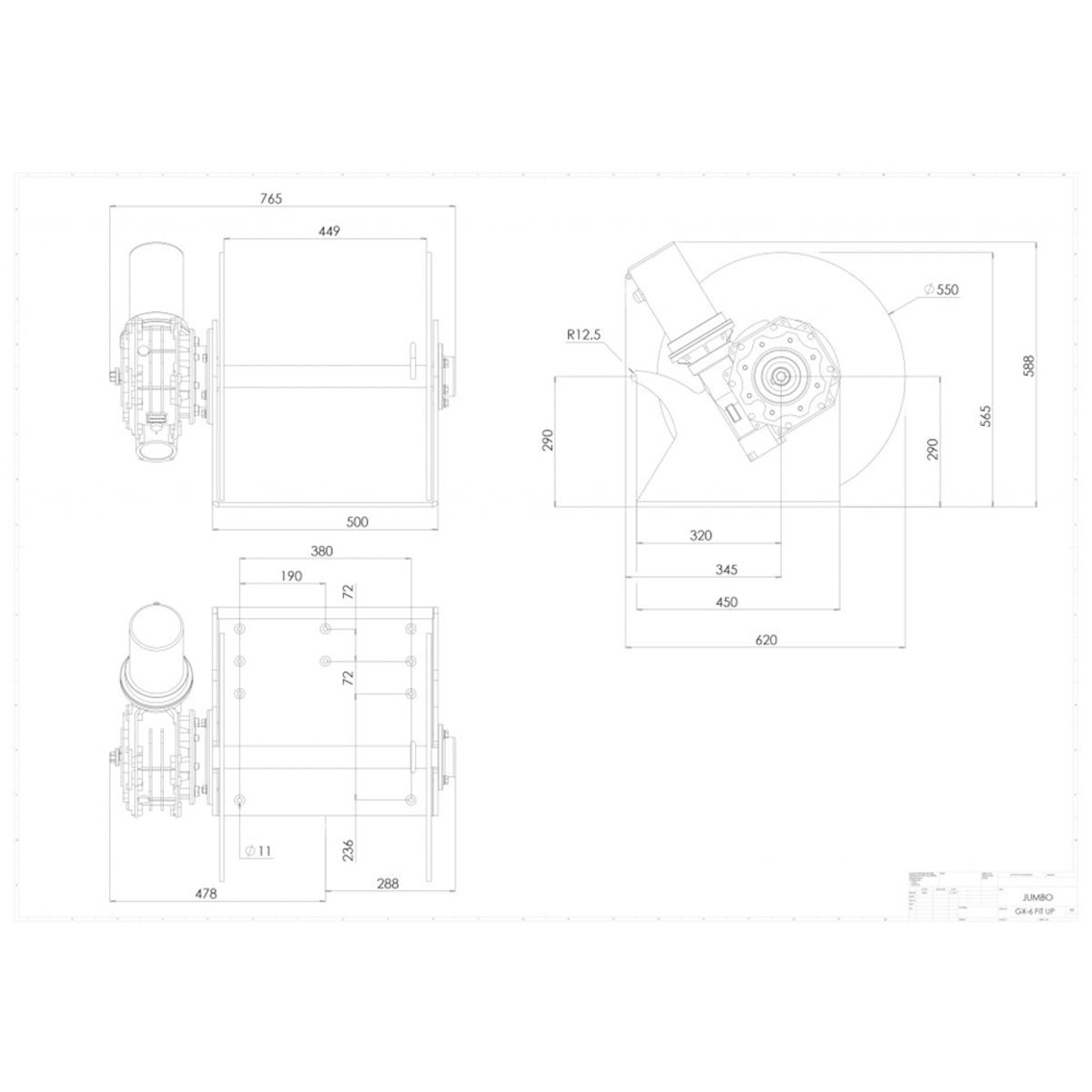

The GX6 is a large unit, boasting a 550mm drum and massive single stage gearbox for a lifetime of faultless anchoring. The GX6 is the answer for commercial fishermen and large pleasure craft to 80ft. This model has been created for XHD loads and structural integrity with a 55mm solid machined shaft, 10mm frame, and 35mm solid frame stiffener. Thanks to the well oversized gearing and motor this unit can easily be fitted to boats to 20m+.
Features:
- 2800W (24v) Motor
- Perfect for wet wells and deck mounts
- Boats to 20m+
- Fast Drop/Retrieval Rating
- Sealed IP68 Motor and Oversized Gearbox
*GX Series Winch Kits inc. nuts & bolts, circuit breaker, switch panel & solenoid.
GX6 have large washers instead of backing plates
Backing Plates as anfd if required are custom made at fit out to suit particular application. Minimum 8mm steel or ss plate recommended.
