The GX™ series have become the new workhorse & standard in perfectly engineered anchoring systems at the right price. Featuring all Australian Made 316 stainless and machined & anodized 6061 T-6 aluminium construction, “Real Italian” transmissions, triple sealed bearings, twin shaft bearing systems, machined slimline ‘fast change’ collars, & an all new emergency release as standard on all models.
In this class the extra torque of 24v motors makes a difference.
Motors are once again custom manufactured exclusively for LSM and are pre-rigged with twin leads for easy installation. From the company with so many Worlds First under its belt, we are proud to have created the first anchor winch motor with an IP68 rating (AS/NZS 60529). This silicon free, glue free, paint free design has been achieved utilizing the latest modern manufacturing techniques, right here in AU.
Most importantly, GX Series winches are Made to Get Wet! All backed by our famous 5 + Life Warranty.

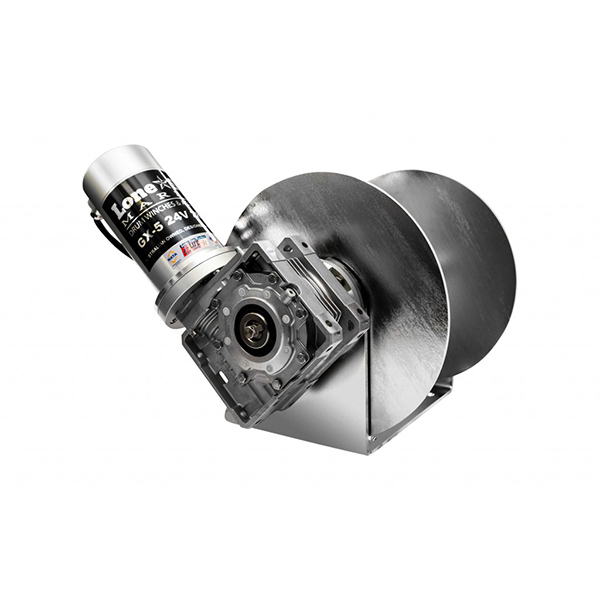

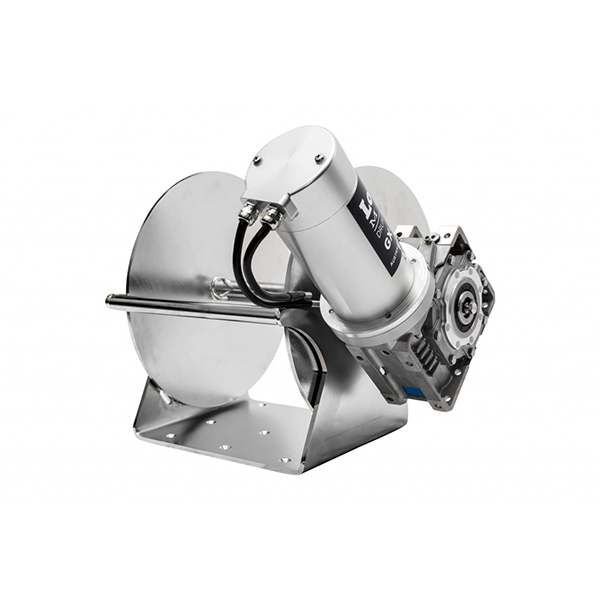

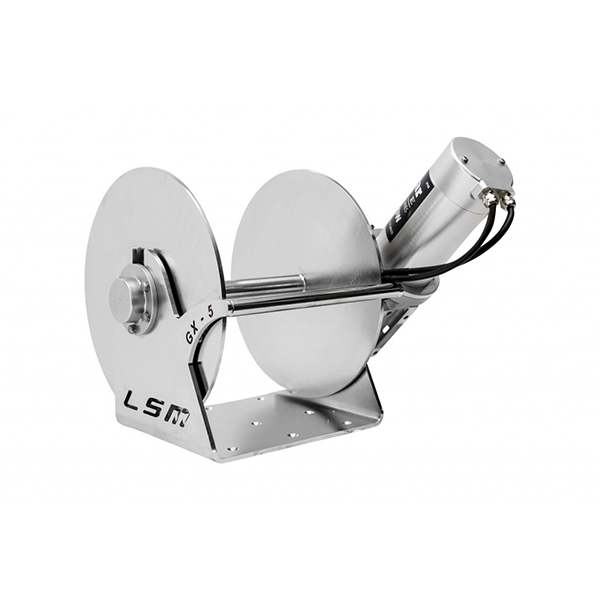

The GX5 is an absolute horse of a unit, boasting a 420mm drum and gearbox much larger than neccessary for a lifetime of faultless anchoring. The GX5 is the answer for large capacity trailer boats & commercial fishermen. This model has been created for XHD loads and structural integrity with a 37mm solid machined shaft, 10mm frame, and 25mm solid frame stiffener. Thanks to the well oversized gearing and motor this unit can easily be fitted to boats to 15m+.
Features:
- 2800W (24v) Motor
- Perfect for wet wells and deck mounts
- Boats to 20 metres
- Fast Drop/Retrieval Rating
- Sealed IP68 Motor and Oversized Gearbox
- Manufactured in Australia
Our most popular model for 40-65ft commercial boats. If you rely on your winch to make a living go with the GX5 Charter King.
Ideal for boats to 20m
Specifications:
- 2800w (24v) Purpose Built Permanent Magnet Motor, 4 Brush Design
- IP68 (Fully Waterproof)
- Extra Heavy Duty Structural Design
- Machined Solid 37mm 316SS Spool Shaft
- High Polished 8mm 316SS Cradle Construction
- 1 inch Solid Frame Stiffener
- Twin Shaft Bearing Design, Triple Sealed (LSM Exclusive)
- Machined Roller Bearing Cover (triple sealed)
- No Paint or Silicon Sealants
- No Mild steel outputs or fittings
- Fully Waterproof Machined Motor (LSM Exclusive)
- Prerigged with tinned cable leads
- Machined (not cast) Fastchange Bearing Collar
- Perfect for Deck Mounting
- Capacity 100m of 14mm or 140m of 12mm Rope +13m of 10mm SL chain
- Drop/Retrieve up to 129Ft (40m) per minute
- 12 Adjustable Gear/Motor Mounting Positions
- Manual Release Feature in the event of power loss
- 15000lb Holding Power at Anchor-No need to tie off
- Massive 2.5T Max Pull (empty drum)
- 300lb max recommended working load
- All 316SS and Machined 6160 Alloy Construction
- Italian Made Transmission-Marine Grade Outputs
- Designed and Manufactured in Australia
- Weight - 160 lbs
Each Kit Includes the Following as Standard
- Winch
- 400 Amp Solenoid
- Genuine MP Marine Grade Circuit Breaker (made in the USA)
- Black 316 Stainless Steel Switch Panel
- All Nuts, Bolts, & Washers Needed for Installation
- *Does NOT include rope pack, Deck Roller and chain Guard.*All available separately
- Warranty Information, Switch Panel Template, Installation Instructions
