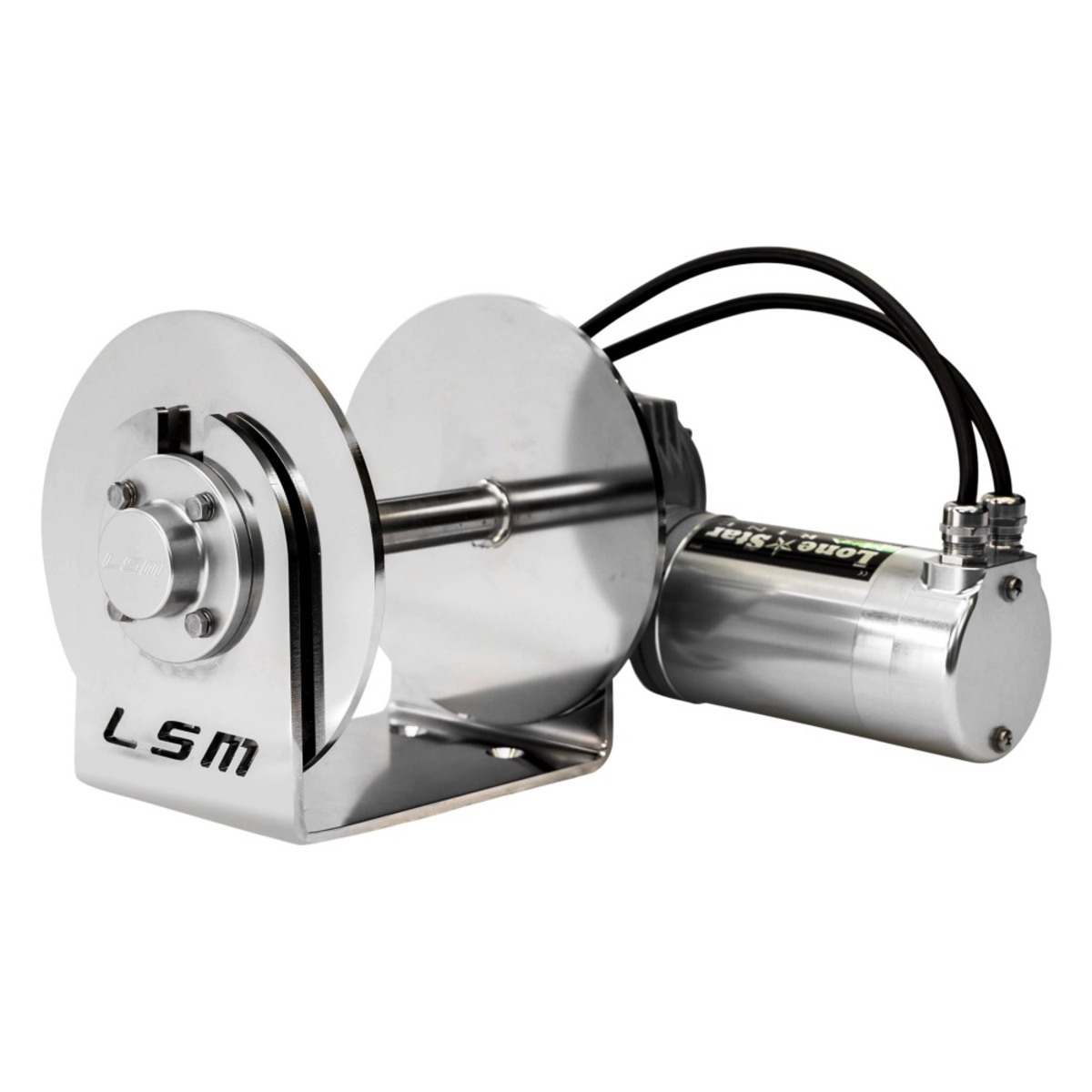

GX1 Anchor Drum Winch with DBN Rope/Chain/Acc Pack (60MX6MM+7MX6MM SL CHAIN)
The GX series have become the new workhorse & standard in perfectly engineered anchoring systems at the right price!
Boats to 6m
Pure Class & Built. For. Life. Full of innovative features & packed to the brim with quality components. GX Series are trusted by Commercial & Recreational fishermen Wolrdwide and has truly raised the bar for what customers can expect from their anchoring systems.”
Lone Star GX1 Series Winch Combo Kits are FULL package and include Winch, 316g ss 6mm under deck backing plate, nuts & bolts, circuit breaker, switch panel, solenoid, SS CR135 Series Deck Roller, Chain Guard and Anchor Swivel plus 60mtrs of 6mm rope with 7mtrs of 6mm chain! Hi-Spec HMPE rope package is optional for extra length. 8070502 in search box.
Featuring all Australian Made 316 stainless and machined & anodized 6061 T-6 aluminium construction, “Real Italian” transmissions, triple sealed bearings, twin shaft bearing systems, machined slimline ‘fast change’ collars, & an all new emergency release as standard on all models. Motors are once again custom manufactured exclusively for LSM and are pre-rigged with twin leads for easy installation. From the company with so many Worlds First under its belt, we are proud to have created the first anchor winch motor with an IP68 rating (AS/NZS 60529). This silicon free, glue free, paint free design has been achieved utilizing the latest modern manufacturing techniques, right here in AU. Most importantly, GX Series winches are made to get wet! From small recreational boats to Commercial Vessels over 60ft, there is a GX Series winch just right for your boat and application. All backed by our famous 5 + Life Warranty.
The GX1 is the fastest and most powerful drum anchor winch on the market today. Thanks to the well oversized gearing (4 times the surface area of gearing in other 200mm drum winches) and 600W motor this micro unit can easily be fitted to boats to 6m for saltwater use and much larger for freshwater applications.
Features:
- Smallest and most compact of the GX series
- Perfect for small anchor wells
- Fastest and most powerful small winch on the market
- Fully Sealed Motor and Gearbox
- Designed & Manufactured in Australia
What this has:
- 5 + Life Warranty
- 12 volt 600W Purpose Built Permanent Magnet Motor, 4 Brush Design
- IP68 (Fully Waterproof)
- Machined Solid 316SS Spool Shaft
- High Polished 6mm 316SS Plate Construction
- Twin Shaft Bearing Design, Triple Sealed (LSM Exclusive)
- Machined Roller Bearing Cover (triple sealed)
- No Paint or Silicon Sealants
- No Mild steel outputs or fittings
- Fully Waterproof Machined Motor (LSM Exclusive)
- Prerigged with Tinned Cable Leads for Easier fitting
- Machined (not cast) Fastchange Collar
- Perfect for Deck Mounting
- Holds 60m of 6mm Rope + 8m x8mm topshot & 7m of 6mm chain
- Drop/Retrieve up to 126Ft (39m) per minute
- 12 Adjustable Gear/Motor Mounting Positions
- Manual Release Feature in the event of power loss
- 3000kg Holding Power at Anchor-No need to tie off
- Huge 1100kg Max Pull (empty drum)
- 100kg max recommended working load
- All 316SS and Machined 6160 Alloy Construction
- Rounded Style Transmissions for easier fitting-Made in Italy
- Designed and Manufactured in Australia
- Holds 60m x 6mm rope + 8m x 8mm topshot & 7m x 6mm SL Chain
- Larger Capacity Dyneema Kits are available

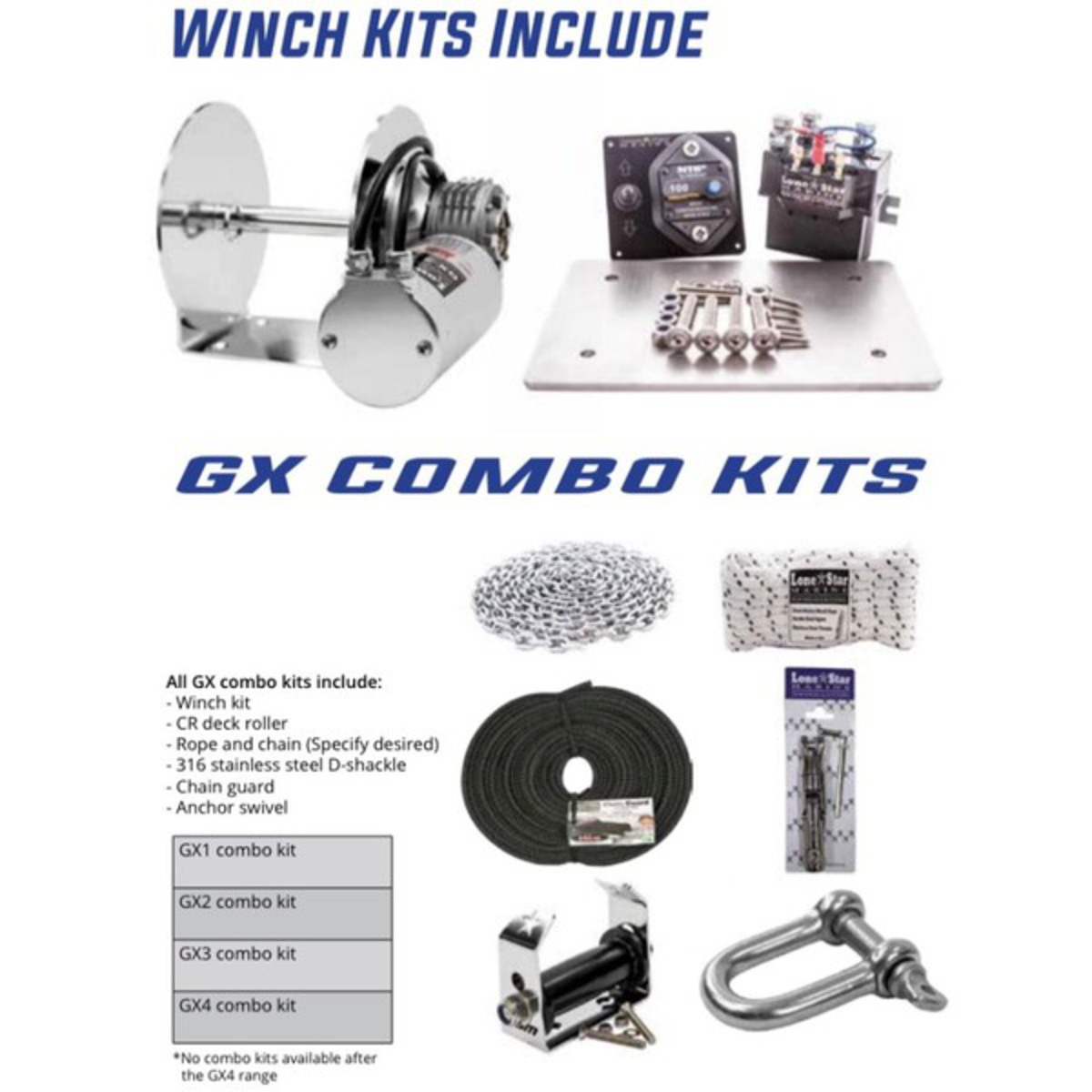

Included:
- Winch
- 6mm Base Plate
- 400 Amp Solenoid
- 60mtrs of 6mm Rope Spliced to 7mtrs of 6mm Chain
- Chain Guard
- Polished Stainless Steel Anchor Swivel
- Genuine MP Marine Grade Circuit Breaker (made in the USA)
- Anodized Alloy Toggle Switch Panel
- All Nuts, Bolts, & Washers Needed for Installation
- Warranty Information, Switch Panel Template, Installation Instructions

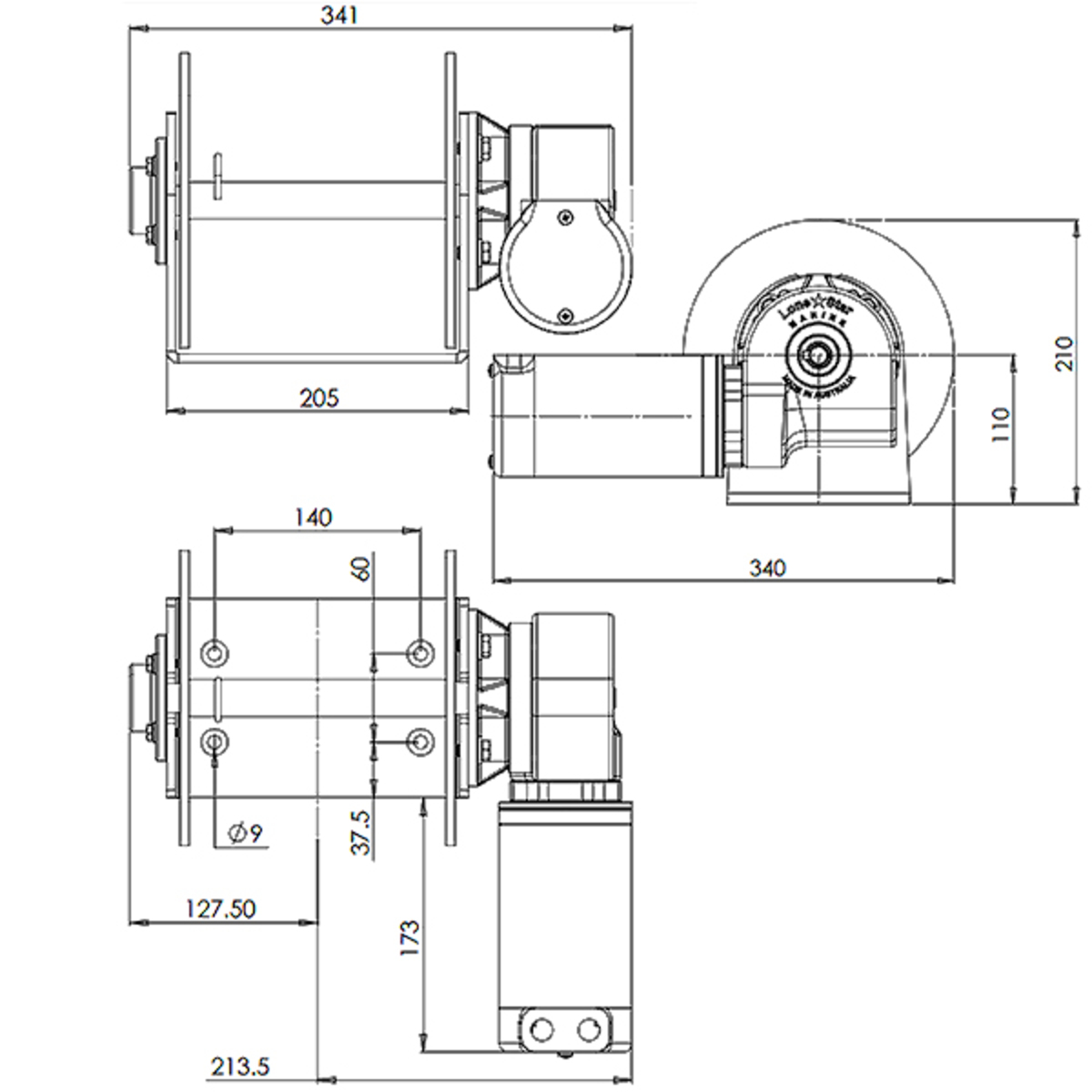

Specifications:
- Model: GX-1
- Drum Dia: 200mm
- Shaft: 24mm
- Gearset: 88mm
- Max Drop-Retrieval Speed: 39m/126 ft. p/m
- Holding at Anchor: 3T
- Rope/Chain Capacity: 60m x 6mm rope + 5m topshot, 7m x 6mm SL Chain
- Recc. Boat Size: 4-6m
- Boat Max Size: Up to 6m
- Packaged Weight (Appr.): 17kg
- Motor Wattage: 600W
- Contructed Material: 316 Stainless Steel / Anodized 6061 T-6 Aluminium
- Water Resistence: IP68
- Warranty: 5 Years

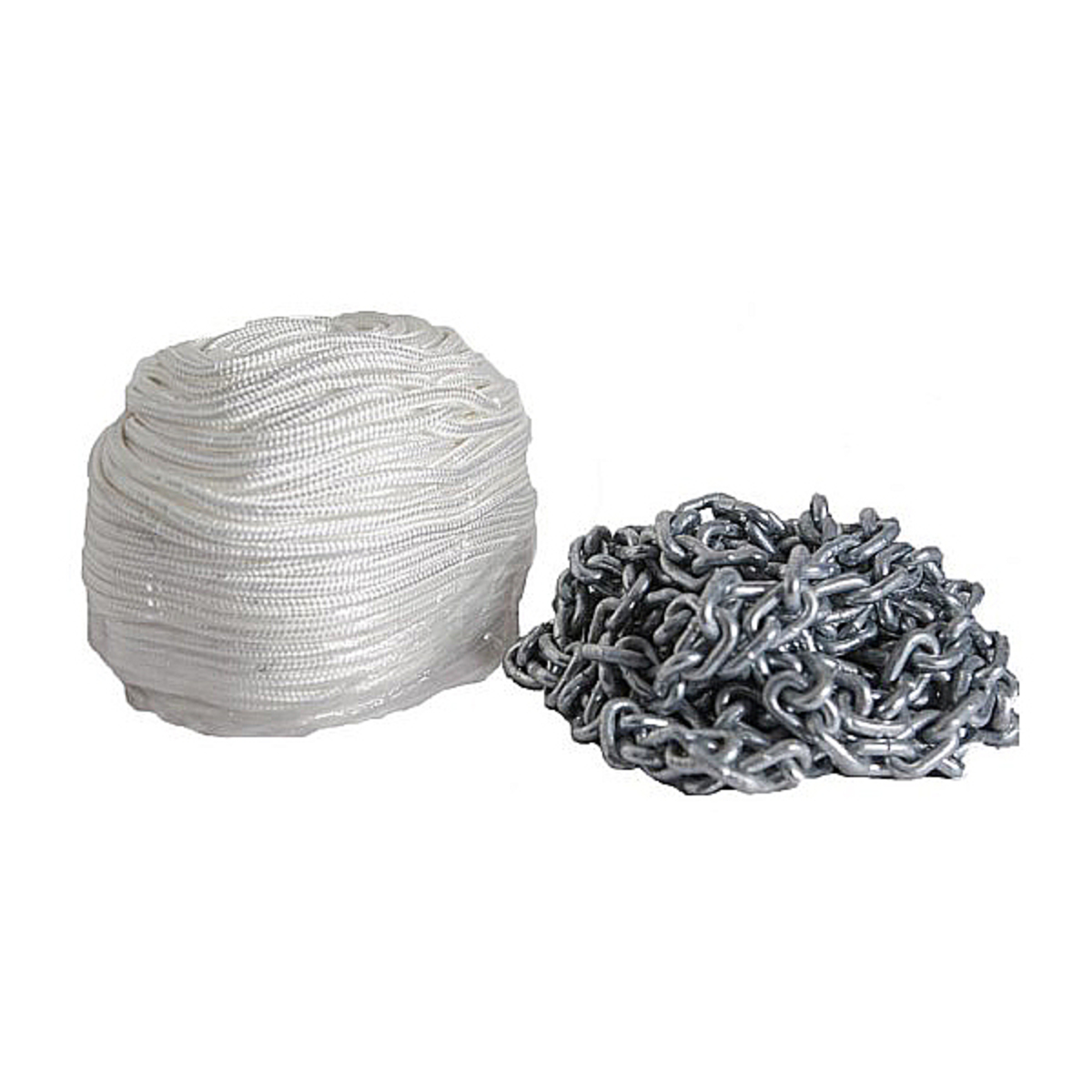

Chain/Rope:
- Rope Size: 6mm
- Rope Length: 60m
- Rope Type: Double Braid Nylon
- Chain Size: 6mm
- Chain Type: Short link
- Chain Length: 7m
- Rope Breaking Strain: 850kg
