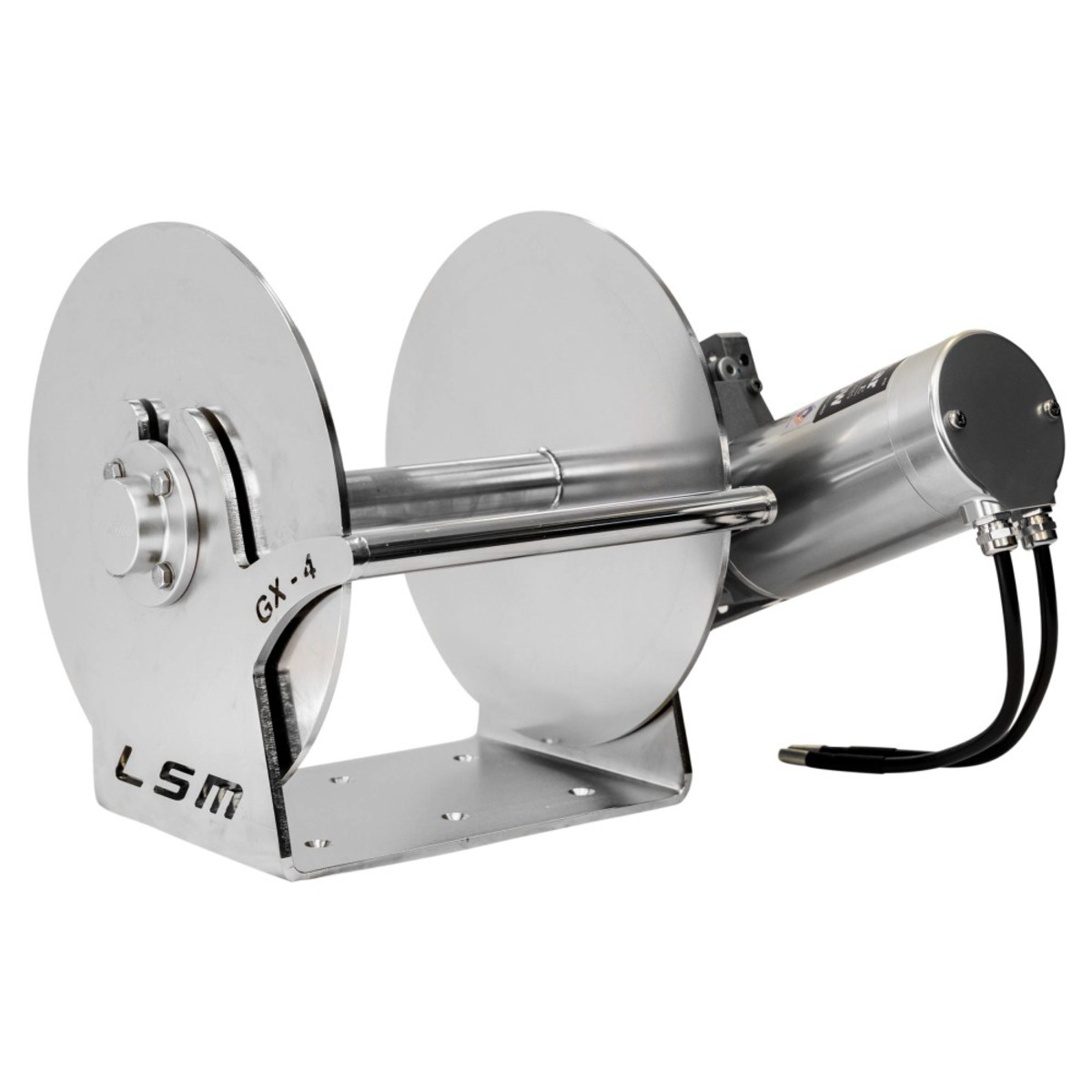

GX4 Drum Winch – Built for Power and Reliability
The Lone Star Marine GX4 Drum Winch sets a new benchmark in anchoring systems for large-capacity trailer boats and commercial vessels. Known for its impressive performance and structural integrity, the GX4 features a 37mm solid machined spool shaft, 8mm stainless-steel frame, and a hefty 25mm frame stiffener, making it ideal for heavy-duty applications in saltwater and larger freshwater boats up to 14m (46ft). With a 1500W (12V) or 2000W (24V) motor, this winch delivers fast, dependable power that can handle even the harshest marine environments.
Key Features
- Heavy-Duty Power: 1500W (12V) or 2000W (24V) purpose-built motor with IP68 waterproofing, 125mm width, and a 4-brush design for optimal durability and performance.
- Robust Construction: 37mm solid 316 stainless steel spool shaft, 8mm polished 316 stainless steel cradle, and 25mm frame stiffener for exceptional strength.
- Advanced Sealing: Triple-sealed twin shaft bearings and a machined roller bearing cover to keep out water and contaminants, ensuring long-lasting performance.
- Versatile Mounting: 12 adjustable gear/motor mounting positions, perfect for wet wells and deck mounts.
- Manual Release Feature: Allows for manual operation in the event of power loss.
Specifications
- Capacity: Holds 120m of 10mm rope or 80m of 12mm rope plus 12m of 8mm SL chain
- Drop/Retrieve Speed: Up to 146 ft (48m) per minute
- Holding Power: 5200kg at anchor—no need to tie off
- Maximum Pull: 1300kg (empty drum)
- Maximum Working Load: 120kg
- Construction Materials: All 316 stainless steel and machined 6160 aluminum with marine-grade Italian-made transmission outputs
- Spool Size: 275mm x 350mm
Kit Components
- Included:
- GX4 Drum Winch with 6mm backing plate
- 400 Amp Solenoid
- Genuine MP Marine Grade Circuit Breaker (USA-made)
- Anodized alloy toggle switch panel
- Complete installation hardware (nuts, bolts, and washers)
- Warranty information, switch panel template, and installation instructions
Note: Rope pack, deck roller, chain guard, and swivel sold separately.
Summary
The GX4 Drum Winch combines rugged strength with intelligent design, making it the ultimate choice for commercial and large recreational boats. With a 5 + Life Warranty, Australian-made 316 stainless steel, and machined aluminum construction, it’s built to withstand the elements and provide years of reliable performance.
