Easy to start twist grip throttle, super quiet and economical. An awesome addition to the Parsun range of Outboard motors.
3-Year Warranty
Dual Fuel Option. Comes with 1.3 Litre Integral Tank standard or optional remote tank/line.
Battery charging is now standard

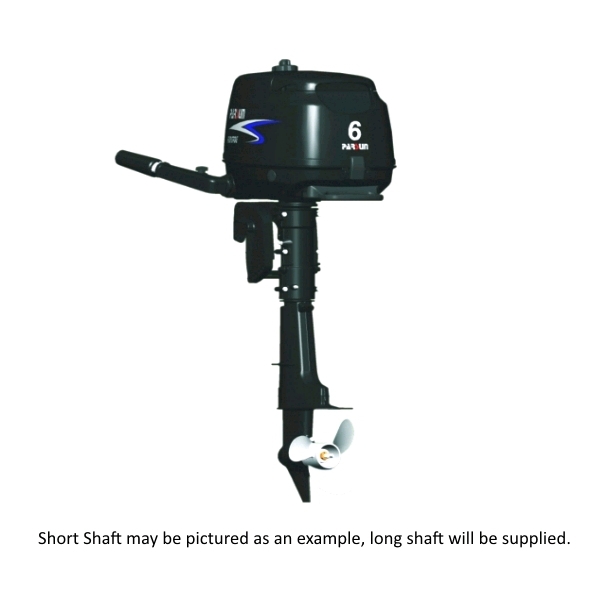

Grunty single cylinder, 6HP 148cc F/N/R gear box 1.3L, internal tank 27kg. Thru hub exhaust. Compact size and large handles make it highly portable and start-up is easy with CDI Ignition System. And on the water, you'll be delighted by the low fuel consumption, simple control, limited noise and vibration, and complete reliability.
Features:
- Exhaust through the middle of propeller so as to get low noise and low vibration for extra comfort;
- Spiral bevel gear, stronger, run more quietly and can be used for higher reduction ratios with longer life;
- High - strength clutch, more reliable and better performance
- Use ball bearing and needle bearing for driver shaft, long life and better performance
- Besides the oil dip-stick, also equipped with oil watch window
- Convenient auxiliary prime pump in cowling for easy starting after long storage. A small auxiliary prime pump is fitted to the fuel pipe before the carburetor in the cowling. By ensuring the delivery of fuel to the carburetor, the engine can be started smoothly even after long storage
- Bigger displacement, 3-5% more power output
- Wet-sump, forced bath lubrication system, protect the engine better;
- CDI Ignition for easy start in all conditions: idle speed will be down to 1200~1300rpm (the fuel consumption will be reduced) and more quiet at idle speed by such new system
Other advantages:
- Large carry handles for convenience and comfort
- Easy to use steering and large shift lever
- Built-in 1.3L fuel tank. F5A and F6A all have a built- in 1.3L fuel tank, eliminating the need for an external tank.
- Position oil leak-free storage system: 3-position oil leak-free storage system offers an easy way to store your engine, whether you're carrying it in a boat, a car, or a trailer.
Specifications:
- Model F6ABML
- Overall length mm: 718 (28.2)
- Overall width mm: 390 (15.4)
- Overall height mm: 1177 (46.3)
- Transom height mm: 508 (20.0)
- Weight kg: 28
- Full throttle operating range r/min: 4500-5500
- Maximum output Kw(HP) @r/min: 4.4(6) @5000
- Idling speed (Neutral) r/min: 1450-1550
- Engine type: OHV
- Cylinders: 1
- Displacement cm³: 148
- Bore x stroke mm(in.): 64.0x46.0(2.52x1.8)
- Ignition system: CDI
- Control system: Tiller control
- Starting control: Manual start
- Gear positions: Forward-Neutral-Reverse
- Gear ratio: 2.15(28/13)
- Trim and tilt system: Manual tilt
- Fuel Tank capacity L: Intergral 1.3
- Maximum fuel waste L /h: 2.3
- Engine oil capacity (without oil filter) L: 0.6
- Gear oil capacity cm³: 100
- Propeller: in 3 – 7.8 " X 9"

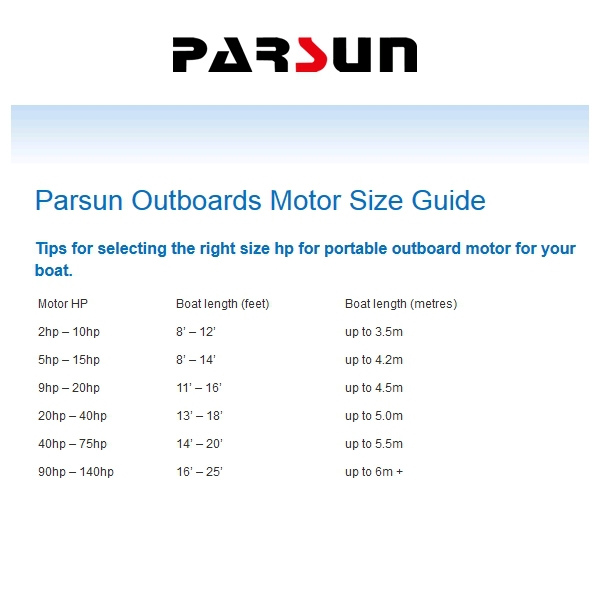

Parsun Outboards Motor Size Guide:
- Motor HP: 2hp - 10hp
- Boat Length (Feet): 8' - 12'
- Boat Length (Metres): up to 3.5m
