Seahorse 46 Electric Pack: Full Package Electric Kontiki (Non-Gps), Winch, And Traceboard

This ultimate package includes everything you need!

Just get some bait and your away fishing.

The package includes:

1. The Seahorse Electric Kontiki with the powerful 2 speed 46lb thrust motor. (non-GPS)

• 22 amp hour SLA battery pack.
• The Seahorse ABT Automatic Multi Stage Charger.
• Night activated strobe light and flag.


2. The Seahorse Electric Winch with:

• 1900 meters of 140kg breaking strain line, including 1600m of mainline, 200m of stoppered line, 150m of leader, a shock cord

3. 14 amp hour SLA Battery

4. The Seahorse Traceboard with 26 traces

5. 10 spare traces

6. 5 clip on weights

7. Operator's manual and DVD

8. 24 Month Limited Warranty and 30 day money back guarantee* (See the Smart Crew for details)

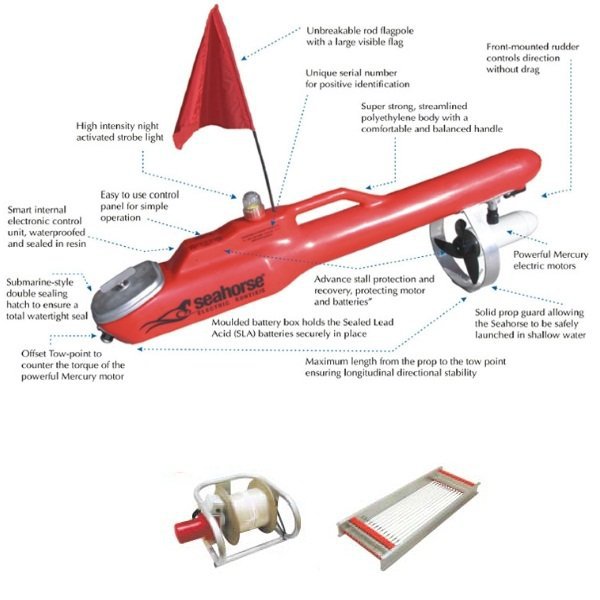

The Seahorse Electric Kontiki

The seahorse Electric Kontiki-Designed and engineered in Tauranga, NZ, and tested in our harshest beach conditions, the Seahorse Electric Kontiki is the world's most successful beach longline fishing system. It can be operated either single-handedly or with family and friends so you can fish where and when you want. Able to power through all conditions, the Seahorse Electric Kontiki System takes beach longline fishing to a whole new level.

After months of design and development, and hundreds of hours testing and refining, Seahorse Equipment is proud to release the latest Seahorse electric kontiki model. The new Seahorse Kontiki has a number of enhancements over the old model which further improve ease of use and reliability, and takes its performance to a new level. The new Seahorse Kontiki has a unique double sealing hatch and an improved seal, guaranteeing a perfect watertight seal every time.

The world leading electronic control unit brings a new level of technology to Kontiki fishing, with it's unique stall protection and recovery features. Teamed up with the Seahorse Winch and Traceboard, you will have the complete fishing package.

Features:

Seahorse offers the choice of two kontiki models as not all fishers are the same. Choose the unit that best meets your requirements - the powerful and versatile two speed white 46lb thrust motor or the lightweight easy to use black 30lb thrust motor.

For ultimate performance and flexibility, the powerful and versatile two-speed Seahorse 46 is New Zealand's most popular kontiki unit. The Seahorse 46 is New Zealand's only proven 46lb thrust kontiki. The high performance 46lb thrust motor will attack massive West Coast surf and rips, allowing you to fish when others can't. The two speed control unit gives you full power for serious surf and rips, or half speed for calmer conditions, ease of use, and maximum distance. The Mercury 46lb thrust motor swings a 3 blade prop that provides a massive amount of torque or pull. This enable the Seahorse 46 to drag the line, baits and weights out through surf line and across side rips without the need for excessive speed. The slower speed delivers 27lb's of thrust, which is great for claimer conditions.

The Seahorse 30 is one of the lightest in its class with unmatched ease of use and performance. This model is the best performing kontiki in it's class, and is very simple to use. While the Seahorse 30 will tackle bigger conditions, we recommend it is used for locations with calmer conditions, or where weight and ease of use is paramount. The Mercury 30lb thrust motor swings a high speed 2 blade prop that enable the Seahorse 30 match the speed of the larger motor but without the massive pulling power. While perfect for clamer conditions, the motor does not provide the pulling power needed for the west coast type conditions.

Seahorse Kontiki's are professionally designed and constructed by our team to handle the harsh beach conditions of New Zealand. It's imperative that everything is designed to operate in coastal elements such as sand, salt, and water. That is why all internal components, including the batteries, are fully sealed and waterproofed for maximum protection and to keep maintenance to a minimum. The Electronic Control Unit is encased in resin and is also completely waterproof.

The Seahorse products are proudly made in Tauranga, New Zealand - the home of Kontiki fishing.

The world leading electronic control unit brings a new level of technology to Kontiki fishing The Control Unit is responsible for the management and protection of the batteries. It monitors the batteries, and will stop the motor if the charge in the battery fall to a low level. It starts and stops the motor, and if a timed run is selected, the electronic timer is used to control the run. The control unit is operated externally by a magnet allowing it to be operated anywhere and in any conditions. The new stall protection and recovery feature is an essential feature to protect the motor and batteries from the extensive damage a stalled motor can cause. If the motor is stalled, the control will stop and start the motor 3 times, trying to dislodge the offending item, and allow you to continue fishing. Shingle beaches, such as the Hawkes Bay, and sticks are a major cause of stalled motors.

The control panel is designed for simple one- touch control right up to the moment of launching

The long, low buoyancy, slab-sided body design, gives the Seahorse an incredible ability to self-steer through varying surf and currents. The smooth body design enables it to slice through the waves with minimal resistance, maximising the distance it travels. Because of its design, the whole body is able to operate as a rudder behind the forward mounted motor. To our advantage, this means we do not need drag inducing keels or rear mounted rudders. The low buoyancy shape allows the motor to pull the body and drive under the surf with unmatched performance.

The sleek body allows the Seahorse Kontiki to be launched into very shallow water (knee deep or even less), as the body has no protruding apetures that can catch on the bottom and pull the unit off course.

The batteries are accessed via a completely watertight, sealed, submarine styled, aluminium marine hatch designed by Seahorse. The hatch seals over a large surface area of rubber seal. The Aluminium hatch provides a total seal without distorting out of shape as tighter the hatch is closed, the stronger the seal becomes. The hatch seal sits against the inter ring of the body, allowing the hatch to apply the sealing pressure. We can guarantee this hatch will seal in conditions where other hatches fail. Unlike "O" rings, it will even seal when sandy. The hatch has a sealed stainless steel locking bolt, which cannot be over tightened. The specially moulded batterybox will hold the batteries securely in place, no matter how rough the surf gets. The low down position of the batteries ensures the Seahorse Kontiki is always stable and upright.

The offset aluminium tow point counters the torque of the powerful Mercury motor, allowing the motor to be mounted in-line with the body, and ensuring maximum drive from the motor. The position of the tow point has been identified through extensive inhouse testing, removing any need to find the correct tow point offset yourself. We have found millimetres make a difference.

The high visibility flag is the largest practical size. Offering excellent visibility in many different light conditions. The automatic strobe light self activates in the dark, allowing users andother maritime users to see the Seahorse Kontiki at night

Each Seahorse Kontiki has a unique serial number to ensure positive identification of each unit. Being New Zealand's most popular kontiki unit, you'll see them being used widely throughout New Zealand. Seahorse maintains a register of owners for your benefit.

The handle ensures the Seahorse Kontiki balances well when being transported.

The small forward mounted rudder,provides positive direction control. The rudder pulls the Seahorse Kontiki up into the current as opposed to a rear mounted rudder which pushes the unit down with the current. Our testing has shown forward mounted rudders are more effective, therefore these do not need to be as big to have the same effect.

The strong aluminium motor guard frame protects the motor and the propeller so the kontiki can be launched in shallow water.

A full 24 month limited warranty provides carefree operation and support. We also provide a 30 day money back guarantee, that this is the best Kontiki system you can buy. Call us if you have a query regarding your Seahorse. We are happy to help.

Used by Matt Watson, Graeme Sinclair and Bill Hohepa, and thousands of New Zealanders - from Invercargill to Cape Reinga, - the Seahorse is the best kontiki unit you can buy.

How does Seahorse steer so well?

The Seahorse Kontiki has an incredible ability to self-steer through varying side currents and waves. This is a unique ability unmatched by others on the market.

The long body length of the Seahorse Kontiki allows for unrivalled longitudinal steering stability. Engineering our konitki with the offset tow point and the forward mounted motor, ensures maximum resistance from waves and rough conditions. The long, low body acts like a rudder, removing the need for drag inducing keels. This low buoyancy design also gives the Seahorse the ability to dive under the breaking surf and avoid being washed off course.

We have found the line towing behind the Seahorse Kontiki works like the tail of a kite, and this helps to keep the unit straight. The low drag, front mounted rudder gives additional control for tackling offshore tidal currents or wind induced surface drift. By launching slightly into the current, the Seahorse's ability to steer a straight course will ensure your line is set where you want it.

Reliable, Smart Electrics

The Electric Winch

The Seahorse Electric Winch is built tough to do the hard work in a harsh beach environment. The Seahorse Winch makes launching and retrieval of your seahorse a simple one person job, no matter what the conditions are like or how many fish you have on the line. The three speed control unit and pulse function gives you full control, allowing you to fish when you want.

The Seahorse Electric Winch is built tough to do the hard work in a harsh beach environment. The Seahorse Winch makes launching and retrieval of your seahorse a simple one person job, no matter what the conditions are like or how many fish you have on the line. The three speed control unit and pulse function gives you full control, allowing you to fish when you want.

The Seahorse Electric Winch can be used with any electric kontiki and is perfect for kite fishing. It is also great for those kayak longliners who are exhausted after their long paddle.

Features

• The Seahorse Electric Winch is designed to make launching and retrieving your Seahorse as simple as possible - it is a one-man operation.
• The Seahorse Winch is the most advanced beach longline fishing winch available. It's advance design makes it simple to operate, and simple to clean.
• Being loaded with design features, it is also the simplest winch on the market to operate.
• The simple and effective drag rubber controls the speed of the drum on launching to stop overruns. The drag rubber adds constant drag to the winch drum during the launching process, thus stopping the line jumping and causing overruns. Once the traces are attached the drag rubber is removed off the drum, in turn removing the drag and allowing for maximum distance. Additional drag can be manually applied if required.
• The line used on the Seahorse Winch is 300lb, or 140kg, breaking strain, commercial grade monofilament fishing line.This line size is selected because it is easy to handle, yet strong enough to withstand a high level of abuse.The line consists of a 3m shock cord, followed by 150m of leader line. This is used by the fisher to guide the Seahorse through the surfline. The following 250m of stoppered line has 120 resin coated stoppers where the weights and 25 traces are attached. The stoppered line is then followed by 1600m of mainline to allow set-up of the Seahorse up to 1.9kms offshore. This gives you plenty of time to get your traces attached to the main line.
• The marine grade wiring and external switches are completely waterproofed. So not only can the unit be washed easily, but it is also protected from any unexpected waves hitting the beach.
• The winch control unit is fully protected from the beach environment. The unit has three speeds so you can select the correct speed for whatever the situation. There is also the sealed ON/OFF/PULSE switch giving you complete control.
• The slow speed is for trolling the baits back to the beach. This technique can be used successfully with soft baits or lures.
• Medium speed has an overload thermal auto cut-out to protect the motor. This speed is great when you are pulling in a massive load of fish.
• High speed uses all the power of the 150 watt motor to retrieve the line in the fastest possible time, so you spend less time waiting and more time fishing.
• The speeds are electronically controlled to ensure no battery power is wasted.
• The aluminium frame design and low drum placement enables the winch to lock itself into the sand, making it very stable and removing any need to pin it down. The winch can also be fitted onto a quad bike or 4x4, or it can be operated from the top of the Seahorse beach trolley.
• The self lubricating bushes eliminate the need for grease (as grease and sand is a big no-no).
• The powerful 150 watt motor will provide up to 50kg of pull. This is sufficient to pull in even the biggest fish. The low profile design enables all the power to be used.
• The large 14ah battery capacity allows for up to 4,000m of hauling. This is normally sufficient for two complete hauls.
• The cased aluminium drum is heat treated to guarantee greatest durability. The drum has a lifetime guarantee.
• A full 24 month warranty provides carefree operation and support. Call us if you have any queries regarding our Seahorse Electric Winch.

The Traceboard

The Seahorse aluminium traceboard is lighter, stronger cleaner , and easier to use than other boards. it is straightforward to use, and it can be used with a wide range of baits. The new, effective two-sided design of the Seahorse traceboard enables easy, fast, and safe attachment of the traces.Because Seahorse Kontiki's perform at high speed, we designed a traceboard that makes it easy for the operator to attach the traces safely and easily, and a winch that controls the line during the launch stage. The traceboard has long traces and seaharvester clips to enable quick and easy attachment. The fisher stays away from the pre-baited hooks that are automatically dispensed from the far end of the board. The traces are attached between every second or third stopper on the stoppered section of line. The stoppers are 2m apart and you are supplied with 120 on the mainline, giving you plenty of extras. The stoppers are nylon glued ties which do not affect line strength and are much better to handle than the cheaper aluminium crimps. The 25 traces can be deployed in under a minute.

Features

• The strong aluminium frame is light weight and does not hold the smell of the fish or baits. Its design means it can be cleaned easily, and this keeps the traces and the board in top condition.
• The convenient two sided design reduces the size of the traceboard while maximising the spacing between hooks increasing baiting options.
• The traceboard is specifically designed to handle long trace, which has proven more successful.
• The Seahorse designed and machined, trace and hook holders enable the traces to be held with minimum tension ensuring easy and safe operation.
• Seaharvester clips and longline hooks bring commercial know-how and techniques to recreational fishing. While there are a number of techniques for attaching traces to the mainline, we have found the Seahavester clips are the quickest, easiest, and safest method of attaching traces.
• There are Ten spare pre-tied traces included with our traceboard (in addition to the 26 on the board).
