Enhance your fishing efficiency and precision with the Elite FS – the perfect fishfinding system for dedicated anglers.

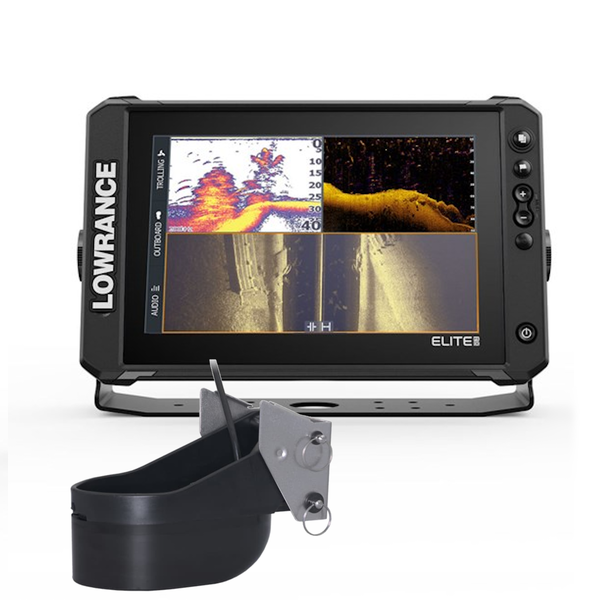

Elite FS 10" with 1Kw TM260 Transom Mt Transducer & built in NZ chart.

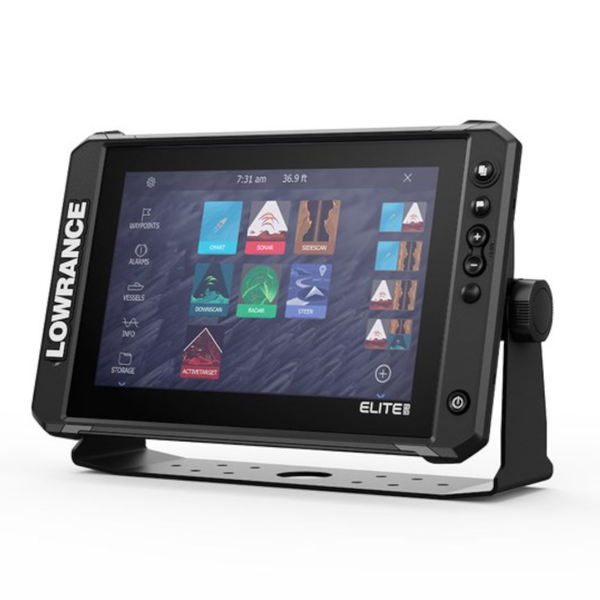

The Head Unit:
Lowrance Elite Fishing System 10" (FS)

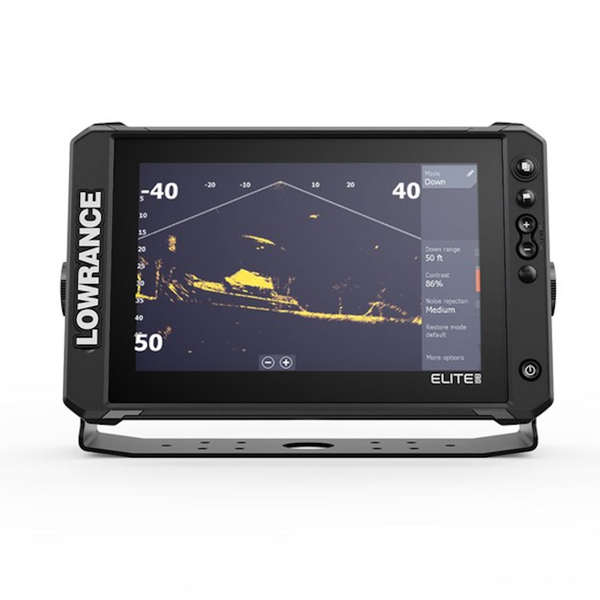

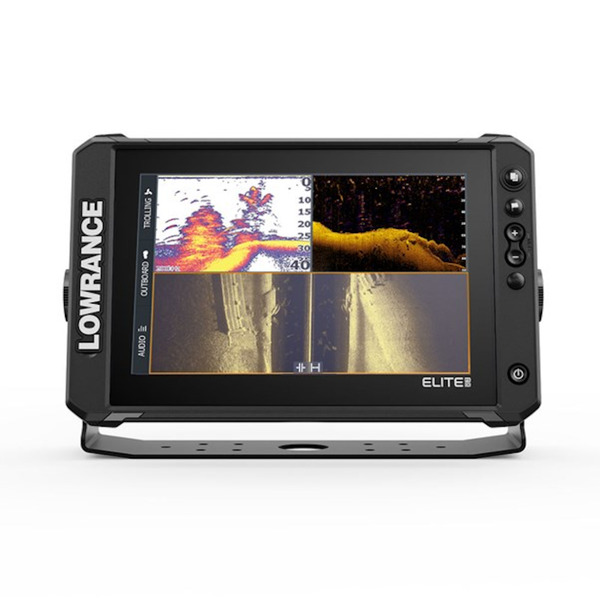

The Lowrance Elite Fishing System (FS) provides advanced fishfinding tools to enhance your fishing experience. Equipped with ActiveTarget™ Live Sonar, Active Imaging™, FishReveal™, and preloaded C-MAP® Contour™+ charts, it offers a powerful and affordable solution for anglers. The user-friendly, high-resolution multi-touch display allows for easy navigation and installation, giving you all the tools needed to locate and catch more fish.
Key Features:
- FishReveal™: Merges the target separation of Lowrance CHIRP sonar and high-resolution images from DownScan Imaging™
- High-resolution multi-touch touchscreen .

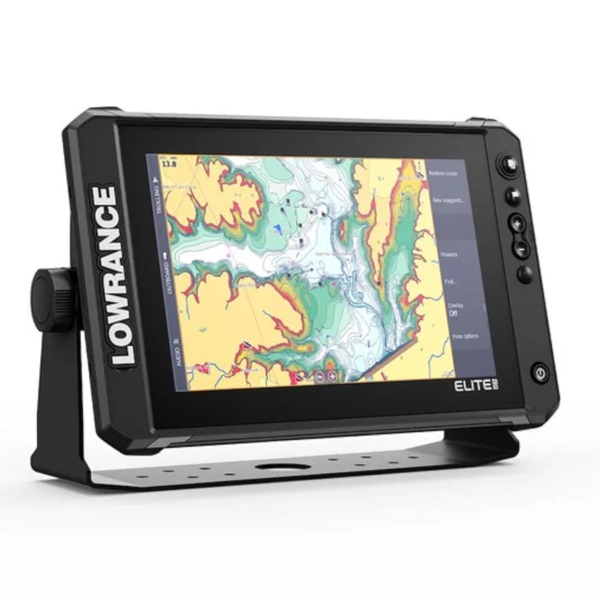

- Preloaded C-MAP Contour+ NZ: Includes 1-foot contours on 8,900 lakes, with additional mapping options like C-MAP and Navionics®.
- C-MAP® Easy Routing & Navionics® Autorouting: Automated routing for easier navigation.
- C-MAP Genesis Live: Real-time onscreen mapping for enhanced accuracy.
- Full Touchscreen Control: Manage Power Pole® anchors and Ghost® Trolling Motor directly from the display.
- Integrated Connectivity: Supports wireless, NMEA 2000® and Ethernet connections.
Specifications:
- Screen Brightness: Over 1200 nits for excellent visibility in any condition.
- Display Resolution: 1280x800 pixels.
- Display Size: 10"
- SD Card Storage: 1 micro SD card slot supporting up to 32GB.
- Ethernet Ports: 1 x 100 Mbit.
- Weight: 1.66kg
- GPS: 10 Hz internal high-sensitivity receiver supporting WAAS, EGNOS, and MSAS.
- NMEA 2000 Connectivity: 1x Micro-C.
- Compass Safe Distance: 2.1 ft (0.65 m)
- Shock Vibration: 100,000 cycles of 20 G for durability.
- Waypoints, Routes, Tracks: 3000 waypoints, 100 routes, 100 trails with up to 10,000 points per trail.
- Position Accuracy: 20m RMS.
- Recommended Fuse Rating: 3A.
- Power Consumption: Max 2.5A @ 13.8VDC with backlight on full, minimum at 28 W 2.0A @ 13.8VDC with backlight on full with backlight on full, typical 2.0A @ 13.8VDC with backlight on full
- Operating Temperature Range: 5°F to 131°F (-15°C to 55°C).
- Storage Temperature Range: 4°F to 140°F (-20°C to 60°C).
- Viewing Angles: 85° top/bottom 85° left/right
- Humidity: 60°C, 95% relative humidity for 18 hours.
- Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
- Waterproofrating: IPX7 with card door closed
- Warranty: 2 Year + 3 additional years of upgrade options totaling 5 years
Compatibility:
- Radar: 4G/3G Broadband, Halo20, Halo20+, Halo24 Pulse Compression Dome Radars.
- Charts: C-MAP (MAX N, MAX N+), C-MAP Genesis, Navionics (Gold, NAV+ Platinum+), Insight Pro and HD.
- Sonar Compatibility: Integrated CHIRP, Broadband, Active Imaging DownScan, Active Imaging SideScan, SonarHub, StructureScan, StructureScan 3D, LiveSight, Active Target.
- Autopilot: Compatible with Outboard Pilot and Ghost® Trolling Motor. MotorGuide Xi5/Xi3 also supported with PinPoint Gateway.
- Bluetooth: Integrated Bluetooth 4.0.
- WiFi: Internal 802.11b/g/n.
- Waterproof Rating: IPX7 with card door closed.
- Mounting Options: Gimbal bracket or dash flush mount.

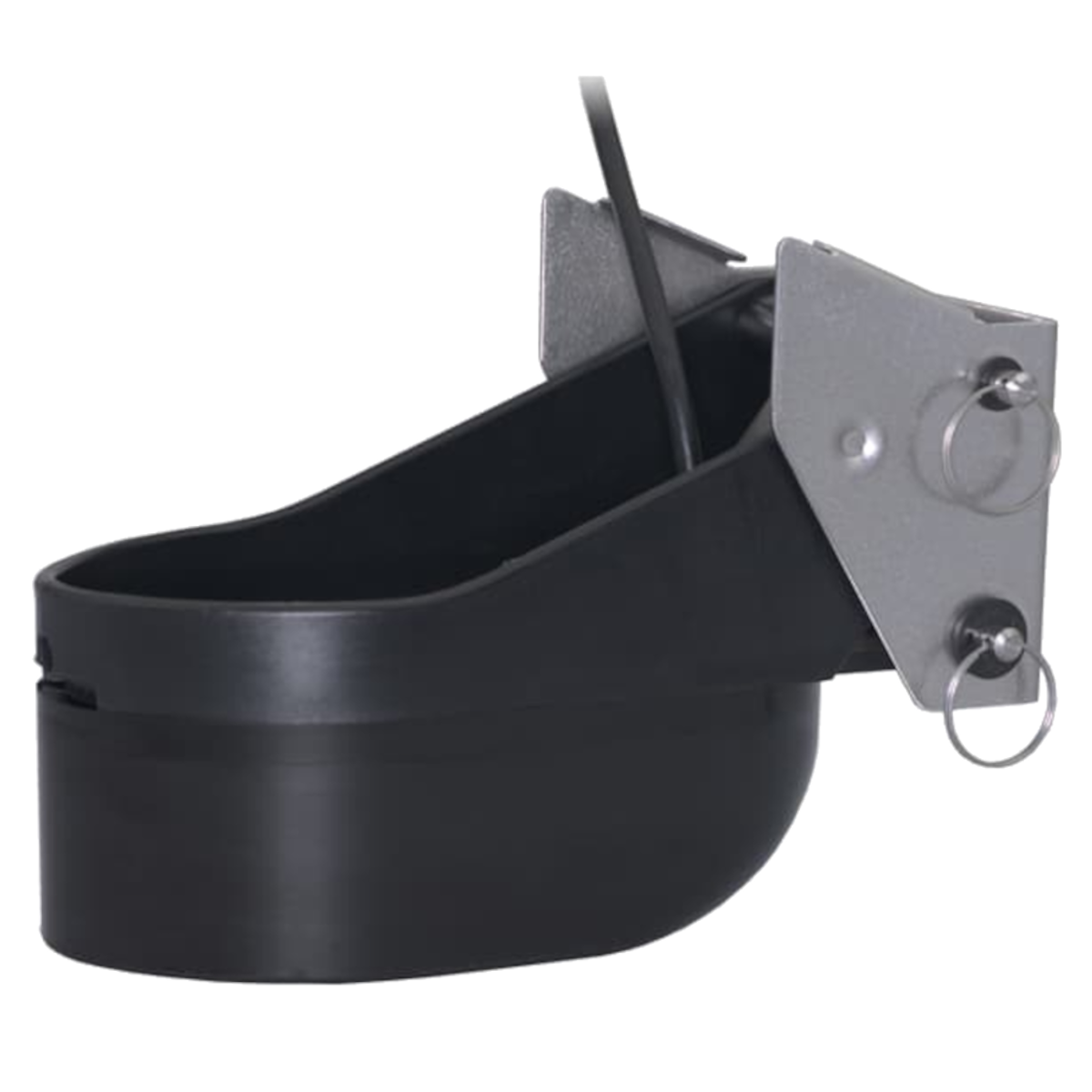

The Transducer:
The TM260 brings the crystal clear, 1,000-Watt performance of the B260 thru-hull to your boat's transom!
Powerful but sensitive! The TM260 will enhance fish detection on virtually all of today’s fishfinders. The narrow, 6° beam 200kHz ceramic will give you excellent resolution and crisp image detail needed for bottom fishing. The TM260’s low ringing is perfect for finding fish holding tight to the bottom and other structure. The seven-element 50kHz array has a wider 19° beam for deeper bluewater fishing. The outcome at both frequencies is excellent resolution and crisp image detail where it’s needed most. The TM260’s rugged mounting bracket is easy to install and the transducer has a streamlined shape that delivers high-speed performance up to 30 knots.
Features:
- Top-of-the-line narrow-beam 1kW transom-mount transducer
- Designed for bottom fishing
- Wide 19° beam at 50kHz
- Narrow 6° beam at 200kHz
- Interfaces to any compatible 600W or 1kW sounder
- Depth and fast-response water temperature sensor
- Kick-up assembly locks in the “up” position and willnot damage the transom
- Accommodates transom angles between 3° and 21°
- Urethane housing
- Boat Size: Up to 40'
Specifications:
- Style: Transom mount
- Cable Length: 30'
- Monitors: Depth and temperature
- Material: Urethane housing, stainless steel bracket
- Acoustic Window: Urethane
- Transom Angle: 3° to 21°
- Connector: 9-pin xSonic
- Transmit Power: 1,000W (RMS)
- Frequency: 50/200kHz
- Max. Depth: 3,000'
- Beamwidth: 19°/6
