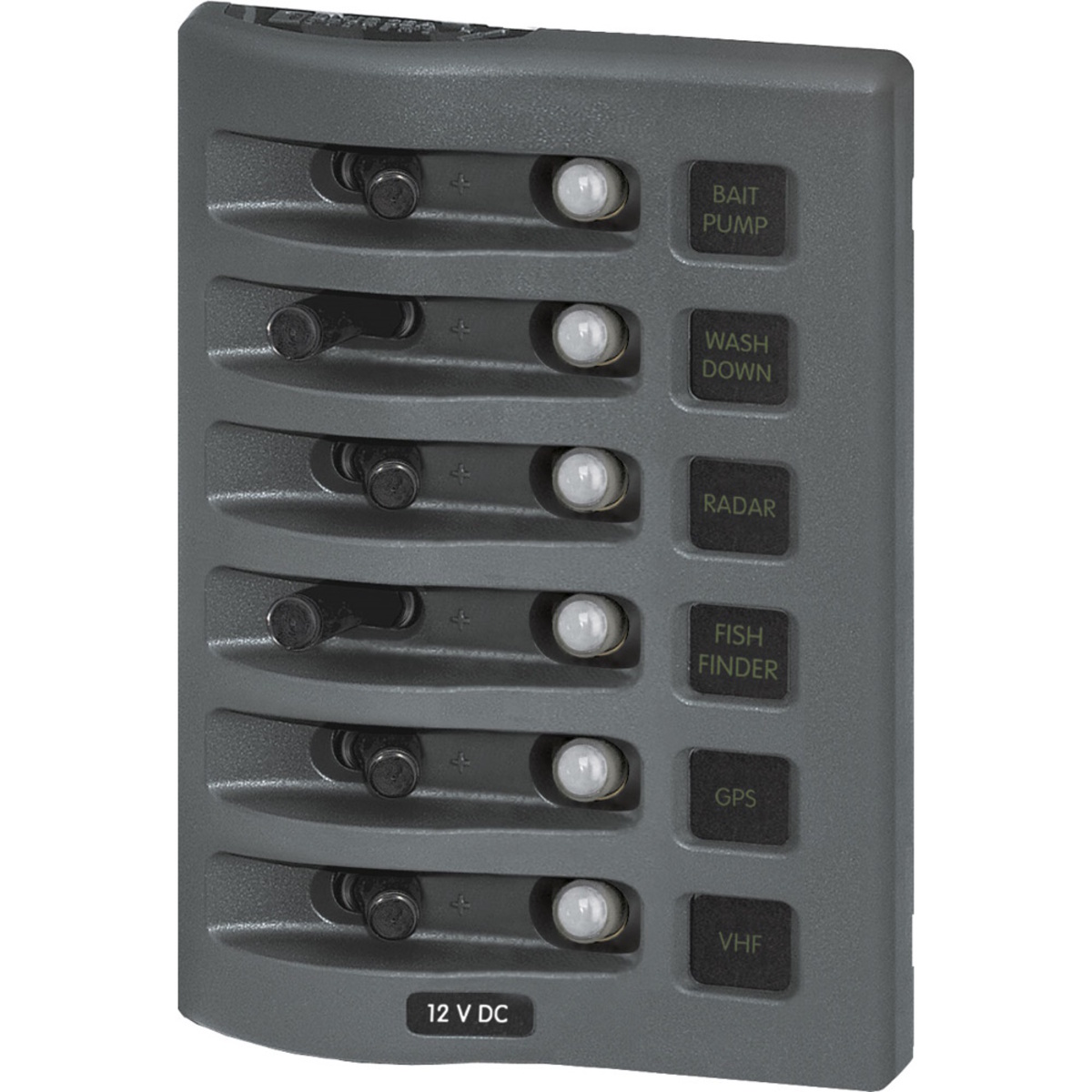

WeatherDeck® 12V DC Waterproof Circuit Breaker Panel - Gray 6 Positions
Features:
- Rated IP67-temporary immersion for 30 minutes
- Designed for flybridge and open cockpit applications
- Independent label backlighting allows switching and dimming
- Compatible with all Blue Sea Systems Digital Dimmers
- Each panel can be mounted in four different orientations
- Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.
Specifications:
- Weatherproof - Waterproof IP67
- Nominal Voltage - 12V DC / 24V DC
- Circuit Protection - Circuit Breaker
- Max Amp - 15A @ 12V DC (per circuit), 9A @ 24V DC (per circuit)
- Panel Cumulative Rating - 45A
- Backlit Label - LED
- Backlighting Amperage - 10mA /Illuminated Circuit
- Backlighting Voltage - 12 or 24V DC
- Material - Reinforced Polycarbonate
- Height - 6.00in (152.4 mm)
- Width - 4.25in (107.95 mm)
- Depth - 3.50in (88.9 mm)
- Weight - 1.36lb (0.62 kg)
- Weight - 1.35lb (0.61 kg)
