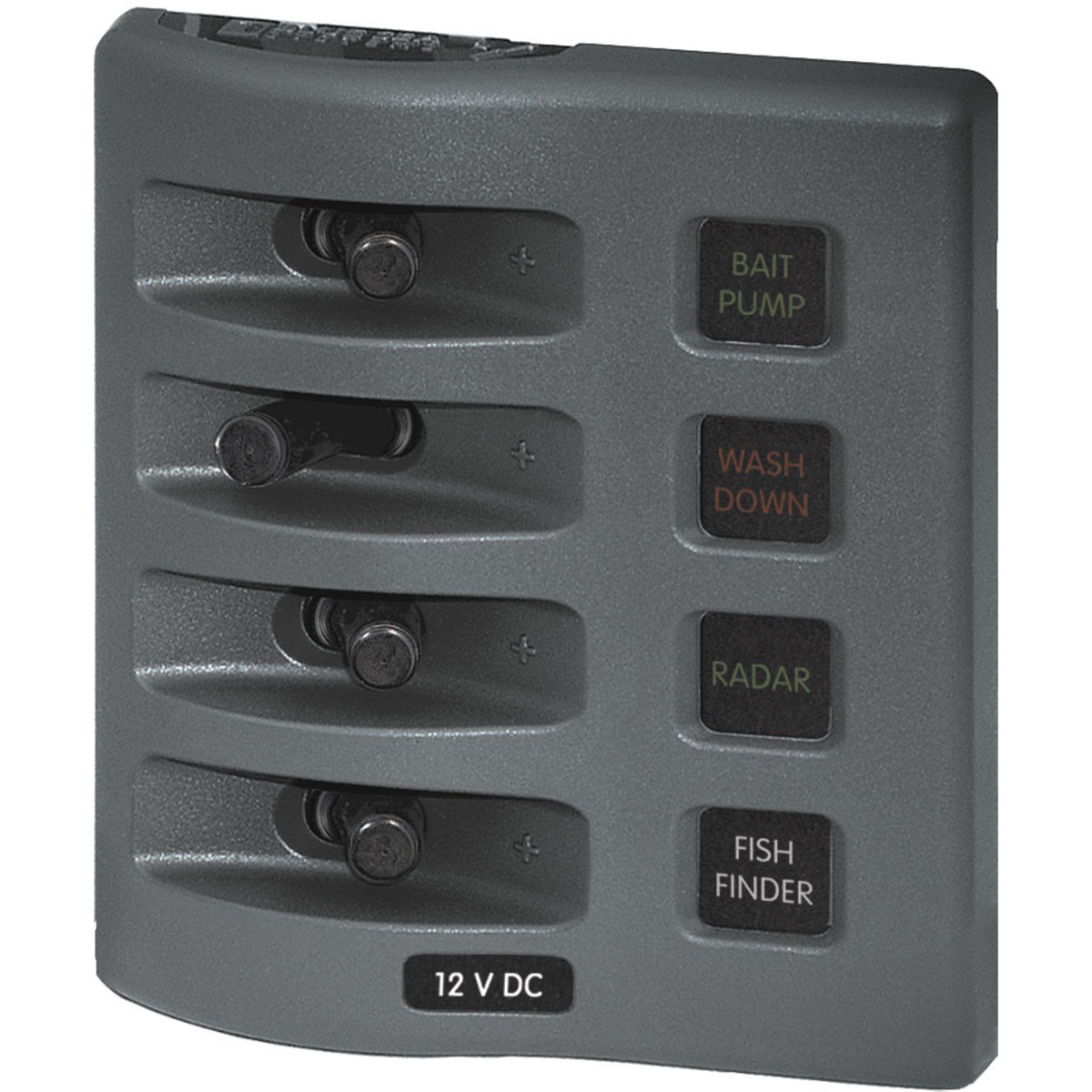

WeatherDeck® 12V DC Waterproof Fuse Panel - Gray 4 Positions

Features:

Panel front rated IP67 when properly mounted with watertight mounting gasket
IP67 – protected against immersion up to 1 meter for 30 minutes
Designed for flybridge and open cockpit applications
Independent label backlighting circuit for remote switching and dimming
Each panel can be mounted in four different orientations

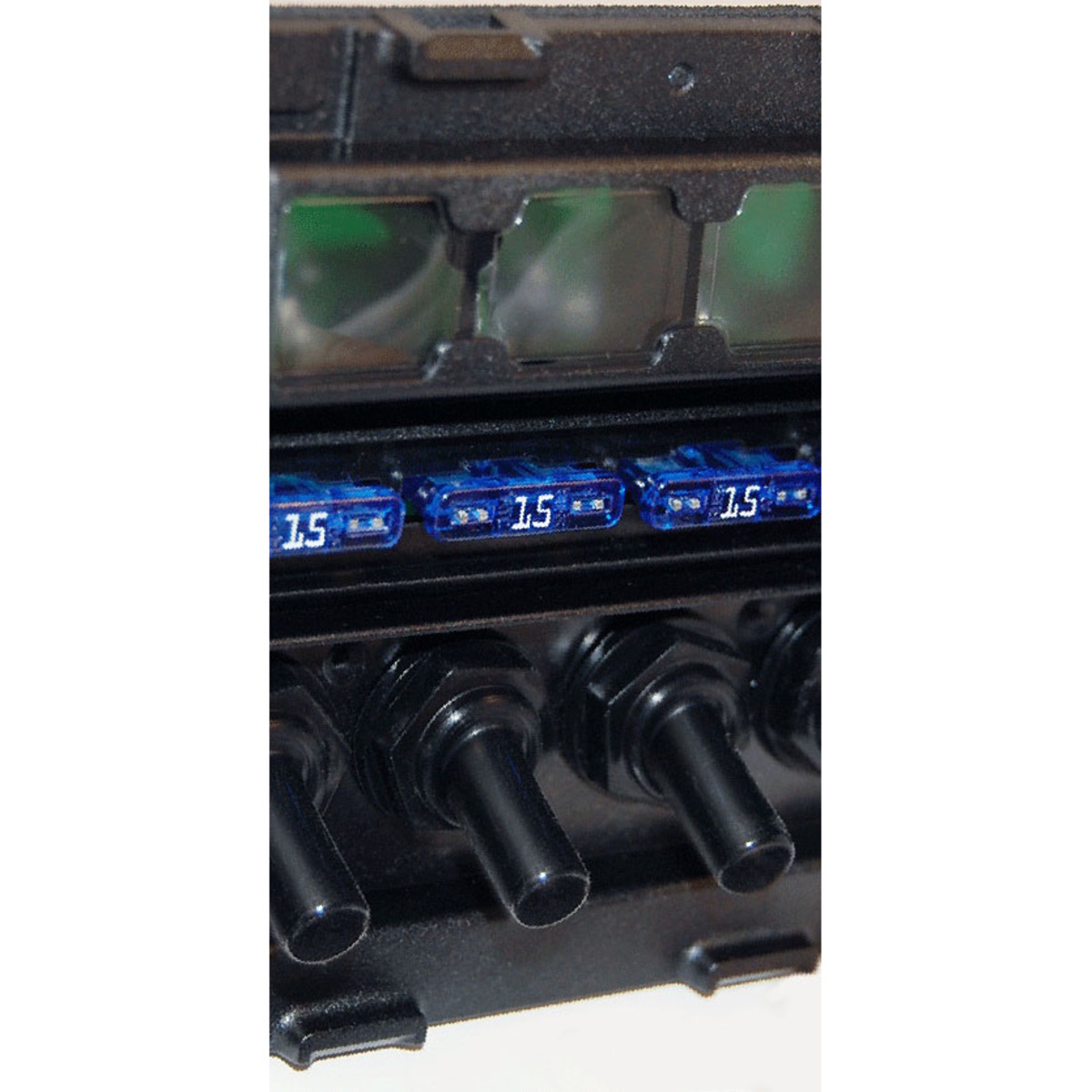

Integrated ATO/ATC fuse based circuit protection
Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel.

Specifications:

Weatherproof - Waterproof IP67
Positions - 4
Nominal Voltage - 12V DC
Circuit Protection - Fuse
Max Amp - 15A @ 12V DC (per circuit)
Panel Cumulative Rating - 60A
Backlit Label - Bicoloured LED
Backlighting Amperage - 10mA /Illuminated Circuit
Backlighting Voltage - 12V DC
Material - Reinforced Polycarbonate
Height - 4.30in (109.22 mm)
Width - 3.88in (98.55 mm)
Depth - 2.50in (63.5 mm)
Weight - 0.90lb (0.41 kg)
Weight - 0.90lb (0.41 kg)
