Blue Sea Dualbus 150 Amp Dual Busbar W/Cover - 10 Gang + 4 Stud

{{ getFromPrefix }} SMART VIP CARD PRICE

Mix 'N' Match Deal: Buy {{ selectedOption.mixnMatch.quantity }} + and save {{ selectedOption.mixnMatch.price }}% {{ selectedOption.mixnMatch.quantity }} x for {{ selectedOption.mixnMatch.description }}

Buy now pay later, no extra cost!

Serves: {{selectedOption.serves}} ( per serve)

save {{ selectedOption.saleSavingsPercent }}%

{{product.options[0].name}}

{{packitem.quantity}} x {{packitem.item.name}} {{packitem.options[0].name}}

{{packitem.quantity}} x

Quantity

- +

Stock Notification

Name

Email Address

Name

Message

Standard NZ $6.99 per order shipping deal, qualifies for FREE shipping for order totals over NZ $200.00

For Rural Deliveries please read Shipping T&Cs – Click Here

Store Availability

{{b.name}} Low Stock In Stock Out of Stock

Select a variation to see branch availability

SKU #

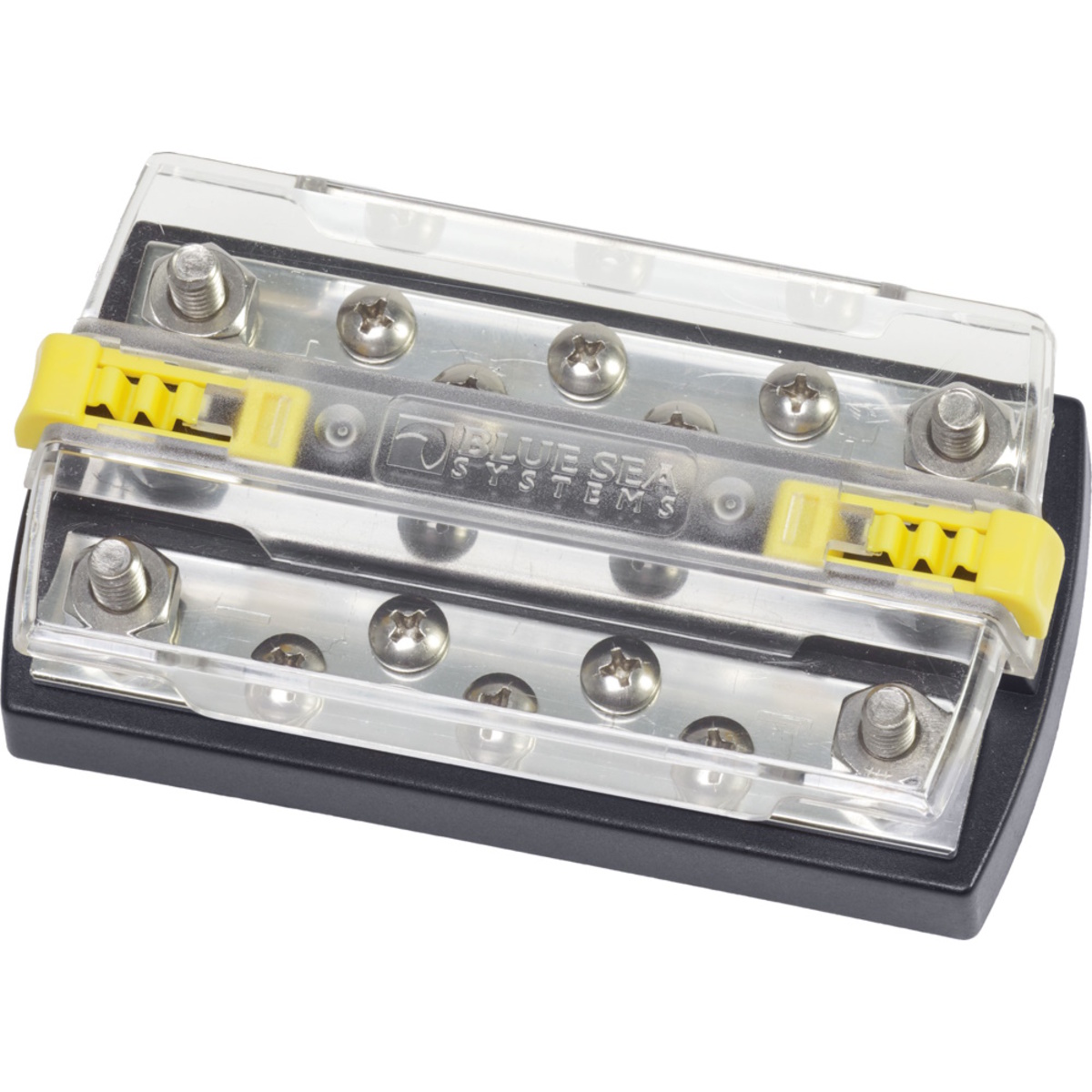

DualBus Plus 150A BusBar - 5/16"-18 Stud 5 Gang

Features:

Combines negative and positive buses on one block
Clear polycarbonate cover snaps on to meet Coast Guard and ABYC insulation requirements

Specifications:

Maximum Voltage - 300V AC / 48V DC
Number of Screw Terminals - 5 per bus
Number of Terminal Studs - 2 per bus
Terminal Type - #10-32 Screw / 5/16" Stud
Continous Rating - 130A AC / 150A DC
Base Material - UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material - Tin-Plated Copper CDA 110 / UNS 11000
Cover Material - Clear Polycarbonate
Mounting Screw - #10 (M5)
Screw Terminal Torque - 18 in-lb (2.03 Nm)
Stud Torque - 120 in-lb (13.56 Nm)
Weight - 0.61lb (0.28 kg)
