All anchor winches must be wired in to operate - realiability is key, which is why we use Lone Star's wiring looms!

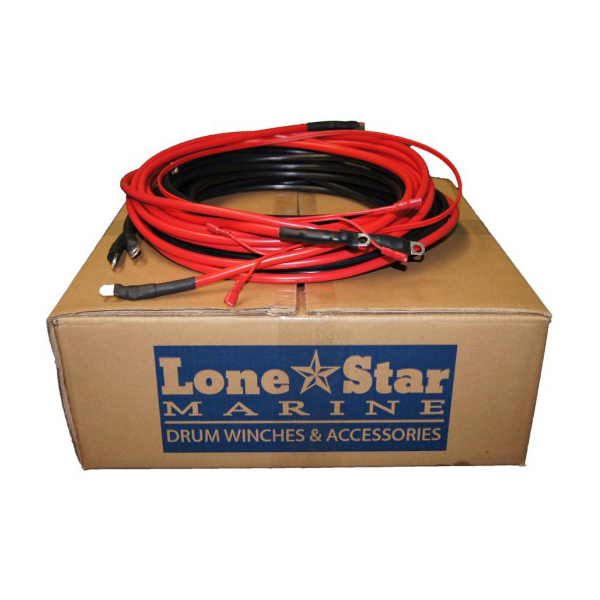

A “Wiring Loom” is a set of premade cables cut to length complete with tinned lugs and epoxy filled heatshrink. The staff at Lone Star Marine are wiring loom specialists with many thousands of both generic and custom looms made annually for customers in every type of vessel. LSM Australia Looms are made using Premium Tycab Cable, H/D tinned lugs, and dual wall epoxy filled heatshrink. LSM Australia looms are made using tinned marine grade Australian Made oxygen free cable, H/D tinned copper lugs and epoxy filled heatshrink. These premade looms are a simple “plug and play” system saving hours on installation.
Features:
- All LSM wiring looms are rated for winches to 2500W
- High quality HD tinned lugs and dual wall epoxy filled heat shrink
- Wiring Harness only.
Specifications:
- 3 lengths Available
- 1000XS Loom, boats to 5.5m (L1-4.5m, L2-4.5m, L3-1m, L4-2.5m)
- 1000S Loom, boats to 6.5m (L1-5.8m, L2-5.8m , L3-1m, L4-3.2m)
- 1000L Loom, boats to 8.0m (L1-6.5m, L2-6.5m, L3-1m, L4-3.8m)

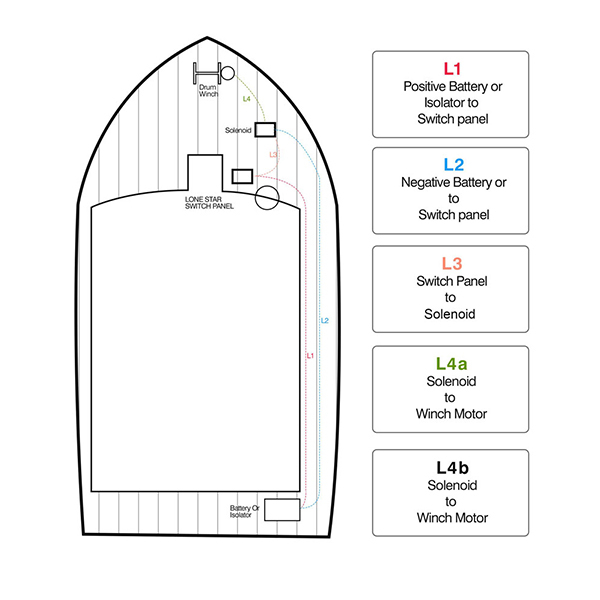

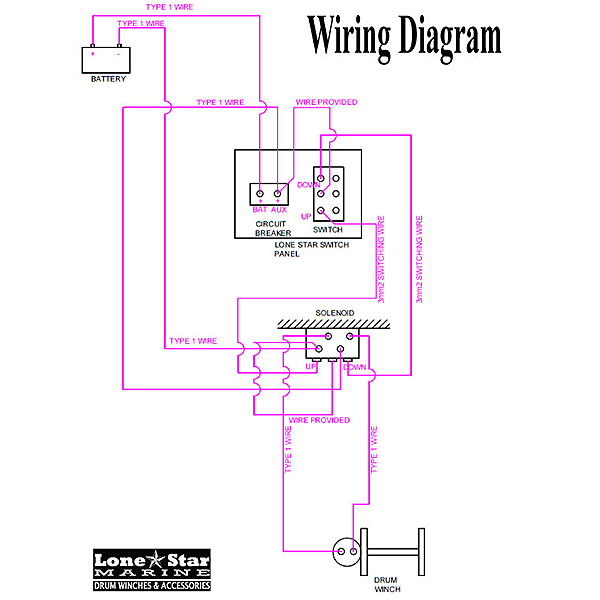

Loom Measurements (See graph's):
- L1. Battery to Switch Panel
Switch Panel mounting area of 100 x 100mm. This should be located to the left or above the steering position. - L2. Battery to Solenoid
Solenoid can be mounted in a dry place anywhere between the Switch Panel and winch motor, but must be installed upright. Size is appr. 110x60x110. There will be four cables attached to the top.Under the dash or near winch motor is ideal. - L3. Switch Panel to Solenoid
- L4. Solenoid to Winch Motor
Supplied installation instructions feature Placement Diagram & Switch Panel Template for easy installation. Note all LSM winches must be wired using the recommended cable size as noted in the installation manual.
