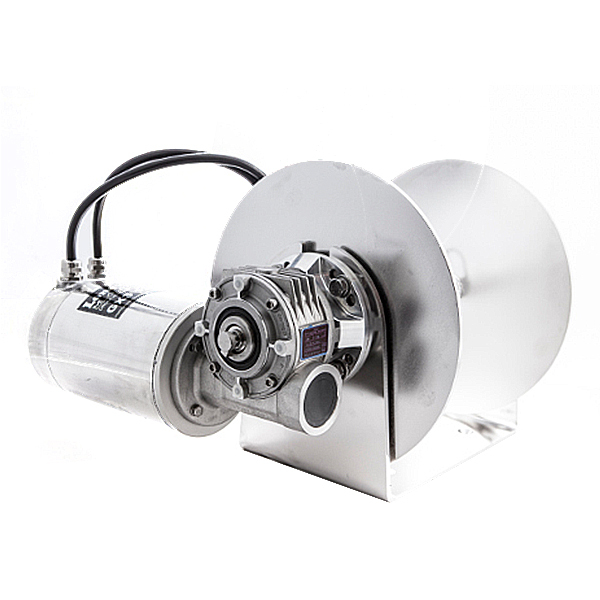

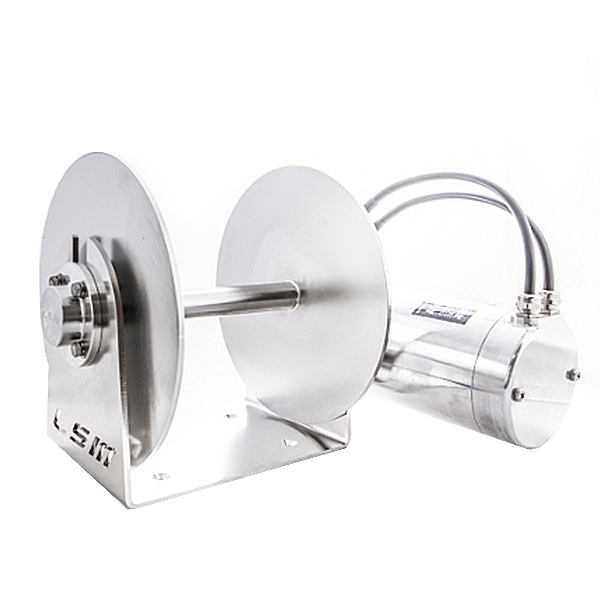

GX3 Anchor Drum Winch with Rope/Chain/Acc Pack (95MX10MM+9MX8MM SL CHAIN)

The GX series have become the new workhorse & standard in perfectly engineered anchoring systems at the right price!

Pure class & built for life. Full of innovative features & packed to the brim with quality components. GX Series are trusted by Commercial & Recreational fishermen Wolrdwide and has truly raised the bar for what customers can expect from their anchoring systems.”

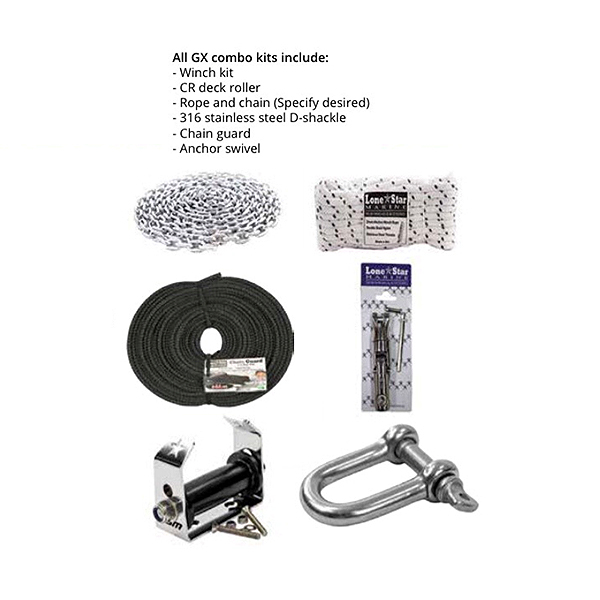

Smart Marine GX3 Series Winch Combo Kits are FULL package and include Winch, 316g ss 6mm under deck backing plate, nuts & bolts, circuit breaker, switch panel, solenoid, SS CR195 Series Deck Roller, Chain Guard and Anchor Swivel plus 95mmtrs of 10mm DBN rope with 9mtrs of 8mm SL chain!

Featuring all Australian Made 316 stainless and machined & anodized 6061 T-6 aluminium construction, “Real Italian” transmissions, triple sealed bearings, twin shaft bearing systems, machined slimline ‘fast change’ collars, & an all new emergency release as standard on all models. Motors are once again custom manufactured exclusively for LSM and are pre-rigged with twin leads for easy installation. From the company with so many Worlds First under its belt, we are proud to have created the first anchor winch motor with an IP68 rating (AS/NZS 60529). This silicon free, glue free, paint free design has been achieved utilizing the latest modern manufacturing techniques, right here in AU. Most importantly, GX Series winches are made to get wet! From small recreational boats to Commercial Vessels over 60ft, there is a GX Series winch just right for your boat and application. All backed by our famous 5 + Life Warranty.

Performance, reliability & raw power in a compact frame design, the GX3 is the answer for large capacity trailer boat & commercial fishermen. Thanks to the well oversized gearing and motor this unit can easily be fitted to boats to 9m for saltwater use and much larger for freshwater applications.



Features:

  • Perfect for wet wells and deck mounts
  • Fast Drop/Retrieval Rating
  • Fully Sealed Motor and Gearbox
  • Manufactured in Australia



What this has:

  • 5 + Life Warranty
  • 12 volt 1500W Purpose Built Permanent Magnet Motor, 4 Brush Design
  • IP68 (Fully Waterproof)
  • Machined Solid 25mm 316SS Spool Shaft
  • High Polished 6mm 316SS Plate Construction Throughout
  • Twin Shaft Bearing Design, Triple Sealed (LSM Exclusive)
  • Machined Roller Bearing Cover (triple sealed)
  • No Paint or Silicon Sealants
  • No Mild steel outputs or fittings
  • Fully Waterproof Machined Motor (LSM Exclusive)
  • Prerigged with tinned cable leads
  • Machined (not cast) Fastchange Bearing Collar
  • Perfect for Deck Mounting
  • Capacity 130m of 8mm Rope + 10m x 8mm chain or
  • 95m x 10mm rope plus 10m x 8mm chain
  • Drop/Retrieve up to 156Ft (46m) per minute
  • 12 Adjustable Gear/Motor Mounting Positions
  • Manual Release Feature in the event of power loss
  • 3500kg Holding Power at Anchor-No need to tie off
  • Huge 1500kg Max Pull (empty drum)
  • 110kg max recommended working load
  • All 316SS and Machined 6160 Alloy Construction
  • Rounded Style Transmissions for easier fitting-100% Made in Italy
  • Designed and Manufactured in Australia

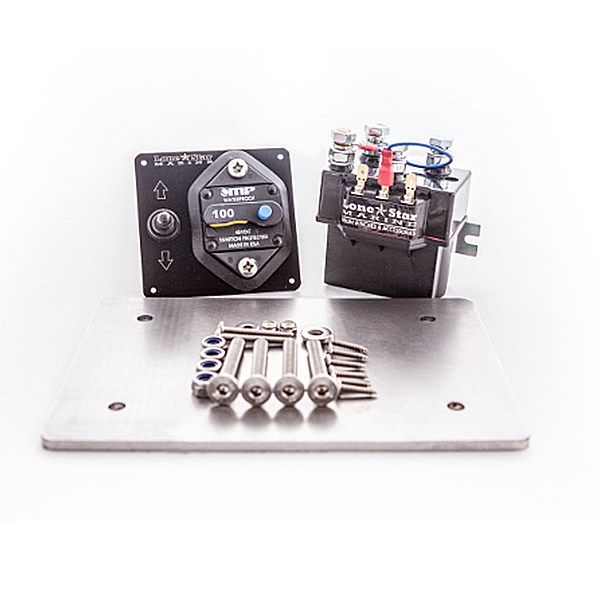

Included:

  • Winch
  • 6mm Base Plate
  • 400 Amp Solenoid
  • 95m x 10mm Rope 9m x 8mm SL Chain
  • Chain Guard
  • Polished Stainless Steel Anchor Swivel
  • Genuine MP Marine Grade Circuit Breaker (made in the USA)
  • Anodized Alloy Toggle Switch Panel
  • All Nuts, Bolts, & Washers Needed for Installation
  • Warranty Information, Switch Panel Template, Installation Instructions

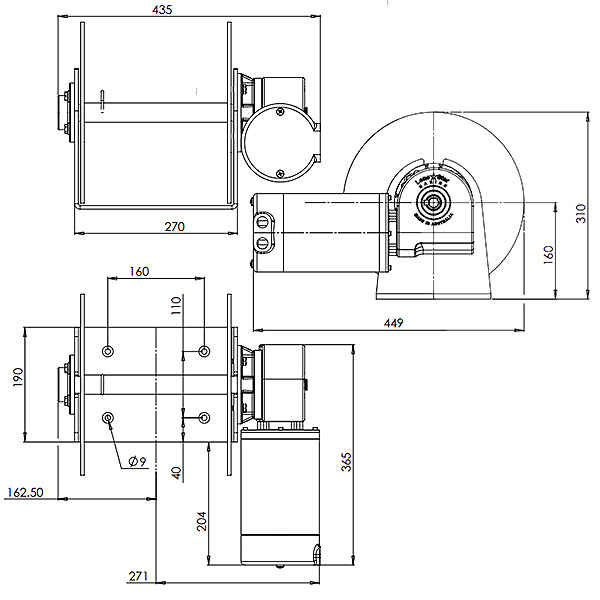

Specifications:

  • Model: GX-3
  • Drum Dia: 300mm
  • Shaft: 30mm
  • Gearset: 98mm
  • Max Drop-Retrieval Speed: 46m/156 ft. p/m
  • Holding at Anchor: 3.6T
  • Rope/Chain Capacity: 95m x 10mm rope 9m x 8mm SL Chain
  • Recc. Boat Size: 6-9m
  • Boat Max Size: Up to 10m
  • Packaged Weight (Appr.): 32kg
  • Motor Wattage: 1500W
  • Contructed Material: 316 Stainless Steel /  Anodized 6061 T-6 Aluminium
  • Water Resistence: IP68
  • Warranty: 5 Years

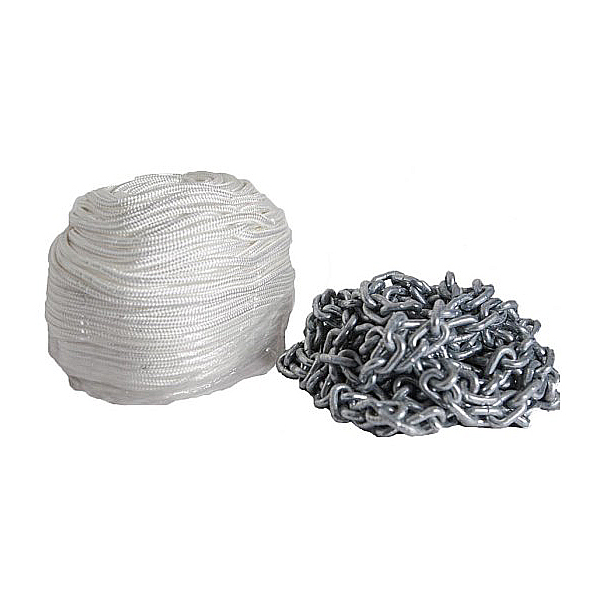

Chain/Rope:

  • Rope Size: 10mm
  • Rope Length: 95m
  • Rope Type: Double Braid
  • Chain Size: 8mm
  • Chain Type: Short link
  • Chain Length: 9m
  • Rope Breaking Strain: 1900kg
