StructureScan® 3D provides a new and easy way to view and interpret StructureScan® HD Imaging data.
StructureScan® 3D allows anglers to see fish, structure and bottom contour in a stunning three-dimensional view. StructureScan® 3D imaging scans underwater terrain and fish-holding structure to create a high-resolution, 180-degree, three-dimensional view beneath your boat. With this unique imaging view, anglers gain a better understanding of where fish and structure are located in relation to their boat.
Easier Visualization

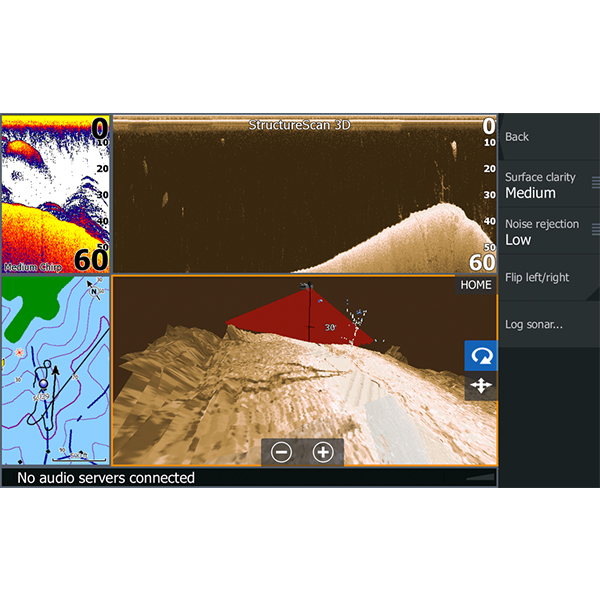

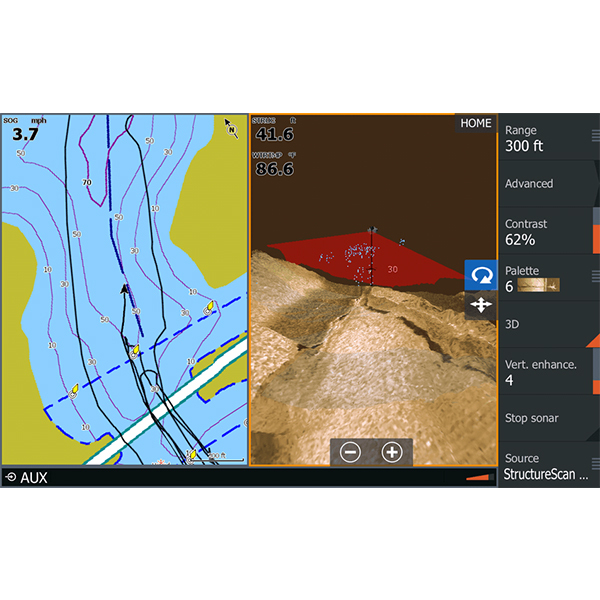

3D visualizations can be viewed from any angle with ScanTrack™ pan-tilt-rotate control using on-screen touch gestures and easy-to-use, preset viewing positions.
Master The Bottom Line
For the first time, StructureScan® 3D allows anglers to easily see all underwater fish-holding structure and the fish as if they were fishing underwater. Eliminate confusion when fish aren’t on the banks and in shallow, visible cover. Now, a slow idle over a potential area quickly lets you master bottom contours, identify a vertical break or secondary point, and catch more fish in and near the main deep water channel.
Specifications:
- Product Width: 180 mm / 7.1 in
- Product Height: 57 mm / 2.2 in
- Product Weight: 0.9 kg / 2 lbs
- Operating Temperature: -28° to 75° C (-20° to 167° F)
- Water Resistance: 1PX-7
- Power Supply (Supply Voltage): 12 or 24 V DC(max range 9 V to 32 V DC)
- Output Power: 500w RMS
- Max Side Range: 300ft each side
- Max Down Range: 300 ft
- Frequency: 455 & 800kHz
- Output Power: 250w RMS
- Max Depth: 3,500 ft- Transdcuer Dependent
- CHIRP Frequency: 40-60kHz, 85-145kHz, 130-210kHz
- Narrow Band Frequency: 50 kHz/83kHz/200kHz

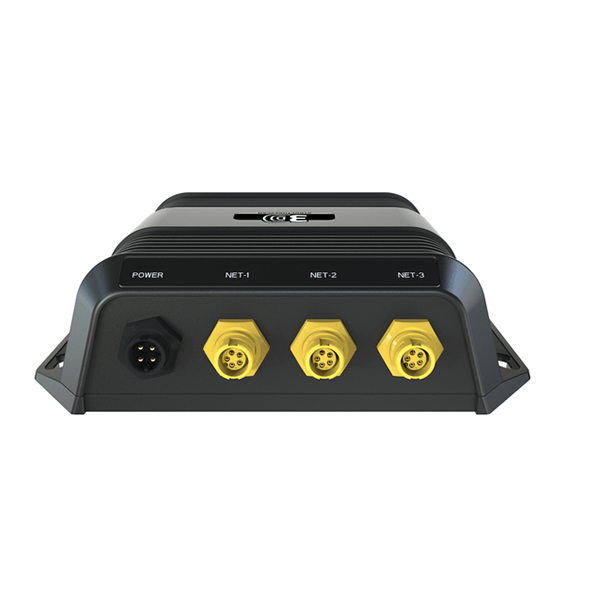

- Ethernet: 3 ports
- Power: 4 Pin power connector

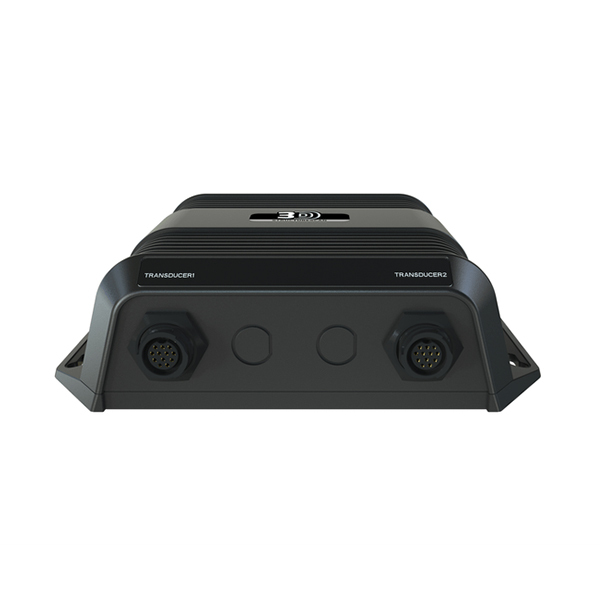

- Transducer Port 1: Blue 7 pin sonar connector for CHIRP and narrow band transdcuers
- Transducer Port 2: Black 9 pin connector for use with StructureScan HD and Spotlight transdcuers
