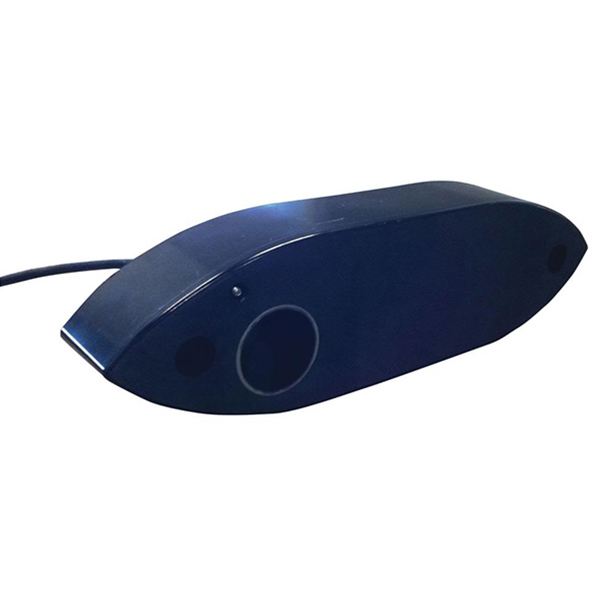

Lowrance Xsonic R509lh-W Thru Hull Transducer Chirp Low/Hi/Wide Beam

The xSonic R509LH-W is an epoxy, thru-hull CHIRP transducer.

Ideal for sportfishing and commercial vessels 25 ft. and up. This dual-channel transducer combines Low CHIRP frequencies to accurately track the bottom in deep water, with High CHIRP at a constant 25° beam width for the best resolution and coverage in the upper water column and in shallower depths.

Specifications:

• Beam: 23 to 9 Degrees Low CHIRP - 25 Degrees High CHIRP
• Connection Interface: Dual 9-Pin xSonic
• Frequency: 28kHz-60kHz Low CHIRP - 150kHz-250kHz High CHIRP
• Material: Urethane
• Maximum Depth: 8000 Feet Low CHIRP
• Mount Type: Fairing Block
• Sonar: Dual Channel CHIRP
• Transmit Power: 2-3 kW
• Type: Fairing Block

Features:

• Extreme target detail and image resolution at all depths
• Precise separation between baitfish and gamefish
• Bottom discrimination of fish laying on the seabed
• Deep sounding accuracy down to 3,000 m (10,000’)
• Ability to detect targets at greater depths & higher speeds
• Ability to find targets within the noise (“snow” on the display)

This new Broadband transducer represents the next generation of technology that will allow fishermen to unlock new secrets in fishfinding. These transducers are designed for use specifically with Broadband, CHIRP, FM, and Spread-Spectrum fishfinders.

CHIRP Fishfinders transmit across a wide frequency band instead of using a single frequency. This is also known as “Frequency Modulation” or “Spread-Spectrum” Transmissions. These waveforms are typically of long duration and for example may start at 42 kHz and end at 65 kHz. Energy transmitted into the water can be 10 to 50 times greater than a traditional fishfinder. By storing the shape of the transmitted waveform in memory and comparing it to the received echoes using pattern matching techniques (also called pulse compression), it is possible to find targets within the noise and precisely determine their range with astounding accuracy.

Traditional fishfinders transmit pulses at a single frequency (such as 50 kHz and 200 kHz) and this pulse is often referred to as a “tone burst”. These pulses can be of very high power but are typically of very short duration and this limits the energy that can be transmitted into the water. With tone burst fishfinders there is always the trade-off between pulse length and target resolution. For example, if a fishfinder transmits a pulse that is 500 microseconds in duration, it has a pulse length of 0.7 m (2.4’). With a tone burst, no targets can be resolved that are closer to one another than the pulse length. So fish less than 0.7 m (2.4’) apart will appear as a single large mass, and fish less than 0.7 m (2.4’) from the bottom will appear attached to the sea bed and will be difficult or impossible to detect. See graphic illustration above. Longer pulse lengths at 50 kHz are typically used to put more energy into the water to improve deep-water detection but doubling the pulse length reduces target discrimination by half thereby compromising resolution and detail. There is no ‘free lunch”.

With CHIRP fishfinders, there is no trade-off between pulse length and target resolution. While CHIRP fishfinders may output less peak power than a conventional fishfinder, what really matters is the energy put into the water with each pulse. Wide band, frequency modulated pulses (130-210 kHz, for example) can be very long in duration and put 10-50 times more energy into the water. Unsurpassed target detection and resolution is achieved with digital signal processing using pattern matching techniques. With CHIRP fishfinders, the ability to determine the separation between fish and between fish and bottom can be a matter of inches as compared to several feet with traditional fishfinders. Closely grouped fish can now be shown as distinct targets instead of a single mass and show fish close to the bottom rather than being hidden. See graphic illustration. It is well known that different fish species and fish sizes return stronger echoes as certain frequencies. With traditional fishfinders operating at fixed frequencies(50k Hz and 200 kHz), fish echoes may be weak or not detected at all. Since CHIRP fishfinders transmit pulses over wide frequency bands, this maximises fish detection capability
