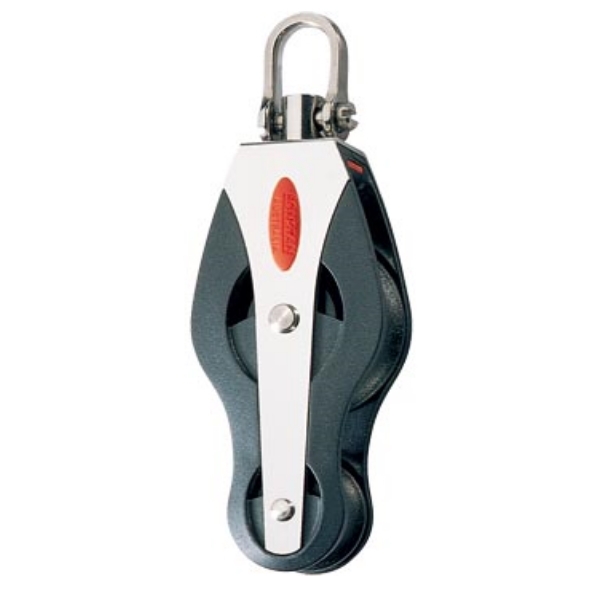

Series 40mm, Ball Bearing Blocks, Fiddle, universal head.
Product Information:
Low friction Acetal or Torlon® bearing system
Lightweight
Cheek cut-outs for easy bearing maintenance
Captive Lock™ universal head
Slotted pin shackle eliminates fouled lines
Low friction, 2-stage ball bearing system
High static and dynamic load capacity
Lightweight
Cheek cut-outs for easy bearing maintenance
Specifications:
Sheave Ø 40 + 24 mm
Max. Rope Ø 8 mm
Max. Cable Ø - mm
Pin Ø 5.0 mm
M.W.L. 350 kg
B. L. 1000 kg
Weight 90 g
Product Information:
Sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.
Applications:
Mainsheet
Halyard
Vang
Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8m (26ft)
Typically used in direct 4:1 purchase systems such as mainsheets and boom vangs
On larger boats they are used for fine-tune mainsheet tackles, outhauls, cunninghams, checkstays, genoa lead pullers and traveller controls.
MATERIALS:
Acetal ball bearings
UV stabilised Acetal sheave
Grade 316 stainless steel load strap and head fitting
Impact and UV resistant, fibre reinforced Nylon cheeks
