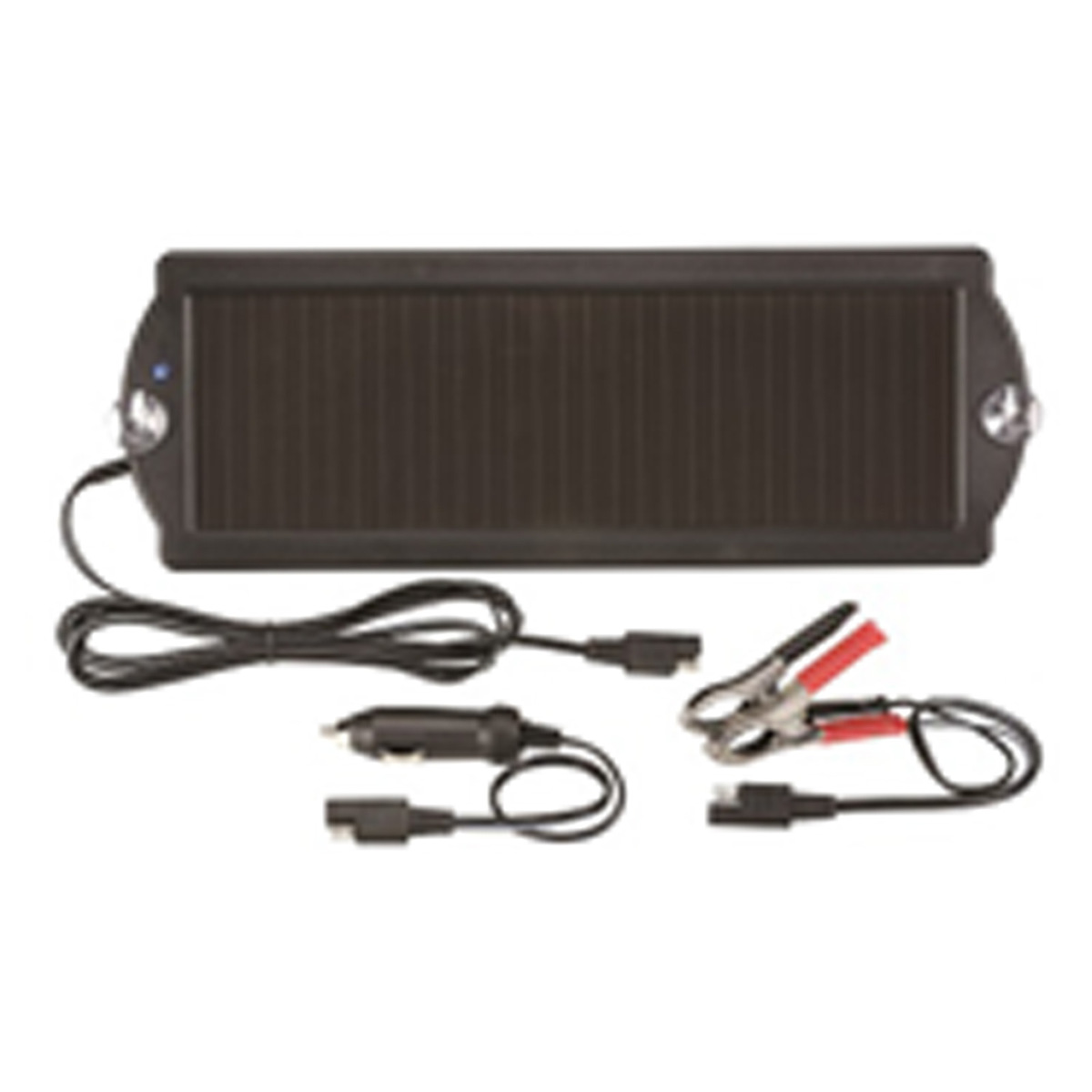

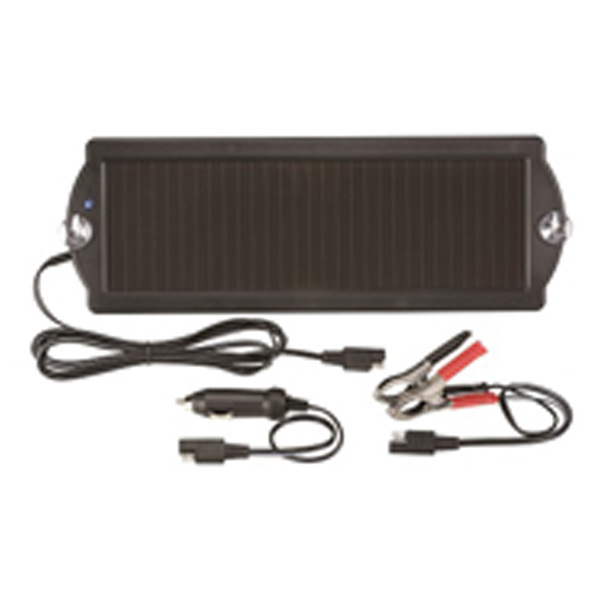

Projecta Amorphous Solar Panel 1.5W (W/Fittings/Led Indicator)

Ideal for maintaining infrequently used batteries.

FEATURES

• Discharge Protection
• Includes a Smart Control unit to prevent solar discharge at night.
• Maintains Your Battery
• Can be used on larger batteries to prevent power drain caused by radio memories, clocks, alarms and onboard computers.

Easy To Use
Easy connection using the cigarette lighter plug. For non-vehicle applications where a cigarette lighter socket is unavailable, purchase Projecta cigarette lighter adaptor, CLE1006.

Fittings

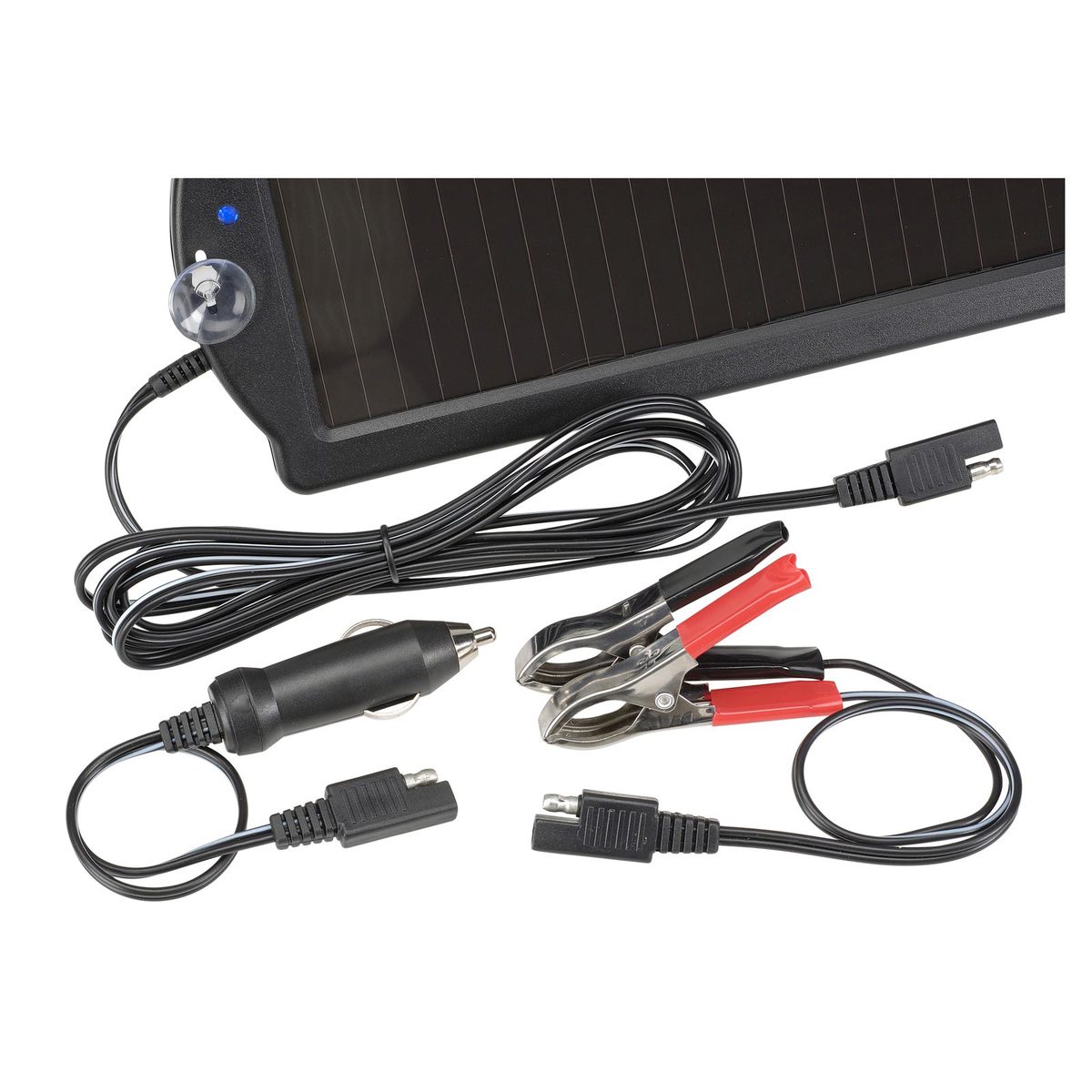

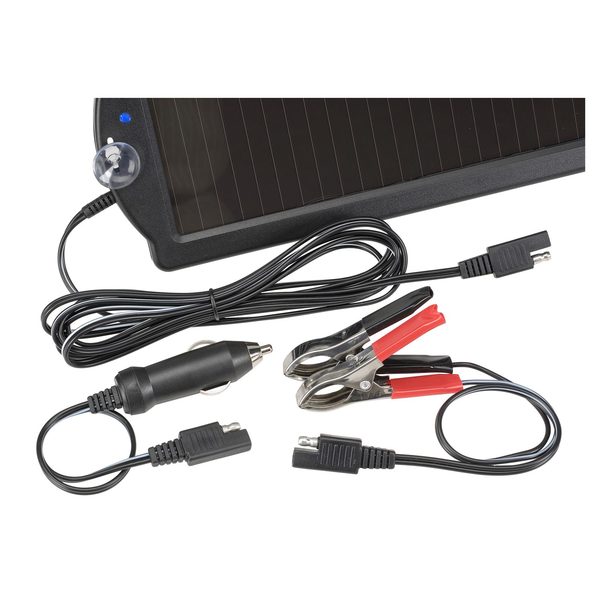

Fitted with a 3m lead and cigarette lighter plug that features a built in flashing L.E.D to show that the panel is producing power.

Dimensions: 370 x 160mm

FEATURES:

• Ideal for maintaining the battery of an infrequently used vehicle.
• Prevents power drain caused by radio memories, clocks, alarms & on-board computers.
• Amorphous solar cell technology, maintains the battery in peak condition, even in low light (cloudy) conditions.
• Smart control unit prevents solar discharge at night.
• Easy to use controller plugs directly into your vehicle’s cigarette lighter socket.
• Flashing ‘Red’ LED shows when the solar panel is producing power.
• Can be used for direct battery connection with optional lead P/No. CLE1006 (sold separately).- See the Smart Crew for availability.

Specifications:

• Part Number: SPA100
• Type: Amorphous
• Rated Power: 1.5 Watt at 1000W/m², 25°C
• Peak Power Voltage: 13-15VDC
• Peak Power Current: 90-105mA
• Short Circuit Current: 115mA
• DC lead: 3m
• Recommended Battery sizes (Maintenance)
• AUTOMOTIVE 100–550CCA
• MARINE 150–600MCA
• DEEP CYCLE 7–40Ah

WARNING:

• Read the operating instructions before use.
• Lead Acid Batteries can be dangerous. Ensure no sparks or flames are present when working near batteries. Eye protection should be used.
• Make sure the solar panel is mounted securely or stowed while driving.
• For use with 12V lead acid batteries only.
• Follow all vehicle manufacturer’s instructions
