Good ventilation equals good performance. The Dometic ventilation and extraction system ensures optimal performance by your absorption refridgerator!

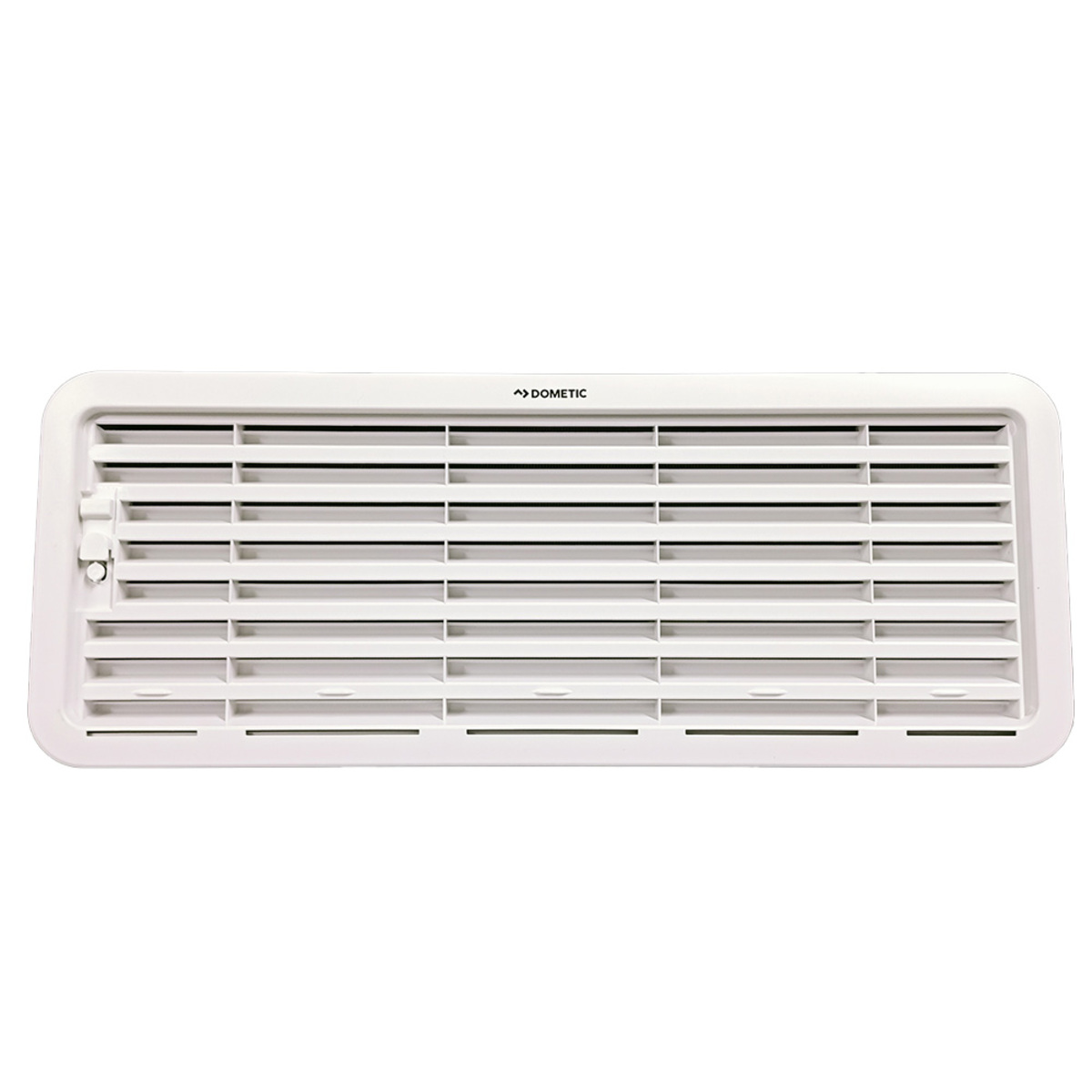

A specially designed ventilation grill to release heat building up around your fridge. Mounted to outside wall of the vehicle. Suitable for single-door fridge models.

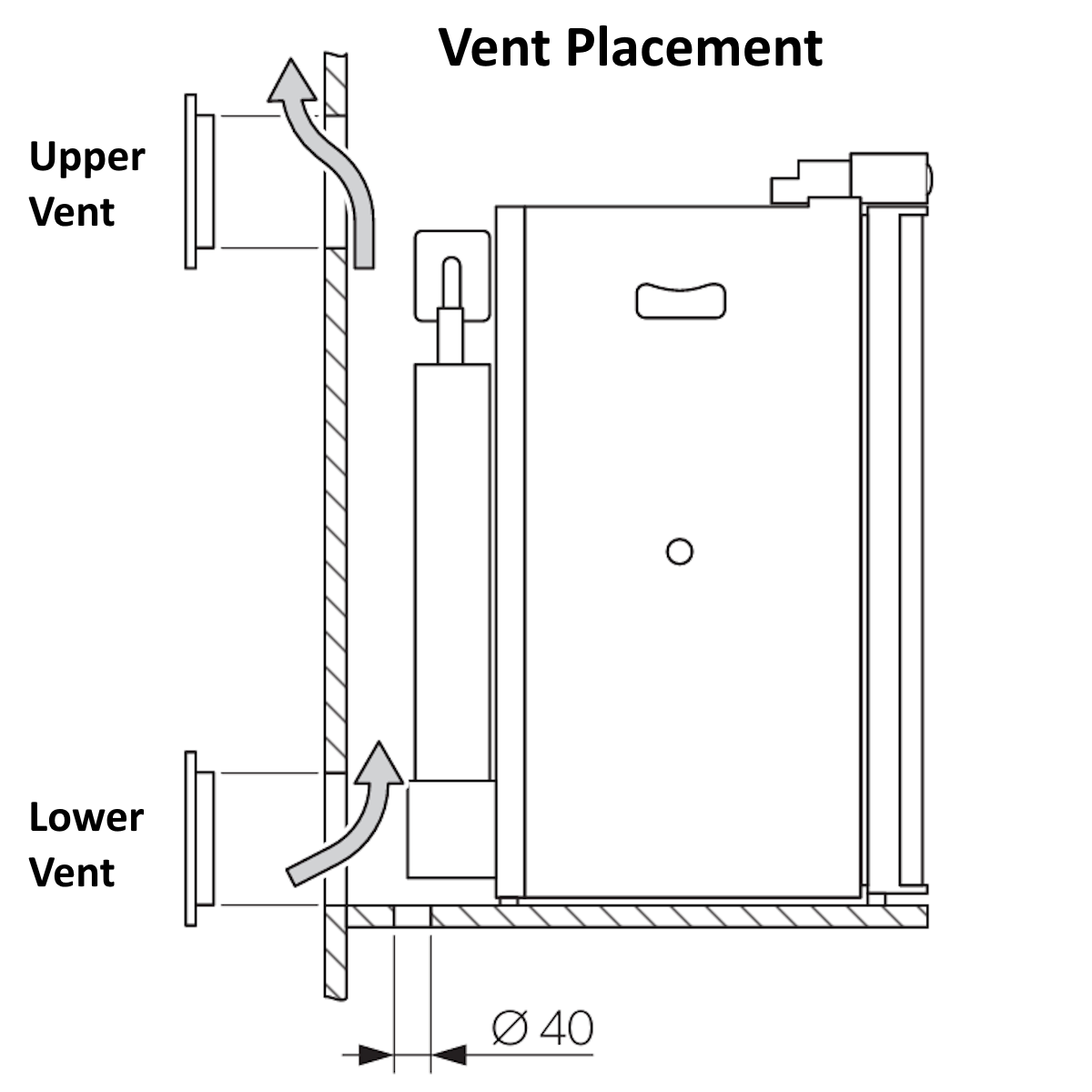

Your new vehicle will probably come with this system already installed. If you‘re retrofitting, you‘ll need to fit the ventilation grilles in the outside skin of the vehicle above and below the refrigerator. The upper grille allows heated air to escape, while the lower grille admits cooler air from the outside to the rear of the refrigerator.

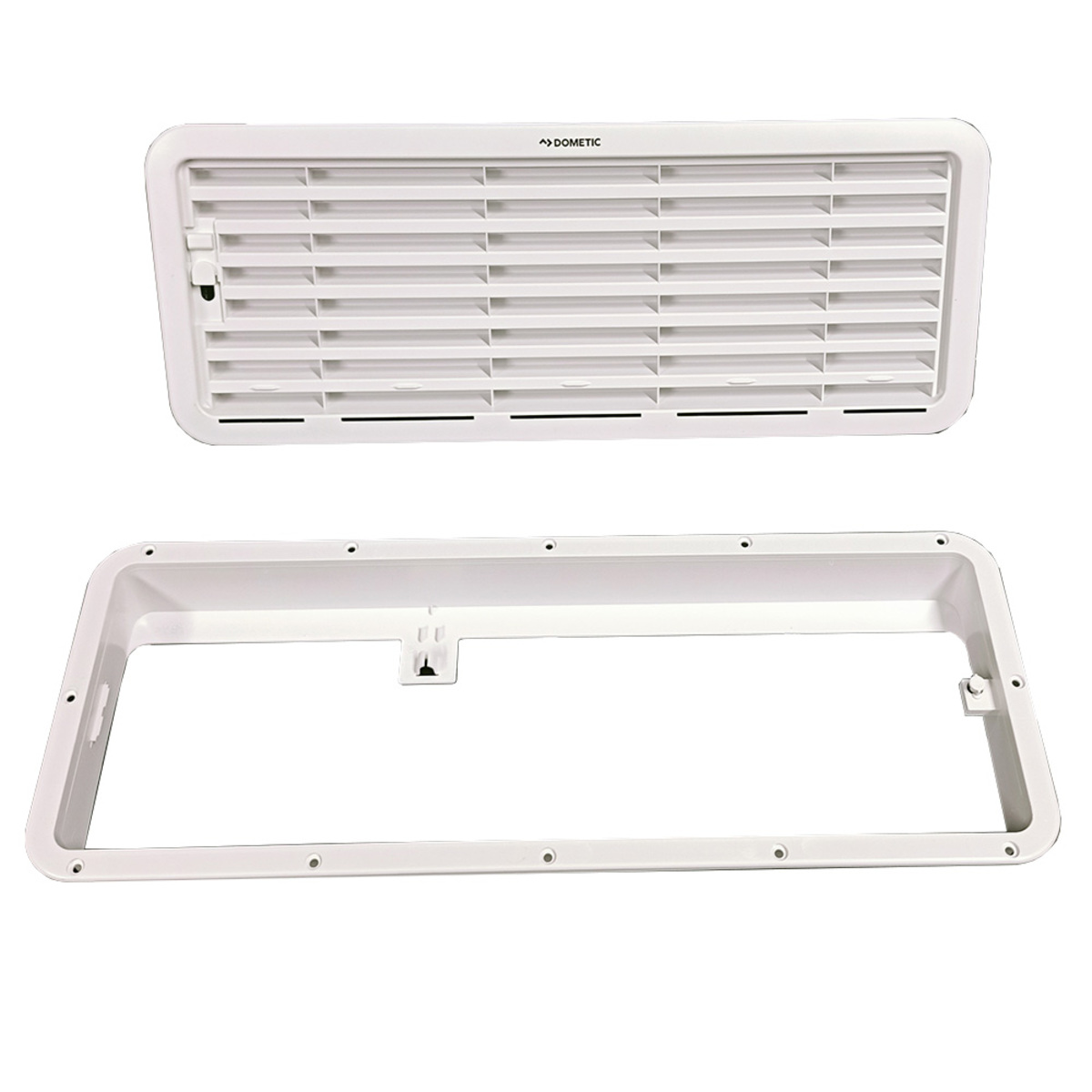

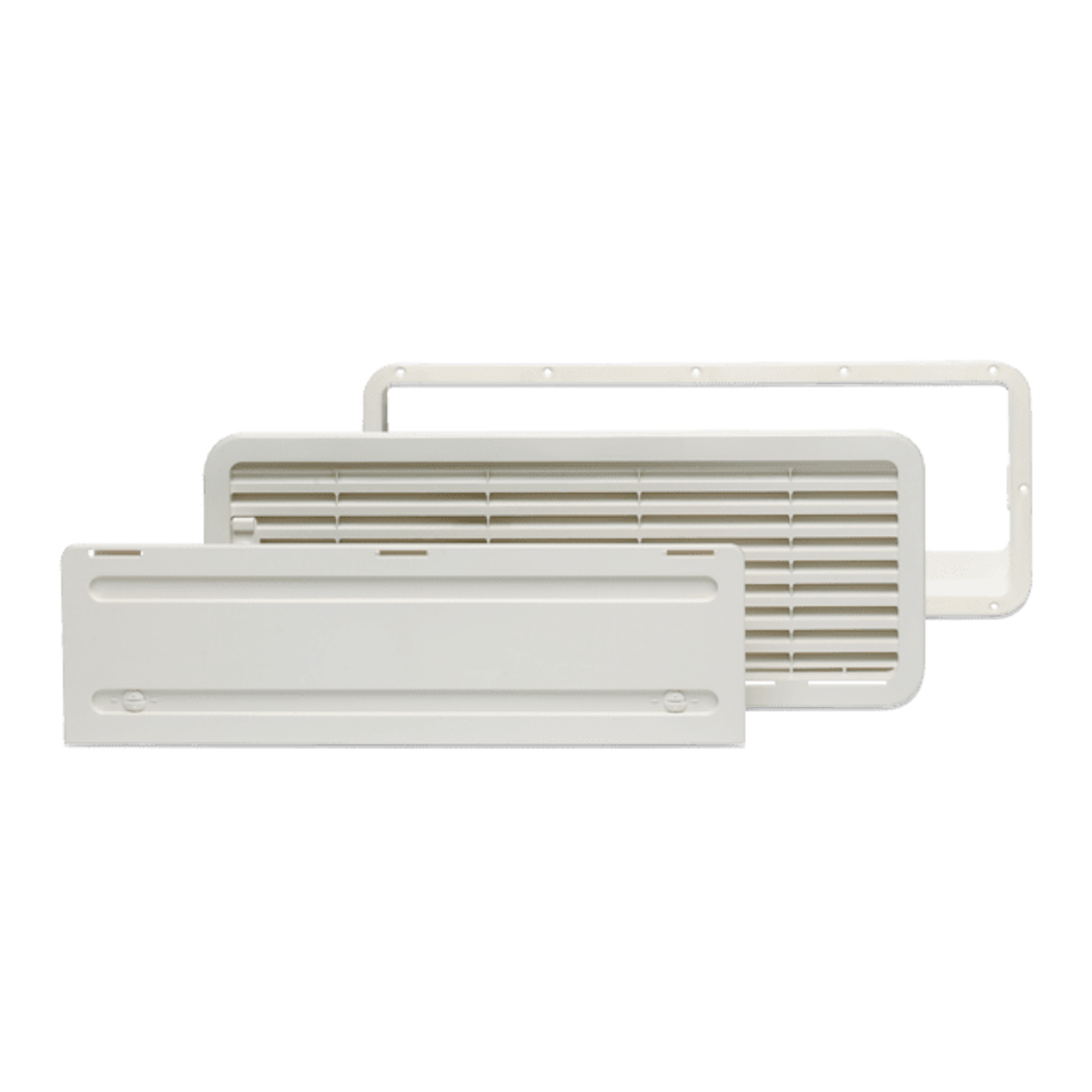

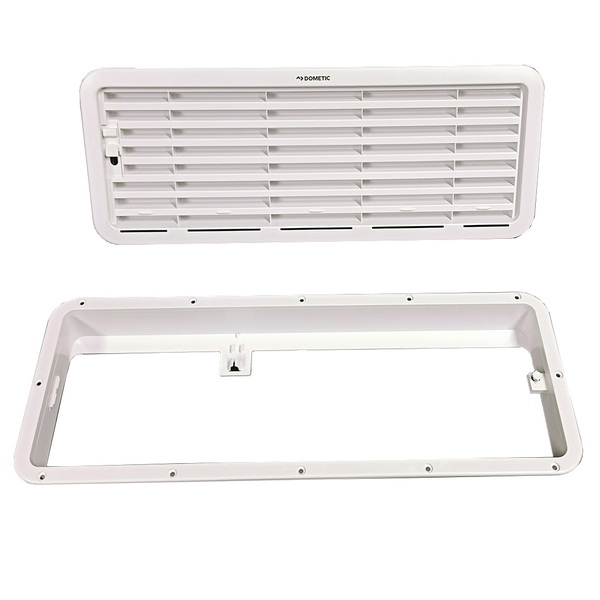

Supplied with an outer cover.
Features:
- Lower vent, (single door fridges require both the lower and upper vents)
- Avoid wasting energy by removing heat which builds up around your fridge.
- The lower grill allows cool air in while the upper grill allows warm air to escape.
- Suitable for Dometic single-door models of fridges 60-90 litres
Dimensions:
Depth: 45mm
Height: 185mm
Width: 479mm
Net weight, 0.48kg
a= 156mm
b= 451mm
Your new vehicle will probably come with this system already installed. If you‘re retrofitting, you‘ll need to fit the ventilation grilles in the outside skin of the vehicle above and below the refrigerator. The upper grille allows heated air to escape, while the lower grille admits cooler air from the outside to the rear of the refrigerator.
See vent 1610/2 for the upper vent to suit as pictured. Lower Vent only supplied.DIMENSIONS:
cutout- 451W x 156H (cm)
Securing of mounting frame -10 screws required (not included)
Area of Grill (cm2): 350
Overall dimensions of ventilation grill: width 479, height 185.2
