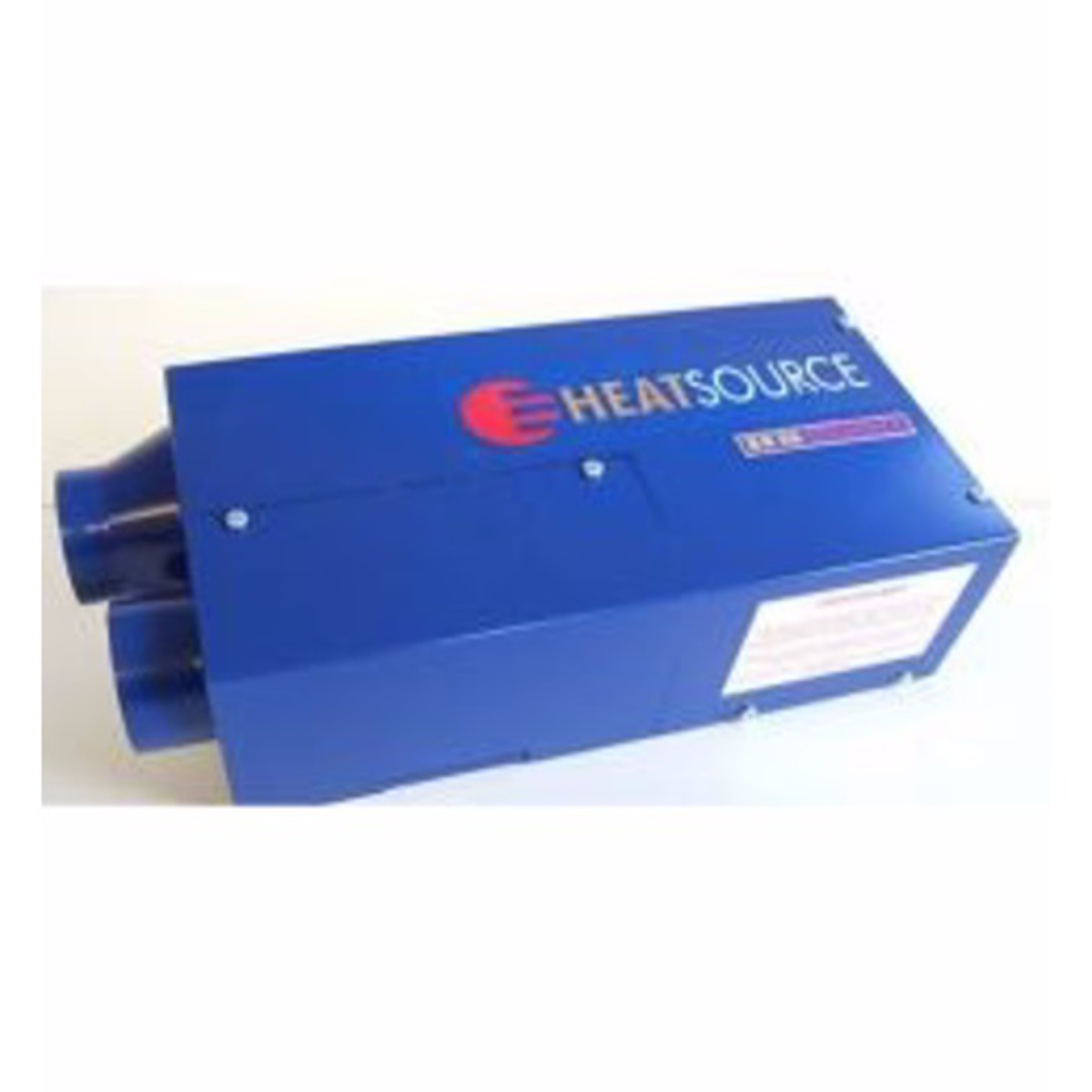

Propex Heater Lpg Air Blown 2.8Kw Hs2800

Advanced micro-processor electronics.
Self diagnostic fault finding system.
Fully CE compliant and tested to the latest European standards
Fast warm-up time.

Reduces condensation.

Marine kit available (not included band suitable for freshwater environment only). See the Smart Crew fopr pricing (special order).

SPECIFICATIONS:
Heat Input 3.0kw
Heat Output 2.8kw
Voltage 12v

Power consumption 1.9A continuous
Air Throughput  85 C.F.M
Fuel LPG/Butane/Propane
Length (mm) 415
Width (mm) 210
Height (mm) 120

INCLUDES:
Thermostat
Exhaust 750mm
Inlet  750mm
Vent

Ducting 2m (80mm)
Outlet Vent
Wiring

FULL DETAILS:

Propex Heatsource blown air systems are used in many applications throughout the world, these include Motorhomes, Caravans, Boats, Cranes, Horseboxes, Mobile Workshops etc.

Control

The HS2800 is supplied as standard with a solid state electronic thermostat which automatically switches the unit on and off to maintain the desired temperature. When the room temperature drops below the selected level, the Heatsource will automatically ignite and run until the cabin reaches the selected temperature. The thermostat is an easy to fit surface mount design and integrates with the electronics fitted to the HS2800 heater. Unlike some heaters, there is minimal electric current consumption during ignition so cycling the heatsource on and off does not have the effect of additional battery drain.

Efficiency

With forced air combustion and the Propex two stage stainless steel heat-exchanger, the HS2800 is a clean and highly efficient way to heat your vehicle or boat. Air for combustion is taken from outside and passed into the combustion chamber having been mixed with gas during three aeration stages, it is ignited automatically and heats up the large surface area of the heat-exchanger. The Heatsource units are totally room sealed and exhaust all products of combustion externally through the neat 22mm i.d. stainless steels flue pipe. To add to the efficiency, cabin air is normally re-circulated in preference to using cold air from outside. The HS series heaters are also very efficient on electrical current consumption, the high quality motor/fan combination and innovative current reducing electronics, both of which have been improved in the latest versions, means that even the larger HS2800 draws less than 2 amps during normal operation.

Quiet Operation

Propex heaters are designed to be quiet in operation without compromising air throughput and heat output. There will always be some air noise from a system that produces a healthy throughput of air, however, by using high quality balanced fans and smooth enclosed motors with ball race bearings, noise is kept to a minimum. Noise is also unaffected by high voltage, a common occurrence with battery charges, solar panels etc permanently wired. The micro-processor electronics regulates the motor voltage so that the fan speed does not alter from 10 to 15 volts.

Safety

Heatsource blown air heaters conform to the latest European standards for both the appliance and the electronics and during the rigorous testing the focus is very much on safety. The heaters also have to comply with an enhanced version of the Electro Mechanical Compatibility Directive to ensure they do not interfere with other electronics and that they are immune from interference by other electronics.
The intelligent electronics are continuously monitoring the operation of the heater to make sure everything is operating correctly and safely. This includes monitoring of the flame, case temperature, combustion airflow, gas solenoid valve and voltage. Should any of these stray outside of the predetermined levels, the heater will be switched off and the red light on the thermostat will indicate a fault by flashing a certain number of times.

Installation
The HS2800 is supplied with a fitting kit to suit a vehicle. In vehicles and caravans the unit is usually mounted in a bed-box or cupboard, flued downwards through the floor and out to the side of the vehicle using flexable stainless ducting. These duct (26mm i.d. for the HS2800) are supplied as standard in lengths of 750mm for vehicles. The ends are finished with neat stainless steel end-caps which comply with EN624. The heat is ducted to one or more outlets through tough highly flexible ducting. In the case of multi-outlet installations, the first outlet is an open outlet with directional control and the rest are closable and are used in conjunction with the appropriate sized plastic Y-branches.  Multi- outlet installation gear is not included but available seperately, see the cre for pricing.
