Heatsource blown air heating.
Quiet thermostatic operation.
Low power consumption. Compact and easy to install.
High quality motor with ball race bearings.
This model is for RV use only.

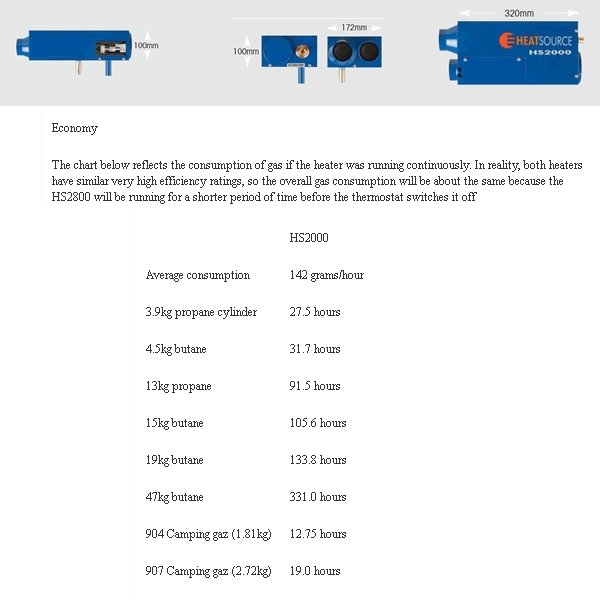

Specifications:
- Heat Input 2.1kw
- Heat Output 1.9kw
- Voltage 12v (24v Indent)
- Power consumption 1.4A continuous
- Air Throughput 60 C.F.M
- Fuel LPG/Butane/Propane
- Length (mm) 320
- Width (mm) 172
- Height (mm) 100
The Propex HS2000 is an automatic thermostatically controlled blown air heating systems fulled by propane or butane gas. Heatsource is designed for a variety of automotive and marine applications as a source of heat totally independent of the engine.
Applications
Propex Heatsource blown air systems are used in many applications throughout the world, these include Motorhomes, Caravans, Boats, Cranes, Horseboxes, Mobile Workshops etc.
Control
The HS20000 is supplied as standard with a solid state electronic thermostat which automatically switches the unit on and off to maintain the desired temperature. When the room temperature drops below the selected level, the Heatsource will automatically ignite and run until the cabin reaches the selected temperature. The thermostat is an easy to fit surface mount design and integrates with the electronics fitted to the HS2000 heaters.Unlike some heaters, there is minimal electric current consumption during ignition so cycling the heatsource on and off does not have the effect of additional battery drain.
Efficiency
With forced air combustion and the Propex two stage stainless steel heat-exchanger, the HS2000 is a clean and highly efficient way to heat your vehicle or boat. Air for combustion is taken from outside and passed into the combustion chamber having been mixed with gas during three aeration stages, it is ignited automatically and heats up the large surface area of the heat-exchanger. The Heatsource units are totally room sealed and exhaust all products of combustion externally through the neat 22mm i.d. stainless steels flue pipe. To add to the efficiency, cabin air is normally re-circulated in preference to using cold air from outside. The HS series heaters are also very efficient on electrical current consumption, the high quality motor/fan combination and innovative current reducing electronics, both of which have been improved in the latest versions, means that even the larger HS2800 draws less than 2 amps during normal operation.
Quiet Operation
Propex heaters are designed to be quiet in operation without compromising air throughput and heat output. There will always be some air noise from a system that produces a healthy throughput of air, however, by using high quality balanced fans and smooth enclosed motors with ball race bearings, noise is kept to a minimum. Noise is also unaffected by high voltage, a common occurrence with battery charges, solar panels etc permanently wired. The micro-processor electronics regulates the motor voltage so that the fan speed does not alter from 10 to 15 volts.
Safety
Heatsource blown air heaters conform to the latest European standards for both the appliance and the electronics and during the rigorous testing the focus is very much on safety. The heaters also have to comply with an enhanced version of the Electro Mechanical Compatibility Directive to ensure they do not interfere with other electronics and that they are immune from interference by other electronics.
The intelligent electronics are continuously monitoring the operation of the heater to make sure everything is operating correctly and safely. This includes monitoring of the flame, case temperature, combustion airflow, gas solenoid valve and voltage. Should any of these stray outside of the predetermined levels, the heater will be switched off and the red light on the thermostat will indicate a fault by flashing a certain number of times.
Installation
This HS2000 is supplied with the fitting kit to suit vehicle applications. In vehicles and caravans the unit is usually mounted in a bed-box or cupboard, flued downwards through the floor and out to the side of the vehicle using flexable stainless ducting. These ducts (22mm i.d. for the HS2000). are supplied as standard in lengths of 750mm for vehicles. The ends are finished with neat stainless steel end-caps which comply with EN624. The heat is ducted to one or more outlets through tough highly flexible ducting. Optional extras are available for this kind of installation of multiple outlets, see the crew.
Includes:
- Thermostat
- Exhaust 750mm
- Inlet 750mm
- Inlet Vent
- Ducting 1m (60mm)
- Outlet Vent
- Wiring
