Lewmar® rope clutches have been designed and engineered to provide superior high performance rope holding and release characteristics.
With minimal moving parts the variable geometry handle delivers simple, quick and effortless operation while the unique pattern of dominos provides outstanding holding power and clutching whilst remaining gentle on ropes to prevent fray. The Lewmar® clutch is an excellent choice for high load applications such as Genoa, spinnaker and asymmetric halyards while also ideal for low load applications such as reefing points, topping lifts and outhaul lines on larger vessels.
Features:
- Domino Cluster and greater holding surface area holds line under load without fraying
- Controlled Release - Pull back handle combined with patented clutch and release mechanism provides controlled release even at full holding load.
- Solid link from handle to Domino Cluster

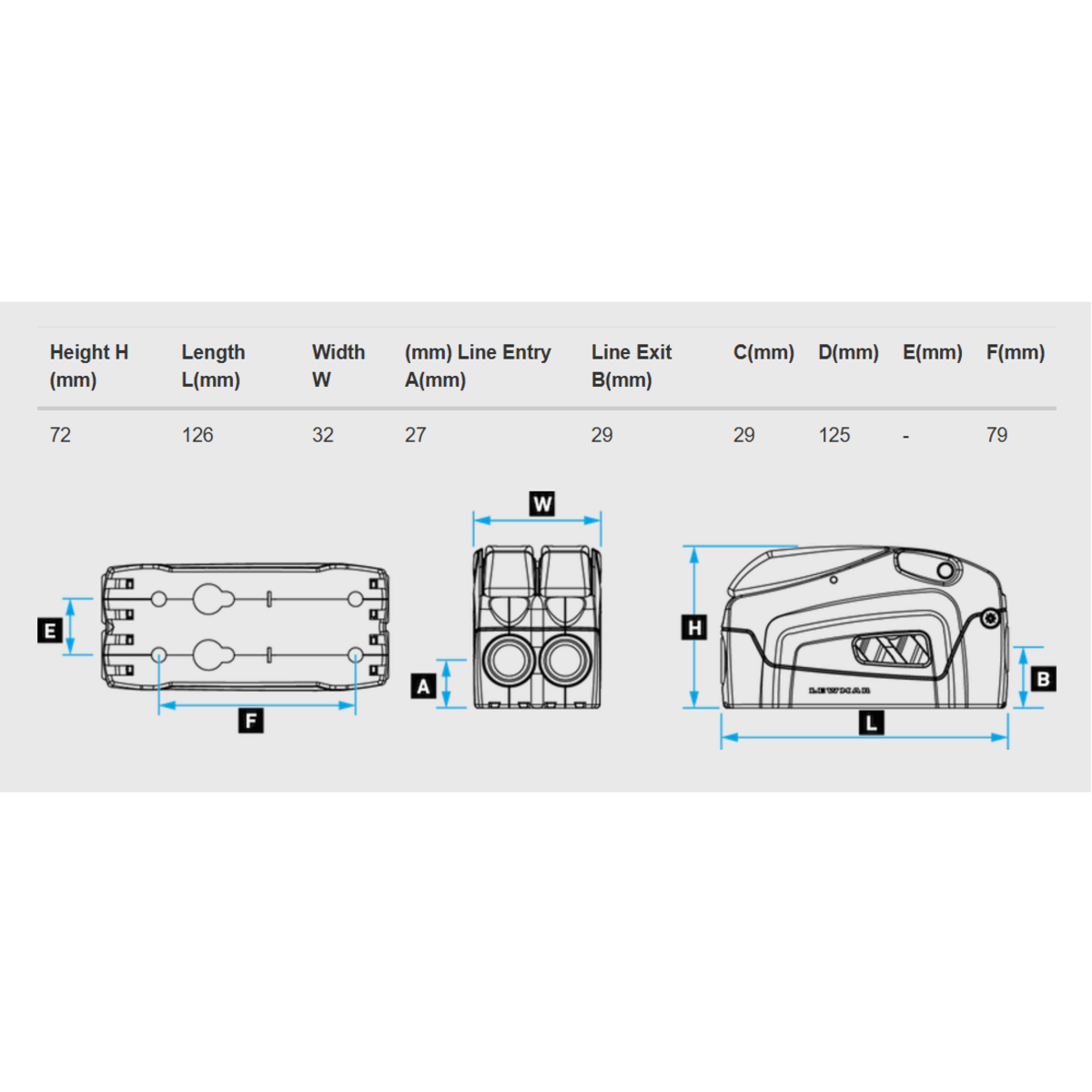

Specifications:
- Model D1 Triple / Lewmar 29101108BK
- High load applications on boats to 9.7m
- Low load applications on larger boats
- 6mm to 8mm line size
- Holding Load 300KG
- Up to 500KG working load
- Weight 249g
More Details:

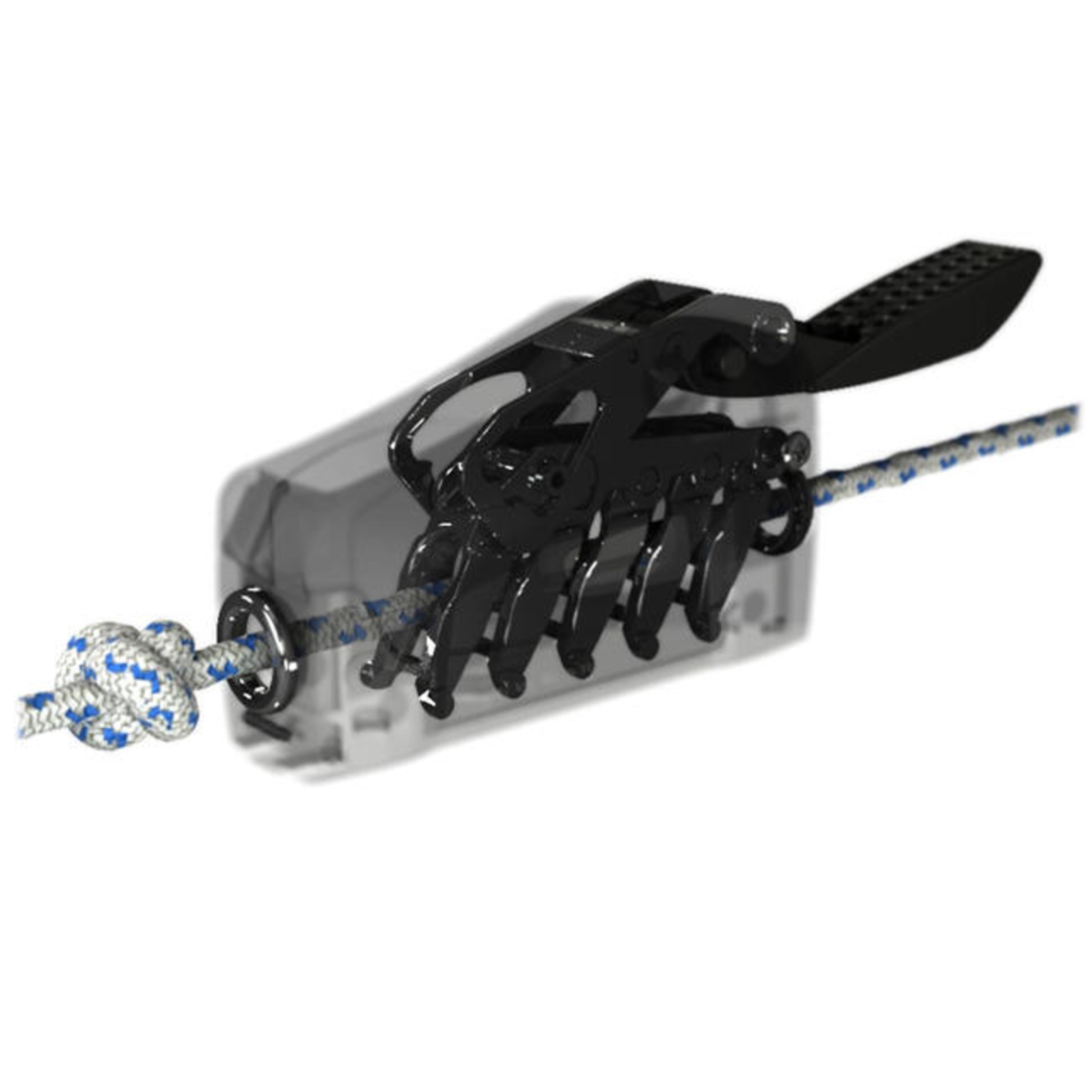

Lewmar continues to define rope clutch technology with a variable geometry handle and unique grip pattern of dominoes that prevent rope fray. Unlike anything else on the market, Lewmar's non-cam clutch has a series of smooth, in-line and parallel rings hinged at the base. The line is run through these rings which are then tilted by a single connecting lever. When tilted, the rings force the line to snake through them, creating the necessary friction to hold the line securely. When they are allowed to resume their former configuration (the clutch is released), the line straightens and can be eased without alarm if released gradually.
This revolutionary new system has been independently tested time and again and has won awards for its innovative framework.

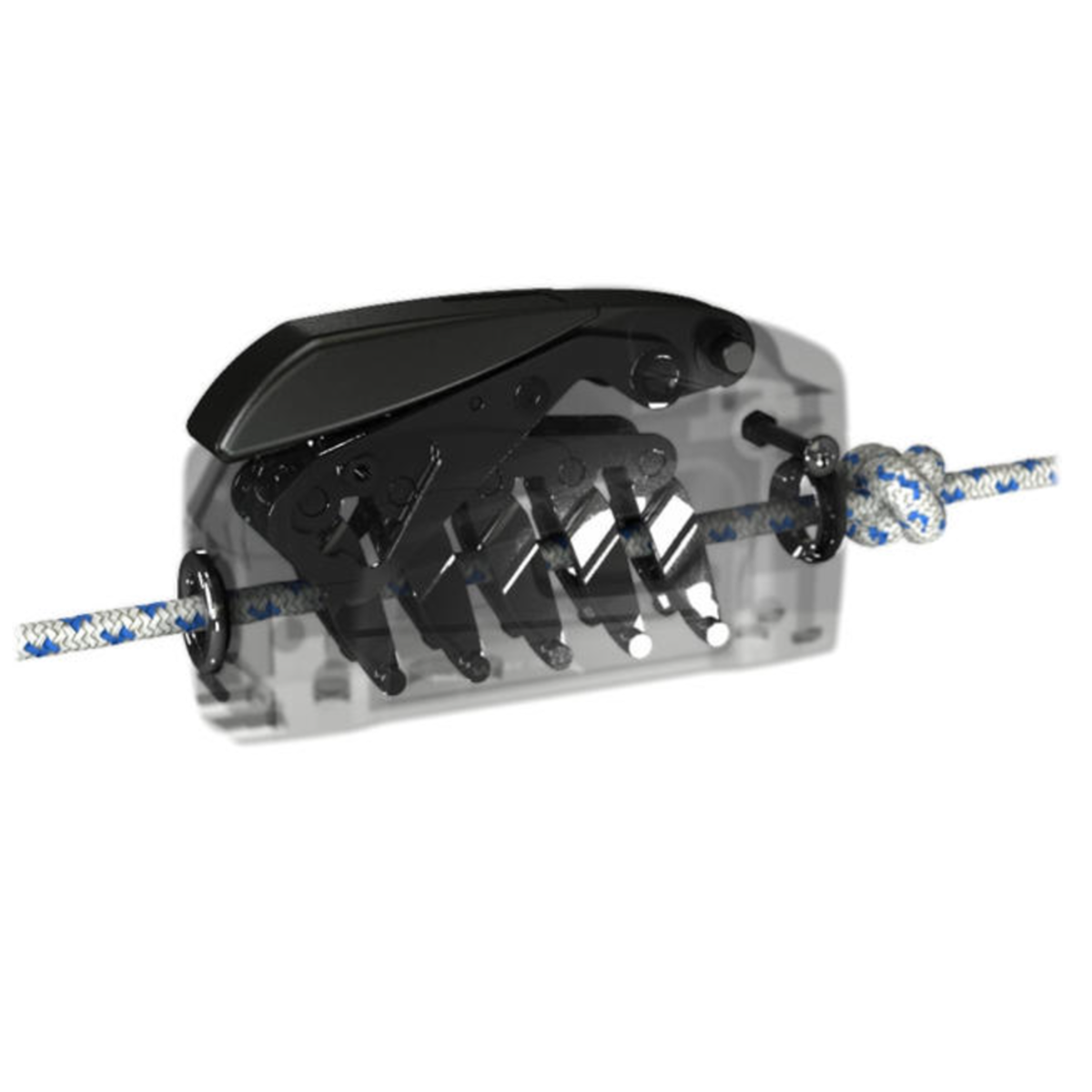

Throughout the history of rope clutch development, the cam was given teeth. This has always been a primary cause of line abrasion. Lewmar's clutch is an innovative approach to the line holding function. Shown in the image above right, rather than jamming the line (top), Lewmar's Domino mechanism flexes it (bottom) for better grip and less wear.
When selecting a clutch, it is best to select the size with an upper rope range close to the size of the line to be belayed. Doing so will ensure maximum deflection as the Domino flexes the line.
