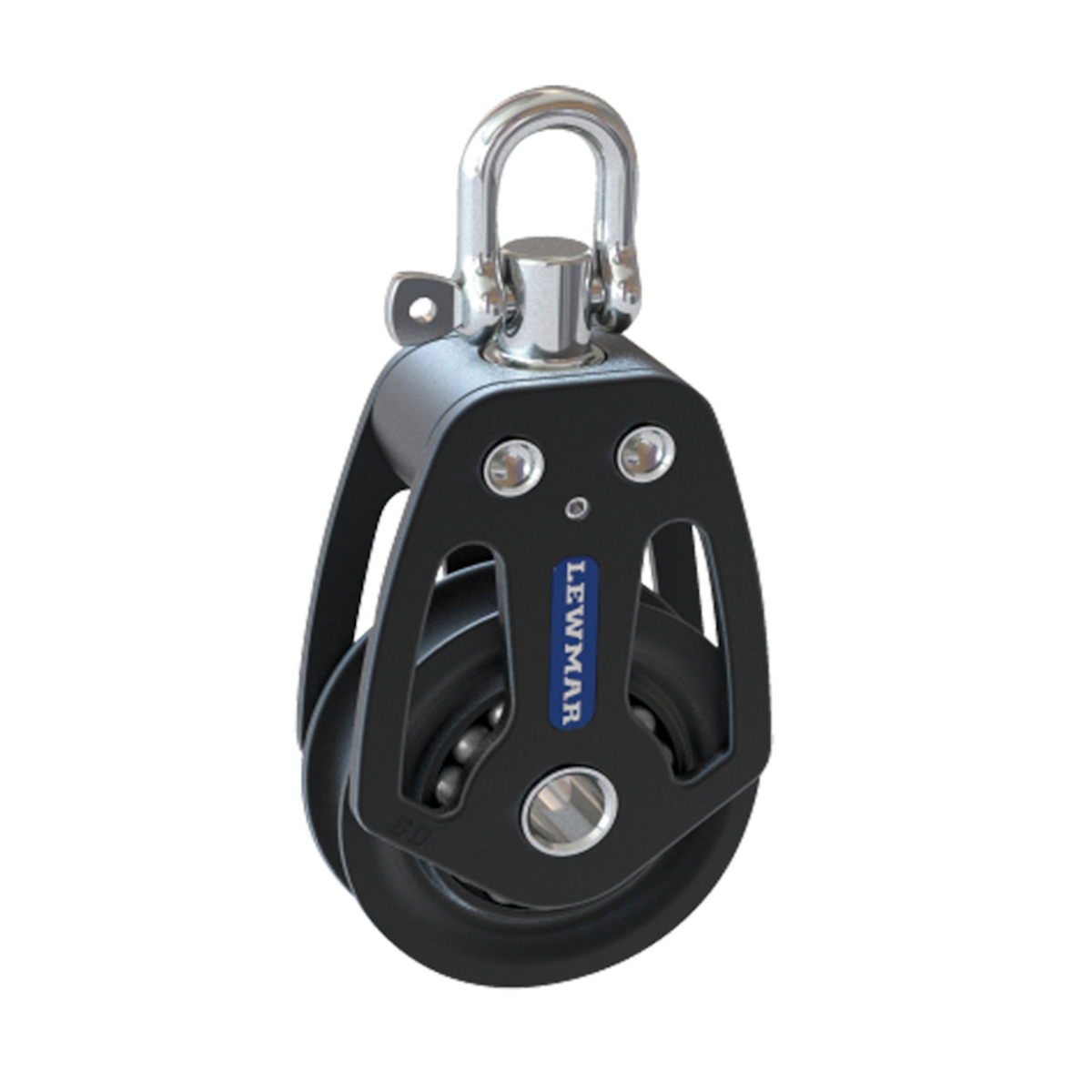

Suitable for cruising through to performance yachts, the HTX range has been designed and manufactured to use a minimal number of alloy, stainless steel and plastic reinforced parts to provide enhanced reliability, durability, efficiency and strength.
The anodised marine grade alloy cheeks capture the side thrust ball bearings which provide high sail handling efficiency and speed. The design incorporates high load capacity performance while maintaining minimal weight for large line sizes. For additional functionality the head design Features a swivel head which incorporates a locking grub screw mechanism to allow the block to be set in correct alignment. Available in a wide range of configurations and styles including stand-up and foot blocks to suit almost any application for vessels up to 18 metres. Attachments include traditional shackle, webbing/lashing and toggle head.
Features:
- Alloy cheeks, side thrust Delrin ball bearings
- Efficient high load plain central bearing
- High performance swivel head design
- High load capacity, low friction
- 60 sheave diameter
Specifications:
- Sheave Dia. mm: 60
- Max rope size mm: 12
- Working load limit KG: 1100
- Breaking Load KG: 2200
- Shackle pin Dia. mm: 6
About the Lewmar HTX Hardware Range:
Years of design and manufacturing experience coupled with collaboration with boat builders, designers and sailors have resulted in the Lewmar HTX Hardware Range. Drawing upon the design of the Racing Range, the HTX blocks are constructed simply from high quality materials, providing enhanced reliability. HTX blocks are ideal for frequently adjusted, highly loaded systems using modern line technology and reduced line diameters. Features Strong aluminium side cheeks Central plain bearing for efficiency at high loads Side thrust delrin ball bearings Head design inspired by Lewmar Racing Range with grub screw swivel head locking mechanism
