Lectrotab trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance free design.
The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket. Actuators come in 12 and 24 VDC with 8 second recommended stroke time or 4 second stroke time. (This is the12v model).

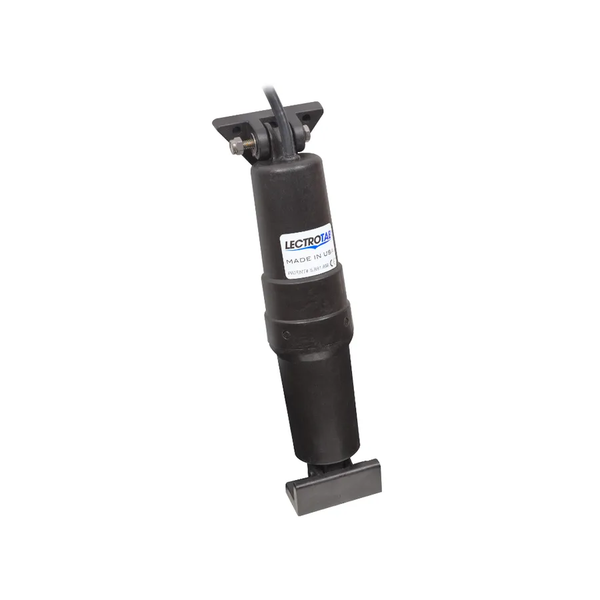

Ideal for limited vertical height applications such as swim platforms, Lectrotab short trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The short actuator incorporates either a standard or low profile (see picture) transom mounting bracket. Short actuators come in 12 and 24 VDC with 6 second stroke time.
Short actuator perfect for swim platform or limited vertical height applications
Upper ram seal patented location cannot be damaged due to fouled ram or barnacle growth
Utilizes patented internal pressure equalization system
Upgrades to most popular hydraulic and electromechanical systems
Internal brake system prevents unwanted tab movement when under way or backing down
FEATURES:
- Short actuator perfect for swim platform or limited vertical height applications
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Upgrades to most popular hydraulic and electromechanical systems
- Internal brake system prevents unwanted tab movement when under way or backing down
- Quiet operation
- All actuators fully load tested to push 1000 lbs of force
- Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
- Fully load tested to push 1000lbs of force
SPECIFICATIONS:
- Model: S-BK-13
- DC Voltage: 12VDC
- Stroke Length: 1.5"/38mm
- Stroke Time: 6 sec.
- Distance from Upper Mounting Bolt to Pin: 10"/254mm
- Vertical Height (Typical Installation Fully Retracted: 10"/254mm
- Cable Length (Feet/Meter): 23'/7m
- Upper Mounting Bracket: Standard
- Lower Mounting Bracket: Standard
- Use Actuator w/Tabs: All Tabs
Sold per piece.
Lectrotab Code: S-BK-16
