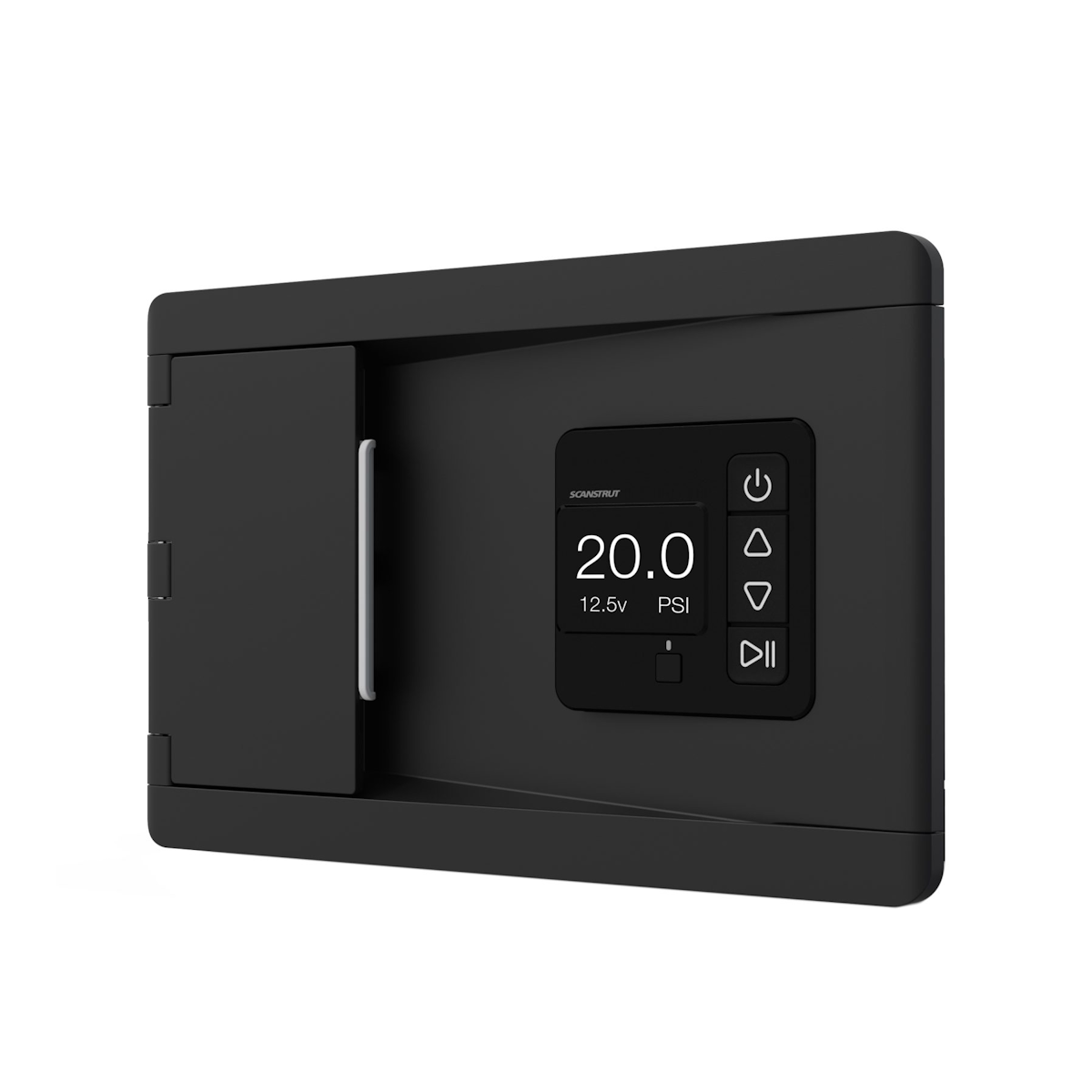

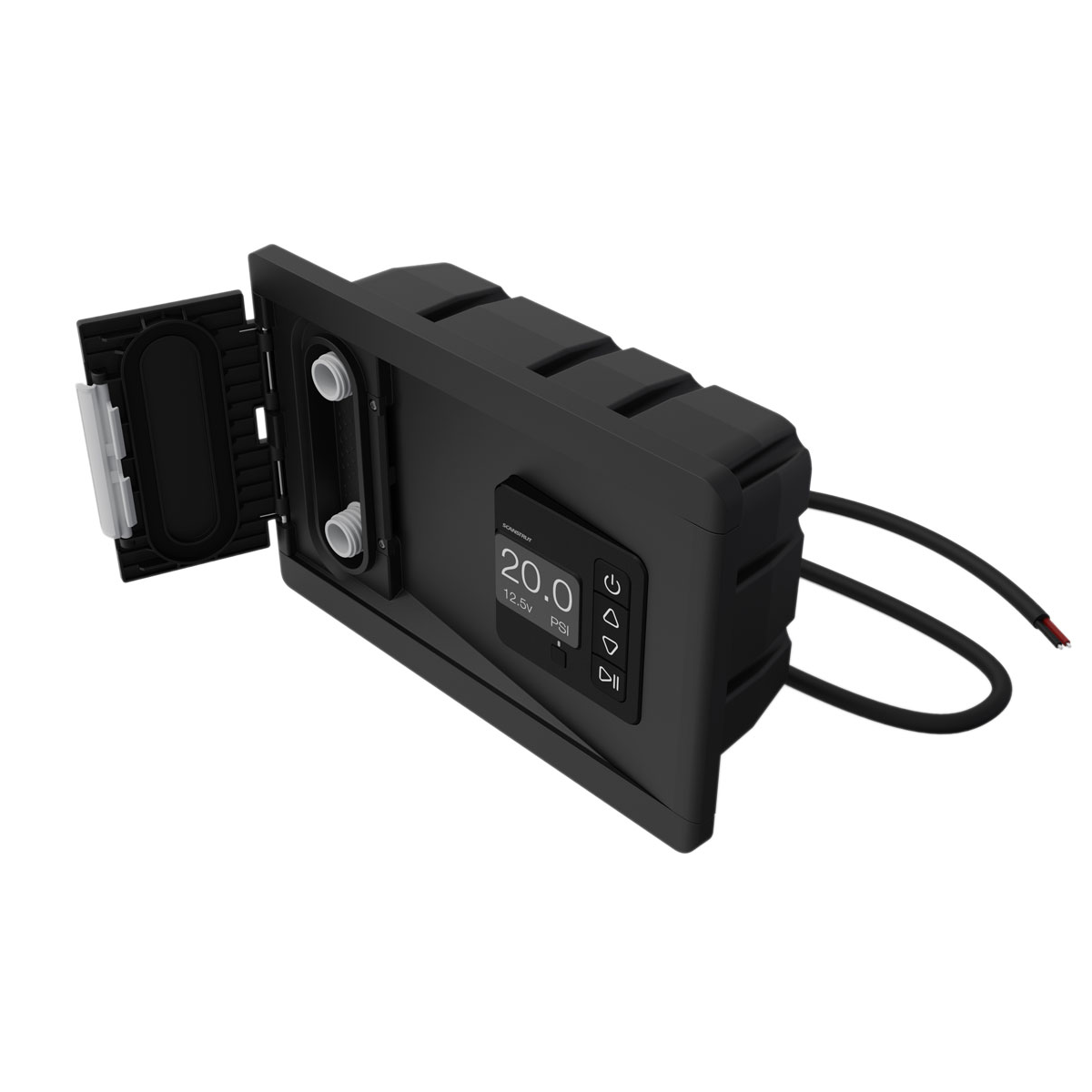

Scanstrut Atmos Inbuilt Waterproof Marine Air Pump Station 12V 20Psi

Scanstrut's Integrated in-built air station Atmos is will maximize quality time on the water. This beautifully designed, in-built air station is here to maximize quality time on the water.

At the push of a button, ATMOS is ready to inflate your paddleboards, towables and more: simply set the target pressure and let ATMOS do all the hard work. Utilising Scanstrut’s outdoor technology DNA, this is waterproof on-board air that’s engineered to thrive in the harsh marine environment.

Scanstrut® ATMOS Integrated In-Built Air Station - Revolutionise your boating experience:

Features:

• Ambient Operating Temp: -20° to +50°C
• Input Voltage: 12V Battery system (10-14V)
• Max Current Draw: 12A (140W)
• Max Pressure Output: 20 PSI / 1.37 BAR
• Max Volume of Airflow 0-1 PSI: 350 LPM/12.3 CFM
• Standby Power Draw: 0.2W Max
• Waterproof Rating: IPX6 waterproof front and back
• Two-stage pump: Stage 1 = 0 -1 PSI, Stage 2 = 1.1 - 20 PSI

Detailed Technical Information:

Performance:

Typical Inflate / Deflate Stats:
Featuring next-gen air pump technology to provide fast, effortless inflation (and deflation) for your on-water toys. Compact and shallow, ATMOS fits into almost any panel on board such as seating, consoles, or near the swim platform. Now you have ready-to-go air, right where it’s needed, for even more family fun on the water.

Time to inflate 10ft 6” SUP to 20 PSI: 6 to 8 mins
Time to inflate towable to 1.5 PSI: > 3 mins ˜
Time to deflate 10ft 6” SUP: > 1 min ˜
Time to deflate towable: > 1 min ˜
Time to inflate a swim platform to 5 PSI: > 16 mins ˜
Time to inflate a 12ft dinghy to 3 PSI: > 13 min ˜

Screen: LCD, high brightness and colour, daylight viewable, wide viewing angle
Screen Information: PSI or BAR; pre-set pressure; voltage readout
Stand-by mode: No activity auto power-off at 5 mins
Auto shut-off: At target pressure

Specifications:
Max pressure: 20 PSI / 1.37 BAR
Max volume of airflow 0-1 PSI: 350 LPM/12.3 CFM
Max volume of airflow 1-20 PSI: 70 LPM/2.5 CFM
Included valve connectors: Boston Valve, C7 Valve, H3/HR Valve, Pinch Valve, 805 Valve
Length of hose included: 2.5m (8ft). Includes net storage bag
Input voltage: 12V Battery system (11.5 – 14.5V)
Max current draw: 12A (140W)
Standby power draw: 0.1W Max
Two stage pump: Stage 1 = 0 - 1 PSI, Stage 2 = 1 - 20 PSI
Ambient operating temp: -20º to +50 ºC
Max run time per session: 25 mins
Max noise level (unmounted): 85 dB

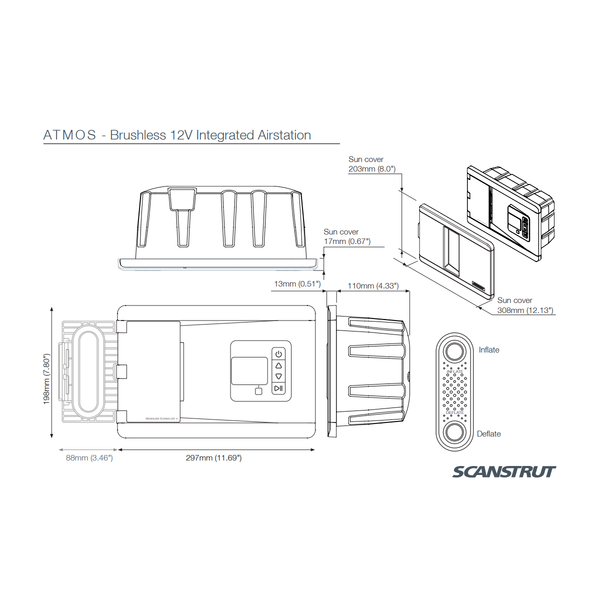

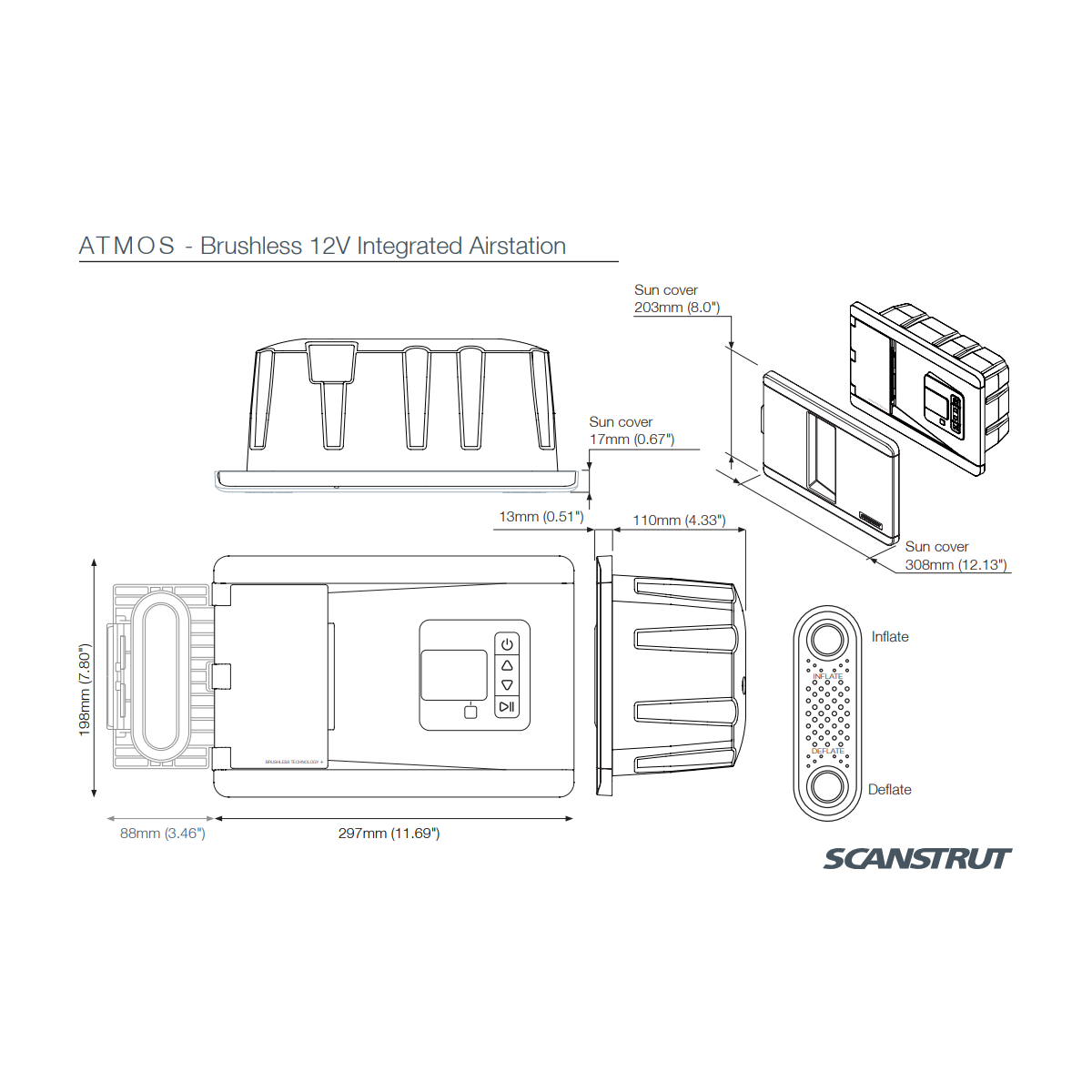

Installation:
How? Panel mounted using self-tapping screws. Or bolts (not
included).
Where? Fit into a wide variety of locations on board: seating, side
panels or consoles. Min cavity depth 110mm (4.33")
Installation angle? + 10º to - 30º from vertical
Service? No end-user serviceable parts
Ignition protected? Yes

Environment:
Protection: Reverse polarity, short-circuit, under voltage, overload, over
temp.
Environmental protection: Conformal coated electronics and PCB
Certifications: CE, ROHS, UN ECE R10, UKCA
Cable length: 500mm (20") 2x 1.5mm2, 16 AWG
Waterproof rating: IPX6 front and rear (door closed)
Air flow: In and out of front of unit only. Rear of unit sealed
