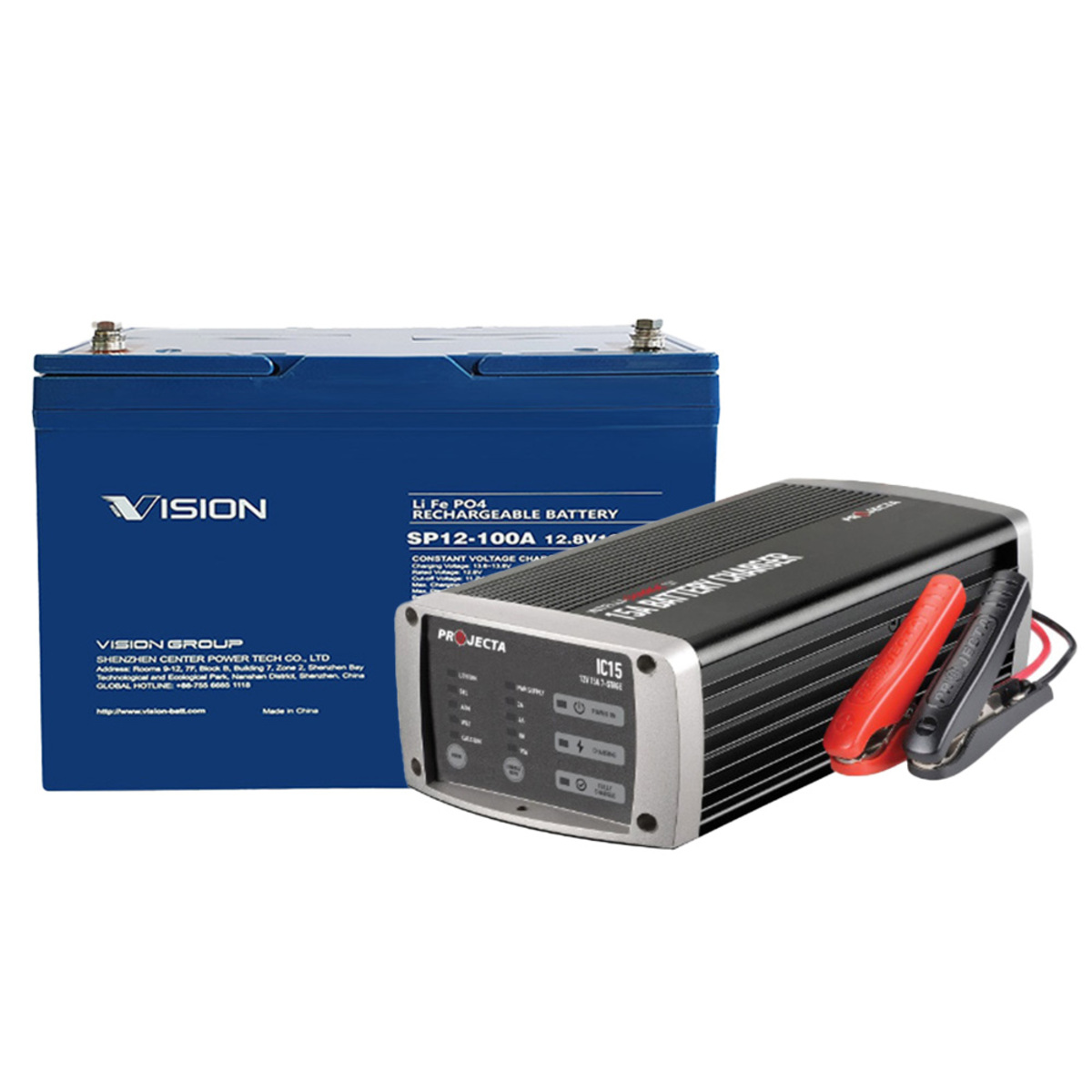

The Charger:
The perfect charger for large batteries found in boats, camper trailers and caravans, the IC15 is ideal for permanent fixture offering a fast and comprehensive charge when off the beaten track. Comes with a 5 year warranty.
Features:
- FUSED WIRING HARNESS
0.6m harness allows permanent connection and features polarity protection - ADJUSTABLE OUTPUT
Adjustable for different battery sizes for precise charging - POWER SUPPLY MODE
Retains vehicle computer settings when changing a battery or can run 12V appliances - WIRED REMOTE CONTROL
Allows charger to be mounted out of sight yet retain total control (remote sold separately) - 5 YEAR WARRANTY
Ensured durability with our 5 year warranty
Specifications:
- Type 7 Stage Automatic
- Input 240VAC, 50Hz, 240W
- Output 12V
- Output Current 2,4,8,15A
- Min Start V 2.0V
- Back Drain Charger 1mA, with remote 2mA
- Approvals Electrical Safety, EMC
- Charge Voltage 14.1V (Gel), 14.4V (AGM), 14.7V (WET), 16.0V (CALCIUM), 14.2V (LITHIUM)
Battery charge Times:
Automotive
- Voltage 12V
- Battery Size 80-2000 CCA
- Charge Time 6-15 hrs
Marine
- Voltage 12V
- Battery Size 110-2500 MCA
- Charge Time 8-20 hrs
Deep Cycle
- Voltage 12V
- Battery Size 14-300Ah
- Charge Time 6-20 hrs
Lithium
- Voltage 12V
- Battery Size 4-150Ah
- Charge Time 2-10 hrs
The Battery:
With 100Ah of lithum power packed into the same sized case as a lead-acid 80Ah and a greater depth of discharge, it’s no wonder that these batteries are becoming the first port of call to those with a tighter space to squeeze their battery into - and you’re getting more bang for your buck with the higher power density in the same footprint too. Also lighter than other alternatives, these Vision lithiums are perfect for applications where weight can be an issue, so could prevent a two man job in carrying the battery to a difficult-to-reach spot or stop the trusty old campervan from qualifying for a COF.
The V-LFP12V100AH batteries sport rugged cases that are fully sealed and maintenance free, concealing safer technology along with the added benefit of an easier recharge thanks to their superior recharge absorbtion.
Easy to parallel and add to a series and even easier to retrofit into applications with solar charge controllers, these batteries are simply all-rounders that will just keep on cranking.
Specifications:
- Cell 3.2V100Ah
- Cell Series & Parallels 4S1P
- Rated Voltage (V) - 12.8
- Rated Capacity (Ah) - 100
- Rated Energy (KWh) - 1.28
- Maximum Charge Current (A) - 50
- Maximum Disharge Current (A) - 100
- Pulse Current (A) (=5s) - 200
- Recommended Discharge Voltage (V) - 11.2
- Recommended Charge Voltage (V) - 13.6 ~ 13.8
- Life Cycle (@25oC, 0.5oC/0.25oC, 80%DOD) - 2500
- Short-circuit Current (<10ms) Approx. 1200A
- Dimension (WxDxH) Approx. - 306 x 169 x 215mm
- Total Weight (Kg) Approx. - 10.3
- Internal Resistance Fully Charged @ 25oC - =10mOhms
- Thermal Management - Natural Cooling
- Operating Temperature - 0 ~ 50oC / -20 ~ 65oC
- Operating Humidity - -20 ~ 65oC
- System Series - =6
- System Parallels - =6
