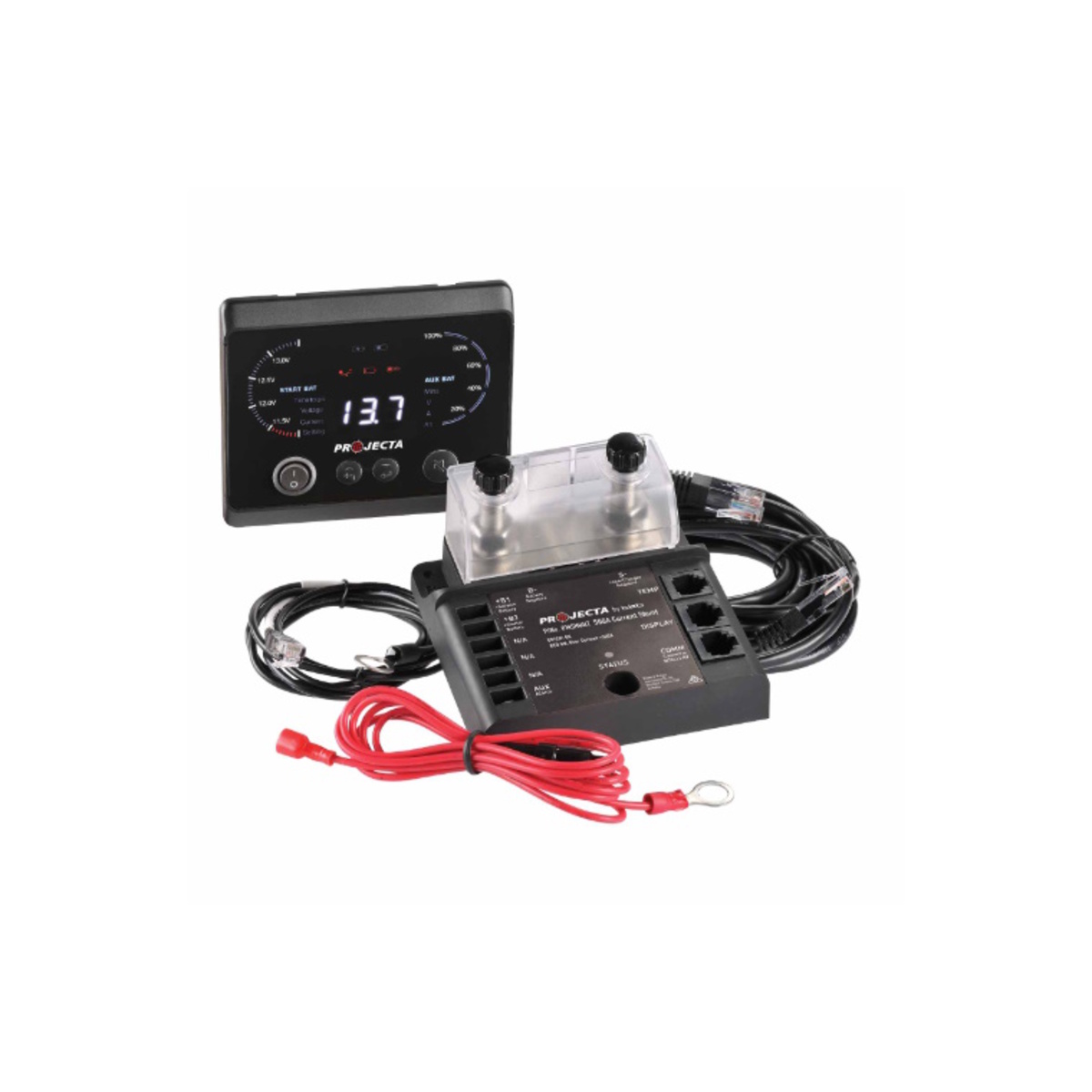

500A Bluetooth Battery Monitor Kit

Part No. BM500-BT

A clever combination of a smart shunt with an informative display and Bluetooth connectivity, the system displays critical primary and secondary battery information. Ideal for camper trailers, caravans, 4WD canopies and boats.

Key features include the ability to control and monitor via Bluetooth, an easy to read display, easy fitment, multi-chemistry compatible (AGM. Gel, Lithium).

Kit includes shunt, monitor and cables.

Features:

Rated to measure current up to 500A
Compatible with 12V DC, 24V DC or 48V DC batteries
Compatible with AGM, GEL, WET and Lithium batteries
Built-in Bluetooth™ allows users to connect to BM500-BT via Andriod or iOS app
Contact ratings 2A@30V DC or 0.5A@125V AC
Measurement accuracy:
– Current: +/- 0.4%
– Voltage: +/-0.3%
Supports CAN and RS485

Specifications:

Communication RS485, CAN
Nominal battery voltage 7~95V
Nominal current ±500A
Auxiliary battery voltage (+B1) 7~95V
Starter battery voltage (+V2,+V3) 1~95V, max support 2 batteries
Battery capacity 10~10000Ah
Battery type AGM / GEL / WET / LFP
Temperature sensor 1
Working temperature -20~50°C
Storage temperature -30~70°C
Voltage accuracy ±0.3%
Current accuracy ±0.4%
Continuous current 500A
Dimension BM500-BT Shunt: 105mm*105mm*63mm, Bluetooth Battery Monitor: 110x78 mm (front) / 99x67mm (bottom) / 32mm (total depth) / 23.5mm (installation depth)
IP 20
