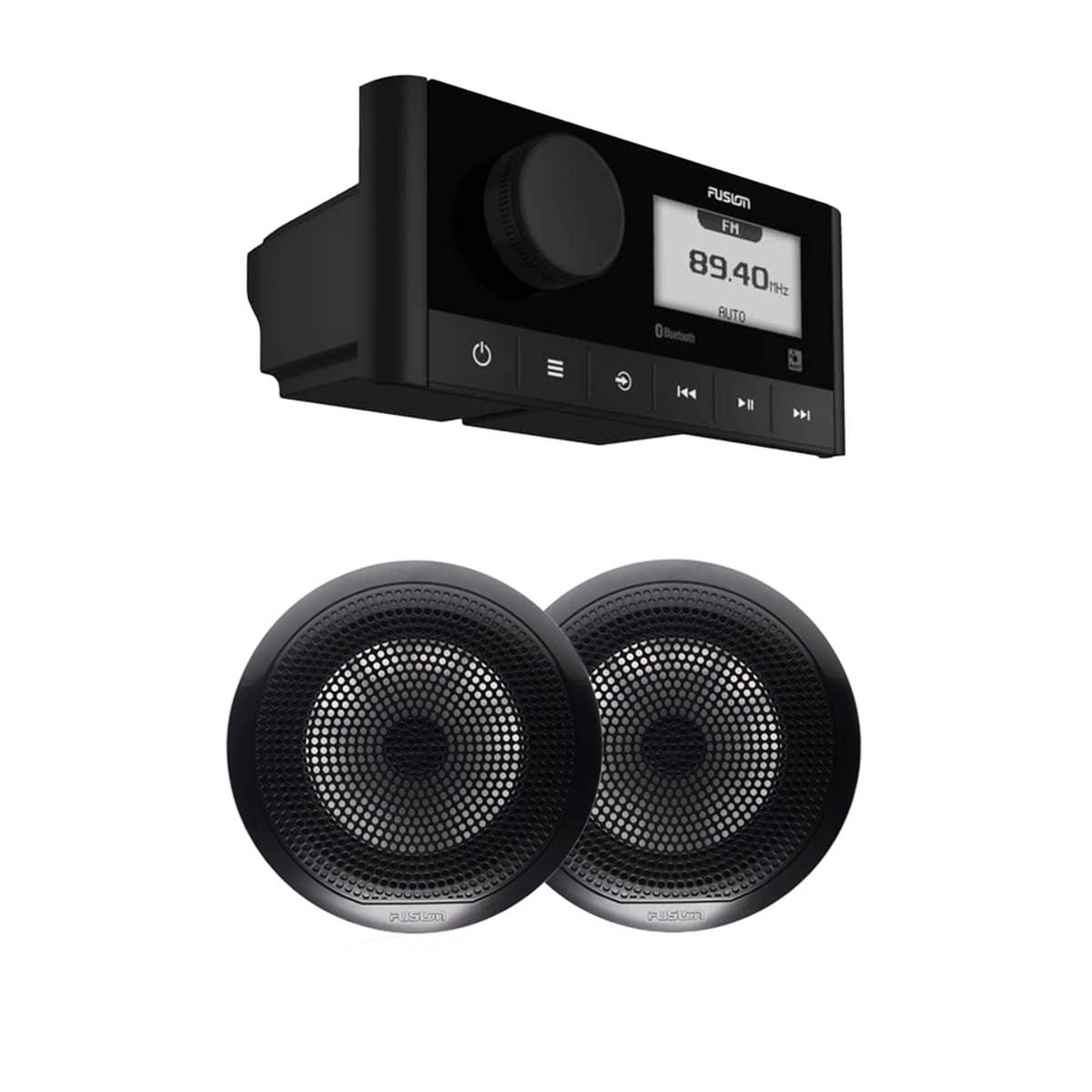

The Headunit
The MS-RA60 is Fusion's most economical marine stereo yet, featuring modern aesthetics, Multi-Zone™ technology in two zones and advanced connectivity options in a compact form factor. Designed for quality audio entertainment in the harsh marine environment, a perimeter bonded, anti-fogging LCD is integrated into the IPX6 and IPX7 water resistant black front face – making the MS-RA60 an attractive addition to your helm.
Features:
- Multi-Zone Technology: Up to two independent audio zones are available for a customized listening experience across your boat, each with advanced localized audio options, including volume limits, zone naming, tone control, balance and more.
- IPX6 and IPX7 Ingress Protection: The front panel of the MS-RA60 meets international IPX6 and IPX7 Water Ingress Protection standards, providing assurance that your product will perform and last in the harsh marine/outdoor environment when installed correctly (please refer to the installation instructions for specific details).
- Retrofittable: The MS-RA60 is designed to fit in the MS-RA55 mounting profile, eliminating the need to alter your existing cutout, reducing complexity when upgrading your stereo system.
- Class-D Amplifier Design: The built-in Class-D amplifier provides increased power while drawing less current than a standard Class-AB amplifier. The amplifier design delivers increased efficiency and power output, letting you enjoy your music at higher volumes for longer.
- Wireless Software Updates: Over-the-air software updates are now available from your compatible device via
MS-RA60 Specs:
- Physical Dimensions (WxHxD) - 6.18” x 2.68” x 4.06” (156.9 x 68 x 103.2 mm)
- Weight - 316 g
- Water Rating - IPX6 and IPX7 (front panel only, when properly installed)
- Power Input - 10.8-16 VDC
- Current (Max.) - 15 A
- BLUETOOTH® Wireless Range - Up to 30 ft (10 m)
- ANT® Wireless Range - Up to 10 ft (3 m)
- Compass-Safe Distance - 5.9” (150 mm)
- Display - 2.3” perimeter bonded monochrome dot matrix LCD
- Built-In Amplifier - Class-D (minimum 4 ohm impedance)
- Peak Power - 180 W
- Rated Power Output (4 ohm) -22 W rms x 4 @ 14.4 V input, 4 ohm, 10% THD
The Speakers

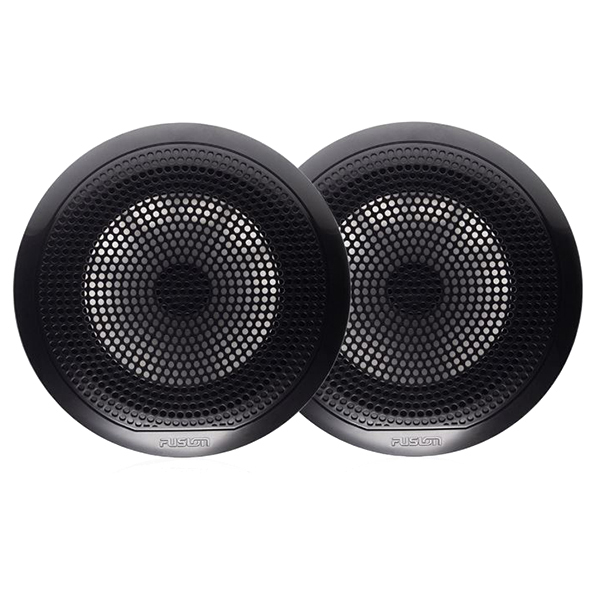

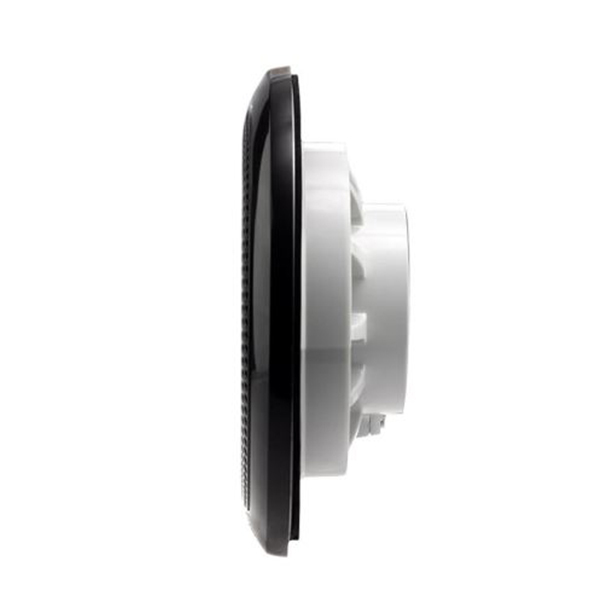

EL Series 6.5" Full Range Shallow Mount Marine Speakers!
Engineered for quality audio reproduction in the marine environment, the redesigned EL Series Full Range speakers feature a shallow basket design to provide versatility in mounting options.
Features:
- Shallow Basket Design
- Engineered for the Marine Environment
Specifications:
- Speaker Size: 6.5"
- Peak Power: 80W
- RMS Power Rating: 20W
- Efficiency (1W/1M): 84dB
- Frequency Response: 100Hz - 15kHz
- Impedance: 4 Ohms
- Cone Material: Polypropylene
- Mounting Diameter Clearance: 130mm (5-1/8")
- Mounting Depth Clearance: 43mm (1-11/16")
- Warranty: 1 year
