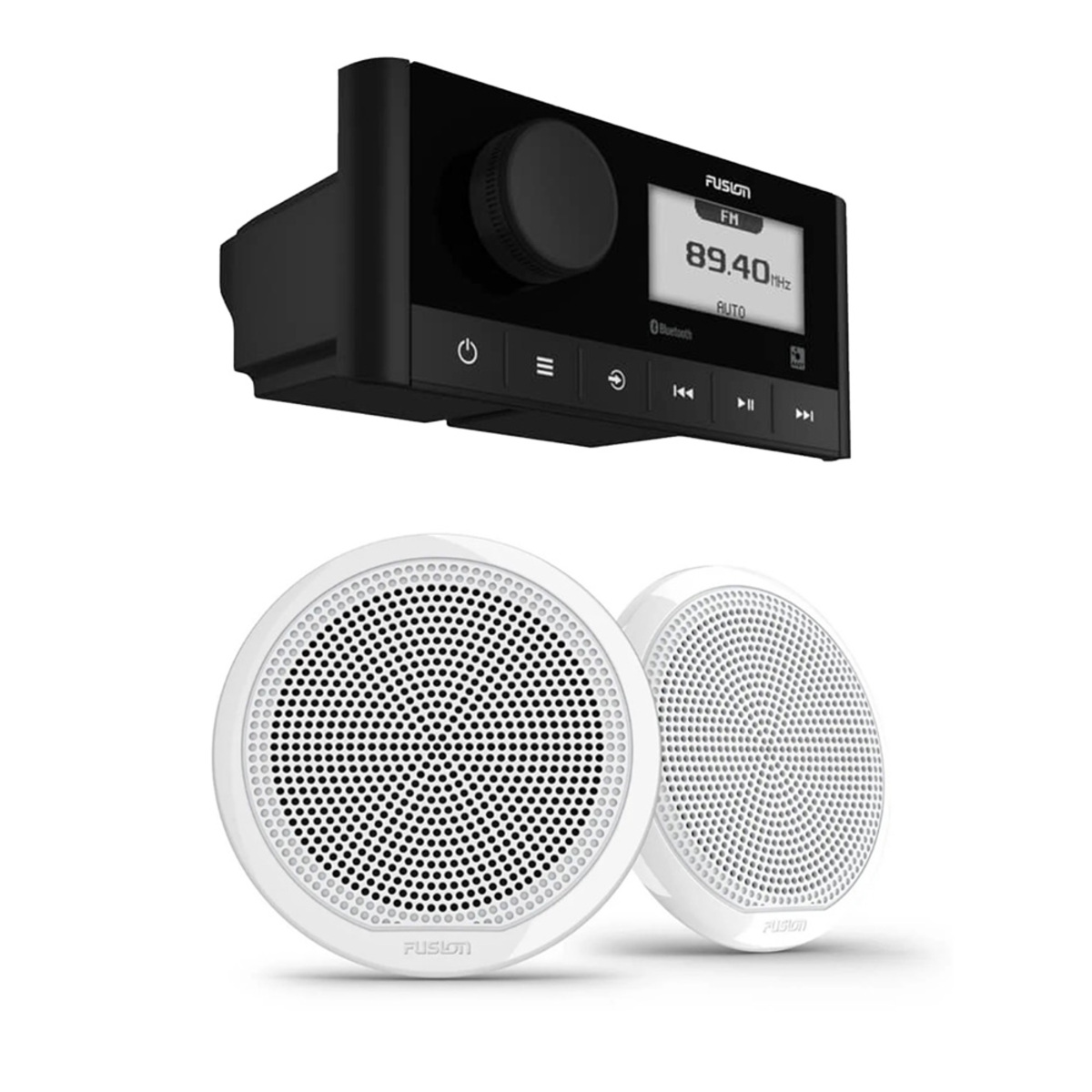

Fusion Ms-Ra60 Marine Stereo With El Series Classic 6.5" White Speakers

The Headunit

The MS-RA60 is Fusion's most economical marine stereo yet, featuring modern aesthetics, Multi-Zone™ technology in two zones and advanced connectivity options in a compact form factor. Designed for quality audio entertainment in the harsh marine environment, a perimeter bonded, anti-fogging LCD is integrated into the IPX6 and IPX7 water resistant black front face – making the MS-RA60 an attractive addition to your helm.

Features:

• Multi-Zone Technology: Up to two independent audio zones are available for a customized listening experience across your boat, each with advanced localized audio options, including volume limits, zone naming, tone control, balance and more.
• IPX6 and IPX7 Ingress Protection: The front panel of the MS-RA60 meets international IPX6 and IPX7 Water Ingress Protection standards, providing assurance that your product will perform and last in the harsh marine/outdoor environment when installed correctly (please refer to the installation instructions for specific details).
• Retrofittable: The MS-RA60 is designed to fit in the MS-RA55 mounting profile, eliminating the need to alter your existing cutout, reducing complexity when upgrading your stereo system.
• Class-D Amplifier Design: The built-in Class-D amplifier provides increased power while drawing less current than a standard Class-AB amplifier. The amplifier design delivers increased efficiency and power output, letting you enjoy your music at higher volumes for longer.
• Wireless Software Updates: Over-the-air software updates are now available from your compatible device via

MS-RA60 Specs:

• Physical Dimensions (WxHxD) - 6.18” x 2.68” x 4.06” (156.9 x 68 x 103.2 mm)
• Weight - 316 g
• Water Rating - IPX6 and IPX7 (front panel only, when properly installed)
• Power Input - 10.8-16 VDC
• Current (Max.) - 15 A
• BLUETOOTH® Wireless Range - Up to 30 ft (10 m)
• ANT® Wireless Range - Up to 10 ft (3 m)
• Compass-Safe Distance - 5.9” (150 mm)
• Display - 2.3” perimeter bonded monochrome dot matrix LCD
• Built-In Amplifier - Class-D (minimum 4 ohm impedance)
• Peak Power - 180 W
• Rated Power Output (4 ohm) -22 W rms x 4 @ 14.4 V input, 4 ohm, 10% THD

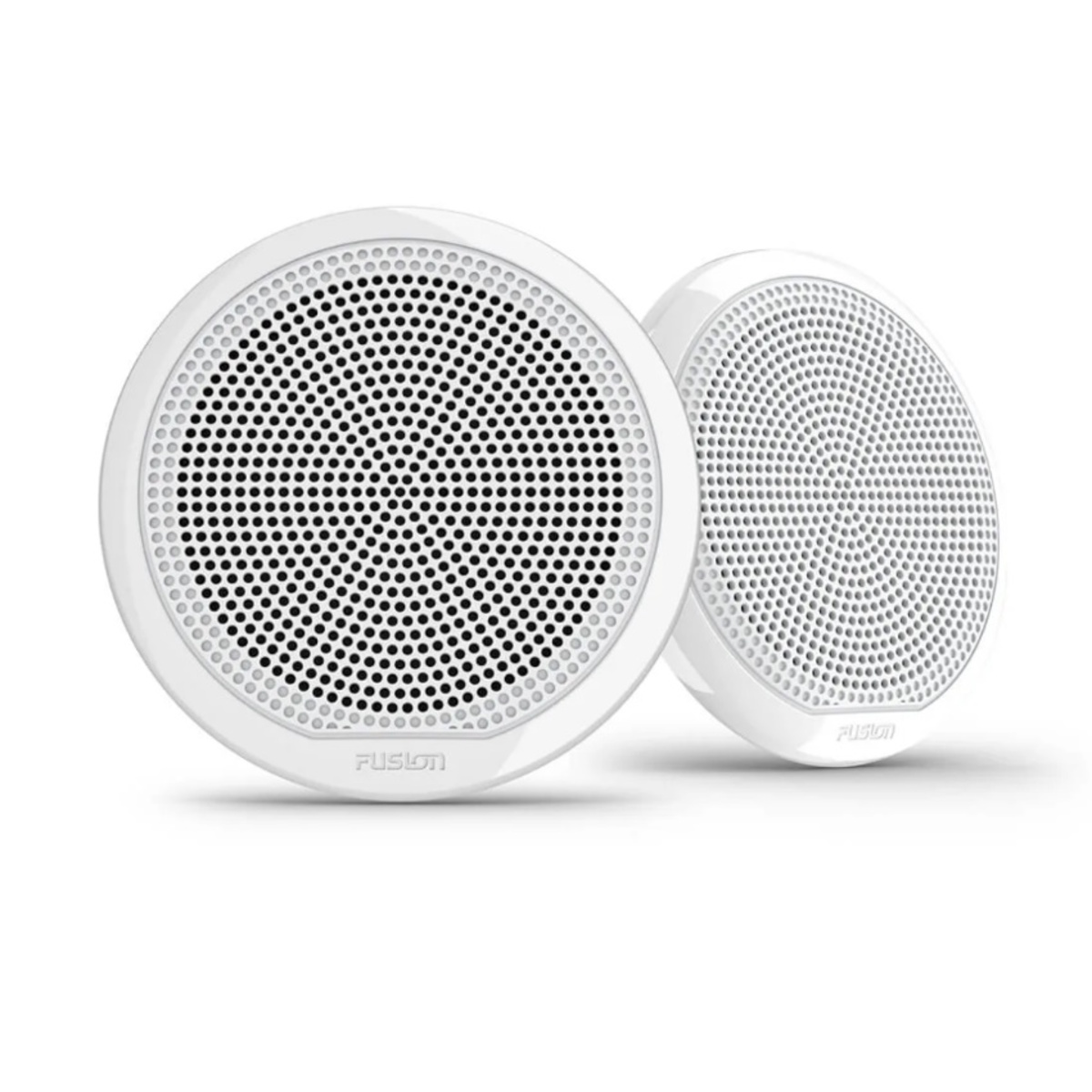

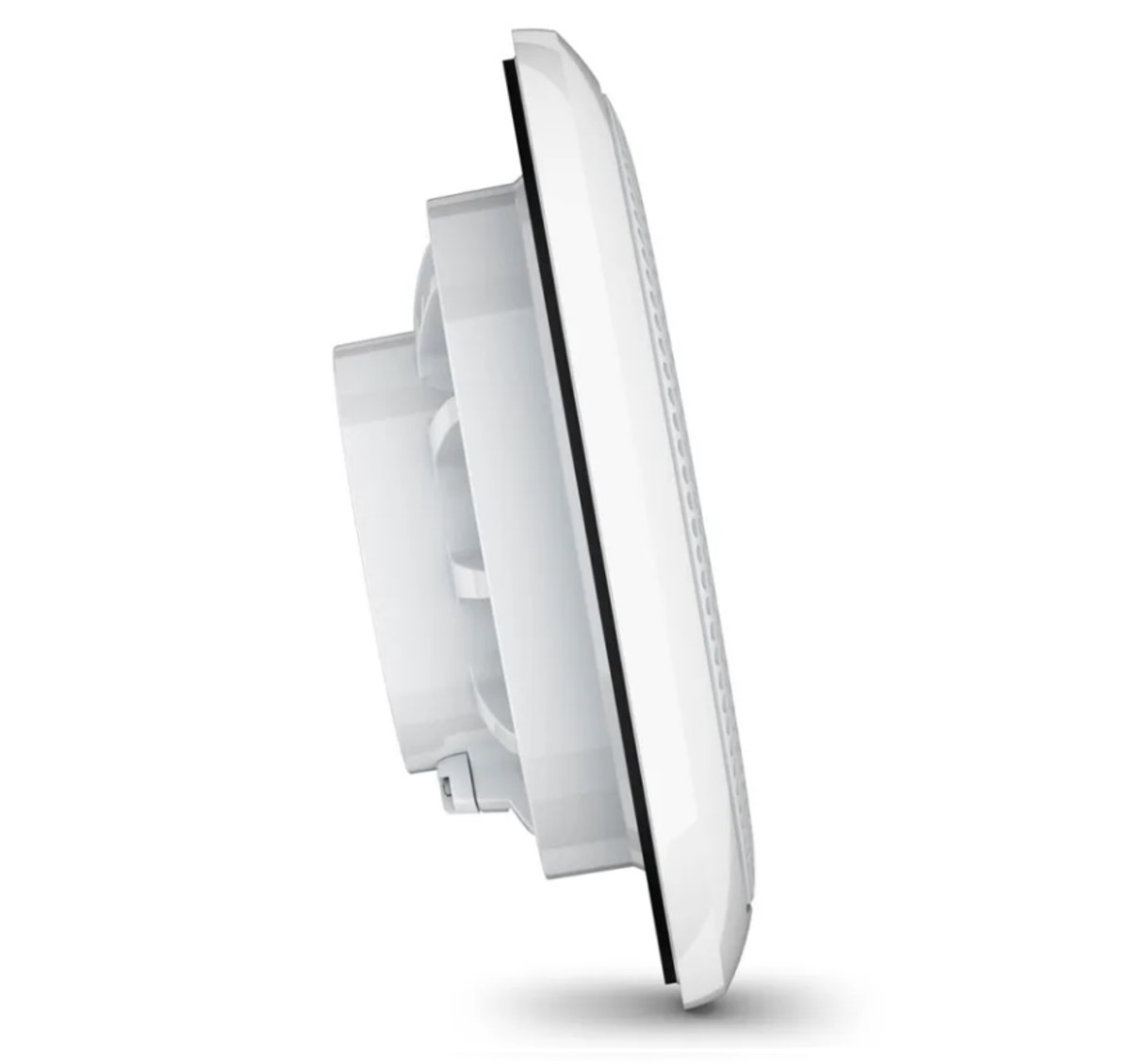

The Speakers

Enjoy quality audio to enhance your boating experience with the EL Series speakers from Fusion.

The EL Series speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog and UV.

Features:

• The injection-moulded polypropylene cone provides clean, clear audio reproduction.
• The shallow basket design provides increased versatility during installation.
• Salt fog resistant and UV stable design for the harsh marine environment.

Specifications:

• Weight Classic: 1.21 lbs (0.55 kg)
• Physical dimensions (diameter x depth) Classic: 6.93? x 2.26? (176 x 57.5 mm)
• Water and dust rating IP65
• Configuration Full range
• Speaker size 6.5?
• Peak power (Watts) 80 W
• RMS power (Watts) 20 W
• Sensitivity (1 W / 1 m) 91 dB
• Frequency response 45 Hz-16 kHz
• Nominal impedance 4 ohms
• Recommended amplifier power (RMS) 20-40 W/Ch
• Operating temperature range 32° to 122° F (0° to 50° C)
• Voice coil diameter 0.79?
• Cone material Polypropylene cone with cloth surround
• Compass-safe distance 100" (254 cm)
• Warranty 1 year
• Mounting diameter clearance 5.12? (130 mm)
• Mounting depth clearance 1.69? (43 mm)

In the Box:

• One pair of speakers (based on what you select)
• 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1?))
• Two 20 ft (6 metre) speaker cables
• Documentation
