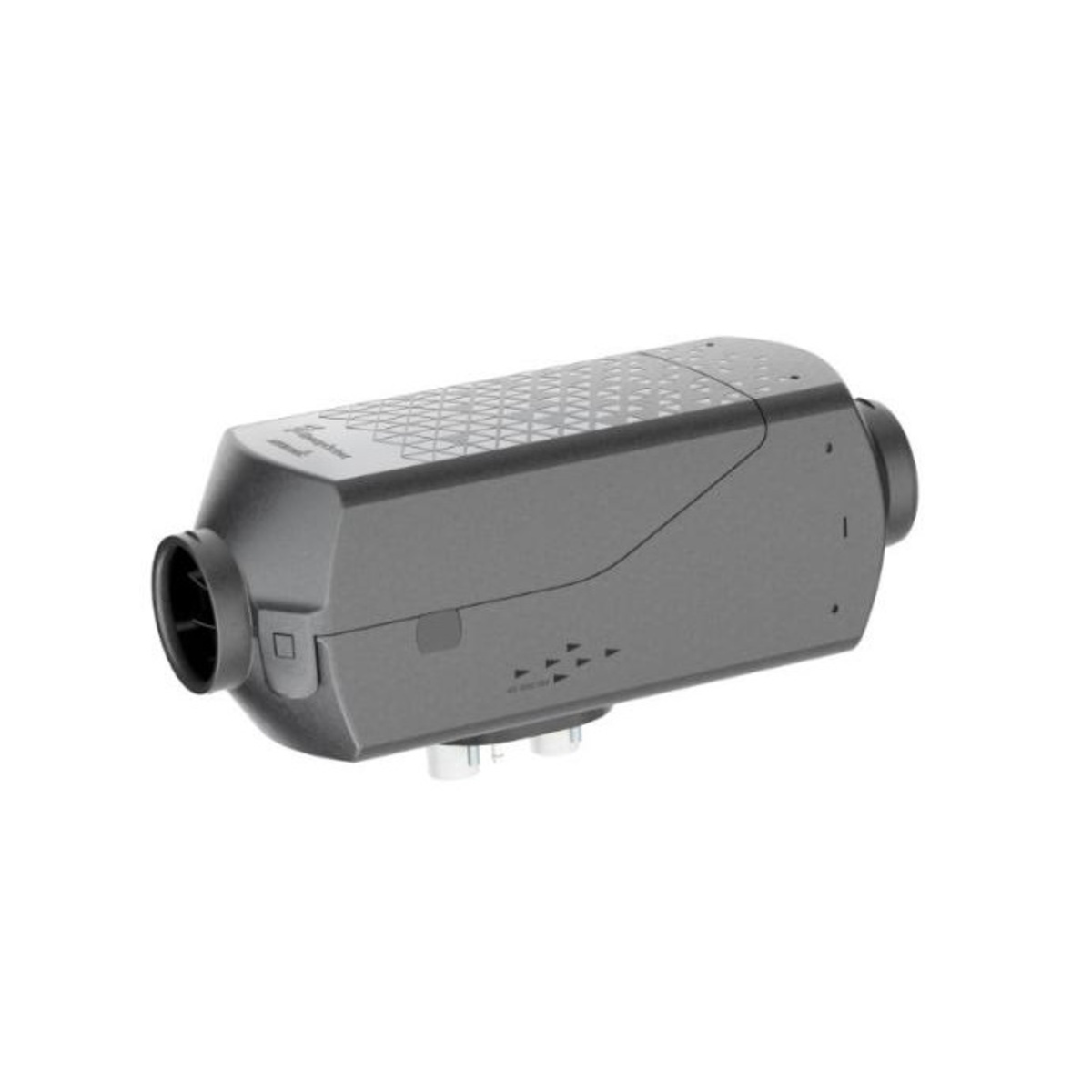

The Eberspacher Airtronic 2 is a second-generation diesel air heater for commercial and consumer applications that can be installed in boats, trucks, agricultural and contracting equipment, and recreational vehicles.
Eberspächer has completely revolutionised this product family to provide a unique combination of high heating performance and compact design. The Airtronic 2 features quiet operation, automatic altitude adjustment up to 3,000 m and flexible installation options with up to 90 degree tilt.

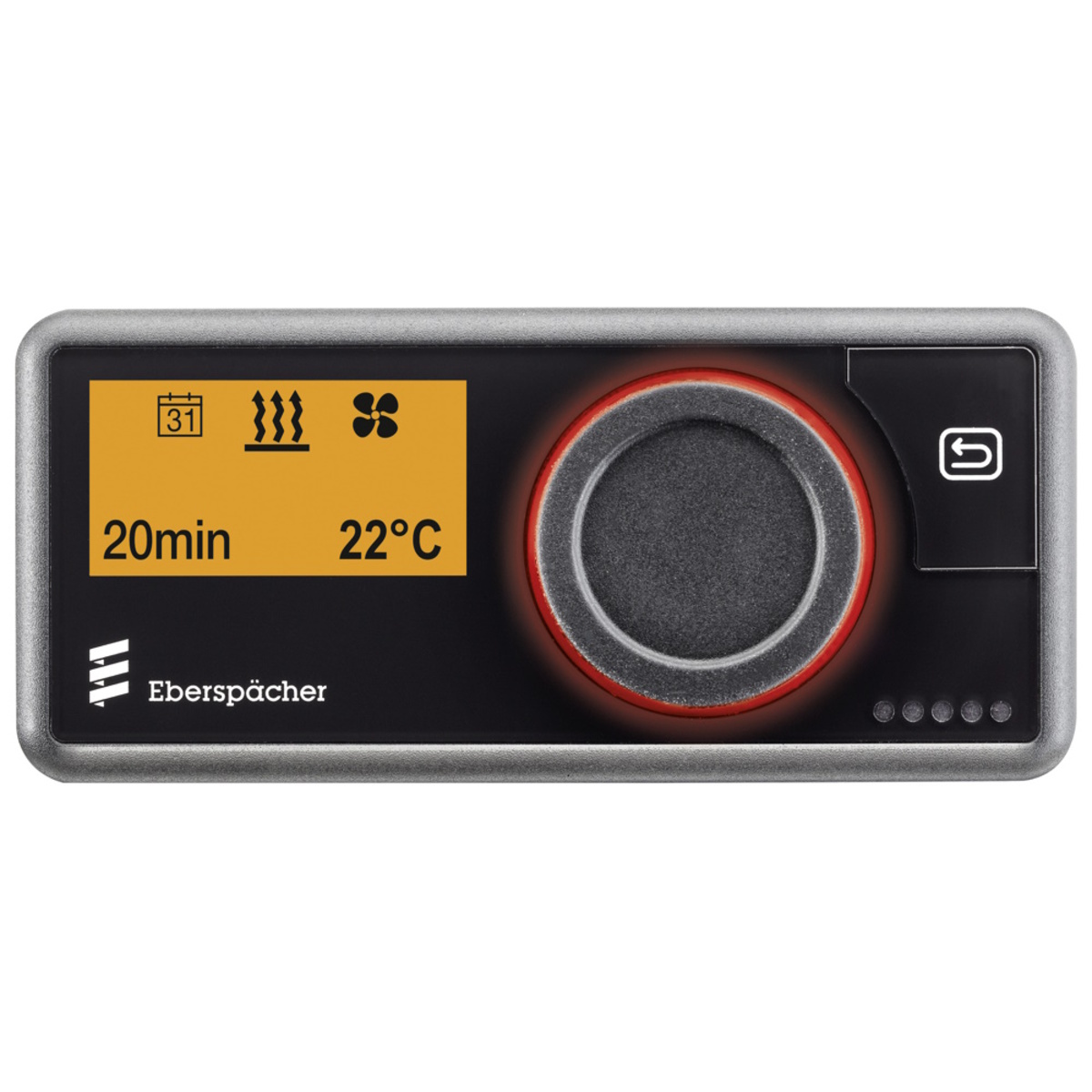

The Eberspächer EasyStart Pro control unit offers convenient and user-friendly operation of this Airtronic diesel heater. Compatible with all other control units, the Airtronic 2 is the perfect choice for those who want a heating system that is easy to use and operate.
Features:
- Patented housing design for improved plagiarism protection
- Lifetime of up to 5,000 operating hours due to brushless motor
- Backward compatibility through carry-over connections
- Sensor-controlled, optimized start-up sequences through measurement of environmental parameters
- Optimized heat air flow due to improved heat exchanger
- Maximum control with EasyStart Pro and EasyStart Web
- Compatibility with all other control units
- Diagnostics and parameter assignment via EasyScan
- Can also be integrated into on-board systems via CAN (12/24V), LIN (12V), S+(12/24V) interfaces
Advantages
- High heating power, yet compact design
- Automatic altitude adjustment up to 5,500 m*
- Flexible installation with 90° tilt possible to either side
- Stepless heating performance control ensures quiet operation

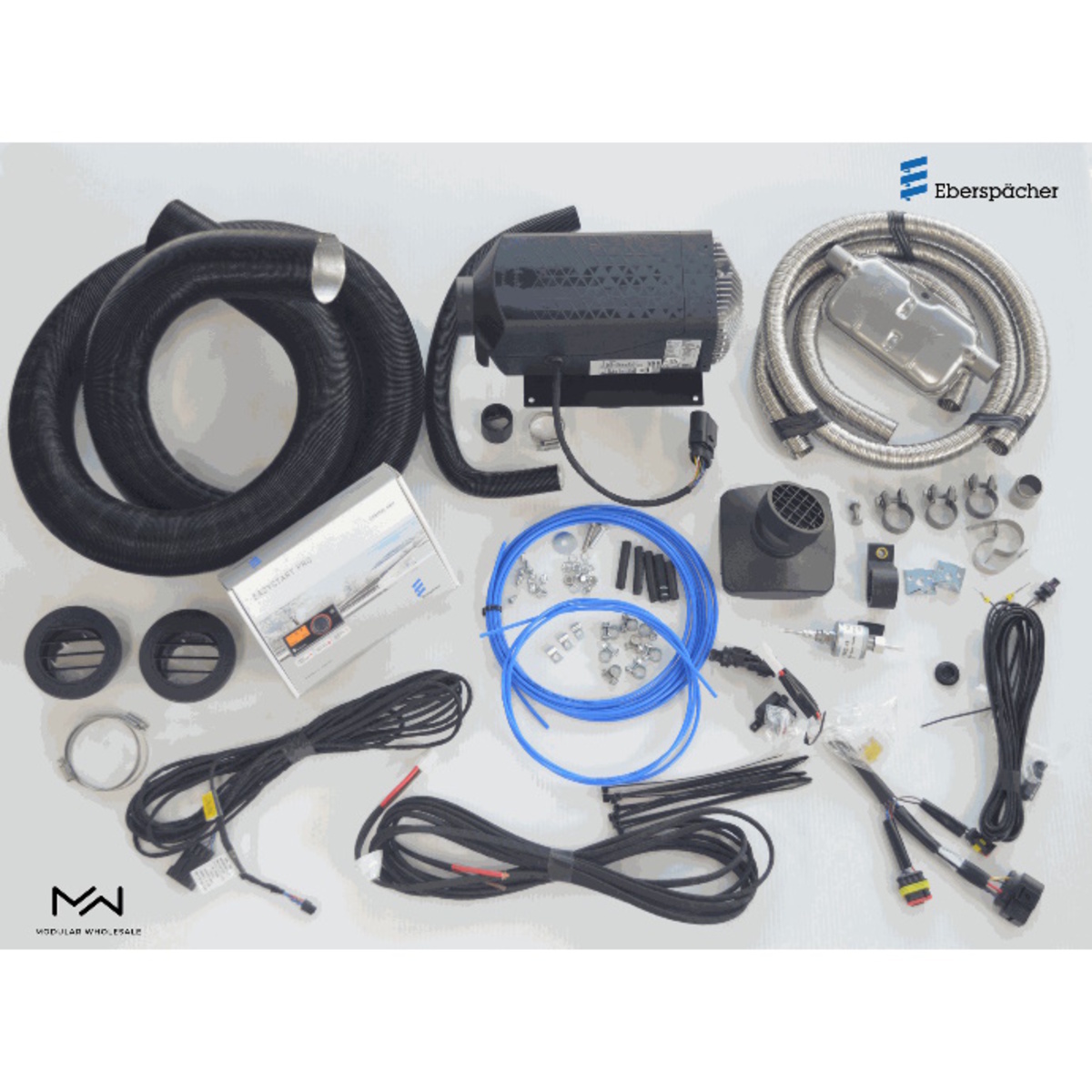

Kit Includes
- 1 x AIRTRONIC D2L AS3 D/HEATER BODY
- 1 x EASYSTART PRO CONTROLLER
- 1 x MOUNTING PLATE
- 1 x FUEL METERING PUMP INC PUMP HOLDER
- 1 x 6mtr FUEL LINE
- 1 x 2m S/STEEL EXHAUST PIPE & SILENCER
- 1 x 0.5m AIR INTAKE TUBE
- 1 x 2 METRES 60mm DUCTING
- 2 x 60mm VENT FLANGES & FLAT VENT COVERS
- 1 x WIRING HARNESS (plug & play throughout heater kit) & 6m
TWIN CORE POWER SUPPLY CABLE - 1 x MISCELLANY PACK, SCREWS & WASHERS, CLAMPS, P CLIPS, ZIP TIES, FUEL LINE JOINERS, WARRNTY CARD, QR CODE FOR DIGITAL
Specifications:
- FUEL - Diesel
- VERSION - D4R
- VOLTAGE (V) - 12
- HEATING CAPACITY (KW) - 1.05 – 4.0
- HEATING AIR FLOW RATE * (kg/h) - max. 190
- ELECTRICAL POWER CONSUMPTION (W) - max. 55
- FUEL CONSUMPTION (l/h) - 0.11 – 0.51
- OPERATING TEMPERATURE HEATER (°C) - -40 to +70
- WEIGHT (kg) - 4.4
- MAIN DIMENSIONS LXWXH (mm) - 376x140x150
