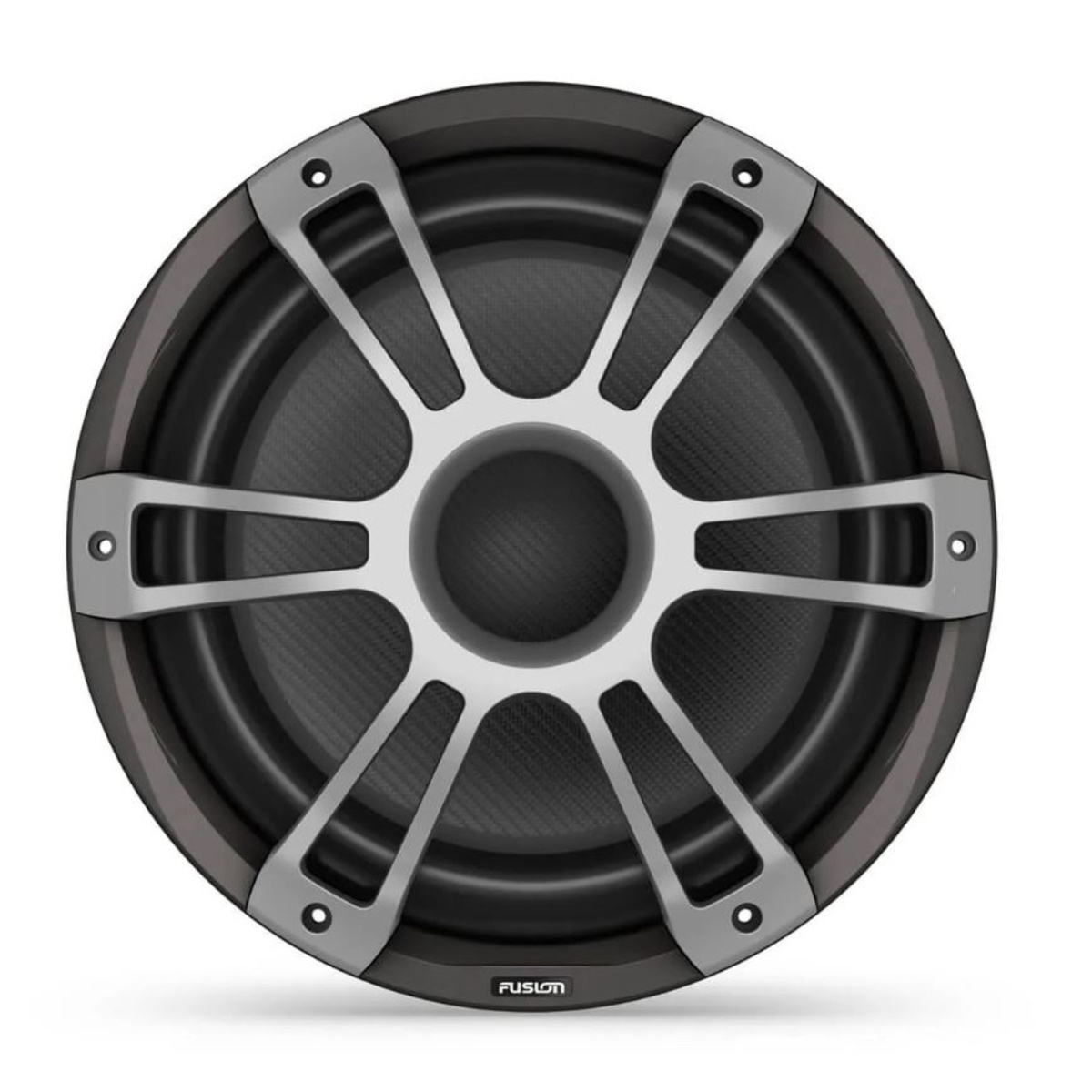

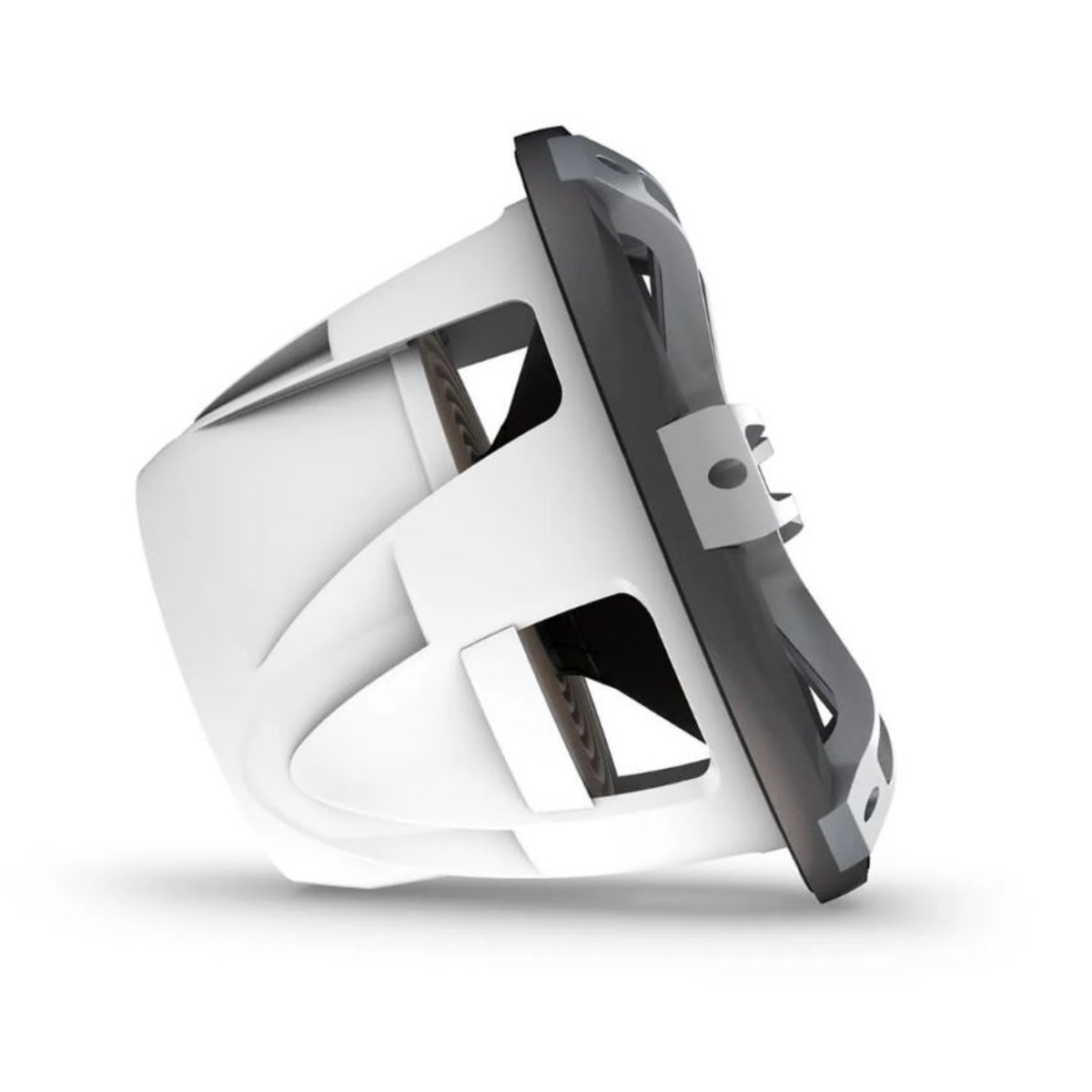

Fusion Signature Series 3I Marine Subwoofer

MADE FOR LIFE ON THE WATER, JUST LIKE YOU

Bring the thunder. The Signature Series 3i subwoofers deliver the drama with the premium low frequencies to enhance your listening experience.

Features:

• Crystal-clear premium sound quality is suited for the marine environment.
• Water-resistant connectors provide simplified installation and superior protection.
• The rigorously tested marinised design has an IP65 rating.
• Available in classic 10? design as well as 10? and 12? sports style design.
• CRGBW LED lights set the scene on your boat.
• Built to last season after season, the Fusion® Signature Series 3i Marine Subwoofers include a supported 3-year warranty.

Specifications:

• Physical dimensions (diameter x depth) 12" sports subwoofer: 14.02" x 10" (356 x 254 mm), 10" classic subwoofer: 10.83" x 6.38" (275 x 162 mm), 10" sports subwoofer: 10.83" x 6.77" (275 x 172 mm)
• Weight 12" CRGBW sports subwoofer: 24.1 lbs (10.93 kg), 10" CRGBW sports subwoofer: 11.3 lbs (5.12 kg), 10" sports subwoofer: 11.2 lbs (5.06 kg), 10" classic subwoofer: 11 lbs (4.98 kg)
• Water and dust rating IP65
• Peak power (Watts) 12" subwoofer: 1400 watts, 10" subwoofer: 600 watts
• RMS power rating (watts) 12" subwoofer: 700 watts, 10" subwoofer: 300 watts
• Sensitivity (1 watt @ 1 metre) 86 dB
• Magnetic structure 12" subwoofer: 114 oz, 10" subwoofer: 68 oz
• Frequency response 12" subwoofer: 20 Hz–2 kHz, 10" subwoofer: 30 Hz–2 kHz
• Nominal impedance 4 ohm
• Recommended amplifier power (watts RMS) 12" subwoofer: 200–1000 watts, 10" subwoofer: 50–600 watts
• LED lighting yes, CRGBW (sports style with LED models only)
• LED supply voltage 10.8–16 VDC (sports style with LED models only)
• LED load current @14.4 VDC (max) 300 mA (sports style with LED models only)
• Operating temperature range 32–122 degrees F (0–50 degrees C)
• Voice coil diameter 12" subwoofer: 4", 10" subwoofer: 2"
• Cone material Polypropylene cone with rubber surround
• Compass-safe distance 12" subwoofer: 181" (460 cm), 10" subwoofer: 205" (520 cm)
• Subwoofer connection Flying lead with water-resistant 2-way connector, 5.9" (150 mm)
• LED connection (sports style with LED models only) Flying lead with water-resistant 6-way connector, 5.9" (150 mm)
• Warranty 3 years

Mounting Dimensions

• Mounting diameter clearance 12" subwoofer: 12.05" (306 mm), 10" subwoofer: 8.78" (223 mm)
• Mounting depth clearance 12" subwoofer: 8.15" (207 mm), 10" subwoofer: 5.24" (133 mm)

Optimum enclosure recommendations

• Sealed enclosure volume (fully filled with absorption material) 12" subwoofer: 2.12 cubic ft (60 L), 10" subwoofer: 0.95 cubic ft (27 L)
• Ported (vented) enclosure volume (lined with absorption material) 12" subwoofer: 8.83 cubic ft (250 L), 10" subwoofer: 1.6 cubic ft (45 L)
• Port diameter 12" subwoofer: 4" (101.6 mm), 10" subwoofer: 4.1" (104 mm)
• Port length 12" subwoofer: 5" (127 mm) , 10" subwoofer: 10.43" (265 mm)

In the Box:

• One subwoofer (based on what you select)
• 6 Phillips stainless steel mounting screws, 4.8 mm x 50 mm (10 gauge x 2”)
• Water-resistant cable assembly with 2-pin connector (5.9" (150 mm))
• Water-resistant cable assembly with 6-pin connector ((5.9" (150 mm)); sports style with LED models only)
• Documentation
