SKU #

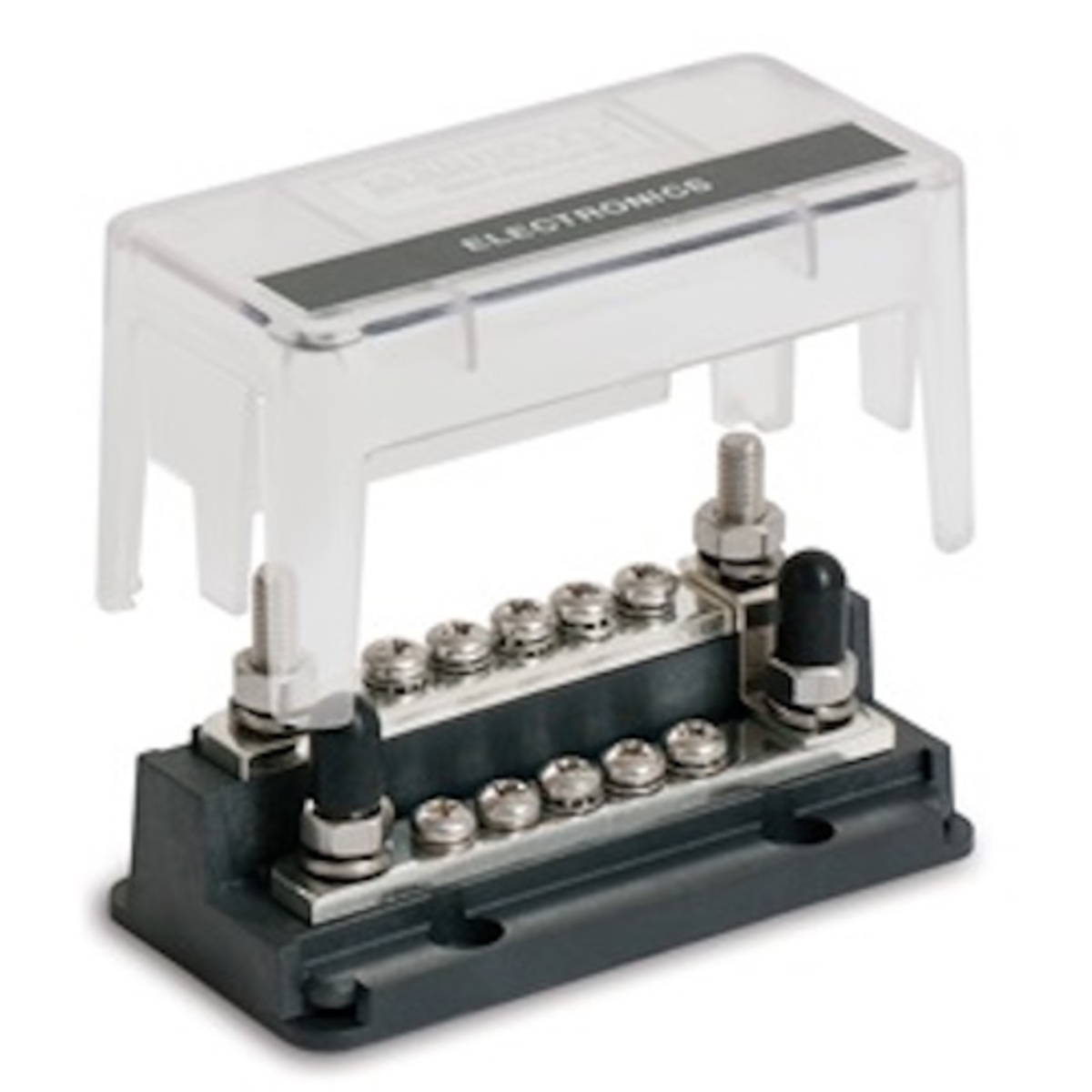

This patent-pending, space saving buss bar range is a completely new concept for marine cable termination. Offering almost unlimited installation flexibility, the high and low level bars can be bussed together with Z-Link or used as separate positive/negative bars. Pro Installer Z-Bars are available in (10) way and (18) way 200 Amp Z-Bar models for a variety of onboard applications.

Features:
  • Easily extend Z-Bars by placing on end or back-to-back
  • Clean installation-all cables can be run from one side of the Z-bar
  • Innovative clear covers insulate and protect on three sides and offer easy access

Specifications:
  • Length 98mm
  • Width 49mm
  • Height 51mm
  • 4x 6mm (1/4”) studs
  • 10 x 4mm (5/32”) terminals with captive
  • lock washers
  • 200A maximum per bar (2x 200A)
  • 50 VDC
  • High temperature, fibre reinforced plastic base provides strength and chemical resistance
  • Clear polycarbonate cover
  • Tinned CDA102 copper conductors, stainless steel studs, screws, and nuts for longevity in the marine environment.
  • All threads are metric
  • Studs have anti-seize lubrication applied to prevent thread galling
