The optimum combination of flexibility and strength

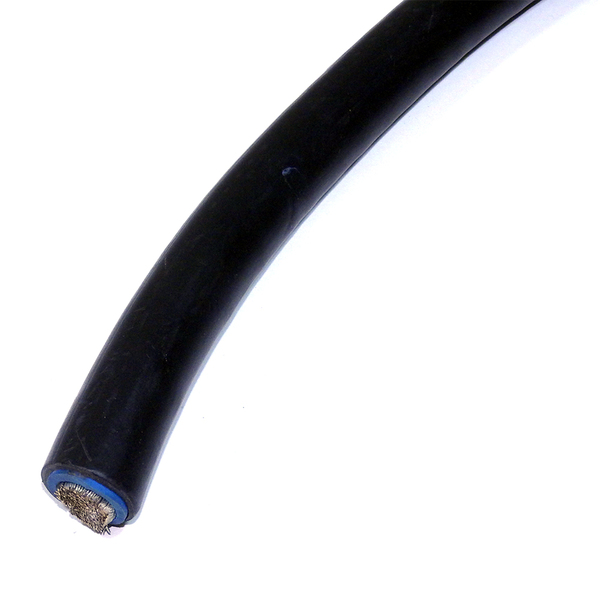

The GYY Marine Flexible Battery Cable is the finest quality marine electrical wiring cable around. This wire is designed for applications that require a high current, such as a starter motor, alternator or anchor winch. Very fine 0.2mm copper wires are used to construct a flexible conductor that complies with all international standards. A double insulation system is then extruded over the conductor to provide electrical strength and durability. The sheath does not sustain combustion and self-extinguished immediately upon removal of the flame source.
GYY Marine Flexible Battery Cable Features:
- Especially manufactured for optimum handling/installation
- Outstanding sheath flexibility dramatically improves ease of installation and stripping of cable ends is faster
- Low friction E-Rubber jacket with 110 degrees C rating
- Splash resistant to petrochemicals and acids
- UV and abrasion resistant
- Submersible to 500m
- Conductor high quality tinned and annealed fine strand copper to IEC 60228 and AS/NZS 1125
- Heavy duty 0.6/1 kV insulation rating
- Colour: Black (10-120mm)
- Metre marked 100M rolls, available by the metre
- Standards: AS/NZS 1125, 1660.5.1, 1660.5.6, 3008.1, 3808, AS/NZS 5000.1, IEC 60228, 60332-1, 60332-3-22
Current Rating Table:
| Conductor Size mm2 | Current Rating |
|---|---|
| 10mm | 86A |
| 16mm | 112A |
| 25mm | 149A |
| 35mm | 184A |
| 50mm | 232A |
| 70mm | 292A |
| 95mm | 352A |
| 120mm | 417A |
